ET 200SP Digital Input Modules: 6ES7131 vs 6ES7521 Compared

By Abdullah Zahid
16 min read

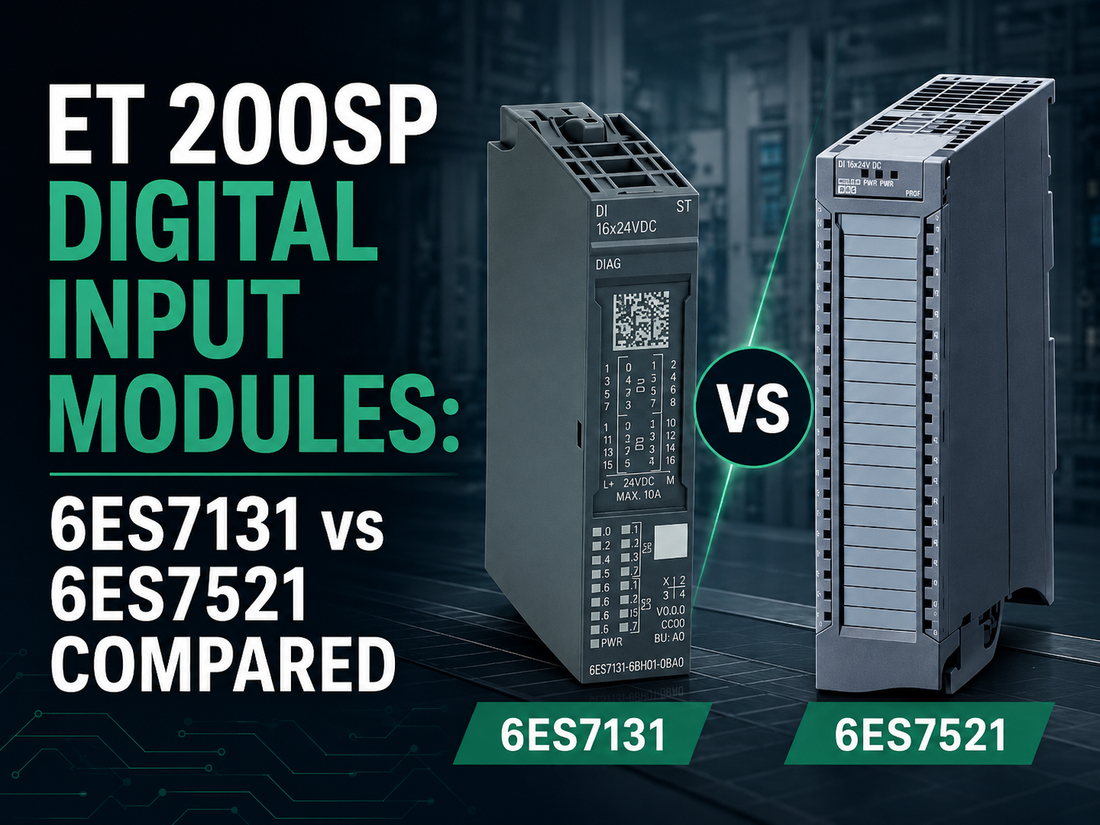

Siemens SIMATIC ET 200SP 6ES7131 digital input slice modules mounted on base units alongside S7-1500 6ES7521 DI rack module for comparison

SIMATIC ET 200SP Digital Input Modules (6ES7131) vs SIMATIC S7-1500 Digital Input Modules (6ES7521): Which Architecture Is Right for Your Project?

Controls engineers specifying digital inputs for a new S7-1500-based system or a panel rebuild face a foundational architecture question before they can select a single part number: should digital inputs live in a distributed ET 200SP station on PROFINET, or directly in the S7-1500 rack? The answer determines wiring runs, cabinet layout, network design, and the specific module family — either the SIMATIC ET 200SP Digital Input Modules carrying the 6ES7131 catalog prefix, or the SIMATIC S7-1500 Digital Input Modules carrying the 6ES7521 prefix. These are not interchangeable families, and the physical mounting systems are entirely different.

If you have already confirmed which family fits your architecture, check current pricing and availability for both ET 200SP and S7-1500 DI modules at LeadTime.ca — we ship worldwide and can validate part numbers before you commit to a build.

ET 200SP 6ES7131 vs S7-1500 6ES7521: Which One Belongs in Your System?

This comparison is right for you if you are working within the Siemens SIMATIC ecosystem and need to decide between distributed remote I/O and central rack I/O for digital inputs. Use the criteria below to qualify your selection before going deeper.

The 6ES7131 ET 200SP DI modules are the correct choice if all of these apply:

  • Your inputs are predominantly 24 V DC and sensors are distributed across a large machine or production line
  • You want I/O stations located near field devices to reduce field cable runs
  • Cabinet space is constrained and the slim slice form factor — approximately 50% narrower than earlier module families — is an advantage
  • You are working with an ET 200SP base unit and IM 155-6 PN interface module infrastructure, or planning to
  • Future modular expansion or hot-swap capability is a design requirement

The 6ES7521 S7-1500 DI modules are the correct choice if:

  • All or most I/O can be centralized in one or two main control cabinets
  • You need 230 V AC digital inputs — for example, the DI 16x230V AC BA (6ES7521-1FH00-0AA0) — integrated directly on the S7-1500 backplane
  • Your team prefers a rack-based layout with fewer remote PROFINET devices to manage

If neither profile fits cleanly, a mixed architecture using S7-1500 DI for the main panel and ET 200SP DI for remote sections is often the practical answer — and worth a conversation with a knowledgeable distributor before finalizing the BOM.

On this page:

What Each Module Family Actually Does in a Running System

The SIMATIC ET 200SP Digital Input Modules under the 6ES7131 prefix are slice-style I/O modules that mount on ET 200SP base units inside distributed field cabinets. They do not communicate with the CPU directly — they connect through an ET 200SP interface module such as the IM 155-6 PN, which presents the entire station as a PROFINET IO device to the S7-1500 or other Siemens PLC. The DI 16x24VDC ST (6ES7131-6BH01-0BA0) is a representative example: 16 input channels, rated 24 V DC supply, with a permissible voltage range of 19.2 V to 28.8 V, and parameterizable input delay times from 0.05 ms to 20 ms plus a fixed overhead, all configurable in TIA Portal. The slim module body — part of a family that is approximately 50% narrower than earlier module generations — allows dense I/O packing in remote enclosures.

The SIMATIC S7-1500 Digital Input Modules under the 6ES7521 prefix work differently at the hardware level. These are full-size rack modules that plug directly into an S7-1500 backplane, sharing the backplane with the CPU and power supply modules. No fieldbus interface or IP address is needed for the module itself — the CPU handles all communication. The S7-1500 DI family extends beyond 24 V DC: the DI 16x230V AC BA (6ES7521-1FH00-0AA0), for example, provides 16 AC input channels grouped in fours for 230 V AC signals, a capability the standard ET 200SP DI ST family does not match. This voltage range difference is often the deciding factor when sensor or supply design calls for higher AC inputs.

Typical System Architecture for Each Approach

Understanding where each family sits in the signal chain clarifies why they are not interchangeable and why the architecture decision comes first.

For a distributed ET 200SP DI architecture:

  • S7-1500 CPU in the main control cabinet connects to the plant PROFINET network
  • ET 200SP interface module (IM 155-6 PN) at each remote station acts as the PROFINET IO device endpoint
  • 6ES7131 DI slice modules mount sequentially on ET 200SP base units alongside the IM on a DIN rail in the field cabinet
  • Field sensors wire locally to the base unit terminals, minimizing long cable runs back to the main panel
  • TIA Portal configures each ET 200SP station as a separate distributed IO device with its own IP address

For a centralized S7-1500 DI architecture:

  • S7-1500 CPU occupies slot 1 of the S7-1500 rack in the main control cabinet
  • 6ES7521 DI modules occupy subsequent rack slots, communicating directly via the S7-1500 backplane
  • Field devices wire from the machine or process back to the main panel — longer cable runs but simpler network topology
  • No remote PROFINET device configuration is needed for these central modules; rack and slot assignment in TIA Portal is sufficient

Where Each Family Gets Used: Industries and Machine Types

ET 200SP DI modules with the 6ES7131 prefix are a natural fit for large production lines in manufacturing, automotive, food and beverage, and packaging where sensors are spread across multiple machine sections. Placing a distributed ET 200SP station near each section keeps field wiring short and allows the machine to grow section by section without re-running cables to a central panel.

In material handling and conveyor systems, ET 200SP stations are frequently mounted at conveyor zones, with each station handling the proximity switches and limit inputs for that zone. The hot-swap capability of ET 200SP modules reduces downtime during maintenance in these high-uptime environments.

S7-1500 DI modules under the 6ES7521 prefix are more common in compact machine panels, water and wastewater control rooms, and general factory automation where a single control cabinet is practical and field wiring distances are manageable. The 230 V AC input variants make the S7-1500 DI family the correct choice wherever legacy AC sensors or AC-powered limit switches feed the controller directly.

Mixed architectures appear frequently in plant-wide standardization programs: ET 200SP DI for field-mounted remote I/O and S7-1500 DI for core panel I/O on the same S7-1500 CPU project, configured in a single TIA Portal session.

Application Typical Deployment
Large multi-zone production line ET 200SP DI stations (6ES7131) at each zone, connected via PROFINET to central S7-1500 CPU
Compact single-panel machine S7-1500 DI modules (6ES7521) centralized on the S7-1500 rack, field wired to cabinet terminal strips
Mixed AC/DC sensor environment S7-1500 DI 16x230V AC BA (6ES7521-1FH00-0AA0) for AC inputs alongside DC DI modules in the same rack
Retrofit of existing ET 200SP stations to new S7-1500 CPU Existing 6ES7131 modules preserved on ET 200SP base units; TIA Portal updated with new CPU and retained ET 200SP devices
Conveyor and material handling zones ET 200SP DI slice modules at each conveyor zone for proximity and limit switch inputs, hot-swap capable
Water and wastewater control room S7-1500 DI modules on central rack with all field wiring returning to main panel

Side-by-Side Specification and Platform Comparison

The tables below cover the specifications and platform dimensions that matter most when making a purchase or architecture decision. Variant-specific data is noted where confirmed; do not generalize figures across all catalog variants without checking individual datasheets.

Role or Specification ET 200SP DI (6ES7131) S7-1500 DI (6ES7521)
System role Distributed I/O station on PROFINET Central rack I/O on S7-1500 backplane
Typical input voltage 24 V DC (ST, HF variants; variant-specific) 24 V DC and 230 V AC depending on module variant
Representative module example DI 16x24VDC ST (6ES7131-6BH01-0BA0) DI 16x230V AC BA (6ES7521-1FH00-0AA0)
Rated supply range (DI 16x24VDC ST) 19.2 V to 28.8 V DC 230 V AC (for AC BA variant)
Typical channel count per module 8 or 16 inputs (variant-specific) Often 16 inputs (variant-specific)
Module form factor Slim slice, approx. 50% narrower than earlier generations Full-size S7-1500 rack module
Mounting system ET 200SP base units (e.g. BU type A0) in distributed cabinet S7-1500 rack slots in main control cabinet
CPU connection method PROFINET via IM 155-6 PN interface module Directly via S7-1500 backplane; no fieldbus needed
Configurable input delay (DI 16x24VDC ST) 0.05 ms to 20 ms plus fixed overhead, parameterized in TIA Portal Variant-specific; consult individual module manual
Safety variants Separate ET 200SP safety DI modules; not the standard 6ES7131 ST prefix Separate S7-1500 safety DI modules; not the standard 6ES7521 BA prefix

Full technical specifications for ET 200SP and S7-1500 DI modules are available on the product pages at LeadTime.ca.

Decision Scenario Recommended Family Reasoning
Small machine, short cable runs, 24 V DC only S7-1500 DI (6ES7521) Simpler rack architecture, fewer remote devices, manageable wiring distances
Large production line, multiple panels, distributed sensors ET 200SP DI (6ES7131) Distributed stations near field devices cut wiring runs and simplify expansions
Mixed-voltage inputs: 24 V DC and 230 V AC S7-1500 DI (6ES7521) AC variants like DI 16x230V AC BA (6ES7521-1FH00-0AA0) not available in ET 200SP DI ST family
Retrofit of existing ET 200SP on new S7-1500 CPU ET 200SP DI (6ES7131) Preserves installed remote I/O base units; TIA Portal integrates ET 200SP devices with new CPU
Compact panel with strict space limits ET 200SP DI (6ES7131) Slim slice form factor, approximately 50% narrower than earlier families
Plant standardization on modular remote I/O ET 200SP DI (6ES7131) with S7-1500 DI for central panel Mixed architecture often optimal; confirm per section requirements
Team with limited PROFINET diagnostics experience S7-1500 DI (6ES7521) Central rack reduces remote device management when wiring distances allow

If your application falls into the mixed-voltage or distributed line category, confirm current stock and lead times for both families at LeadTime.ca before finalizing your BOM.

Expert Verdict: Scenario-Based Recommendation for ET 200SP 6ES7131 vs S7-1500 6ES7521

The SIMATIC ET 200SP Digital Input Modules under the 6ES7131 prefix are the right choice for engineers building distributed systems where 24 V DC inputs need to live close to field devices. The slim slice form factor — part of a family approximately 50% narrower than earlier generations — allows dense packing on ET 200SP base units in remote enclosures, reducing field wiring significantly on large lines. Hot-swap capability and modular expansion make ET 200SP DI stations a natural platform for machine builders who need to add sections without redesigning the main panel. If your inputs are predominantly 24 V DC, your sensors are spread across a large footprint, or you are retrofitting existing ET 200SP infrastructure onto a new S7-1500 CPU, the 6ES7131 family is the correct specification.

The SIMATIC S7-1500 Digital Input Modules under the 6ES7521 prefix earn their place when centralization is practical and when voltage requirements go beyond 24 V DC. The DI 16x230V AC BA (6ES7521-1FH00-0AA0) is the clearest example: 16 AC input channels grouped in fours for 230 V AC signals, installed directly on the S7-1500 backplane with no PROFINET interface module required. For teams that prefer a straightforward rack-based layout with fewer remote devices to configure and maintain, and where field wiring distances are manageable, S7-1500 DI modules reduce engineering complexity. Selecting ET 200SP for a system that could comfortably centralize its I/O on a single S7-1500 rack adds PROFINET configuration and remote device diagnostics overhead without a measurable benefit.

In practice, the strongest Siemens projects use both families: S7-1500 DI modules on the central rack for core panel I/O and AC voltage inputs, and ET 200SP DI remote stations for machine sections where field wiring would otherwise be prohibitive. The architecture decision drives the part number selection — not the other way around. If you are mid-specification and need to validate part-number families, confirm voltage class compatibility, or check current availability before committing to a build, the LeadTime.ca team can support that process directly — check the product pages at LeadTime.ca for current stock and pricing on both families.

For volume pricing, lead time confirmation, or help resolving an architecture question before finalizing your order, contact the LeadTime.ca team directly — we ship worldwide and work with controls engineers and procurement specialists at every stage of a project.

What Engineers Are Saying About ET 200SP and S7-1500 DI Modules

Community discussions on automation forums and Siemens support channels reflect a consistent pattern: engineers who work with ET 200SP DI modules under the 6ES7131 prefix tend to highlight the compact slice form factor, hot-swap capability, and the ability to scale station size to exactly the required I/O count. The ability to place a station near field devices and avoid long cable runs back to a main panel is frequently cited as the practical justification for choosing the ET 200SP architecture, particularly on large machines with multiple sub-sections. Some engineers have shared experiences migrating from older remote I/O platforms to ET 200SP, describing the transition as straightforward once TIA Portal hardware configuration is understood.

Recurring friction points for ET 200SP focus less on the DI modules themselves and more on the PROFINET infrastructure layer. Engineers new to distributed I/O sometimes underestimate the effort required to plan IP addressing, configure IM 155-6 PN interface modules correctly, and set up diagnostics routing in TIA Portal. There is also documented confusion about which base unit type is required for a given module and how many modules a single interface module can support — questions that are answered in the module manuals but that surface repeatedly in community threads, suggesting that part selection starts from the DI module rather than from the system architecture.

Sentiment around S7-1500 DI modules at the family level is positive, with engineers citing the clean rack-based layout and the direct integration with S7-1500 CPU diagnostics as practical advantages for maintenance teams. The most common complaint at the S7-1500 DI level is the field wiring burden in large plants: when every sensor must wire back to a central panel, cable costs and installation time add up quickly. Engineers who have compared the two approaches on large lines consistently favor pushing I/O out to ET 200SP stations and reserving S7-1500 DI slots for AC voltage inputs and core panel signals where the 6ES7521 family has no ET 200SP equivalent in the standard DI range.

Wiring and Installation Overview

  • ET 200SP DI modules (6ES7131) wire to field sensors at the base unit terminals; verify that the base unit type (e.g. BU type A0) matches the specific DI module before purchasing, as base units and modules must be compatible
  • S7-1500 DI modules (6ES7521) connect via front connectors on the S7-1500 rack; confirm front connector type compatibility for each module variant before ordering
  • For ET 200SP stations, ensure the PROFINET cable run from the IM 155-6 PN interface module to the network switch or CPU PROFINET port is within the supported topology limits for your network design
  • The DI 16x24VDC ST (6ES7131-6BH01-0BA0) accepts a supply voltage range of 19.2 V to 28.8 V DC — verify that the field supply at the remote cabinet meets this range before commissioning
  • For the DI 16x230V AC BA (6ES7521-1FH00-0AA0), channels are grouped in fours; plan wiring group assignments and isolation requirements before laying out terminal blocks

Required Accessories and System Expansion Hardware

Both module families require specific support hardware that must be ordered alongside the DI modules. Neither family is a standalone purchase.

For SIMATIC ET 200SP DI modules (6ES7131):

  • ET 200SP base units (e.g. BU type A0) — one per DI module; base unit type must match the specific DI module variant
  • ET 200SP interface module (e.g. IM 155-6 PN) — one per distributed station; acts as the PROFINET IO device endpoint for the station
  • Server module — required at the end of each ET 200SP station to terminate the backplane bus
  • Power supply module at the ET 200SP station if local load current budget requires it — check IM current budget against total module load

For SIMATIC S7-1500 DI modules (6ES7521):

  • S7-1500 rack — DI modules occupy numbered slots; rack capacity and CPU type determine how many modules can be installed
  • S7-1500 front connector — required for each DI module to terminate field wiring; verify connector type matches the module variant
  • S7-1500 system power supply (PS) or load current supply (PM) — confirm power budget covers all rack modules including DI channels under load

Wrong-Part Prevention: What Engineers Get Wrong When Choosing Between These Families

The checklist below captures the most common selection mistakes for this comparison. Review each point against your project before finalizing any purchase order.

  1. Confirm whether the project needs remote I/O over PROFINET or central rack I/O.
  2. Verify input voltage class (24 V DC vs 120/230 V AC) and match to sensor and supply design.
  3. Check compatible interface modules and racks: ET 200SP modules require ET 200SP base units and IM 155 modules; S7-1500 DI requires S7-1500 racks.
  4. Validate channel count and groupings per module against required I/O points and isolation groups.
  5. Confirm environmental limits and cabinet space for slice vs full-size modules.
  6. Ensure TIA Portal project structure supports the chosen architecture (remote device vs integrated rack).
  7. Avoid mixing assumptions: do not expect ET 200SP DI modules to install in an S7-1500 rack or vice versa.

If any item on this checklist raises a question about your specific part numbers or system configuration, contact the LeadTime.ca team before ordering — we can help verify compatibility and confirm current availability for both families worldwide.

Frequently Asked Questions

Can ET 200SP DI modules with the 6ES7131 prefix be installed directly in an S7-1500 rack?

No. ET 200SP DI modules are slice-style modules that mount on ET 200SP base units and connect through an ET 200SP interface module such as the IM 155-6 PN. They are physically and electrically incompatible with S7-1500 racks. Attempting to use them in an S7-1500 rack is not supported and will not function.

How do I mix ET 200SP DI and S7-1500 DI modules in a single TIA Portal project?

Mixed architectures are fully supported in TIA Portal. The S7-1500 CPU is configured with its central DI modules in the rack view, and ET 200SP stations are added as distributed IO devices on the PROFINET network view, each with its own IP address. Both are managed within the same TIA Portal project file. This is a common and well-documented configuration for large systems.

Which family supports 230 V AC digital inputs?

The S7-1500 DI family (6ES7521) includes 230 V AC variants, such as the DI 16x230V AC BA (6ES7521-1FH00-0AA0), which provides 16 AC input channels grouped in fours. The standard ET 200SP DI ST family under 6ES7131 focuses on 24 V DC inputs and does not include 230 V AC variants in that standard range. If your application requires 230 V AC digital inputs, the 6ES7521 family is the correct specification.

What are the parameterizable input delay options for the ET 200SP DI 16x24VDC ST (6ES7131-6BH01-0BA0)?

The DI 16x24VDC ST module supports parameterized input delay values ranging from 0.05 ms to 20 ms, plus a small fixed hardware delay, configured via TIA Portal parameters for the ET 200SP station. This allows the module to be tuned for different sensor response characteristics or noise rejection requirements. Consult the module manual for the complete list of selectable delay values.

Are there safety versions of these modules, and do they use the same catalog prefixes?

Safety variants exist for both families but use different catalog numbers. Safety ET 200SP DI modules are separate from the standard 6ES7131 ST prefix modules discussed here. Safety S7-1500 DI modules are likewise separate from the standard 6ES7521 BA prefix. If your application requires functional safety inputs, confirm the correct safety module catalog numbers independently — do not assume a standard module can be configured for safety functions.

How does diagnostics differ between ET 200SP DI and S7-1500 DI modules?

ET 200SP DI modules report module and channel diagnostics through the ET 200SP device in TIA Portal, which routes diagnostic information to the CPU diagnostics buffer over PROFINET. S7-1500 DI modules report diagnostics directly through the S7-1500 backplane to the CPU. Both approaches surface in the TIA Portal diagnostics view, but the network path and configuration differ. The depth of per-channel diagnostics available is variant-specific for both families — check individual module documentation rather than generalizing across all variants.

What changes in TIA Portal when I add an ET 200SP station compared to adding S7-1500 DI modules?

Adding S7-1500 DI modules involves placing them in rack slots in the device view — no network configuration is needed for the modules themselves. Adding an ET 200SP station requires inserting it as a distributed IO device on the PROFINET network, assigning it an IP address and device name, and then configuring the IM interface module and individual DI slot assignments within that device. The ET 200SP station must also be connected to the correct PROFINET interface on the CPU in the network view.

Why Order Through LeadTime.ca

  • Global shipping: LeadTime.ca sources and ships ET 200SP and S7-1500 DI modules worldwide — no geographic restrictions on orders
  • Part number validation: both the 6ES7131 and 6ES7521 families have multiple variants; the team can help confirm the correct catalog suffix before an order is placed
  • Availability and lead time checks: current stock status for Siemens SIMATIC modules changes; LeadTime.ca provides real-time availability confirmation before you commit to a build schedule
  • Volume pricing: contact for quantity pricing on larger BOM requirements across both module families
  • Distributor-level access: sourcing support for hard-to-find variants and lifecycle-sensitive parts in both the ET 200SP and S7-1500 product lines

At-a-Glance Summary

  • 6ES7131 = SIMATIC ET 200SP Digital Input Modules: distributed PROFINET I/O, 24 V DC focus, slim slice form factor approximately 50% narrower than earlier generations, mounts on ET 200SP base units with IM 155-6 PN interface module
  • 6ES7521 = SIMATIC S7-1500 Digital Input Modules: central rack I/O on S7-1500 backplane, includes 24 V DC and 230 V AC variants, full-size rack modules, no separate fieldbus interface needed
  • DI 16x24VDC ST (6ES7131-6BH01-0BA0): rated 24 V DC, permissible range 19.2 V to 28.8 V, 16 channels, parameterizable input delay 0.05 ms to 20 ms plus fixed overhead
  • DI 16x230V AC BA (6ES7521-1FH00-0AA0): 16 AC input channels grouped in fours, 230 V AC signals, only available in the S7-1500 DI family
  • ET 200SP modules cannot be installed in S7-1500 racks; S7-1500 DI modules cannot be installed on ET 200SP base units
  • Mixed architectures — central S7-1500 DI for main panel, ET 200SP DI for remote machine sections — are fully supported in TIA Portal and are common in large installations
  • Safety DI modules exist for both platforms but use different catalog numbers from the standard 6ES7131 and 6ES7521 prefixes
  • Current pricing and availability for both families require distributor confirmation; check LeadTime.ca for current stock
