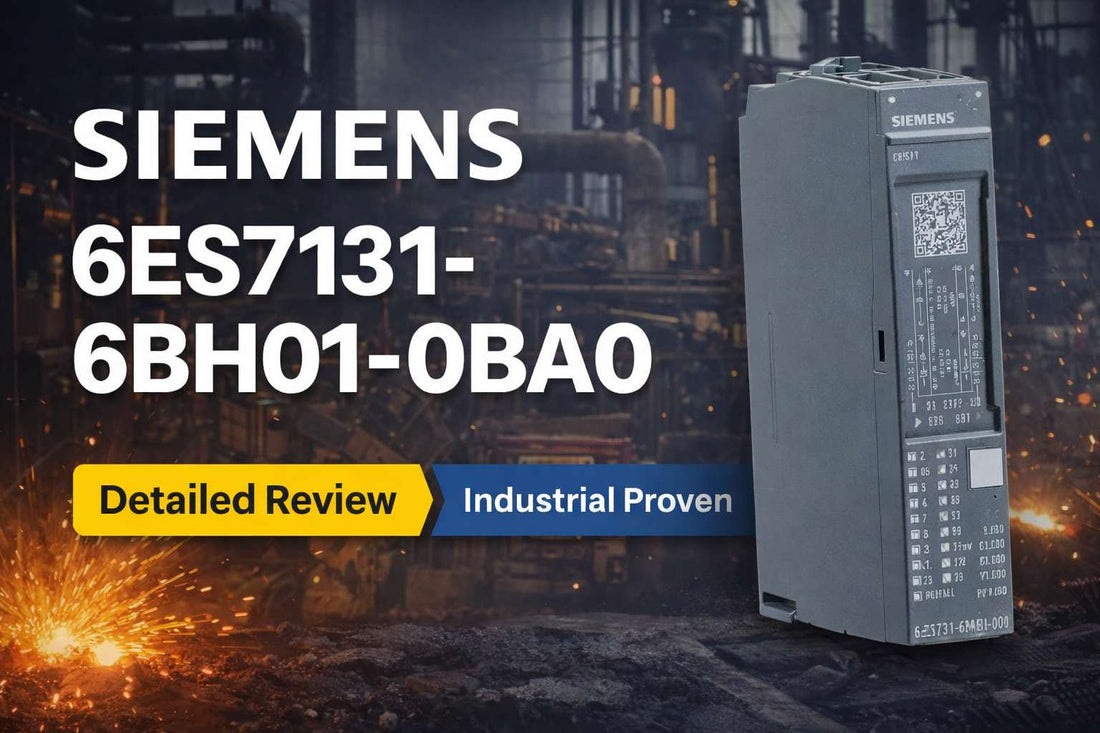

Siemens 6ES7131-6BH01-0BA0 SIMATIC ET 200SP DI 16x24VDC ST digital input module for distributed I/O automation stations

Siemens 6ES7131-6BH01-0BA0 SIMATIC ET 200SP Digital Input Module DI 16x24VDC ST — Specifications, Wiring and Selection Guide

Controls engineers and procurement specialists searching for the Siemens 6ES7131-6BH01-0BA0 are typically at a clear decision point: they have already committed to the SIMATIC ET 200SP distributed I/O platform and need to confirm that this 16-channel 24V DC digital input module matches their baseunit type, field wiring topology, and TIA Portal version before placing the order. This module — the DI 16x24VDC ST — reads discrete PNP signals from sensors, switches, and field devices across 16 channels, delivering galvanic isolation, parameterizable input filtering from 0.05 to 20ms, and integrated wire-break and supply voltage diagnostics through a BU-type A0 baseunit connection.

If you have already confirmed this is the right part, check current pricing and availability for the 6ES7131-6BH01-0BA0 at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7131-6BH01-0BA0 — and Who Shouldn't

This module is the correct choice when your distributed I/O station requires exactly 16 channels of 24V DC digital input acquisition in a single ET 200SP slot. Buy this part if all of the following apply:

  • Your field devices output 24V DC signals at nominal voltage (typical range 19.2–26.4V DC)
  • Your sensors or switches are PNP (sourcing) type — P-reading input mode is fixed on this module
  • Your ET 200SP station uses a BU-type A0 baseunit — this is the only compatible baseunit for this module
  • Your TIA Portal installation is Version 14 or later — earlier versions do not support native configuration of this module
  • Your CPU is an S7-1500 or an ET 200SP CPU module — other controller families are not confirmed compatible
  • You need 16 input channels in a single module slot, not 8 or 32

If your sensors are NPN (sinking) type, the correct alternative is the 6ES7131-6BH02-0BA0 (N-reading, 16-channel). If you need only 8 channels, consider the 6ES7131-6BF01-0BA0 instead.

On this page:

What the 6ES7131-6BH01-0BA0 Actually Does in a Live System

The SIMATIC ET 200SP Digital Input Module DI 16x24VDC ST is a signal acquisition front-end for distributed I/O stations. It does not process logic — it reads the on/off state of 16 field devices simultaneously and maps those states into 2 bytes of input data plus 2 bytes of quality information (QI) in the CPU's I/O image. The QI bytes are what separate this module from a passive terminal block: they carry channel-level fault flags that allow a PLC program to distinguish between a genuine input state change and a wiring fault or power supply anomaly.

The input delay filter, configurable between 0.05ms and 20ms in STEP 7 TIA Portal, allows engineers to suppress electrical noise without introducing excessive scan delay. For mechanical switches and contactors, a filter setting of 3–10ms is typical. For sensors installed near high-current devices, 5–20ms prevents spurious transitions. Galvanic isolation is verified at 707V DC type test, which provides adequate separation between field wiring and backplane in most industrial control cabinet environments.

Wire-break detection and supply voltage monitoring are both integrated and parameterizable — not add-on features requiring separate hardware. Supply voltage monitoring thresholds are set in TIA Portal; wire-break detection requires an optional protective circuit in the field wiring but activates a diagnostic alarm immediately upon detecting an open circuit. Systems with integrated diagnostics like this typically detect 90% or more of field wiring faults within the first 1–2 seconds of anomaly occurrence, reducing blind troubleshooting time substantially on production lines.

Where This Module Sits in a Typical ET 200SP Architecture

The 6ES7131-6BH01-0BA0 sits at the field signal acquisition layer of a distributed I/O station, positioned between the CPU backplane communication path and the physical field devices. Its role in the data chain is to convert 24V DC field-level signals into digital values readable by the controller over PROFINET or PROFIBUS.

  • S7-1500 CPU or ET 200SP CPU module communicates over PROFINET to the ET 200SP interface module at the head of the station
  • The interface module distributes addressing and power to all modules in the station via the backplane bus
  • The 6ES7131-6BH01-0BA0 mounts on a BU-type A0 baseunit, which provides the physical terminal connections and backplane power rail
  • Field sensors (PNP, 24V DC sourcing) connect to the module's 16 input terminals via the baseunit connector — 1-wire, 2-wire, 3-wire, or 4-wire topology depending on whether a potential distributor module is present
  • Input states and quality/fault bytes are read by the CPU on each scan cycle; diagnostic alarms are routed to the CPU's error handling routine via the TIA Portal configuration

Industries and Applications That Use the DI 16x24VDC ST

The 6ES7131-6BH01-0BA0 is a workhorse module in any environment where discrete 24V DC signals from switches, proximity sensors, or photoelectric sensors need to be collected at a distributed point remote from the main control cabinet. In discrete manufacturing — automotive assembly, electronics production, and general machinery — it collects machine status signals including run, stop, fault, and cycle-complete across production line stations without running all wiring back to a central cabinet.

In conveyor and material handling systems, the module acquires limit switch and photoelectric sensor inputs at sorting stations, transfer points, and accumulation zones. The 16-channel density means a single module covers an entire conveyor segment's discrete input requirements in one slot, keeping station footprint compact.

Packaging machinery and multi-station automation cells use this module to read position feedback from pneumatic solenoid valve sensors, where the parameterizable input filter is particularly useful for filtering pneumatic actuation bounce. In pharmaceutical and food/beverage processing, the same module appears in sanitary machine guarding applications reading door interlocks and emergency stop feedback. Water/wastewater and HVAC building automation use it in remote measurement stations where scalable I/O architecture is built around ET 200SP distributed stations.

Application Typical Deployment
Automotive assembly line monitoring 16-channel DI module per station reading run/stop/fault signals from machine axes
Conveyor and sorting systems Photoelectric and limit switch inputs at each transfer point in an ET 200SP station
Machine guarding and safety feedback Reading emergency stop and door open/close contacts from guarding circuits (non-safety-rated)
Pneumatic valve position sensing Multi-station automation with solenoid valve proximity feedback across 16 channels
Pharmaceutical/food processing Distributed ET 200SP stations monitoring process status at sanitary zone boundaries
Building automation and HVAC Remote I/O stations in large facilities reading discrete status from HVAC field devices

Purchase-Decision Specifications for the 6ES7131-6BH01-0BA0

Parameter Value
Number of Input Channels 16 digital 24V DC channels
Input Voltage 24V DC nominal
Input Mode P-reading (PNP / sourcing)
Input Type Type 3 (IEC 61131-2), digital on/off
Input Delay Filter 0.05–20ms, parameterizable in STEP 7 TIA Portal
Galvanic Isolation 707V DC type test
Address Space 2 bytes input + 2 bytes quality information (QI)
Baseunit Compatibility BU-type A0 only
Mechanical Coding Type A (prevents inverted or incorrect module insertion)
TIA Portal Support / Firmware STEP 7 TIA Portal V14 or later; Firmware V0.0 (not updateable); from hardware functional status FS02

Full technical specifications are available on the product page at LeadTime.ca.

6ES7131-6BH01-0BA0 vs. Other ET 200SP DI Modules — Which One Do You Need?

Model Channels Input Mode Packing Unit Choose When
6ES7131-6BH01-0BA0 16 P-reading (PNP / sourcing) 1 piece Standard choice for 16-channel 24V DC PNP input in ET 200SP stations
6ES7131-6BH01-2BA0 16 P-reading (PNP / sourcing) 10 pieces Volume order of the same module — identical functionality, bulk pack
6ES7131-6BH02-0BA0 16 N-reading (NPN / sinking) 1 piece Field devices are NPN (sinking) type; same 16-channel density with opposite polarity
6ES7131-6BF01-0BA0 8 P-reading (PNP / sourcing) 1 piece Compact stations with 8 or fewer inputs; smaller footprint per station
6ES7131-6BF02-0BA0 8 N-reading (NPN / sinking) 1 piece 8-channel NPN input requirement; sinking alternative to 6BF01
6ES7132-6BH01-0BA0 16 24V DC output (DQ) 1 piece Complementary digital output module — not a DI; use alongside this module for mixed I/O stations

If your field wiring uses NPN (sinking) sensors exclusively, the 6ES7131-6BH02-0BA0 is the correct 16-channel alternative — check current availability for the 6ES7131-6BH01-0BA0 or contact LeadTime.ca to confirm the N-reading variant.

Expert Verdict: Is the 6ES7131-6BH01-0BA0 the Right Module for Your Build?

The 6ES7131-6BH01-0BA0 earns its place as the default 16-channel digital input choice in ET 200SP distributed I/O builds. The combination of parameterizable input filtering (0.05–20ms), integrated wire-break detection, and supply voltage monitoring in a single slot addresses the three most common field-level failure modes — electrical noise, open-circuit wiring, and supply sag — without requiring additional hardware. The automatic hardware encoding in TIA Portal V14+ removes a meaningful source of commissioning error, and SIMATIC ET 200SP's standardized platform means spare modules are interchangeable across sites running the same architecture, which directly reduces spare parts inventory overhead in multi-site manufacturing environments.

Where this module has real limits: it is strictly P-reading (PNP/sourcing). Engineers wiring to NPN sensors will get no input acquisition and will need to order the 6ES7131-6BH02-0BA0 instead — a mistake that is easy to make when sourcing from a part number without reviewing the input mode designation. The BU-type A0 baseunit requirement is also non-negotiable; there is no workaround if the wrong baseunit is already installed. For applications with fewer than 8 inputs or for standalone systems where a full ET 200SP station is overkill, the DI 8x24VDC ST (6ES7131-6BF01-0BA0) or an S7-1200/S7-1500 with integrated I/O is a more cost-effective fit. Finally, Firmware V0.0 is not updateable — what ships is what you run, which is not a limitation in practice but worth noting for sites with strict firmware management policies.

From a procurement standpoint, the 6ES7131-6BH01-0BA0 is a standard catalog item in the SIMATIC ET 200SP line and is broadly stocked. The 10-piece packing variant (6ES7131-6BH01-2BA0) offers better per-unit economics for projects requiring multiple modules in the same station build. Lead times can shift with broader industrial automation supply conditions — confirming current stock before locking a project schedule is worthwhile. If this module matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

  • This module mounts exclusively on a BU-type A0 baseunit; mechanical coding Type A physically prevents insertion in incompatible baseunit types — verify baseunit part number and confirm the A0 designation before installation
  • Field device connections support 1-wire, 2-wire, 3-wire, and 4-wire topologies; 2-wire through 4-wire configurations require a potential distributor module installed on the baseunit to provide multiple isolated supply paths
  • Input mode is P-reading (PNP/sourcing): sensors must provide a pull-to-positive-supply signal on each input terminal (IN0–IN15); connect 24V DC negative (ground) from the baseunit power rail to all sensor ground lines
  • For wire-break detection to activate diagnostic alarms, an optional protective circuit must be present in the field wiring — this is not automatic without the protective circuit, so plan the wiring design accordingly if diagnostics are required for safety-critical inputs
  • After physical installation, verify the green power LED illuminates on the module front; a red diagnostic LED at startup indicates a wiring or power supply fault — check 24V supply continuity, polarity, and baseunit seating before consulting the product manual for fault codes

Compatible Baseunits and Expansion Accessories

The 6ES7131-6BH01-0BA0 operates within the SIMATIC ET 200SP ecosystem. The following components are referenced in the product documentation and are relevant to a complete station build:

  • BU-type A0 baseunit — the only compatible baseunit for this module; provides backplane connection, terminal block, and 24V DC supply rail to module inputs
  • Potential distributor module — required when using 2-wire, 3-wire, or 4-wire connection topologies to provide additional isolated voltage supply paths on the same baseunit
  • ET 200SP interface module — station head module that connects the distributed I/O station to the CPU over PROFINET or PROFIBUS; required for any ET 200SP station
  • SIMATIC S7-1500 CPU or ET 200SP CPU modules — the confirmed compatible controller families for this module as stated in the product documentation
  • 6ES7131-6BH01-2BA0 — 10-piece bulk packing variant of this same module; identical functionality, used for volume orders or multi-station builds

What Engineers Get Wrong When Ordering This Part

Before placing your order for the 6ES7131-6BH01-0BA0, work through this checklist in full. Each item represents a confirmed ordering or installation error that results in a non-functional system or a return shipment:

  1. Confirm you need a digital input (DI) module, not a digital output (DQ) module
  2. Verify 24V DC field signal voltage matches your sensor/switch outputs
  3. Check baseunit type: this module fits BU-type A0 only
  4. Confirm P-reading (sourcing/PNP) input mode matches your field wiring topology
  5. Ensure STEP 7 TIA Portal version is V14 or later for native configuration
  6. Verify you have a compatible CPU (S7-1500 or ET 200SP CPU modules)

If any item on this checklist does not match your system, stop before ordering and contact the LeadTime.ca team to confirm the correct part number for your application.

Frequently Asked Questions

Can I use the 6ES7131-6BH01-0BA0 with NPN (sinking) sensors?

No. This module is fixed in P-reading (PNP/sourcing) input mode, meaning it expects sensors that pull the input terminal to the positive 24V DC supply. If your field devices are NPN (sinking) type, you need the N-reading variant, 6ES7131-6BH02-0BA0, which provides the same 16-channel density with the opposite input polarity. Connecting NPN sensors to this module will result in no input signal acquisition.

What happens if I install this module on a baseunit that is not BU-type A0?

The mechanical coding (Type A) on this module is designed to physically prevent insertion into incompatible baseunit types, so in most cases the module will not seat correctly. However, the safest approach is to verify the baseunit part number before installation rather than relying solely on mechanical keying. Attempting to force the module risks damaging both the module and the baseunit connector.

How do I configure the input delay filter, and what setting should I use?

The input delay filter is configured in STEP 7 TIA Portal V14 or later through the module parameters dialog. The range is 0.05ms to 20ms per the datasheet. For mechanical switches and contactors, a setting of 3–10ms is typical to filter contact bounce. For sensors installed near high-current equipment where electrical noise is a concern, 5–20ms is recommended. Set the filter based on your slowest acceptable sensor response time — a higher filter value increases noise immunity but also increases the minimum detectable pulse width.

Does the wire-break detection work automatically, or does it require additional hardware?

Wire-break detection on the 6ES7131-6BH01-0BA0 requires an optional protective circuit in the field wiring — it does not activate solely from the module's onboard electronics. Once the protective circuit is in place and wire-break detection is enabled in TIA Portal parameters, the module will generate a diagnostic alarm within approximately 1–2 seconds of an open-circuit fault occurring. Without the protective circuit, supply voltage monitoring remains active but wire-break detection will not function.

Is the 10-piece variant (6ES7131-6BH01-2BA0) technically identical to the single-piece version?

Yes. The 6ES7131-6BH01-2BA0 is the same module in a 10-piece packing unit. All electrical characteristics, firmware version, baseunit compatibility, and TIA Portal configuration are identical. The only difference is the pack quantity, which affects per-unit cost and is relevant for projects deploying multiple ET 200SP stations with this module.

What TIA Portal version is the minimum required, and can I use this module with legacy STEP 7 Classic?

STEP 7 TIA Portal Version 14 or later is required for native configuration of the 6ES7131-6BH01-0BA0. Legacy STEP 7 Classic (STEP 7 V5.x) is not confirmed as compatible in the product documentation. If your project is constrained to an older software environment, verify compatibility with Siemens support documentation before ordering, as a TIA Portal migration may be required.

Why Order the 6ES7131-6BH01-0BA0 From LeadTime.ca

  • LeadTime.ca ships the 6ES7131-6BH01-0BA0 and related SIMATIC ET 200SP modules worldwide — no geographic restrictions on ordering
  • Both the single-piece (6ES7131-6BH01-0BA0) and 10-piece bulk pack (6ES7131-6BH01-2BA0) variants are available — useful for multi-station builds where per-unit cost matters
  • Volume pricing is available for project quantities — contact the team before finalizing a BOM to confirm current pricing tiers
  • Current lead time visibility is available on the product page — check stock status before committing to a project schedule
  • Hard-to-source or long-lead parts in the ET 200SP family can be escalated through the LeadTime.ca sourcing team

At-a-Glance Summary

  • 16 digital input channels, 24V DC nominal, P-reading (PNP/sourcing) mode — fixed, not configurable
  • Input delay filter parameterizable from 0.05ms to 20ms in STEP 7 TIA Portal V14 or later
  • Galvanic isolation rated at 707V DC type test
  • Address space: 2 bytes input data + 2 bytes quality information (QI) for channel-level fault detection
  • BU-type A0 baseunit required — no other baseunit type is compatible
  • Mechanical coding Type A prevents incorrect or inverted module insertion
  • Wire-break detection requires an optional protective circuit in field wiring; supply voltage monitoring is integrated and parameterizable
  • Compatible CPUs: S7-1500 and ET 200SP CPU modules only; hardware functional status from FS02, Firmware V0.0
  • Single-piece order: 6ES7131-6BH01-0BA0 — 10-piece bulk pack: 6ES7131-6BH01-2BA0
  • SIMATIC ET 200SP platform adoption spans automotive, discrete manufacturing, packaging, material handling, and process industries worldwide
