Allen-Bradley 5094-AENTR — FLEX 5000 Adapter Buying Guide

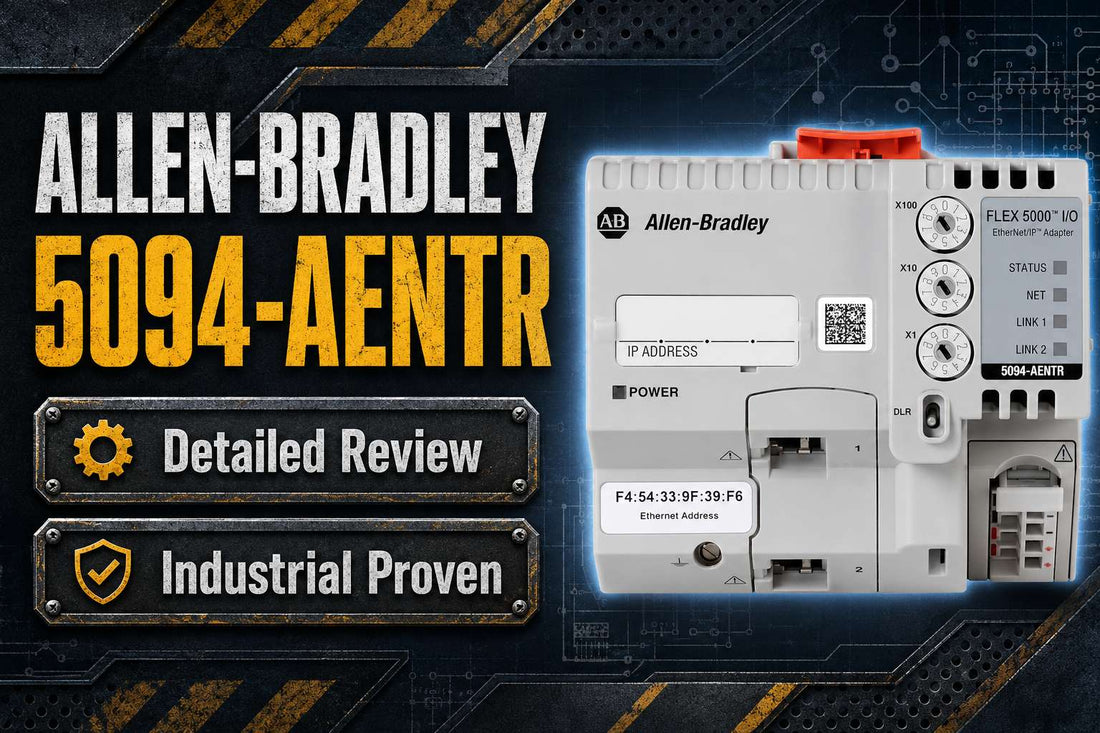

Allen-Bradley 5094-AENTR FLEX 5000 EtherNet/IP RJ45 Adapter, 8 Modules — Specs, Variants, and How to Order
If you are specifying distributed I/O for a Logix 5000 project and your node requires up to 8 FLEX 5000 I/O modules on copper EtherNet/IP, the Allen-Bradley 5094-AENTR is likely already on your shortlist. This adapter delivers 1 Gb EtherNet/IP connectivity through dual RJ45 ports, supports Device Level Ring, Linear, Star, and Parallel Redundancy Protocol topologies, and acts as the backplane master for up to 8 FLEX 5000 I/O modules — all in a DIN rail-mounted form factor rated for Pollution Degree 2, Overvoltage Category II environments up to 2000 m altitude. The decision comes down to confirming that the 5094-AENTR is the correct variant for your module count, environment, and network media before the purchase order goes out.
If you have already confirmed this is the right part, check current pricing and availability for the 5094-AENTR at LeadTime.ca — ships worldwide.
Who Should Specify the 5094-AENTR — and Who Should Not
The 5094-AENTR is the right adapter when all of the following are true for your project:
- Your control architecture is EtherNet/IP with Logix 5000 controllers and you are using FLEX 5000 I/O (Bulletin 5094), not legacy FLEX I/O or POINT I/O.
- Your node requires 8 or fewer FLEX 5000 I/O modules per adapter — if you need more, the 5094-AEN2TR or related 16-module variants are the correct selection.
- Your network infrastructure uses copper Cat-rated cabling with RJ45 connectors — not fiber or SFP-based links requiring optical media.
- Your installation environment falls within standard industrial ratings: Pollution Degree 2, Overvoltage Category II, and altitude up to 2000 m without derating.
- Your network topology is DLR, Linear, Star, or PRP — all supported natively by the 5094-AENTR dual RJ45 ports.
- Your budget and lead time planning align with low four-figure USD market-typical pricing for a 1 Gb EtherNet/IP adapter at this tier.
If any of these conditions are not met — extended temperature, fiber media, or more than 8 modules per node — read the variant comparison section before ordering. The catalog suffixes AENTRXT, AEN2TR, AENSFPR, and AEN2SFPR exist precisely because no single variant covers every scenario.
On this page:
- What the 5094-AENTR Actually Does in a Running System
- Where the 5094-AENTR Sits in a Typical EtherNet/IP Architecture
- Typical Applications and Deployment Scenarios
- Key Specifications for Purchase Decision
- 5094-AENTR vs 5094-AEN2TR vs 5094-AENTRXT: Which Variant Do You Actually Need?
- Expert Verdict: Is the 5094-AENTR the Right Adapter for Your Node?
- What Engineers Need to Know Before Ordering the 5094-AENTR
- Installation and Wiring Overview
- Compatible FLEX 5000 I/O Modules and System Expansion
- Wrong-Part Prevention Checklist
- Frequently Asked Questions
- Why Order the 5094-AENTR Through LeadTime.ca
- At-a-Glance Summary
What the 5094-AENTR Actually Does in a Running System
The Allen-Bradley 5094-AENTR is the network interface and backplane master for a FLEX 5000 I/O node. Its job is to translate EtherNet/IP traffic from a Logix 5000 controller into backplane communication that drives up to 8 FLEX 5000 I/O modules, and to return I/O data from those modules back to the controller over the network. Without the adapter, the I/O modules have no means to communicate with the control system — the 5094-AENTR is the required entry point for every FLEX 5000 I/O node on an EtherNet/IP network.
Beyond raw data transfer, the adapter handles module discovery, maintains connection status reporting, and provides a secured embedded web server for diagnostics and basic configuration without requiring a laptop with Logix Designer on site. The dual RJ45 ports are not simply redundant connections — they enable supported network topologies including Device Level Ring for automatic failover, Linear daisy-chaining, Star connections back to a managed switch, and Parallel Redundancy Protocol for installations where network availability is a hard requirement. All of this runs over 1 Gb EtherNet/IP on the network side, backed by a 1 Gb backplane connecting the adapter to each attached FLEX 5000 I/O module.
One constraint worth naming clearly: the 5094-AENTR is rated for up to 8 FLEX 5000 I/O modules per node. This is not a soft guideline — it is a hard architectural limit that must be respected during panel design. If a node design calls for 9 or more modules, a different adapter is required before the BOM is finalized.
Where the 5094-AENTR Sits in a Typical EtherNet/IP Architecture
The 5094-AENTR occupies the first position in every FLEX 5000 I/O node, bridging the plant EtherNet/IP network on one side and the module backplane on the other. A typical deployment chain looks like this:
- Logix 5000 controller (CompactLogix or ControlLogix) in the main panel or MCC communicates over EtherNet/IP to the managed network infrastructure.
- Plant EtherNet/IP network — copper Cat cabling in DLR, Linear, Star, or PRP topology — reaches the remote panel location near field devices.
- The 5094-AENTR adapter mounts on DIN rail, connects to the network via one or both RJ45 ports, and establishes the FLEX 5000 node at that location.
- Up to 8 FLEX 5000 I/O modules mount directly adjacent to the adapter on the same DIN rail segment, connected through the backplane at 1 Gb.
- Field devices — sensors, actuators, valve banks, drives — wire directly to the I/O module terminals, keeping home-run cabling to the remote panel rather than running individual wires back to the main panel.
Typical Applications and Deployment Scenarios for the 5094-AENTR
New machine builds using FLEX 5000 distributed I/O represent the most common deployment context for the 5094-AENTR. OEM machine designers standardizing on FLEX 5000 and Logix 5000 use this adapter to keep I/O nodes compact and close to field devices while maintaining the 1 Gb network performance the rest of the architecture depends on. Node sizes of four to eight modules are typical in this context, which maps precisely to the 5094-AENTR capacity.
Retrofit projects — replacing older FLEX I/O or POINT I/O nodes with FLEX 5000 for higher performance and Gb EtherNet/IP — frequently specify the 5094-AENTR for nodes that already fall within the eight-module limit. The upgrade path gains modern topology support and tighter Logix 5000 integration without requiring a larger adapter.
Production line standardization is another strong fit. Plants running multiple lines with Logix 5000 controllers benefit from using identical 5094-AENTR adapters across all nodes, simplifying sparing strategy and reducing commissioning variability. DLR topology is particularly valued in these environments because it provides automatic network failover without adding a second adapter or switch.
Water and wastewater facilities, food and beverage processing, packaging lines, and mining operations all appear as secondary deployment contexts where EtherNet/IP and Logix 5000 are the established standard and FLEX 5000 I/O is the preferred remote I/O architecture.
| Application | Typical Deployment |
|---|---|
| New machine build (OEM) | FLEX 5000 node with 4–8 digital/analog modules, DLR topology, adapter per machine section |
| Legacy FLEX I/O retrofit | Drop-in node replacement at existing DIN rail locations, reusing copper EtherNet/IP cabling |
| Multi-line plant standardization | Identical 5094-AENTR adapters across all nodes, single spare part number for the entire facility |
| Remote I/O near field devices | Compact panel at machine or process unit, Star or Linear topology back to central MCC Ethernet switch |
| Food and beverage processing | Standard environment enclosures, copper Ethernet, nodes sized at or under 8 modules per zone |
| Water and wastewater | Remote panel at pump station or valve skid, DLR ring for network resilience, Logix 5000 central controller |
Key Specifications for Purchase Decision
| Parameter | Value |
|---|---|
| Catalog Number | 5094-AENTR |
| Product Family | FLEX 5000 I/O (Bulletin 5094) |
| Network Protocol | EtherNet/IP |
| Network Speed | 1 Gb EtherNet/IP |
| Network Ports | Dual RJ45 copper |
| Supported Topologies | Device Level Ring (DLR), Linear, Star, Parallel Redundancy Protocol (PRP) |
| Backplane Speed | 1 Gb |
| Maximum FLEX 5000 I/O Modules | 8 modules per adapter |
| Pollution Degree / Overvoltage Category | Pollution Degree 2 / Overvoltage Category II |
| Maximum Altitude (without derating) | 2000 m |
Full technical specifications are available on the product page at LeadTime.ca.
5094-AENTR vs 5094-AEN2TR vs 5094-AENTRXT: Which Variant Do You Actually Need?
The FLEX 5000 adapter family uses catalog suffixes to encode module capacity, port type, and environmental rating. Understanding the suffix logic before placing an order prevents the most common wrong-part scenario in this product family.
| Catalog Number | Module Capacity | Port Type | Environment | When to Choose |
|---|---|---|---|---|
| 5094-AENTR | Up to 8 modules | Dual RJ45 copper | Standard (Pollution Degree 2, up to 2000 m) | Typical node up to 8 modules, copper Ethernet, standard industrial environment |
| 5094-AENTRXT | Up to 8 modules | Dual RJ45 copper | Extended temperature / harsh environment (XT) | Same module count and port type, but installation requires XT environmental rating |
| 5094-AEN2TR | Up to 16 modules | Dual RJ45 copper | Standard | Node design requires 9–16 FLEX 5000 modules on a single adapter |
| 5094-AENSFPR | Up to 8 modules | SFP (fiber or copper SFP) | Standard | Fiber network media required or specific PRP configuration with SFP ports |
| 5094-AEN2SFPR | Up to 16 modules | SFP (fiber or copper SFP) | Standard | 16-module node with fiber media or SFP-based PRP redundancy required |
If your panel design exceeds 8 FLEX 5000 modules per node or your network infrastructure uses fiber media, the 5094-AENTR is not the correct selection — review all available variants and current stock status at LeadTime.ca before finalizing your BOM.
Expert Verdict: Is the 5094-AENTR the Right Adapter for Your Node?
The 5094-AENTR performs exactly the role it was designed for: a clean, capable EtherNet/IP network interface for FLEX 5000 I/O nodes that stay at or under 8 modules, use copper Ethernet, and operate in standard industrial environments. The 1 Gb network and backplane performance, combined with support for DLR and PRP topologies, means this is not a compromise product — it is a fully capable adapter that avoids the cost and complexity of fiber or extended-environment variants when those capabilities are not required. Controls engineers and OEM machine designers standardizing on Logix 5000 will find the 5094-AENTR integrates directly into Studio 5000 Logix Designer projects with the secured embedded web server available as an immediate diagnostic aid after commissioning.
The limits are real and must be respected. If your node design grows beyond 8 modules, the 5094-AEN2TR is the correct path — not a workaround involving two 5094-AENTR adapters where one would do. If your installation environment exceeds the standard rating, the 5094-AENTRXT is the necessary selection, not an optional upgrade. If fiber media or SFP-based PRP redundancy is a network design requirement, neither RJ45 variant will satisfy it. These are not edge cases — they are the primary reasons the variant table exists, and getting this decision right at specification time avoids expensive rework after the panel ships.
On the procurement side, the 5094-AENTR is a hardware component where specialist distributor support pays off in more ways than the unit price suggests. Lead time visibility on Rockwell EtherNet/IP adapters varies and planning a spare for each critical node is consistently the right call. A specialist distributor can confirm current availability, flag when an alternative variant may ship faster, and help align controller firmware and adapter requirements before the order goes out rather than after commissioning reveals a mismatch. Check current pricing and availability for the 5094-AENTR at LeadTime.ca — we ship worldwide and can assist with variant selection if your project requirements are still being finalized.
For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.
What Engineers Need to Know Before Ordering the 5094-AENTR
Model-specific discussion threads for the 5094-AENTR are sparse across the major PLC and automation forums — communities like PLCTalk, PLCS.net, MrPLC, and Reddit's r/PLC tend to address FLEX 5000 and Rockwell EtherNet/IP adapters at the platform level rather than by individual catalog number. That pattern is itself informative: when engineers run into trouble with this product family, the issues that surface are almost always variant selection errors and configuration mismatches rather than hardware failures. The three recurring themes worth internalizing before you order are these.
First, catalog number confusion is the leading source of wrong-part shipments in this family. Engineers occasionally order the 5094-AENTR expecting SFP port capability or a 16-module backplane, neither of which this adapter provides. The suffix logic — AENTR for 8-module RJ45, AEN2TR for 16-module RJ45, AENSFPR for SFP — is unambiguous once understood, but it requires a deliberate check rather than a fast catalog search. Second, version mismatches between Logix 5000 controller firmware and the FLEX 5000 adapter firmware represent the most common commissioning friction point discussed in community threads, even when the right adapter variant was ordered. Verifying the controller compatibility table and required Studio 5000 Logix Designer version before the hardware ships avoids the most frustrating category of startup delay. Third, engineers who have designed nodes close to the 8-module limit sometimes discover during detailed design that a ninth module crept onto the BOM — motion feedback, safety, or an additional analog card added late in the design cycle. Catching that before the adapter is ordered rather than after the panel is wired is why the module count check appears first in the wrong-part checklist below.
When direct community guidance is thin for a specific catalog number, the practical alternative is a specialist distributor who has processed enough orders across the FLEX 5000 family to recognize these patterns and ask the right questions before confirming a shipment. LeadTime.ca handles 5094 adapter inquiries regularly and can quickly cross-reference your module count, environment, and topology requirements against the available variants — reducing the risk of a wrong-part return and the project delay that comes with it.
Installation and Wiring Overview for the 5094-AENTR
- Mount the 5094-AENTR on DIN rail first — hook the top of the unit over the rail's upper edge and press until the latch clicks fully into place, then verify the unit is secure before adding I/O modules to the right of the adapter.
- Install the power RTB as specified in the installation manual, ensuring the lever is correctly extended and fully latched before energizing — incorrect RTB seating is a common cause of power-up failures during initial commissioning.
- Connect EtherNet/IP cabling to one or both RJ45 ports depending on your topology: DLR and Linear topologies use both ports in series; Star topology requires only one port connected to an upstream switch; PRP connects both ports to separate, independent network paths.
- Assign an IP address to the adapter using BOOTP/DHCP or your plant's standard IP assignment method before connecting the adapter to the live network to avoid IP conflicts on the subnet.
- In Studio 5000 Logix Designer, add the FLEX 5000 EtherNet/IP adapter to the I/O tree with the configured IP address, then add each attached FLEX 5000 I/O module under the adapter node — respecting the 8-module hard limit — and verify all I/O connections reach OK status after downloading and entering Run mode.
Compatible FLEX 5000 I/O Modules and System Expansion
The 5094-AENTR supports FLEX 5000 I/O modules (Bulletin 5094) across the product family. Up to 8 modules of the following types can occupy the backplane positions immediately to the right of the adapter on the DIN rail:
- FLEX 5000 digital input modules — for discrete 24V DC or AC field device connections
- FLEX 5000 digital output modules — for discrete actuator and relay-level outputs
- FLEX 5000 analog input modules — for 4–20 mA, voltage, thermocouple, and RTD signal types
- FLEX 5000 analog output modules — for analog control signals to drives, valves, and positioners
- FLEX 5000 safety I/O modules — for SIL-rated safety functions integrated within the same node
Confirm module compatibility against the current FLEX 5000 compatibility matrix and the firmware version installed on the 5094-AENTR before finalizing the node BOM, as not all module revisions are supported by all adapter firmware versions.
Wrong-Part Prevention Checklist Before Ordering the 5094-AENTR
Work through each item before submitting a purchase order — every point below corresponds to a known mis-order scenario in the FLEX 5000 adapter family:
- Confirm you specifically need FLEX 5000 I/O (Bulletin 5094), not older FLEX I/O or POINT I/O product families.
- Verify that 8 I/O modules per adapter is sufficient; if you need more, compare with 5094-AEN2TR or related 16-module variants.
- Check that copper RJ45 ports match your network media; choose SFP-based adapters if fiber or specific redundancy is required.
- Ensure environmental conditions match the standard adapter rating; select XT variants for extended temperature or harsher environments.
- Confirm controller compatibility and required firmware/Studio 5000 Logix Designer version for FLEX 5000 EtherNet/IP adapters.
- Verify available panel space and DIN rail layout for the adapter plus up to 8 FLEX 5000 modules and power RTB assembly.
- Check network topology needs (DLR, Linear, Star, PRP) and ensure the 5094-AENTR meets these requirements.
- Confirm spare part strategy: number of nodes, redundancy needs, and whether you need identical adapters across all panels.
If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — variant selection support is part of how we help engineers avoid costly returns and project delays.
Frequently Asked Questions
How many FLEX 5000 I/O modules can the 5094-AENTR support on a single node?
The 5094-AENTR supports a maximum of 8 FLEX 5000 I/O modules on its backplane. This is a hard architectural limit, not a soft guideline. If your node design requires 9 or more modules, you must select the 5094-AEN2TR or another 16-module variant rather than using two 5094-AENTR adapters as a workaround.
What is the practical difference between the 5094-AENTR and the 5094-AEN2TR?
Both adapters use dual RJ45 copper ports and support the same EtherNet/IP topologies — DLR, Linear, Star, and PRP — at 1 Gb. The only functional difference is backplane capacity: 8 modules for the 5094-AENTR versus 16 modules for the 5094-AEN2TR. If your node will never exceed 8 modules, the 5094-AENTR is the cost-appropriate choice; if there is any possibility of future expansion beyond 8 modules, specify the 5094-AEN2TR from the start.
Do I need the XT variant of this adapter for my application?
The 5094-AENTR is rated for standard industrial environments at Pollution Degree 2, Overvoltage Category II, and altitudes up to 2000 m without derating. If your installation environment exceeds these ratings — for example, extreme temperature ranges, heavy condensation, or aggressive contaminants — you must select the 5094-AENTRXT or another XT-designated variant. Do not assume the standard adapter will tolerate harsh conditions based on enclosure protection alone.
Which network topologies does the 5094-AENTR support, and does DLR require both RJ45 ports?
The 5094-AENTR supports Device Level Ring (DLR), Linear, Star, and Parallel Redundancy Protocol (PRP) topologies. DLR topology uses both RJ45 ports — one connects to the upstream device in the ring and the other connects to the downstream device. Star topology requires only one port connected to a managed switch. Selecting the correct topology in your Studio 5000 Logix Designer project configuration is required for DLR ring supervision to function correctly.
What Logix 5000 controller firmware version is required to use the 5094-AENTR?
Firmware and Studio 5000 Logix Designer version requirements for FLEX 5000 EtherNet/IP adapters are specified in Rockwell Automation's product compatibility and download center. Version requirements vary by controller family and adapter firmware revision. Always verify the compatibility matrix against your specific controller model and firmware version before commissioning — firmware mismatches are a leading cause of startup issues reported in the FLEX 5000 community.
Can I use the 5094-AENTR's embedded web server without Logix Designer installed?
Yes. The 5094-AENTR includes a secured embedded web server that can be accessed through a standard web browser on any device connected to the same network. It provides diagnostics, module status, and basic configuration access without requiring a Studio 5000 Logix Designer license. This makes it a practical tool for maintenance engineers performing initial fault checks or status reviews on the shop floor.
Why Order the 5094-AENTR Through LeadTime.ca
- LeadTime.ca ships the 5094-AENTR and related FLEX 5000 adapters worldwide — no regional restrictions on quoting or fulfillment.
- Variant selection support is available before you order: if your module count, environment, or topology requirements are not fully resolved, the team can help confirm the correct catalog number against your project parameters.
- Volume pricing and project-based quotes are available for multi-node builds and plant-wide standardization programs — contact for current pricing rather than relying on list price estimates.
- Hard-to-source Rockwell hardware and parts with extended lead times are a core part of what LeadTime.ca handles — alternative stocking options and equivalent variants are surfaced proactively when primary stock is constrained.
- View current pricing and availability for the 5094-AENTR at LeadTime.ca
- Contact the LeadTime.ca team for a quote or variant selection assistance
At-a-Glance Summary: Allen-Bradley 5094-AENTR
- Product: FLEX 5000 EtherNet/IP RJ45 Adapter, 8 Modules — catalog number 5094-AENTR from Allen-Bradley (Rockwell Automation)
- Network performance: 1 Gb EtherNet/IP on dual RJ45 copper ports; 1 Gb backplane to attached I/O modules
- Module capacity: up to 8 FLEX 5000 I/O modules per adapter — hard limit; 16-module applications require 5094-AEN2TR
- Supported topologies: Device Level Ring (DLR), Linear, Star, and Parallel Redundancy Protocol (PRP)
- Environmental rating: Pollution Degree 2, Overvoltage Category II, altitude up to 2000 m without derating — standard variant only
- XT variant (5094-AENTRXT) required for extended temperature or harsh environment installations
- SFP-based variants (5094-AENSFPR, 5094-AEN2SFPR) required when fiber media or SFP-based PRP is specified
- Includes secured embedded web server for on-network diagnostics without Logix Designer
- Compatible with Logix 5000 controllers — verify firmware and Studio 5000 Logix Designer version against compatibility matrix before ordering
- Pricing is available on the product page; contact LeadTime.ca for volume or project-based quotes — ships worldwide
