Allen-Bradley 5069-AENTR — Compact 5000 EtherNet/IP Adapter Review

By Abdullah Zahid
15 min read

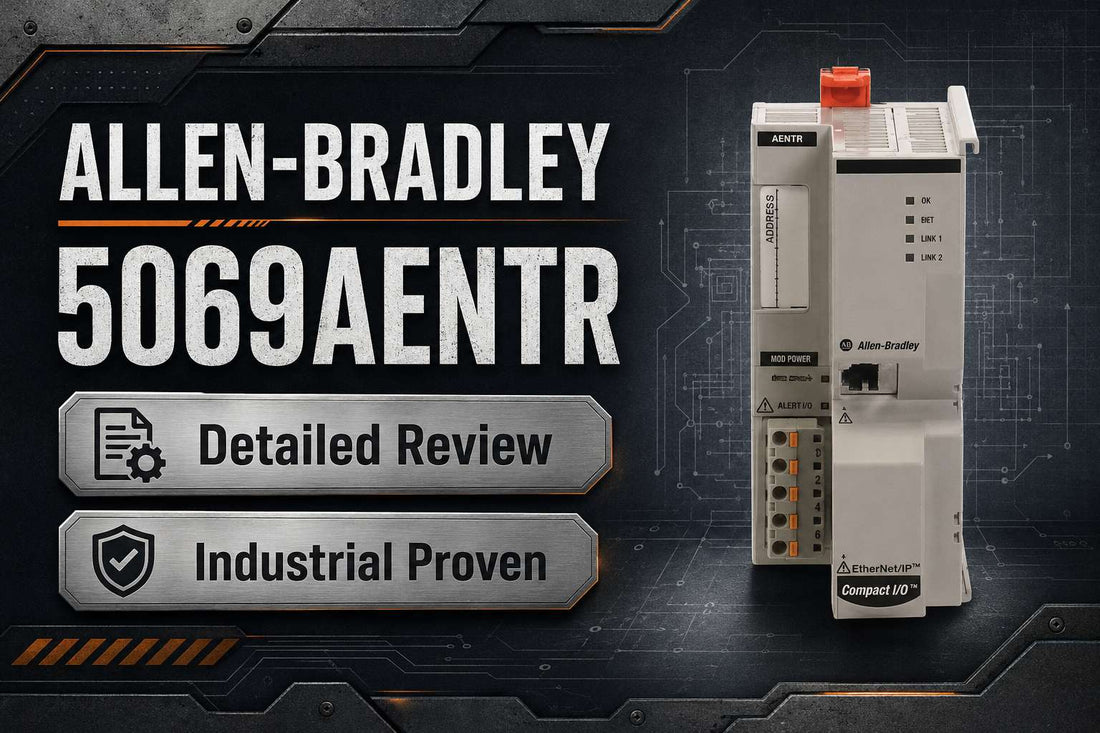

Allen-Bradley 5069-AENTR Compact 5000 EtherNet/IP dual-port adapter module for CompactLogix remote I/O rack

Allen-Bradley 5069-AENTR Compact 5000 I/O Slim EtherNet/IP Adapter, Dual Port — Specs, Compatibility, and Buying Guide

Controls engineers specifying a remote I/O rack for a CompactLogix or ControlLogix system will likely land on the Allen-Bradley 5069-AENTR at some point in their project. It is the head module of any Compact 5000 I/O assembly, bridging up to 31 local 5069 I/O modules onto an EtherNet/IP network over a high-speed backplane, with two RJ45 ports that support linear, star, and Device Level Ring topologies. The decision usually comes down to confirming the right variant, verifying firmware alignment, and locking in lead time before the build schedule tightens.

If you have already confirmed this is the correct part for your system, check current pricing and availability for the 5069-AENTR at LeadTime.ca — we ship worldwide.

Who Should Buy the 5069-AENTR — and Who Should Choose a Different Variant

The 5069-AENTR is the right adapter when all of the following apply to your project:

  • Your controller is a CompactLogix 5380, CompactLogix 5480, or ControlLogix communicating over EtherNet/IP, with a compatible Studio 5000 revision.
  • You need a remote rack of up to 31 Compact 5000 (5069) I/O modules — not POINT I/O 1734 modules, not FLEX I/O.
  • Your network topology is linear, star, or Device Level Ring, and dual-port EtherNet/IP with DLR support covers your redundancy requirements.
  • The installation environment is standard industrial and an enclosure rated at least IP54 is already specified or available — Zone 2/Div 2 use is supported with a compliant enclosure.
  • You have confirmed the correct 5069 power RTB, an external 18…32 V DC supply, and external overcurrent protection devices are included in the BOM.

If your environment is corrosive or demands conformal coating, look at the 5069-AENTRK instead. If you require separate IP subnet segmentation or different MOD/SA power segmentation across the rack, the 5069-AEN2TR family is the appropriate path. Neither is a direct functional drop-in for the standard 5069-AENTR.

On this page:

What the 5069-AENTR Actually Does in Your System

The Allen-Bradley 5069-AENTR is the Compact 5000 I/O Slim EtherNet/IP Adapter, dual port — the first module in any Compact 5000 I/O remote rack assembly. Its job is to sit at the left end of the 5069 I/O slice assembly, distribute system-side and field-side power to every connected I/O module through the backplane, and present the entire local rack to a Logix controller as an EtherNet/IP node. Without it, a group of 5069 I/O modules has no network identity and no power path.

The adapter communicates upstream to a CompactLogix or ControlLogix controller using standard CIP over EtherNet/IP, and downstream to as many as 31 local Compact 5000 I/O modules over a high-speed backplane. Engineers managing distributed machine architectures appreciate that the adapter's slot-by-slot diagnostic visibility surfaces directly in Studio 5000 without add-on configuration — the project tree under the adapter automatically mirrors the physical rack assembly.

Power is supplied externally via an 18…32 V DC source connected through a 5-terminal removable terminal block. There is no integrated circuit breaker; external overcurrent protection is a hard requirement. This architecture gives system designers flexibility to select protection devices matched to their specific load, but it also means the protection components must be explicitly called out on the BOM from the start.

Typical System Architecture for Compact 5000 Remote I/O

The 5069-AENTR sits between the controller's EtherNet/IP network and the local 5069 I/O module assembly — it is the EtherNet/IP node that makes the remote rack visible to the Logix controller, and the power gateway that feeds every I/O slice downstream of it.

  • CompactLogix 5380 or 5480 controller (or ControlLogix chassis with EtherNet/IP bridge) connects via managed industrial Ethernet switch.
  • One or two EtherNet/IP cables run from the switch (or directly between adapters in a ring) to the two RJ45 ports on the 5069-AENTR.
  • The 5069-AENTR occupies the first slot of the Compact 5000 I/O assembly on the DIN rail, providing system-side and field-side power via its 5-terminal RTB and external 18…32 V DC supply.
  • Up to 31 Compact 5000 I/O modules — digital input, digital output, analog, safety-rated — slot in to the right of the adapter on the same backplane assembly.
  • In Device Level Ring configurations, the second RJ45 port connects back to the ring, providing automatic path switchover if a cable or switch segment fails.

Where Engineers Deploy the 5069-AENTR

The most common deployment is as the remote I/O head for a CompactLogix 5380 machine controller where the I/O rack is physically separated from the controller — a separate enclosure on a machine section, a junction box at a conveyor transfer, or a satellite panel at a packaging station. The adapter lets the I/O live where the field wiring is dense while the controller stays in a central location.

High-availability manufacturing lines in automotive and food and beverage plants frequently use the 5069-AENTR in Device Level Ring configurations. With DLR, a single cable break anywhere in the ring does not interrupt I/O communication — the adapter automatically reroutes traffic, which is meaningful in facilities where unplanned stops carry measurable production cost.

OEM machine builders who have standardized on Compact 5000 I/O use the 5069-AENTR as their default remote rack adapter across multiple machine variants, simplifying spares management and shortening commissioning time because the Studio 5000 configuration approach is identical from project to project.

Applications requiring Zone 2 or Division 2 hazardous area certification can use the 5069-AENTR when installed inside an enclosure rated at minimum IP54 and according to the manufacturer's installation instructions — relevant for process skids, small chemical handling systems, and similar installations where EtherNet/IP is the plant standard.

Application Typical Deployment
Modular packaging machinery Remote 5069 rack per machine section, CompactLogix 5380 central controller, star topology
Automotive conveyor line Multiple 5069-AENTR nodes in DLR ring, ControlLogix backbone, high-availability requirement
Food and beverage line Distributed I/O nodes across filling and labelling stations, IP54 enclosures, DLR redundancy
Material handling / intralogistics Conveyor sorter I/O nodes, linear EtherNet/IP topology, CompactLogix 5480
Process skid with Zone 2 requirement 5069-AENTR inside certified IP54+ enclosure, standard industrial Ethernet to control room
OEM standard machine platform Identical Compact 5000 remote rack design replicated across multiple customer sites

Key Specifications for Purchase Decisions

Parameter Value Notes
Catalog Number 5069-AENTR Compact 5000 I/O Slim EtherNet/IP Adapter, dual port
Max Local I/O Modules Up to 31 Compact 5000 (5069) I/O modules per adapter, per datasheet
Network Ports 2 × RJ45 EtherNet/IP Supports linear, star, and Device Level Ring topologies
Port Speed 10/100 Mbps and 1 Gbps Auto-negotiation
Supply Voltage 18…32 V DC External supply required; no integrated power source
Power Connection 5-terminal removable terminal block (RTB) Ordered separately in many cases; provides system-side and field-side power to I/O
Overcurrent Protection External protection required No integrated circuit breaker; user must specify and install
Hazardous Area Rating Zone 2 / Division 2 Requires installation in IP54 minimum certified enclosure per manufacturer instructions
Certifications UL, cUL, CE, ATEX/IECEx Verify current certification listing in official documentation
Backplane High-speed Compact 5000 backplane Compatible with 5069 I/O module family only

Full technical specifications are available on the product page at LeadTime.ca.

5069-AENTR vs 5069-AENTRK vs 5069-AEN2TR — Which One Do You Actually Need?

The three catalog numbers that cause the most confusion at the ordering stage are the 5069-AENTR, the 5069-AENTRK, and the 5069-AEN2TR family. They share the same Compact 5000 platform but serve meaningfully different requirements.

Model Platform Max Local I/O Modules Network Key Differentiator Choose When
5069-AENTR Compact 5000 I/O Up to 31 EtherNet/IP, dual port, DLR Standard industrial environment Standard Rockwell Logix projects, typical industrial environments, DLR or linear/star topology
5069-AENTRK Compact 5000 I/O Up to 31 EtherNet/IP, dual port, DLR Conformal coating for harsher or corrosive environments Installations with moisture, condensation, or corrosive atmosphere concerns
5069-AEN2TR family Compact 5000 I/O Varies by variant EtherNet/IP, dual port Separate IP subnet or segmented MOD/SA power interfaces Architectures requiring network segmentation or separate power domains across the rack
1734-AENTR (POINT I/O) POINT I/O 63 modules (POINT I/O family) EtherNet/IP, dual port Different I/O family — not compatible with 5069 modules Smaller distributed I/O counts using 1734 POINT I/O modules — NOT interchangeable with 5069-AENTR

If your application involves a corrosive or high-humidity environment and the standard 5069-AENTR is not sufficient, the 5069-AENTRK is the direct upgrade path — same configuration, added environmental resilience. If the variant table above raises questions about which is correct for your build, check current availability and consult the product page at LeadTime.ca before placing the order.

Expert Verdict: Is the 5069-AENTR the Right Adapter for Your Project?

For controls engineers and OEM builders working inside a Rockwell Logix ecosystem, the 5069-AENTR delivers on what it promises. Its dual-port EtherNet/IP design with Device Level Ring support, high-speed Compact 5000 backplane, and direct integration with Studio 5000 make it the logical choice for distributed machine architectures where uptime matters and the plant is already standardized on CompactLogix or ControlLogix. The fact that up to 31 Compact 5000 I/O modules can hang off a single adapter with clear per-slot diagnostics in Studio 5000 is a tangible operational advantage — commissioning and fault isolation are faster when the software mirrors the physical layout without manual cross-referencing.

The honest limitations are cost and firmware discipline. The 5069-series sits at a higher price point than simpler remote I/O solutions, and it is not the right adapter for non-Rockwell PLC platforms, cost-sensitive projects without Logix integration requirements, or environments demanding IP67 or specialized harsh-environment I/O where another form factor makes more sense. When conformal coating is needed, the 5069-AENTRK is the correct variant, not the standard 5069-AENTR. When separate subnet or power segmentation across the rack is required, the 5069-AEN2TR family is the right architecture. Neither of those is a field swap — they need to be specified correctly at the BOM stage.

From a procurement standpoint, Compact 5000 adapters are typically available through authorized Rockwell channels, but lead times can stretch depending on demand and regional stock. Ordering through a specialist industrial automation distributor gives you more than just the part — it gives you a check on whether the catalog number matches your controller firmware, whether the correct RTB and power accessories are on the same PO, and whether an in-stock alternative can protect your schedule if the primary part has extended lead time. View current pricing and availability for the 5069-AENTR at LeadTime.ca — we source and ship worldwide.

For volume pricing or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Are Saying About the 5069-AENTR

Across PLC forums including PLCTalk, PLCS.net, MrPLC, and Reddit communities such as r/PLC and r/industrialautomation, the overall tone toward the 5069-AENTR and the broader Compact 5000 family is positive — particularly among engineers who are deeply embedded in Rockwell-standardized plants. The most consistent praise is for Studio 5000 integration: users describe how the adapter's project tree auto-populates with the physical module lineup, and how online diagnostics surface fault states at the module level without requiring extra configuration steps. Fast I/O response and stable EtherNet/IP performance are also frequently cited, with engineers noting that once firmware revisions and network settings are properly aligned, the adapter tends to run without surprises. DLR setup is described by many as more straightforward than they expected, especially compared with older Rockwell adapter families.

The recurring criticisms are equally consistent. Cost is the most common objection — community members frequently note that the 5069-series is among the pricier remote I/O options available, and that for applications where tight Logix integration is not a requirement, competing platforms can offer more modules per dollar. Firmware and software version alignment is the second most cited friction point: several forum threads describe situations where a new 5069-AENTR would not fully configure in an older Studio 5000 project until a major version upgrade was performed, which can be a significant overhead in plants with frozen software standards. The third recurring theme is confusion around catalog numbers — particularly between the 5069-AENTR, the conformal-coated 5069-AENTRK, and the POINT I/O 1734-AENTR. Multiple ordering mistake threads exist where buyers received the wrong family because both carry similar naming conventions.

The ordering mistakes documented in community discussions point to three failure patterns that show up repeatedly. First, engineers or procurement staff selecting the 1734-AENTR (a POINT I/O adapter) rather than the 5069-AENTR because both carry the Rockwell EtherNet/IP adapter naming convention — these are not interchangeable and cannot share modules. Second, specifying the standard 5069-AENTR for a plant environment with elevated humidity or chemical exposure, where the conformal-coated 5069-AENTRK would have been the appropriate choice. Third, submitting a BOM that includes the adapter but omits the 5-terminal power RTB, the correctly rated external DC power supply, or the required overcurrent protection devices — a mistake that consistently surfaces at commissioning when the cabinet is already assembled.

Wiring and Installation Overview

The following points cover the key requirements engineers need to account for during panel design and installation. For full wiring diagrams, terminal assignments, and safety-critical procedures, consult the official Allen-Bradley 5069-AENTR installation instructions and user manual from Rockwell Automation.

  • Mount the 5069-AENTR on DIN rail as the leftmost module in the Compact 5000 I/O assembly; correct orientation and proper mechanical connection to adjacent I/O modules is required before applying power.
  • Connect the external 18…32 V DC supply to the 5-terminal removable terminal block, observing polarity, grounding, and cable routing recommendations in the installation manual — the adapter provides system-side and field-side power distribution to the I/O modules downstream.
  • Install external overcurrent protection devices in the power feed circuit according to local electrical codes and Rockwell's guidance — the module has no integrated circuit breaker.
  • Connect EtherNet/IP cables to one or both RJ45 ports depending on topology: a single cable for linear or star, both ports engaged for Device Level Ring, with the ring closed back at the far end of the network segment.
  • For Zone 2 or Division 2 installations, verify that the enclosure meets at least IP54 ingress protection and that all installation procedures comply with ATEX/IECEx requirements before energizing the assembly.

Compatible Modules and System Expansion

The 5069-AENTR is exclusively compatible with the Compact 5000 I/O (5069) module family. It does not support POINT I/O, FLEX I/O, or any other Rockwell I/O family on its backplane. The following module types are representative of what can be assembled downstream of the adapter in a Compact 5000 remote rack:

  • 5069 digital input and output modules — standard and high-density variants for discrete machine I/O.
  • 5069 analog input and output modules — for process signals including voltage, current, and thermocouple inputs.
  • 5069 safety I/O modules — safety-rated digital I/O for SIL-rated applications; can be mixed with standard modules on the same 5069-AENTR adapter with appropriate configuration in Studio 5000.
  • 5069 power supply modules — where additional local power capacity is required within the assembly.
  • 5069 end cap — required at the right end of any Compact 5000 I/O assembly; must be included in the BOM alongside the adapter and I/O modules.

Wrong-Part Prevention Checklist Before You Order

The following checklist is drawn directly from the technical brief for the 5069-AENTR. Work through every item before finalizing your purchase order — these are the checks that prevent project delays at commissioning.

  1. Confirm the controller family (CompactLogix 5380/5480, ControlLogix) supports Compact 5000 I/O over EtherNet/IP and that firmware/Studio 5000 revisions support 5069-AENTR.
  2. Verify that a Compact 5000 I/O remote rack (5069 modules) is required, not POINT I/O or FLEX I/O; do not confuse 5069-AENTR with 1734-AENTR.
  3. Check that up to 31 local 5069 modules is sufficient; otherwise, plan multiple adapters or a different architecture.
  4. Validate environmental ratings (Zone 2/Div 2, temperature range, enclosure IP54 minimum) align with the installation site.
  5. Confirm that DLR ring redundancy is actually needed; if not, simpler topologies may be acceptable but the module still fits.
  6. Ensure the correct 5069 power RTB, external 18…32 V DC power supply, and external protection devices are specified; module does not include an integrated circuit breaker.
  7. Verify that the project requires Ethernet-based remote I/O, not backplane-local I/O only.
  8. Check spare parts policy: whether you need a conformal-coated or special-environment variant instead of standard 5069-AENTR.

If any item on this checklist raises a question you cannot resolve from the datasheet alone, contact the LeadTime.ca team before placing the order — we can help verify compatibility and confirm in-stock status worldwide.

Frequently Asked Questions

How many Compact 5000 I/O modules can connect to a single 5069-AENTR, and are there performance limits to watch?

The 5069-AENTR supports up to 31 local Compact 5000 (5069) I/O modules on its high-speed backplane, per the official datasheet. Beyond the module count, engineers should also evaluate the total system-side and field-side power budget drawn by the I/O assembly against the capacity of the external supply — the adapter distributes power through the backplane but cannot generate it. RPI settings and the total number of CIP connections also affect network and controller loading and should be sized during project design.

Can safety-rated 5069 modules be mixed with standard I/O modules on the same 5069-AENTR rack?

Safety-rated Compact 5000 I/O modules can be included in a 5069-AENTR rack assembly alongside standard I/O modules. This configuration requires appropriate safety project configuration in Studio 5000, including correct safety task and connection settings for the safety modules. Engineers should consult the safety I/O module documentation and the relevant Studio 5000 safety programming guidance before mixing module types on the same adapter.

What happens to I/O communication if the Device Level Ring is broken — does the system lose the adapter?

In a correctly configured DLR network, a single cable break causes the ring supervisor to detect the fault and reconfigure traffic along the remaining path automatically. I/O communication to the 5069-AENTR continues without a controller connection loss — the ring absorbs the single fault. The adapter and ring supervisor will flag the break condition so the maintenance team can locate and repair it. A second break on a degraded ring would result in a network split, at which point adapters on the isolated segment would lose communication.

Which Studio 5000 version and controller firmware do I need to use the 5069-AENTR?

The 5069-AENTR requires a Studio 5000 version and controller firmware revision that includes the Compact 5000 I/O module profile for the 5069-AENTR. Rockwell Automation has published compatibility information in the product release notes and on the compatibility and download center. Engineers should verify the specific minimum revision required for their chosen controller model and I/O module mix before starting the project, particularly when upgrading an existing Studio 5000 project to add Compact 5000 I/O.

Is the 5069-AENTR a direct replacement for a POINT I/O 1734-AENTR adapter without rewiring the enclosure?

No. The 5069-AENTR and the 1734-AENTR are adapters for entirely different I/O families — Compact 5000 (5069 modules) and POINT I/O (1734 modules) respectively. They are not physically or electrically compatible with each other's I/O modules, and migrating from one platform to the other requires replacing all I/O modules, reconfiguring the Studio 5000 project I/O tree, and revising field wiring terminations. This is a planned migration, not a catalog swap.

What is the minimum enclosure rating required for Zone 2 or Division 2 use of the 5069-AENTR?

The 5069-AENTR is rated for use in Zone 2 and Division 2 hazardous locations when installed in an enclosure providing at least IP54 ingress protection, according to the manufacturer's installation instructions and applicable ATEX/IECEx certification requirements. The enclosure selection, cable entry methods, and installation practices must all comply with local hazardous area regulations — the adapter's certification alone does not satisfy the installation requirement without a compliant enclosure and installation method.

Why Order the 5069-AENTR Through LeadTime.ca

  • Global shipping — LeadTime.ca sources and ships Compact 5000 I/O components worldwide, not limited to any single region.
  • Specialist verification — our team can cross-check your catalog number against controller family, firmware revision, and accessory requirements before the order ships.
  • Hard-to-find parts — when standard channel lead times extend, we work alternative sourcing paths to protect build schedules.
  • Volume and project pricing — contact us for pricing on multi-unit orders or full BOM sourcing including I/O modules, RTBs, and power accessories.
  • Fast response — reach us directly for stock confirmation, lead time, and technical questions before committing to a purchase order.

At-a-Glance Summary

  • Catalog number: 5069-AENTR — Compact 5000 I/O Slim EtherNet/IP Adapter, dual port.
  • Supports up to 31 local Compact 5000 (5069) I/O modules on a high-speed backplane per adapter.
  • Two RJ45 EtherNet/IP ports rated at 10/100 Mbps and 1 Gbps; supports linear, star, and Device Level Ring topologies.
  • Requires external 18…32 V DC power supply connected via 5-terminal removable terminal block; no integrated circuit breaker — external overcurrent protection is mandatory.
  • Zone 2 / Division 2 hazardous area rated when installed in an IP54 minimum certified enclosure.
  • Certifications include UL, cUL, CE, and ATEX/IECEx.
  • Compatible with CompactLogix 5380, CompactLogix 5480, and ControlLogix controllers over EtherNet/IP with a compatible Studio 5000 revision.
  • Key alternatives: 5069-AENTRK (conformal coating), 5069-AEN2TR family (separate subnet or power segmentation), 1734-AENTR (POINT I/O only — not interchangeable).
  • Pricing is available on the product page; lead times vary by region and demand — confirm before committing to a build schedule.
