Allen-Bradley 20-HIM-C6S — PowerFlex Remote HIM Buyer Review

By Abdullah Zahid
15 min read

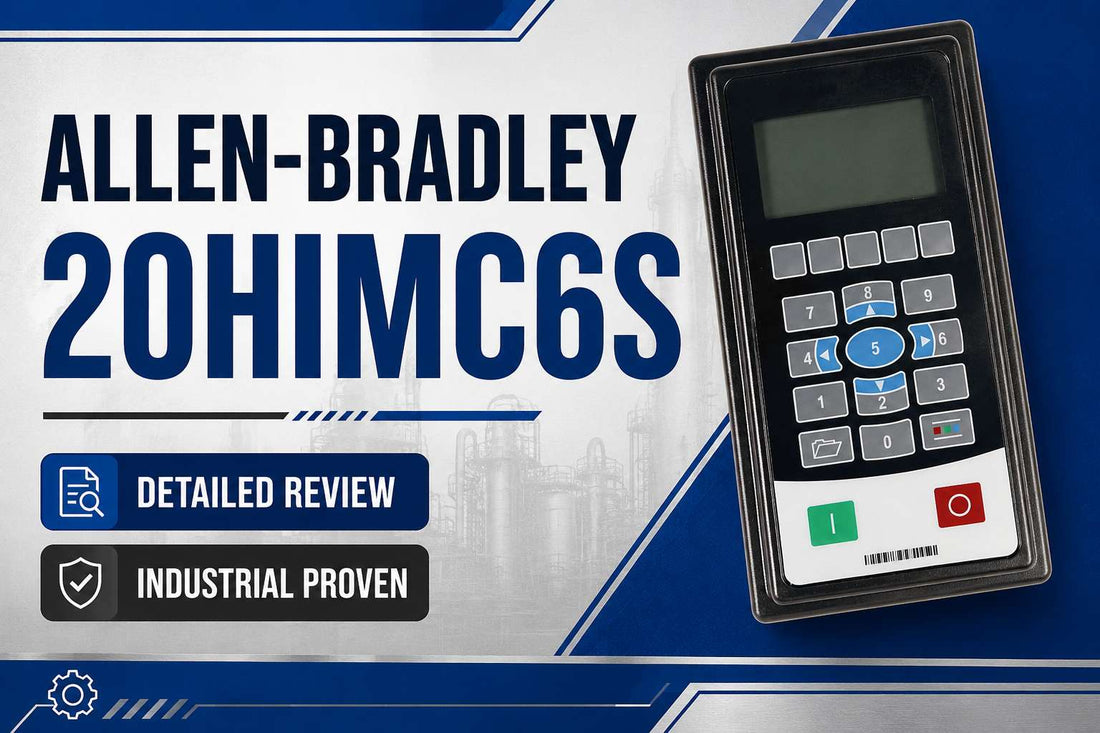

Allen-Bradley 20-HIM-C6S PowerFlex remote enhanced HIM LCD interface module mounted on industrial panel door

Allen-Bradley 20-HIM-C6S PowerFlex Architecture Class Remote Enhanced HIM, LCD Interface Module, IP66 (NEMA 4X/12), Indoor Use Only — Specs, Price, and Alternatives

If you are specifying a local operator interface for a PowerFlex Architecture-class drive installation — especially one mounted on a panel door in a washdown, dusty, or otherwise demanding industrial environment — the Allen-Bradley 20-HIM-C6S is the catalog number that keeps coming up. This is a remote enhanced human interface module (HIM) with a clear LCD display and full keypad, rated IP66 and NEMA Type 4X/12 for indoor use, and supplied complete with a 1202-C30 communications cable. It connects to the drive's DPI port and gives you direct access to parameters, diagnostics, fault history, and parameter copy functions without ever cracking open the drive enclosure or pulling up a laptop.

If you have already confirmed this is the right part for your system, check current pricing and availability for the 20-HIM-C6S at LeadTime.ca — we ship worldwide.

Who Should Specify the 20-HIM-C6S — and Who Should Not

This module is the right choice when all of the following apply to your installation:

  • Your drive is a PowerFlex Architecture-class unit with a DPI port — this is a hard compatibility requirement, not optional.
  • The panel-door mounting location demands IP66 / NEMA Type 4X/12 sealed protection, such as in food and beverage washdown areas, dusty conveyor environments, or outdoor-accessible enclosures used indoors.
  • You need enhanced HIM functions — specifically parameter upload/download (copy between drives), on-screen fault and alarm diagnostics, and full menu-driven parameter editing — not just basic start/stop commands.
  • The included 1202-C30 cable reach is sufficient for your panel layout and cable routing path from door to drive.
  • Your enclosure panel door can accommodate the physical cutout and six-stud mounting pattern required by this module.

If your application is a simple drive that already has a basic keypad accessible and does not require washdown-rated sealing, or if a full HMI panel is already handling operator interaction, the 20-HIM-C6S may be more capability and more cost than the job requires. In those cases, a basic drive-mounted keypad or a lower IP-rated HIM variant such as the 20-HIM-A6 is worth evaluating first.

On this page:

What the 20-HIM-C6S Actually Does in a PowerFlex Drive System

The Allen-Bradley 20-HIM-C6S is not a PLC, not a full graphical HMI, and not a network adapter. It is a dedicated human interface module — the local face of the drive — that gives an operator or technician direct, physical access to every parameter, status value, and fault record stored in the host PowerFlex Architecture-class drive. Everything it does flows through the DPI port on the drive, which also powers the module, meaning no separate power supply wiring is required.

Rockwell Automation officially describes the 20-HIM-C6S as a PowerFlex Architecture Class Remote Enhanced HIM with LCD interface, rated IP66 (NEMA 4X/12) for indoor use only. The word "enhanced" in that description is meaningful: it distinguishes this module from basic keypad-only variants. Enhanced means the HIM includes a parameter upload and download function — commonly called parameter copy — that lets you read an entire drive's configuration into the HIM's memory and then write that configuration to a replacement drive. For maintenance teams that swap drives during unplanned breakdowns, this is a capability that pays for itself the first time it prevents a two-hour parameter re-entry session at 2 AM.

Beyond parameter copy, the LCD display provides real-time visibility into drive operating status, output frequency, current, fault codes, and alarm history. Start/stop and speed reference commands can also be issued from the keypad when the drive is configured to accept local HIM control, which makes the module useful for commissioning and controlled manual operation where PLC or network commands are not active.

Where the 20-HIM-C6S Sits in a Typical Drive System

The 20-HIM-C6S occupies the local operator interface layer of a PowerFlex drive installation — it is the physical point where a person interacts directly with the drive, independent of the PLC or network above it.

  • PLC or DCS sends speed and control commands to the PowerFlex drive over an industrial network (EtherNet/IP, DeviceNet, or hardwired I/O).
  • The PowerFlex Architecture-class drive receives those commands, controls the motor, and stores all configuration parameters internally.
  • The 20-HIM-C6S connects to the drive's DPI port via the included 1202-C30 cable, mounted on the panel door, and provides the local human interface layer.
  • The technician or operator interacts with the HIM for commissioning, fault reading, parameter adjustments, and — when enabled — local manual control of the drive.
  • Downstream from the drive: motor, load, and field devices — none of which are wired to or affected by the HIM directly.

Typical Applications and Deployment Scenarios for the 20-HIM-C6S

The IP66 / NEMA 4X/12 rating makes the 20-HIM-C6S the natural choice wherever the drive's panel door is exposed to water spray, high-pressure cleaning, or persistent fine dust. Food and beverage processing lines — particularly in wet zones around washdown conveyors, filling stations, and processing equipment — are the most common primary deployment. The sealed front face withstands direct hose-down cleaning when the enclosure itself is properly rated.

Water and wastewater facilities present a similar case: pump and blower drives mounted in field enclosures or pump station panels where humidity, condensation, and occasional splash are realities. The remote mounting style means the drive can be installed deeper in the enclosure or in an MCC while the HIM sits on the accessible door for operator use without opening the cabinet.

OEM machine builders frequently specify the 20-HIM-C6S when they need a clean, branded panel-door interface on enclosed machines using PowerFlex Architecture-class drives. It provides a finished, purpose-rated local control point without the cost or programming overhead of adding a full touchscreen HMI to a machine that does not otherwise need one.

Maintenance and reliability teams across general manufacturing and material handling value the parameter copy function specifically for planned and emergency drive replacements. Having a HIM pre-loaded with the active configuration means a drive swap can be completed quickly without needing a laptop, Logix software, or a network connection at the panel.

Application Typical Deployment
Food and beverage washdown lines Panel-door mounted HIM on conveyor or filling machine enclosure requiring IP66 sealing against high-pressure cleaning
Water and wastewater pump stations Remote HIM on MCC door or field panel with PowerFlex pump drive inside, where operator access to the drive itself is restricted
OEM enclosed machinery Integrated panel-door interface on purpose-built machines using PowerFlex Architecture-class drives, providing local commissioning and manual jog without a full HMI
Mining and aggregates Dusty conveyor or crusher panels where sealed front face prevents contamination ingress during normal operation
Drive replacement and MRO Maintenance technician uses HIM to upload parameters from failed drive, swaps unit, downloads saved configuration to replacement — no laptop required

20-HIM-C6S Key Specifications and Variant Comparison

Specification Value
Catalog Number 20-HIM-C6S
Product Type Remote Enhanced Human Interface Module (HIM), LCD interface
Compatible Drive Family PowerFlex Architecture-class drives with DPI port
Communication Interface DPI port (drive-powered, no external supply required)
Protection Rating IP66, NEMA Type 4X/12, indoor use only
Display Type LCD with text and status indicators
Mounting Style Panel-door mounting, six threaded studs
Included Cable 1202-C30 communications cable
Parameter Handling Parameter upload and download (copy) between drive and HIM
Diagnostics Displays drive status, faults, and alarms

Full technical specifications are available on the product page at LeadTime.ca.

20-HIM-C6S vs 20-HIM-A6 and Other PowerFlex HIM Variants

Model Mounting Style IP / NEMA Rating HIM Type Parameter Copy Best Fit
20-HIM-C6S Remote, panel-door IP66, NEMA 4X/12, indoor Enhanced, LCD Yes — upload and download Washdown / dusty environments needing sealed door-mount HIM with full diagnostics
20-HIM-A6 Drive-mounted or bezel Lower IP rating Enhanced, LCD Yes Installations where drive is accessible and a sealed panel-door mount is not required
Basic keypad variant Drive-mounted Drive enclosure dependent Basic keypad No Simple applications needing only start/stop and basic speed reference, lower cost
Full HMI panel (PanelView or equivalent) Panel-door or standalone Varies by model Graphical HMI Via network/software Multi-drive visualization, trending, and complex operator interaction requirements

If your application requires a sealed panel-door interface with full parameter management and your drive is PowerFlex Architecture-class with a DPI port, the 20-HIM-C6S is the correct catalog number. If your environment does not demand IP66 sealing and the drive is accessible, the 20-HIM-A6 or a basic keypad may meet your needs at lower cost — check current availability at LeadTime.ca and contact us if you need a variant comparison before committing to your BOM.

Expert Verdict: When to Specify the 20-HIM-C6S and When to Choose Differently

The 20-HIM-C6S earns its place on a PowerFlex-heavy system BOM when the installation genuinely demands what it delivers: a sealed, panel-door-mounted local interface with the full enhanced HIM feature set. For controls engineers standardizing on PowerFlex Architecture-class drives in food and beverage, water and wastewater, or OEM machinery applications, this module covers the three things that matter most during commissioning and maintenance — direct parameter access, on-screen fault diagnostics, and parameter copy for fast drive replacement. Rockwell Automation officially categorizes it as a PowerFlex Architecture Class Remote Enhanced HIM with IP66 (NEMA 4X/12) indoor protection, and that classification reflects a real, meaningful tier above open-type or lower-rated alternatives.

The honest limits are worth stating clearly. If your facility already runs full HMIs for every operator touchpoint, adding a dedicated HIM to each drive enclosure is redundant cost. If the drive is mounted in an accessible, dry location and a basic keypad provides the start/stop and speed adjustment an operator needs, the 20-HIM-C6S is more module than the application justifies. For those scenarios, the basic keypad variant or the 20-HIM-A6 for a lower IP-rated remote mount are the practical alternatives. And if your drives are not PowerFlex Architecture-class units with the correct DPI interface, the 20-HIM-C6S is simply not compatible — there is no configuration workaround for that constraint.

From a procurement standpoint, the 20-HIM-C6S is a part that rewards ordering through a specialist distributor rather than a generic catalog channel. Verifying DPI compatibility, confirming the included 1202-C30 cable reach against your panel layout, and checking stock against your project schedule are details that matter when you are building out a system. For volume pricing or to confirm lead time and stock before locking in your BOM, visit the 20-HIM-C6S product page at LeadTime.ca — we stock and ship this module worldwide.

For volume orders or time-sensitive projects, contact the LeadTime.ca team directly — we ship worldwide and can confirm availability before you commit to a build schedule.

What Engineers Need to Know Before Ordering the 20-HIM-C6S

Community discussion around PowerFlex enhanced HIMs is consistently positive when the module is applied correctly — and almost uniformly frustrating when it is not. The most recurring praise from controls engineers and technicians across forums like PLCTalk, Reddit r/PLC, and MrPLC focuses on two things: how much easier parameter navigation becomes compared to decoding drive status codes through a laptop, and how the upload/download function transforms a stressful emergency drive swap into a straightforward ten-minute procedure. Technicians who have used parameter copy during unplanned breakdowns consistently report it as one of the most practically valuable features of an enhanced HIM over a basic keypad.

The recurring complaints are more specific and worth taking seriously before you order. Menu navigation on the LCD interface is frequently described as less intuitive than a modern graphical HMI, particularly by operators or technicians who use the device infrequently and have to re-learn the structure each time. Communication loss — a blank display or intermittent HIM behavior — is the most common technical complaint, and in virtually every reported case it traces back to either a damaged 1202-C30 cable, a DPI port connector not fully seated, or the cable routed too close to high-voltage conductors. These are installation discipline issues, not product defects, but they are common enough that they deserve attention during physical setup. Cost relative to a basic keypad also comes up, particularly in simple applications where teams later question whether the enhanced functionality was ever used.

The ordering mistakes that show up repeatedly in community threads are preventable with a few targeted checks. Engineers have ordered the wrong HIM type entirely — selecting a drive-mounted or open-type unit when the environment required IP66 panel-door sealing — and discovered the mismatch only when the panel was being built. Others have ordered a HIM for a PowerFlex family that lacks the correct DPI interface, resulting in a part that physically cannot connect to the drive. A third common mistake is specifying the 20-HIM-C6S in applications where a full multi-drive HMI was already planned, creating unnecessary duplication on the BOM. The checklist in the next section addresses each of these scenarios directly. If you have any uncertainty about compatibility or mounting fit before placing your order, the LeadTime.ca team can help you verify the right catalog number for your specific drive and enclosure — use it as the specialist resource that community forums cannot always provide.

Installation and Wiring Overview for the 20-HIM-C6S

  • De-energize the panel and apply lockout/tagout to the drive supply before beginning any mechanical installation or cable connection work.
  • Mark and cut the panel-door opening to the dimensions specified in the Rockwell 20-HIM-C6S user manual; insert the module and secure it using the six threaded studs and mounting nuts from the back side of the panel door.
  • Route the included 1202-C30 cable from the HIM through the panel, maintaining separation from high-voltage conductors and noise sources; use grommets or cable glands at panel entry points to prevent abrasion and maintain the panel's ingress protection rating.
  • Connect the cable to the DPI port on the PowerFlex drive as specified in the manual (referenced as Port 2 in Rockwell documentation); ensure the connector is fully and positively seated to prevent intermittent communication faults.
  • Secure the cable with appropriate strain relief at both the HIM and drive ends to prevent mechanical stress on the connectors during normal panel door operation.

Full wiring requirements, cutout dimensions, and cable routing diagrams are contained in the Rockwell Automation 20-HIM-C6S user manual. Always refer to the current manufacturer documentation for your specific installation.

Commissioning and Parameter Copy Overview

  • After energizing the drive, confirm the HIM powers up from the DPI port and establishes communication with the drive — the LCD should display drive status and basic operating information without a separate power connection.
  • Use the navigation keys to access the parameter menu and verify key drive parameters such as motor nameplate data and control mode before running the drive under load.
  • To create a configuration backup, perform a parameter upload from the drive into the HIM's internal memory following the procedure in the Rockwell user manual — this stored set can be used to restore or clone the drive configuration later.
  • When replacing a drive or configuring a duplicate unit, connect the HIM to the target drive and perform a parameter download to apply the saved configuration; verify that the replacement drive's ratings and firmware are compatible with the saved parameter set before downloading.
  • Confirm start/stop and speed reference source settings in the drive parameters to ensure the HIM's local control keys behave as expected, particularly in systems where PLC or network control is also active.

Wrong-Part Prevention Checklist Before Ordering the 20-HIM-C6S

Before placing your order, work through each item on this checklist. These are the most common points of failure in the ordering process for this module:

  1. Confirm the drive family and firmware support 20-HIM-C6S (PowerFlex Architecture-class with DPI port).
  2. Verify IP66 / NEMA 4X/12, indoor-only rating is appropriate for the enclosure and environment.
  3. Check panel-door cutout size and depth for physical fit, including clearance for the six mounting studs.
  4. Confirm cable routing path and that the included 1202-C30 cable length is sufficient.
  5. Ensure the application needs enhanced HIM functions (parameter copy, advanced diagnostics) vs a basic keypad.
  6. Verify voltage and power are supplied from the drive's DPI port (no separate power supply is needed, but host drive must support it).

If any item on this list raises a question you cannot answer from the datasheet alone, visit the product page at LeadTime.ca or contact our team to confirm compatibility before ordering — we ship worldwide and can help you verify the right part the first time.

Frequently Asked Questions About the 20-HIM-C6S

Which PowerFlex drives are compatible with the 20-HIM-C6S?

The 20-HIM-C6S is designed for PowerFlex Architecture-class drives that include a DPI (Drive Peripheral Interface) port. Compatibility is specific to this drive family and interface type — it cannot be used with drives that lack a DPI port or that use a different peripheral interface. Always cross-check your specific PowerFlex drive model number against the current Rockwell Automation compatibility documentation before ordering.

Can I use one 20-HIM-C6S to copy parameters and then move it between multiple drives?

Yes — the parameter upload function allows you to read a complete drive configuration into the HIM's memory, and the download function writes that configuration to a connected drive. This means one HIM can be used sequentially across multiple drives to replicate a configuration. Be aware that parameter sets must be verified for compatibility with the target drive's ratings and firmware version before downloading to avoid configuration errors.

How far can the 20-HIM-C6S be mounted from the drive, and can the included cable be extended?

The module is supplied with the 1202-C30 cable. The cable length and any extension options should be confirmed against Rockwell Automation's current documentation for the 20-HIM-C6S and compatible 1202-series cable accessories. If the included cable is not sufficient for your panel layout, contact LeadTime.ca before ordering to confirm whether a longer cable option is appropriate for your installation.

What should I check first if the HIM display is blank or shows no communication with the drive?

The most common causes are: the DPI port cable connector not fully seated at the drive end, cable damage from routing near high-voltage conductors or mechanical abrasion at a panel entry point, and the drive not being powered. Verify power is present at the drive, inspect the cable for visible damage, and reseat the DPI connector firmly. If the issue persists, try a known-good cable to isolate the fault before replacing the HIM itself.

Does using the 20-HIM-C6S for local start/stop override PLC or network control of the drive?

The interaction between local HIM control and network or PLC commands depends on how the drive's control source parameters are configured. The drive can be set to accept commands from the HIM, a network adapter, or hardwired terminals, and in some configurations the HIM can take local priority when certain keys are pressed. The exact behavior is parameter-dependent and is documented in the PowerFlex drive user manual — verify the control source configuration during commissioning before relying on any specific control priority behavior.

If the 20-HIM-C6S fails or is disconnected, does the drive continue running?

In most PowerFlex Architecture-class drive configurations, the drive can be set to continue operating when the HIM connection is lost, or it can be configured to fault on loss of HIM communication. The drive's behavior on peripheral loss is controlled by a specific parameter in the drive and should be set according to your application's safety and process requirements. Confirm this parameter is set correctly during commissioning — do not assume a default behavior without verifying the drive's configured response.

Why Order the 20-HIM-C6S From LeadTime.ca

  • LeadTime.ca specializes in industrial automation components — we verify compatibility and environmental rating questions before your order ships, not after.
  • We stock and source Allen-Bradley PowerFlex accessories including the 20-HIM-C6S, with the ability to confirm real inventory and lead times before you commit to a project schedule.
  • Volume pricing is available for panel shops, OEMs, and MRO buyers — contact us with your quantities for a project-specific quote.
  • We ship worldwide — no geographic restriction on sourcing, whether you are in North America, Europe, or elsewhere.

At-a-Glance Summary: Allen-Bradley 20-HIM-C6S

  • Catalog number: 20-HIM-C6S — PowerFlex Architecture Class Remote Enhanced HIM with LCD interface.
  • Protection rating: IP66, NEMA Type 4X/12, indoor use only — suitable for washdown and dusty panel-door installations.
  • Communication interface: DPI port on PowerFlex Architecture-class drives — no external power supply required; drive powers the HIM.
  • Included accessory: 1202-C30 communications cable supplied in the box.
  • Mounting: Panel-door installation using six threaded studs — panel cutout dimensions must be verified from Rockwell user manual before fabrication.
  • Key enhanced function: Parameter upload and download (copy) between drive and HIM — critical for fast drive replacement without a laptop.
  • Diagnostics: Displays drive status, fault codes, and alarm history directly on the LCD.
  • Not compatible with drives lacking a DPI port or with non-PowerFlex Architecture-class drive families.
  • Not a replacement for a full HMI panel where graphical visualization, trending, or multi-drive control is required.
  • Pricing and availability: Contact LeadTime.ca or visit the product page — we ship worldwide.
