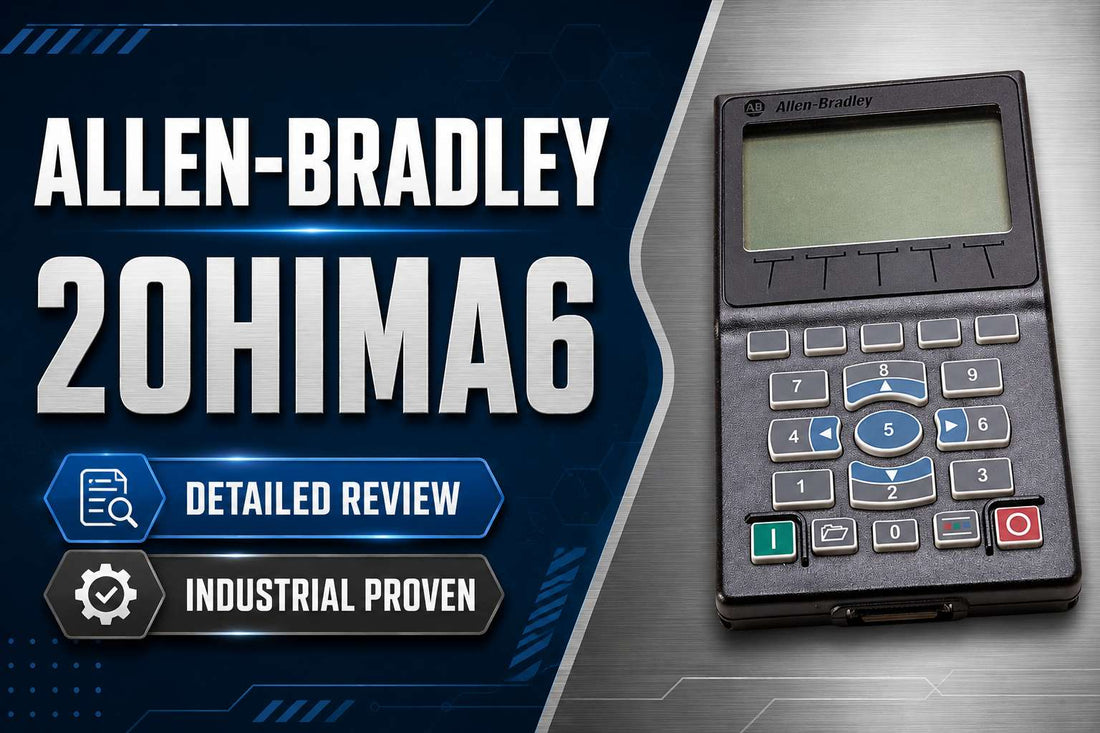

Allen-Bradley 20-HIM-A6 Enhanced Human Interface Module NEMA Type 1 mounted on PowerFlex drive panel door

Allen-Bradley 20-HIM-A6 PowerFlex Enhanced Human Interface Module, NEMA Type 1 — Full Buyer's Review

If you are specifying or replacing a keypad for a PowerFlex drive installation, the Allen-Bradley 20-HIM-A6 is the catalog number most controls engineers land on when they need enhanced features — a full numeric keypad, LCD display, CopyCat parameter backup, and diagnostics access — in a single NEMA Type 1 unit that works across the PowerFlex 7-Class AC drives, PowerFlex DC drives, and SMC smart motor controllers. Whether you are commissioning a new skid, swapping a failed HIM during a plant shutdown, or building a spare parts standard across a PowerFlex-heavy facility, the decision between 20-HIM-A6, 20-HIM-A3, and 20-HIM-C6S comes down to three things: the feature set you need, the mounting configuration you require, and the drive families in your fleet.

If you have already confirmed this is the right part, check current pricing and availability of the 20-HIM-A6 at LeadTime.ca — ships worldwide.

Who Should Buy the 20-HIM-A6 — and Who Shouldn't

The PowerFlex 20-HIM-A6 Enhanced Human Interface Module is the right choice for engineers and maintenance teams that need an enhanced, multi-function keypad for PowerFlex drive commissioning, diagnostics, and parameter management. This part fits your project if:

  • Your plant includes PowerFlex 753, 755, 755TR/TL/TM, 70, 700, 700S, 700L, 700H, 700 AFE, PowerFlex DC, or PowerFlex 7000 drives, or SMC-50 and SMC Flex smart motor controllers connected via DPI.
  • You need the CopyCat parameter upload/download function to clone or restore drive configurations quickly during replacement.
  • Your installation requires NEMA Type 1 panel-door or drive-mounted access with a full numeric keypad and soft-key navigation — not a stripped-down basic interface.
  • Your maintenance team moves a single HIM between multiple drives in the facility and needs one tool that works across the entire PowerFlex 7-Class and DC family.
  • You need fault history, alarm monitoring, and live status diagnostics accessible from the keypad without connecting a laptop.

If your application is cost-constrained and CopyCat or advanced diagnostics are not required, the 20-HIM-A3 basic HIM is the lower-cost alternative. If the keypad must mount remotely on a panel door away from the drive with a cable run, the 20-HIM-C6S is the correct remote-mount variant. Plants running SCADA or PanelView HMIs as the primary operator interface may not need a separate HIM at all.

On this page:

What the 20-HIM-A6 Actually Does on the Plant Floor

The PowerFlex 20-HIM-A6 Enhanced Human Interface Module is a drive-mounted or handheld keypad that gives engineers and technicians direct local access to any compatible PowerFlex or SMC drive through the Drive Peripheral Interface (DPI). It is classified by Rockwell Automation as an "enhanced" HIM, which means it goes significantly beyond start/stop and basic parameter scrolling. The front panel includes a full numeric keypad for direct parameter value entry, navigation keys in four directions, soft keys that change function context based on what is on the LCD screen, and a dedicated control bar for start, stop, direction, and speed reference commands.

The DPI communication link operates at either 125 or 500 kbps depending on the connected drive, and no separate external power supply is required — the HIM draws power directly from the drive or controller it is connected to. The LCD display supports multi-line text output with flashing capability for status and alarm indications, making it readable even on a noisy plant floor where a laptop connection is impractical. Beyond parameter editing, the 20-HIM-A6 provides access to fault history, active alarms, real-time status monitoring of drive variables such as output current and speed feedback, and the CopyCat function for parameter backup and restoration across drives.

This is not a device you install and forget — it is a commissioning and maintenance tool that earns its cost over the life of a PowerFlex installation. Plants with large fleets of PowerFlex 7-Class or DC drives often treat a single 20-HIM-A6 as a shared resource, plugging it into whichever drive needs attention and then storing it until the next job.

Where the 20-HIM-A6 Sits in a Typical PowerFlex System

The 20-HIM-A6 connects at the human interface layer of a PowerFlex drive system, sitting between the operator or technician and the drive's DPI port. It does not replace the primary control network — it augments it with local access.

  • Upstream controller (PLC or DCS) sends run commands and speed references via EtherNet/IP or other fieldbus to the PowerFlex drive.
  • The PowerFlex drive (753, 755, 700, 70, DC, or SMC controller) executes motor control and exposes its DPI port for local access.
  • The 20-HIM-A6 plugs into the DPI port — either directly on the drive face, on the panel door via mounting hardware, or as a handheld unit connected by an approved cable.
  • The technician uses the HIM to commission parameters, view real-time drive data, read fault history, or run the motor manually during testing.
  • For multi-drive panels, a single 20-HIM-A6 is typically moved between drive DPI ports as needed — one tool serving the entire panel.

Typical Applications and Deployment Scenarios

The 20-HIM-A6 covers a wide range of deployment situations because its compatibility spans the full PowerFlex 7-Class and DC drive families. In general manufacturing, it serves as the primary commissioning interface when starting up new PowerFlex drives on conveyor systems, pump stations, or machine tools. In food and beverage facilities, where PowerFlex drives are common on mixers, conveyors, and packaging lines, the CopyCat function allows maintenance teams to clone a replacement drive from a saved parameter set in minutes rather than re-entering dozens of parameters manually.

In water and wastewater plants, where PowerFlex drives run pumps and blowers with complex tuning, the 20-HIM-A6's diagnostics menus give operators visibility into fault history and status variables without requiring a laptop or network connection to a SCADA system. In automotive and material handling environments, where drive replacements must happen quickly to minimize line downtime, a spare 20-HIM-A6 on the shelf pays for itself the first time it restores a parameter set to a replacement drive in under ten minutes.

OEM panel builders and system integrators working with PowerFlex-based panels frequently include a 20-HIM-A6 as a standard panel-door mounted commissioning interface that end users and service personnel can use throughout the machine's life cycle.

Application Typical Deployment
New PowerFlex drive commissioning Handheld or drive-mounted; technician enters motor data and tuning parameters locally
Drive replacement and parameter restore CopyCat downloads stored parameter set from HIM to replacement drive in the field
Maintenance troubleshooting Door-mounted on panel; technician reads fault history and live status without opening enclosure
Local operator interface on small systems Drive-mounted or panel-door; provides start/stop and speed reference where no full HMI exists
Shared plant maintenance tool Single HIM moved between multiple PowerFlex drives and SMC controllers across the facility
OEM machine panel build Panel-door mounted at NEMA Type 1 cutout; standard commissioning interface for field service

Key Specifications and Compatibility

Parameter Value / Detail
Catalog Number 20-HIM-A6
Product Type Enhanced Human Interface Module (HIM)
Enclosure Rating NEMA Type 1 (front face)
Interface Protocol DPI (Drive Peripheral Interface) at 125 or 500 kbps
Power Source Powered by connected drive or controller — no external supply required
Display Multi-line LCD with flashing capability for status and alarm indications
Keypad Full numeric keypad, directional navigation keys, soft keys, dedicated control bar
Mounting Options Handheld, direct drive-mounted, panel/door-mounted (gasket and rear stud hardware)
Compatible Drive Families PowerFlex 70, 700, 700S, 700L, 700H, 700 AFE, 753, 755, 755TR/TL/TM, DC, 7000; SMC-50, SMC Flex
Key Functions CopyCat parameter backup/restore, fault history, alarm monitoring, local start/stop/speed control

Full technical specifications are available on the product page at LeadTime.ca.

20-HIM-A3 vs 20-HIM-A6 vs 20-HIM-C6S: Which One Do You Actually Need?

Model Type CopyCat / Advanced Diagnostics Mounting Best Fit
20-HIM-A3 Basic HIM No Handheld, drive-mounted Cost-sensitive applications; CopyCat and advanced diagnostics not required
20-HIM-A6 Enhanced HIM Yes Handheld, drive-mounted, panel/door NEMA 1 Plants needing full commissioning, diagnostics, and parameter copy across a PowerFlex fleet
20-HIM-C6S Enhanced HIM (remote) Yes Remote panel-door mount via cable When keypad must be located away from the drive on a panel door, with cable run to drive DPI port

The 20-HIM-A6 is the correct choice when you need the full enhanced feature set and either drive-mounted or NEMA 1 door-mounted access. If your enclosure layout requires the keypad to be separated from the drive by more than a direct-mount connection, specify the 20-HIM-C6S instead — check current availability of the 20-HIM-A6 at LeadTime.ca and contact the team to confirm the right variant for your configuration.

Expert Verdict: When the 20-HIM-A6 Is the Right Call and When It Isn't

For any plant or OEM panel standardized on PowerFlex 7-Class AC or PowerFlex DC drives, the 20-HIM-A6 is the practical default for local commissioning and maintenance access. Its compatibility with the PowerFlex 753, 755, 755TR/TL/TM, 70, 700, 700S, 700L, 700H, 700 AFE, PowerFlex DC, PowerFlex 7000, SMC-50, and SMC Flex — all via a single DPI interface — means one spare unit covers a broad installed base. The full numeric keypad, multi-line LCD, and CopyCat function make commissioning and drive replacement measurably faster than working with a basic HIM or scrolling through drive-integral keypads. Maintenance teams that regularly tune, replace, or troubleshoot PowerFlex drives will find the enhanced diagnostics and fault history access alone worth the step up from the 20-HIM-A3.

That said, the 20-HIM-A6 is not the right answer in every situation. If your drives are primarily controlled through PanelView terminals, SCADA, or a networked HMI and local keypad interaction is rare, the cost of an enhanced HIM may not be justified — a basic 20-HIM-A3 or even the drive-integral keypad may be sufficient. If your installation requires the keypad to be panel-door mounted at a distance from the drive, the 20-HIM-C6S with its remote cable arrangement is the correct part. And for any non-PowerFlex or non-SMC drive system, this HIM simply has no application — it does not operate outside the DPI ecosystem.

From a procurement standpoint, the 20-HIM-A6 is typically listed as active or active-mature in Rockwell's lifecycle tools, meaning it is not an immediate obsolescence risk — but confirming current lifecycle status before locking it into a multi-year BOM is always worth the five minutes it takes. Pricing is available on the product page and varies with distributor agreements and regional availability; lead times are often short when the part is in stock, but can extend during periods of broader Rockwell supply pressure. Buying through a specialist automation distributor rather than a generic channel gives you access to real-time stock visibility, compatibility confirmation against your specific drive firmware, and the ability to source alternatives quickly if the 20-HIM-A6 is on backorder. View current pricing and stock status for the 20-HIM-A6 at LeadTime.ca — we ship worldwide.

For volume pricing, lead time confirmation before committing a project schedule, or help selecting the right HIM variant for your drive fleet, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the 20-HIM-A6

Because model-specific community discussion for the 20-HIM-A6 is sparse across the major automation forums — including r/PLC, PLCTalk, PLCS.net, MrPLC, and Rockwell's own user communities — the most reliable source of pre-order guidance is direct engagement with a specialist distributor who works with PowerFlex hardware daily. The catalog number confusion risk is real: the 20-HIM-A3, 20-HIM-A6, and 20-HIM-C6S are three distinct products with different feature sets and mounting requirements, and the difference between them is not always obvious from a part number search alone.

The most consistent ordering error pattern in the PowerFlex HIM category is specifying the wrong variant for the mounting situation — particularly confusing the direct-mount 20-HIM-A6 with the remote-cable 20-HIM-C6S when a panel-door location is required. A second common mistake is assuming that the NEMA Type 1 front rating of the 20-HIM-A6 provides environmental protection in its own right. It does not — NEMA Type 1 is appropriate for indoor use inside a properly rated enclosure, and the enclosure itself must meet the environmental requirements for the installation. In washdown, outdoor, or harsh-environment installations, the HIM relies entirely on the protection of the surrounding enclosure.

Engineers should also be careful when using CopyCat across drives that are not identical in hardware configuration or firmware revision. Copying parameters between drives with different ratings or control options can produce unexpected behavior — critical parameters, particularly motor data and safety-related settings, should always be verified on the target drive after a CopyCat download. These are exactly the kinds of application-specific questions where a specialist distributor adds concrete value beyond what a parts listing can provide.

Installation and Wiring Overview

  • Isolate and lockout/tagout power to the drive before connecting or removing the 20-HIM-A6; the HIM draws power from the drive's DPI port, so the drive must be safely de-energized first.
  • For direct drive mounting or handheld use, insert the HIM connector fully into the drive's DPI port; verify that the connector is seated and that the LCD powers up and displays drive type and status on restoration of drive power.
  • For NEMA Type 1 panel-door mounting, prepare the cutout to Rockwell-specified dimensions, fit the gasket, insert the HIM from the front, and secure using the rear studs and nuts — do not over-torque the mounting hardware.
  • Route the DPI cable away from high-voltage power conductors and sharp bends; if using an extension cable for handheld or remote configurations, use only Rockwell-approved cable assemblies.
  • After installation, confirm that the drive and HIM firmware are compatible per the Rockwell user manual before proceeding with commissioning or parameter changes.

Using CopyCat and the Diagnostics Interface

  • Before making changes to any drive, use the CopyCat upload function to back up the existing parameter set from drive to HIM — always work from a known-good backup.
  • To restore parameters to a replacement drive, connect the 20-HIM-A6 to the new drive, navigate to the CopyCat function, and select the download/restore operation; wait for confirmation of completion on the LCD.
  • After any CopyCat download, manually verify critical parameters on the target drive — especially motor nameplate data and any safety-related settings — as some values may not transfer identically between different drive revisions or firmware levels.
  • For diagnostics, navigate to the fault history and alarms menus to retrieve fault codes, timestamps, and associated status values (current, speed, DC bus) to support root-cause analysis.
  • When using the HIM for manual local control during testing, confirm that the drive is set to accept local command source from the HIM and that it is safe to run the connected motor before issuing start commands; return control to the normal command source before leaving the equipment.

Wrong-Part Prevention Checklist

Before placing an order for the 20-HIM-A6, work through each item on this checklist drawn directly from Rockwell documentation and distributor experience:

  1. Confirm the target hardware is a compatible PowerFlex or SMC family (PowerFlex 753/755/755T, 70/700/700S/700L/700H/7000, PowerFlex DC, SMC Flex/SMC-50).
  2. Verify the need for an enhanced HIM (features like CopyCat, advanced diagnostics) rather than the basic 20-HIM-A3.
  3. Check the required mounting method: handheld only, drive-mounted, or panel-door mounted with NEMA 1 cutout and hardware.
  4. Confirm enclosure rating (NEMA Type 1) is acceptable for the installation environment or that it will be used behind an appropriately rated enclosure.
  5. Review firmware compatibility notes in the Rockwell user manual for both the HIM and the target drive.
  6. Ensure the correct accessories are specified (mounting hardware, gasket, any required DPI cable if not using direct drive port).
  7. Do not confuse 20-HIM-A6 with 20-HIM-C6S (remote cable version) or with built-in integral keypads.
  8. Check product lifecycle status and local stock to avoid ordering an obsolete or long-lead variant.

If any item on this checklist raises a question about your specific installation, contact the LeadTime.ca team before ordering — our team can confirm compatibility, lifecycle status, and availability worldwide.

Frequently Asked Questions

Is the 20-HIM-A6 compatible with my specific PowerFlex drive model?

The 20-HIM-A6 is documented as compatible with PowerFlex 70, 700, 700S, 700L, 700H, 700 AFE, 753, 755, 755TR/TL/TM, PowerFlex DC, and PowerFlex 7000 drives, as well as SMC-50 and SMC Flex smart motor controllers via the DPI interface. Functionality may vary slightly across drive families and firmware revisions, so always cross-check against the Rockwell user manual for your specific drive model and firmware version before commissioning.

What is the practical difference between 20-HIM-A3, 20-HIM-A6, and 20-HIM-C6S?

The 20-HIM-A3 is a basic HIM with a simpler interface and no CopyCat or advanced diagnostics — it costs less but does less. The 20-HIM-A6 is the enhanced version with a full numeric keypad, multi-line LCD, CopyCat, fault history, and soft-key navigation, suitable for direct drive mounting or NEMA 1 panel-door mounting. The 20-HIM-C6S has the same enhanced feature set as the 20-HIM-A6 but is designed for remote panel-door mounting with a cable connecting it to the drive DPI port. Choose 20-HIM-C6S when the keypad location and the drive are physically separated.

Can I use one 20-HIM-A6 as a shared tool across multiple PowerFlex drives in my facility?

Yes — this is one of the most practical uses of the 20-HIM-A6. Because it connects to the drive's DPI port and draws power from the drive, it can be unplugged from one drive and connected to another without any configuration change. Maintenance teams commonly keep a single 20-HIM-A6 as a portable commissioning and diagnostic tool that serves the entire PowerFlex fleet in a facility.

What are the limits of the CopyCat function — can I copy parameters between any two PowerFlex drives?

CopyCat is designed to upload parameters from one drive and download them to a compatible drive of the same type and firmware revision. Copying across drives with different power ratings, hardware configurations, or firmware levels can result in parameters that do not transfer correctly or that produce unexpected drive behavior. Always verify motor data and safety-related parameters on the target drive after any CopyCat restore, and consult the Rockwell user manual for specific limitations before using CopyCat in a production environment.

What happens if I remove the 20-HIM-A6 from a running drive?

If the drive is configured to use the HIM as its command or reference source, removing the HIM while the drive is running will typically generate a communication fault on the drive, which may cause it to stop or fault depending on how the fault response is configured. If the HIM is being used only for monitoring while the drive runs from a network or hardwired command source, removal is generally safe but should still be done with awareness of the drive's fault response settings. Always review the drive's HIM loss fault configuration before removing a connected HIM.

What are typical lead times for the 20-HIM-A6, and is it available for international orders?

The 20-HIM-A6 is typically listed as active or active-mature by Rockwell Automation, and major distributors frequently carry it in stock or with short factory lead times. Lead times can extend during periods of broader Rockwell supply pressure, so confirming current stock and lead time with a distributor before finalizing a project schedule is always recommended. LeadTime.ca ships worldwide — check current availability on the product page or contact the team for time-sensitive sourcing.

Why Order the 20-HIM-A6 from LeadTime.ca

  • Global shipping — LeadTime.ca sources and ships industrial automation parts worldwide, not limited to any single region.
  • Real-time stock visibility and lead time confirmation before you commit to a project schedule.
  • Technical support for variant selection — helping you confirm 20-HIM-A6 vs 20-HIM-A3 vs 20-HIM-C6S for your specific drive family and mounting requirement.
  • Volume pricing available for MRO programs, plant standardization buys, and OEM panel builds.
  • Specialist automation distributor focus — not a generic marketplace; the team understands PowerFlex drive ecosystems and can flag lifecycle or compatibility issues before an order ships.

At-a-Glance Summary

  • Catalog number: Allen-Bradley 20-HIM-A6 — Enhanced Human Interface Module, NEMA Type 1.
  • Interface: DPI (Drive Peripheral Interface) at 125 or 500 kbps; powered directly from the connected drive — no external supply needed.
  • Compatible drive families: PowerFlex 70, 700, 700S, 700L, 700H, 700 AFE, 753, 755, 755TR/TL/TM, PowerFlex DC, PowerFlex 7000, SMC-50, SMC Flex.
  • Key differentiator over 20-HIM-A3: full numeric keypad, multi-line LCD with soft keys, CopyCat parameter backup/restore, and advanced diagnostics menus.
  • Mounting options: handheld, direct drive-mounted, or NEMA Type 1 panel-door mounted with gasket and rear stud hardware.
  • Choose 20-HIM-C6S instead when a cable-connected remote panel-door location is required.
  • Choose 20-HIM-A3 when advanced features are not needed and cost is the primary constraint.
  • Lifecycle status: typically active or active-mature — confirm current status before specifying into a long-horizon BOM.
  • LeadTime.ca ships the 20-HIM-A6 worldwide — pricing on the product page; contact for volume orders and lead time confirmation.
