Allen-Bradley 1756-IF8 — ControlLogix Analog Input Buying Guide

By Abdullah Zahid
15 min read

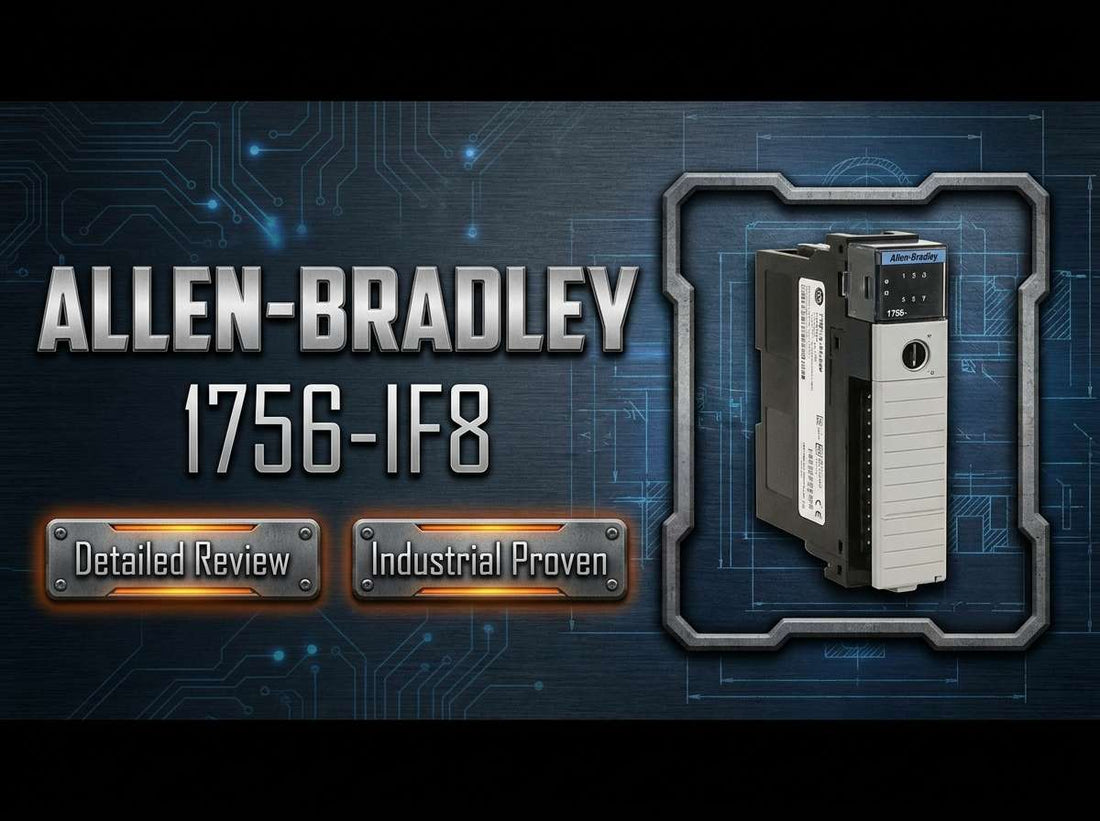

Allen-Bradley 1756-IF8 ControlLogix 8-channel analog input module for 4-20mA and voltage signals

Allen-Bradley 1756-IF8 ControlLogix 8 Point A/I (Analog Input) Module: Specs, Pricing, and Best Alternatives

Controls engineers specifying analog I/O for a ControlLogix system eventually land on a short list of modules, and the Allen-Bradley 1756-IF8 is almost always on it. This is the 8-channel analog input module for the 1756 ControlLogix chassis — it accepts current and voltage signals from field transmitters, converts them into controller-readable data, and does so with the configuration flexibility and documentation depth that ControlLogix users expect. If you are confirming it is the right part before committing your I/O list, the specs and comparison information below will give you a clear answer.

If you have already confirmed this is the right part, check current pricing and availability for the 1756-IF8 at LeadTime.ca — ships worldwide.

Who Should Buy the 1756-IF8 — and Who Shouldn't

The Allen-Bradley 1756-IF8 is the right choice for controls engineers and system integrators working on ControlLogix-based systems who need a standard, flexible analog input module for conventional current and voltage signals at moderate channel density.

  • Your system uses a 1756 ControlLogix chassis with available slot space and sufficient backplane power
  • You need to read 4–20 mA or 0–20 mA transmitters, or 0–10 V and ±10 V voltage signals — or a mix of both on a per-channel basis
  • Eight input channels covers your I/O count without requiring higher-density modules
  • You do not require HART communication or channel-to-channel isolation
  • Your project uses Studio 5000 or RSLogix 5000 and the controller firmware is compatible with the 1756-IF8
  • You value extensive manufacturer documentation, integrator familiarity, and consistent ControlLogix ecosystem behavior

If you need HART support, channel-to-channel isolation, more than 8 channels per slot, or a different platform entirely, scroll to the variant comparison section below — the 1756-IF8H, 1756-IF6I, and 1756-IF16 are the specific alternatives to evaluate instead.

On this page:

What the 1756-IF8 Actually Does in a ControlLogix System

The Allen-Bradley 1756-IF8 is specified by Rockwell Automation as a ControlLogix 8-point analog input module that supports both current and voltage input types. Its function is straightforward: it acts as the conversion layer between field-level analog signals — pressure transmitters, flow meters, level sensors, drive analog outputs, position feedback — and the controller's data table. Each of the 8 channels can be independently configured in Studio 5000 for the appropriate signal type and range, giving engineers the flexibility to serve a mixed instrument list from a single module without dedicating separate cards to current versus voltage devices.

The module occupies one slot in a 1756 ControlLogix chassis and communicates with the controller over the ControlLogix backplane. It is not a standalone device and it is not cross-platform — it requires a 1756 chassis and a compatible ControlLogix controller. Within that ecosystem, it fits equally well in a centralized main rack alongside the controller or in a remote 1756 chassis connected via a communication module. Rockwell's analog I/O documentation lists configurable input ranges including 0–20 mA and 4–20 mA for current, and ±10 V and 0–10 V for voltage, with data formatted as configurable integer or REAL values in Studio 5000. The removable terminal block interface means wiring stays in place when the module itself is swapped — a detail that significantly reduces maintenance downtime in plants that keep spares on the shelf.

Where the 1756-IF8 Sits in a Typical System Architecture

The 1756-IF8 sits at the field interface layer of the ControlLogix rack — directly between the analog field devices and the controller backplane. Understanding its position in the signal chain helps clarify both its value and its constraints.

  • ControlLogix controller (for example, 1756-L8x or 1756-L7x series) handles program execution and communicates with the 1756-IF8 over the backplane
  • The 1756-IF8 module occupies a standard 1756 chassis slot and receives analog signals through the removable terminal block (RTB) mounted on its face
  • Field wiring from transmitters and sensors — typically using shielded twisted-pair cables — terminates at the RTB, which can be pre-wired and retained during module replacement
  • Loop power for 4–20 mA devices is sourced externally and is not provided by the module itself; fusing and surge protection are applied upstream in the field junction or marshalling panel
  • Scaled engineering-unit values or raw integer data are read by the controller program and passed to HMI, historian, or control logic via the ControlLogix backplane at the module's configured update rate

Typical Applications and Industries for the 1756-IF8

The most common deployment for the Allen-Bradley 1756-IF8 is reading 4–20 mA process transmitters — pressure, flow, level, and temperature — into a ControlLogix controller in process or hybrid manufacturing environments. Water and wastewater treatment facilities frequently standardize on this module for instrument loops at lift stations, treatment cells, and chemical dosing systems where ControlLogix is the plant-wide control platform.

In food and beverage and pharmaceutical plants, the 1756-IF8 appears in clean-in-place skids, batching systems, and filling lines where a mix of 4–20 mA transmitters and 0–10 V analog outputs from drives need to be read into the same controller. The per-channel configurability for current or voltage signals means a single module can handle instrument diversity without adding cards.

Automotive and material handling OEMs use the 1756-IF8 for servo position feedback monitoring, tension control, and weld process monitoring where analog signals from transducers and instruments feed the ControlLogix controller. Oil and gas upstream and midstream facilities use it in wellhead control panels and pipeline monitoring racks where ControlLogix is the specified platform and conventional 4–20 mA HART-passive instruments are used — noting that where HART is needed, the 1756-IF8H must be specified instead.

Centralized analog I/O in a main ControlLogix rack for plant-wide data collection is another well-established use case, particularly in plants performing PLC-5 or SLC-500 migrations to ControlLogix where existing 4–20 mA transmitter wiring can be re-terminated to the 1756-IF8 without replacing field instruments.

Application Typical Deployment
Process transmitter monitoring (pressure, flow, level) 4–20 mA signals from field transmitters into centralized ControlLogix rack
Drive and positioner analog output reading 0–10 V or 4–20 mA feedback from VFDs and valve positioners into ControlLogix controller
Water and wastewater treatment Instrument loops at lift stations and dosing systems on ControlLogix platform
PLC-5 / SLC-500 migration Existing 4–20 mA transmitter wiring re-terminated to 1756-IF8 in new ControlLogix chassis
OEM machine analog monitoring Tension control, position feedback, and process monitoring on ControlLogix-based machines
Centralized plant data collection Main ControlLogix rack aggregating analog signals from multiple process areas for historian and HMI

1756-IF8 Specifications and Supported Input Ranges

Parameter Value Notes
Brand Allen-Bradley (Rockwell Automation) ControlLogix product family
Catalog Number 1756-IF8 Verify exact revision when ordering
Product Type 8-channel analog input I/O module Non-isolated between channels per manual
Platform ControlLogix 1756 Requires compatible 1756 chassis and controller — not cross-platform
Channels 8 analog inputs Per-channel independent configuration in Studio 5000
Supported Input Types Current (mA) and voltage (V) Does not directly accept thermocouples or RTDs
Typical Current Ranges 0–20 mA, 4–20 mA Confirm full range list in Rockwell datasheet
Typical Voltage Ranges ±10 V, 0–10 V Confirm additional supported ranges in datasheet
Data Format Configurable in Studio 5000 (INT / REAL) Scaling and engineering units set per channel
Terminal Block Interface Removable terminal block (RTB) — ordered separately Compatible RTB styles include 1756-TBCH and 1756-TBS6H; verify for your wiring standard

Full technical specifications are available on the product page at LeadTime.ca.

1756-IF8 vs 1756-IF16, 1756-IF8H, and 1756-IF6I: Which Module Do You Need?

The 1756 analog input family includes several modules that look similar on an I/O list but serve meaningfully different requirements. Getting this comparison right before ordering prevents the most common mistake buyers make with ControlLogix analog I/O.

Module Channels HART Support Channel Isolation Best For
1756-IF8 8 No Non-isolated (channels share common) Standard mixed current/voltage analog inputs, moderate channel density, ControlLogix-standard applications
1756-IF16 16 No Non-isolated High-density analog input applications where minimizing chassis slots and cost per channel matters
1756-IF8H 8 Yes Non-isolated Applications requiring HART pass-through for smart instrument diagnostics and asset management
1756-IF6I 6 No Channel-to-channel isolated Applications where ground loops, floating references, or common-mode noise require full channel isolation

If your I/O list has grown beyond 8 channels per rack slot or your plant is migrating to HART-enabled instrumentation, the 1756-IF16 or 1756-IF8H are the modules to evaluate next — check current availability and compare options at LeadTime.ca.

Expert Verdict: Should You Standardize on the 1756-IF8?

The Allen-Bradley 1756-IF8 earns its place as the default analog input module for ControlLogix racks because it delivers exactly what most process and discrete applications need: 8 independently configurable channels that accept both current and voltage signals, with consistent behavior, deep documentation, and broad integrator familiarity. The buyer profile this module fits best is the controls engineer or plant electrical team already committed to ControlLogix who needs to read conventional 4–20 mA transmitters and 0–10 V instrument outputs without requiring smart instrument integration. It is the right answer for medium-density analog I/O in centralized racks, PLC-5 and SLC-500 migration projects, and OEM machine designs where standardizing on a well-understood module reduces commissioning risk and simplifies spare inventory.

Where the 1756-IF8 has real limits is equally worth stating plainly. It does not support HART — if your instruments are HART-enabled and you need pass-through communication for diagnostics or asset management, the 1756-IF8H is the correct module and the 1756-IF8 cannot be made to do that job regardless of configuration. If your application involves floating signal sources, long cable runs with ground potential differences, or other conditions that create common-mode noise, the non-isolated channel architecture of the 1756-IF8 will surface as a wiring problem that the module itself cannot solve — the 1756-IF6I with channel-to-channel isolation is the appropriate choice. And if your I/O list is dense enough that 8 channels per slot creates a chassis footprint or cost-per-channel problem, the 1756-IF16 halves your slot count for the same analog input count.

From a procurement standpoint, the 1756-IF8 is frequently stocked by major authorized distributors in North America, but availability does tighten during high-demand periods and lead times can extend meaningfully when warehouse stock is depleted. The removable terminal block is ordered separately — the 1756-TBCH and 1756-TBS6H are the common compatible styles — and omitting it from the purchase order is one of the most reliably recurring ordering mistakes in the field. A specialist distributor can confirm module and RTB compatibility with your specific controller firmware revision, check live stock across multiple warehouses, and surface a suitable alternative if the 1756-IF8 is constrained at the moment you need it. View current pricing and availability for the 1756-IF8 at LeadTime.ca — ships worldwide.

For volume pricing, lead time confirmation before committing to a build schedule, or help selecting between the 1756-IF8 and adjacent modules, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Get Wrong When Ordering the 1756-IF8

Community feedback across forums including PLCTalk, Reddit r/PLC, Reddit r/automation, MrPLC, PLCS.net, and Rockwell's own user community tells a consistent story about the 1756-IF8: when it is wired and configured correctly, it is regarded as exceptionally reliable — engineers describe long-term field service without unexpected failures, and the predictable behavior across ControlLogix analog modules is genuinely valued by integrators who reuse code and hardware standards across multiple projects. The per-channel configuration flexibility for both current and voltage ranges, combined with the depth of available documentation and application examples, makes this module straightforward to deploy for engineers experienced with the ControlLogix platform.

The recurring frustrations, however, are just as consistent. Price is the most common complaint — ControlLogix analog modules including the 1756-IF8 are considered expensive relative to some competing PLC platforms, and this surfaces repeatedly when engineers are evaluating platform choices or justifying module count to procurement. Noise and signal instability complaints are the next most common thread, but the community consensus is clear: nearly every noise issue traced to a 1756-IF8 installation turns out to be a wiring or grounding problem rather than a hardware defect. Shared commons between channels, improperly terminated cable shields, and long unshielded runs in high-noise environments are the root causes — the module is unforgiving of shortcuts that might pass unnoticed on a digital I/O card. Studio 5000 configuration quirks also generate discussion, particularly around range selection, alarm threshold behavior, and the underrange and overrange conditions that appear when a channel is configured for a range that does not match the connected transmitter.

The ordering mistakes documented in community discussions are specific enough to be worth naming directly. The most frequent is ordering the 1756-IF8 when HART communication is required, then discovering that HART pass-through requires the 1756-IF8H — a different catalog number that cannot be substituted after the panel is built without a module swap and possible configuration changes. The second is ordering 8-channel modules and running short on channel count for the panel, requiring an additional module purchase and chassis slot that could have been avoided by specifying the 1756-IF16 at the outset. The third is the RTB omission — the removable terminal block is not included with the module, and buyers who do not account for it in the purchase order face a panel wiring delay waiting for a separately sourced RTB. Confirming the correct RTB part number — 1756-TBCH or 1756-TBS6H depending on your wiring standard — before placing the module order eliminates this entirely.

Wiring and Installation Overview for the 1756-IF8

The following is a high-level overview of wiring and installation considerations for the 1756-IF8. Engineers should refer to the Rockwell Automation analog I/O user manual for full wiring diagrams, slot loading requirements, and step-by-step procedures.

  • The 1756-IF8 requires a 1756 ControlLogix chassis slot; verify backplane power budget before assigning the slot, as analog modules draw backplane current that must remain within chassis power supply limits
  • Loop power for 4–20 mA devices is externally sourced and not provided by the module — each current loop requires an appropriate external power supply, and fuses or circuit breakers must be installed upstream per system design requirements
  • Use shielded twisted-pair cable for all analog signal runs; terminate cable shields at one point only per Rockwell's grounding guidance to avoid ground loops, and route analog wiring physically separated from high-noise power cabling
  • For voltage inputs, verify that signal commons are correctly referenced; the 1756-IF8 channels are non-isolated from each other, meaning shared common references between channels must be managed carefully to prevent ground loop noise
  • Install the removable terminal block (RTB) — 1756-TBCH or 1756-TBS6H depending on wiring standard — and verify polarity and loop connections before energizing; the RTB interface allows the module to be replaced without disturbing field wiring

Compatible Terminal Blocks and System Accessories

The 1756-IF8 uses a removable terminal block that must be ordered separately. The RTB is a critical part of the installation and must be specified correctly to match your panel's wiring standard and cable gauge requirements.

  • 1756-TBCH — cage clamp style removable terminal block, commonly specified for general analog wiring in ControlLogix panels
  • 1756-TBS6H — spring clamp style removable terminal block, an alternative for installations where tool-free termination is preferred

Confirm the correct RTB part number against your plant wiring standard and the module's terminal layout in the Rockwell analog I/O user manual before ordering. RTB compatibility across different 1756 analog modules is not universal — verify that the RTB specified for the 1756-IF8 matches this module's pin layout specifically.

Wrong-Part Prevention Checklist Before You Order

Before placing an order for the Allen-Bradley 1756-IF8, verify every item on this checklist. These are the most common sources of ordering errors identified across buyer and engineering communities for this module family.

  1. Confirm you are using a 1756 ControlLogix chassis, not CompactLogix or other platforms (module is not cross-platform).
  2. Verify you need an analog INPUT module (IF8) and not an analog OUTPUT module (for example, OF8 or OF4).
  3. Check you need 8 channels and non-isolated standard analog inputs; if you need HART or isolated channels, this is not the right module.
  4. Confirm supported input types (voltage/current) and ranges match your transmitters/sensors; this module does not directly accept thermocouples or RTDs.
  5. Ensure firmware and Studio 5000 / RSLogix 5000 version support the 1756-IF8 in your controller revision.
  6. Order the correct removable terminal block (RTB) style (for example, 1756-TBCH or 1756-TBS6H) and match wiring practices in your panel standard.
  7. Verify environmental rating (control cabinet temperature, vibration, and pollution degree) is within the module's specified operating limits.
  8. Check local stock and lead time before standardizing, especially if your site needs spares on the shelf.

If any item on this checklist raises a question about fit, contact the LeadTime.ca team before ordering — confirming the right part number takes minutes and prevents a costly return or project delay.

Frequently Asked Questions

Does the 1756-IF8 support HART communication, or do I need the 1756-IF8H?

The 1756-IF8 does not support HART communication. If your application requires HART pass-through for smart instrument diagnostics or asset management, the 1756-IF8H is the correct module to specify. These are different catalog numbers and the 1756-IF8 cannot be configured or upgraded to support HART — this is the single most common variant ordering mistake documented in the ControlLogix analog input community.

Can I connect thermocouples or RTDs directly to the 1756-IF8?

No. The 1756-IF8 accepts current (mA) and voltage (V) signals from field devices; it does not directly accept thermocouple or RTD signals. For temperature measurement from thermocouples, specify the 1756-IT6I or similar ControlLogix thermocouple input modules. For RTDs, dedicated RTD input modules in the 1756 family are required. Alternatively, temperature transmitters that convert thermocouple or RTD signals to a 4–20 mA output can be connected to the 1756-IF8.

Which terminal block models are compatible with the 1756-IF8, and can I reuse RTBs from other analog modules?

The 1756-TBCH (cage clamp) and 1756-TBS6H (spring clamp) are the commonly referenced compatible RTB styles for the 1756-IF8. RTB compatibility is not universal across all 1756 analog modules — verify the terminal layout for the specific module before assuming an RTB from another card will fit. The RTB is ordered separately and is not included with the module; omitting it from the purchase order is a frequent and avoidable delay on panel build schedules.

Why are my 1756-IF8 channels reading incorrectly — overrange, underrange, or a wrong value?

The most common causes are a mismatch between the configured input range in Studio 5000 and the actual signal from the transmitter, open-loop conditions on 4–20 mA channels, and grounding or shielding issues introducing noise. Start by verifying that the channel configuration in Studio 5000 matches the transmitter's output range exactly, then confirm loop power and wiring continuity with a multimeter. If readings are noisy but within range, inspect shield termination and cable routing for proximity to high-noise sources.

Is the 1756-IF8 compatible with current ControlLogix 5580 and 5570 controllers?

The 1756-IF8 is a member of the established ControlLogix 1756 I/O family and is generally compatible with ControlLogix controllers including current series controllers when the correct firmware and Studio 5000 software versions are used. Always verify compatibility against Rockwell's firmware and software compatibility matrix for your specific controller catalog number and revision before finalizing the I/O configuration — do not assume backward or forward compatibility without checking the published compatibility data.

How do I scale 4–20 mA signals to engineering units in Studio 5000 for the 1756-IF8?

In Studio 5000, after adding the 1756-IF8 to the I/O configuration and selecting the 4–20 mA range for the channel, scaling to engineering units is configured using the module's channel properties — you set the raw input range (corresponding to 4 mA and 20 mA) and map it to your engineering unit minimum and maximum values. Data can be formatted as an integer (INT) or floating-point (REAL) value. For full procedure details, refer to the Rockwell Automation ControlLogix Analog I/O Modules User Manual available from rockwellautomation.com.

Why Order the 1756-IF8 Through LeadTime.ca

  • Global shipping — LeadTime.ca sources and ships Allen-Bradley 1756 I/O modules worldwide, not limited to any single region or country
  • Specialist sourcing — when the 1756-IF8 is on extended lead time through standard channels, LeadTime.ca can check stock across multiple warehouses and propose compatible alternatives including the 1756-IF16 or 1756-IF8H
  • Compatibility confirmation — the team can verify RTB part numbers, controller firmware compatibility, and module revisions before the order ships, reducing the risk of receiving the wrong part for your build
  • Volume and project pricing — contact directly for volume pricing on larger I/O builds or to confirm lead time before committing to a project schedule
  • Hard-to-find and MRO supply — for plants maintaining spare inventory of ControlLogix analog I/O or sourcing replacements for legacy installations, LeadTime.ca handles both new and difficult-to-locate stock

At-a-Glance Summary

  • The Allen-Bradley 1756-IF8 is an 8-channel analog input module for the 1756 ControlLogix chassis — not compatible with CompactLogix or other platforms
  • Supported input types include current signals (0–20 mA, 4–20 mA) and voltage signals (±10 V, 0–10 V) — configurable per channel in Studio 5000
  • Channels are non-isolated from each other — proper shielding, grounding, and common referencing are required for stable readings
  • Does not support HART communication — specify 1756-IF8H if HART is required
  • Does not directly accept thermocouple or RTD signals — transmitters or dedicated temperature input modules are required
  • Removable terminal block (RTB) is ordered separately — 1756-TBCH and 1756-TBS6H are the commonly compatible styles
  • Key alternative variants: 1756-IF16 (16 channels, higher density), 1756-IF8H (8 channels with HART), 1756-IF6I (6 channels, channel-to-channel isolated)
  • Configured and programmed in Studio 5000 or RSLogix 5000 — verify firmware compatibility with your specific controller revision before ordering
  • Pricing is available on the product page; contact LeadTime.ca for volume pricing and lead time confirmation before committing to a build schedule
