Allen-Bradley 1756-IB16 — ControlLogix DC Input Module Review

By Abdullah Zahid
17 min read

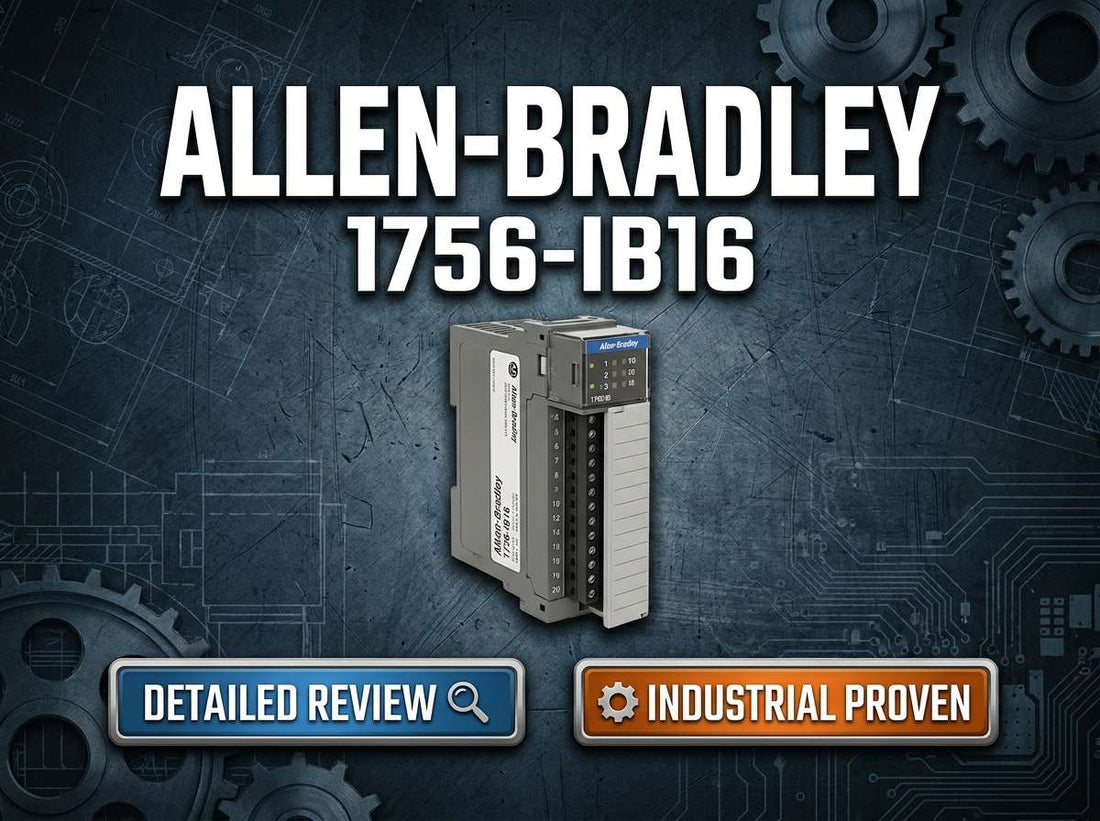

Allen-Bradley 1756-IB16 ControlLogix 16-point 24V DC sinking digital input module for industrial PLC panels

Allen-Bradley 1756-IB16 CONTROLLOGIX 16DI 10-31V DC MODULE — Specs, Price, Alternatives and Selection Guide

If you are specifying or replacing a discrete DC input card in a ControlLogix chassis, the Allen-Bradley 1756-IB16 is the catalog number that appears on most bills of materials for exactly this role. It delivers 16 sinking DC inputs across a 10–31.2 V DC operating range, organized in two isolated groups of eight, and connects directly to the 1756 backplane — making it the go-to choice for terminating 24 VDC sourcing sensors, pushbuttons, limit switches, and contact closures into a ControlLogix controller. Before you finalize the order, this guide covers the specifications, variant comparisons, wiring requirements, and the most common ordering mistakes so your module arrives ready to drop into the panel.

If you have already confirmed this is the right part, check current pricing and availability for the 1756-IB16 at LeadTime.ca — ships worldwide.

Who Should Buy the Allen-Bradley 1756-IB16 — and Who Shouldn't

The 1756-IB16 is the right choice for automation and controls teams already standardized on ControlLogix who need a reliable, widely supported 24 VDC discrete input module without paying a premium for advanced diagnostics. It is a strong fit when all of the following are true:

  • Your PLC platform is ControlLogix (Bulletin 1756 chassis) and the project is configured in Studio 5000 or RSLogix 5000.
  • Field devices are sourcing PNP types operating in the 10–31.2 V DC range — the 1756-IB16 uses sinking inputs and is not compatible with sinking NPN devices.
  • You need exactly 16 digital inputs per slot, organized in two groups of 8 with 250 V continuous isolation between groups.
  • Operating environment falls within 0–60 °C and the module will be housed in a suitable control panel enclosure (open-style module).
  • A 20-pin removable terminal block or compatible 1492 interface module will be included in the BOM.

If your application requires per-point diagnostic capability or short-circuit detection, the 1756-IB16D is a closer fit. If individually isolated channels are required, evaluate the 1756-IB16I. For higher point density in fewer slots, a 32-point ControlLogix digital input module may better suit your chassis layout.

On this page:

What the 1756-IB16 Actually Does in a ControlLogix System

The Allen-Bradley 1756-IB16 is a 16-point DC digital input module that sits in any slot of a ControlLogix 1756 chassis and presents discrete on/off signal states to the controller via the 1756 backplane. It accepts field signals in the 10–31.2 V DC range, making it fully compatible with nominal 24 VDC control circuits. The module uses sinking input architecture, which means it expects sourcing PNP field devices — sensors, pushbuttons, proximity switches, limit switches, and dry contacts wired through an external supply — to pull the input point to a positive voltage to assert a logical ON state.

The 16 inputs are divided into two fixed groups of eight. Each group has its own isolated common terminal, with 250 V continuous isolation maintained between the two groups. This grouping is important both electrically and practically: it allows two independent voltage commons to be used across a single module, and it gives the system designer a natural boundary for separating signal sources from different field panels, machine zones, or power distribution branches. The module is backplane-powered through the ControlLogix chassis and requires no separate module power supply, though external field power and appropriate protective devices such as fuses or branch circuit breakers must be provided at the system level.

LED indicators on the module face display input point status and module health, providing local visual feedback during commissioning, troubleshooting, and routine inspections without requiring a laptop connected to the controller.

Typical System Architecture for the 1756-IB16

The 1756-IB16 sits between the field wiring layer and the ControlLogix controller, conditioning discrete DC signals from the plant floor into backplane data the CPU can act on. A typical deployment looks like this:

  • ControlLogix controller (e.g., 1756-L series CPU) in a 1756 chassis communicates via the backplane to all I/O modules in that chassis or over an EtherNet/IP network to remote I/O racks.
  • The 1756-IB16 occupies one slot in the chassis and registers 16 discrete input states on the backplane each scan cycle.
  • A 20-pin removable terminal block or 1492 interface module attaches to the front of the 1756-IB16 and provides the screw or spring terminal landing points for field cables.
  • External 24 VDC field power supply feeds the sourcing PNP sensors and switches; the return path closes through the module's input terminals when a device activates.
  • Upstream fusing or branch protection at the panel power distribution level protects both the module and field wiring, as the 1756-IB16 requires external protection at the system level.

Typical Applications and Deployment Scenarios

In manufacturing environments — automotive assembly, food and beverage packaging, consumer goods, and material handling — the 1756-IB16 is often the default discrete input card for machine control panels where 24 VDC sourcing sensors are the site standard. OEM machine builders frequently specify it for repeat-build designs because a single module type covers pushbuttons, photoelectric sensors, inductive proximity sensors, and contact closures from safety relays or interlocks in one standardized card.

For replacement and expansion scenarios, the 1756-IB16 is one of the most frequently stocked ControlLogix I/O modules at automation distributors globally, precisely because it appears on so many existing machines. A plant maintenance team that keeps one tested spare on the shelf can restore a faulted ControlLogix rack in minutes rather than waiting on an emergency order.

Water and wastewater facilities, power generation balance-of-plant systems, and process industries that have standardized on ControlLogix use the 1756-IB16 to bring in discrete status signals from valve position switches, level switches, pump run contacts, and equipment ready signals — all typically 24 VDC sourcing outputs from field instruments.

Plants migrating from older PLC platforms to ControlLogix also encounter the 1756-IB16 early in the transition, since 24 VDC discrete I/O is the most common signal type being rewired to the new system and the 1756-IB16 covers this with a well-understood, documentable catalog number that support teams can maintain for many years.

Application Typical Deployment
New machine control panel Standard discrete input card for 24 VDC sensors, pushbuttons, and limit switches in a ControlLogix main rack
Failed module replacement Direct swap into existing chassis slot to restore machine operation with no project changes required
Production line expansion Additional I/O slot populated in an existing ControlLogix chassis to add new field devices to a running system
OEM repeat-build machine Standardized input module used across all builds for consistent spares strategy and simplified commissioning
Platform migration project Replaces older discrete input cards when rewiring field devices to a new ControlLogix system
Process skid integration Terminates valve position, level switch, and equipment status signals from 24 VDC field instruments

1756-IB16 Specifications Every Engineer Needs to Confirm

Specification Value Notes
Catalog Number 1756-IB16 Bulletin 1756 ControlLogix Digital I/O family
Number of Inputs 16 (two groups of 8) Each group has an independent isolated common terminal
Input Voltage Range 10–31.2 V DC Nominal 24 VDC operation; confirm all field devices fall within this range
Input Type DC sinking inputs Requires sourcing PNP field devices — not compatible with sinking NPN devices
Group Isolation 250 V continuous between the two groups of 8 Allows two independent field commons on one module
Backplane ControlLogix 1756 backplane Module is backplane-powered; no separate module supply required
Connection Type 20-pin RTB or 1492 interface module Must be ordered separately; confirm screw vs spring terminal preference
Operating Temperature 0–60 °C (32–140 °F) Open-style module; requires installation in a suitable panel enclosure
Enclosure Type Open-style Panel-mount only; not rated for direct exposure to plant environment
Indicators Input status, module status, communication status LEDs Local visual diagnostic without laptop connection

Full technical specifications are available on the product page at LeadTime.ca.

1756-IB16 vs 1756-IB16D vs 1756-IB16I: Which ControlLogix Input Module Do You Actually Need?

The 1756 ControlLogix digital DC input family includes several variants that share the same basic voltage range but differ in diagnostic capability and isolation architecture. Understanding these differences before ordering prevents the most common specification error on ControlLogix I/O projects.

Model Input Count Input Type Isolation Diagnostic Capability Best For
1756-IB16 16 (2 groups of 8) DC sinking 250 V between groups Standard — no per-point diagnostics General-purpose 24 VDC discrete inputs; standard machine control
1756-IB16D 16 DC sinking Group isolation Diagnostic — short-circuit detection, per-point fault status Applications where input fault detection reduces downtime cost
1756-IB16I 16 DC sinking Individually isolated inputs Standard Applications requiring channel-by-channel electrical isolation

If your application uses standard PNP sensors and pushbuttons in a typical machine control panel without a specific requirement for diagnostics or individual channel isolation, the 1756-IB16 delivers exactly what is needed at a lower cost per point. If your maintenance strategy prioritizes rapid fault identification — particularly in high-uptime lines where a failed input can cost significant production time — the 1756-IB16D's per-point diagnostics justify the additional module cost. For applications where input channels connect to circuits with different reference potentials that cannot share a common, the 1756-IB16I's individual isolation is the correct choice regardless of cost.

If a 32-point card better matches your chassis slot budget and field wiring density, evaluate the corresponding higher-density ControlLogix digital input modules. Check current availability of the 1756-IB16 at LeadTime.ca and contact the team if you need help comparing variants for your specific chassis configuration.

Expert Verdict: Is the 1756-IB16 the Right Card for Your Project?

The Allen-Bradley 1756-IB16 earns its place on almost every ControlLogix BOM that calls for general-purpose 24 VDC discrete inputs. It handles 16 sinking inputs across the 10–31.2 V DC range, fits any 1756 chassis slot, and is configured in minutes inside Studio 5000 or RSLogix 5000 with no surprises. For automation teams already standardized on ControlLogix — whether in automotive plants, packaging lines, OEM machine builds, or process skids — this module is the lowest-risk, most supportable choice available. It has been in the field long enough that maintenance technicians know it, spare modules are widely stocked, and every commissioning step is well-documented. It does not deliver the diagnostic depth of the 1756-IB16D or the channel-level isolation of the 1756-IB16I, but for the large majority of machine control applications, those features are not required and add cost without adding value.

Where the 1756-IB16 is the wrong answer is equally clear. If your application demands per-point fault detection — short circuits, wire breaks, or open inputs surfaced as individual alarms in the controller — you need the 1756-IB16D instead. If any of your input channels must be individually isolated from all others, such as when signals originate from equipment with fundamentally different earthing references, the 1756-IB16I is the correct selection. And if your chassis slot count is tight and you have 24 or 32 inputs from a single machine zone, a higher-density 32-point module may be a better fit economically. Be direct with yourself at the specification stage about which of these conditions applies — changing the module type after panel wiring has begun is an expensive correction.

From a procurement standpoint, the 1756-IB16 is one of the more consistently available ControlLogix I/O catalog numbers at major automation distributors globally, but availability can tighten during periods of supply chain pressure. Planning at least one spare per critical machine or production line is standard practice for ControlLogix shops, and a specialist distributor can help you confirm stock across multiple warehouse locations, flag any lifecycle notices, and align delivery timing with your commissioning schedule. View current stock and pricing for the 1756-IB16 at LeadTime.ca — orders ship worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Price, Lead Time, and How to Order the 1756-IB16 From Anywhere in the World

Pricing for the 1756-IB16 reflects the ControlLogix platform premium — it is positioned in the mid-hundreds USD range, with market observations often placing it in the low 600s USD per module at major North American distributors. These are market-typical reference points only; actual pricing varies by distributor, order volume, regional tariffs, and current market conditions. Never use these figures for formal quoting — always confirm current pricing directly with the distributor before finalizing a purchase order or project budget.

The 1756-IB16 is one of the more commonly stocked ControlLogix I/O modules at large automation distributors in North America and internationally. That said, stock status can shift quickly during periods of elevated demand or supply constraint, and what appears as available online one week may move to a lead time the next. For projects with defined commissioning dates, confirming stock and securing delivery commitment before the project BOM is finalized is a sound practice. Canadian buyers will generally find availability comparable to the broader North American market, though occasional additional lead time applies when import logistics are involved. For any project shipping outside North America, a specialist distributor who manages international freight and customs documentation adds tangible value to the procurement process.

What Engineers Need to Know Before Ordering the 1756-IB16

Because model-specific community discussion about the 1756-IB16 is sparse — most forum activity discusses ControlLogix digital I/O at the family level rather than by individual catalog number — the most useful pre-order guidance comes from the patterns of selection and wiring errors that experienced engineers and distributors observe repeatedly. The 1756-IB16 is treated in the field as a standard, expected component rather than a specialized module, which has a practical consequence: buyers sometimes apply less scrutiny to the catalog number than they would for a more unusual part, and that is exactly when ordering errors happen.

The most consistent source of frustration reported across automation forums and distributor Q&A channels is the sinking versus sourcing mismatch. The 1756-IB16 is a sinking input module and must be paired with sourcing PNP field devices. Engineers who configure a panel with NPN sinking sensors — common in certain Asian machine builder standards — will find their inputs unresponsive regardless of wiring quality. This confusion is compounded by the fact that both sinking and sourcing input modules exist within the 1756 family and share similar catalog structures. Verifying the input type before placing the order is not optional; it is the single most important check on the entire BOM for this module.

The second recurring problem is the missing terminal block. The 1756-IB16 ships as a module only — no removable terminal block is included in the box. The 20-pin RTB or 1492 interface module must be ordered separately, and it must be matched to the correct pin count and terminal type (screw versus spring). Projects that do not include this item explicitly on the BOM discover the gap at panel installation, when the module is physically on-site but there is no way to land the field wiring. Specialist distributors who review your BOM as part of the ordering process can catch this before the shipment leaves the warehouse, which is a concrete reason to use an expert source rather than a catalog-only channel for ControlLogix hardware.

Wiring and Installation Overview for the 1756-IB16

  • The 1756-IB16 mounts in any slot of a ControlLogix 1756 chassis; seat it firmly until the backplane connector is fully engaged and the latch clicks — verify chassis grounding before applying power.
  • A 20-pin RTB or compatible 1492 interface module is required for field wiring and must be attached to the module front; confirm the terminal style (screw or spring) matches panel wiring standards before ordering.
  • Field wiring connects sourcing PNP devices to the input terminals; group the 16 inputs into the two banks of 8 deliberately — separate signal sources with different commons, voltage references, or noise characteristics across the two groups to take advantage of the 250 V continuous isolation between groups.
  • External field power at 24 VDC (within the 10–31.2 V DC range) must be supplied from the panel distribution level; external fusing or branch protection is required — the module itself does not provide internal protection.
  • Before applying field power, verify device type (sourcing PNP only), confirm polarity of each input circuit, and check that all terminal screws are torqued to the RTB manufacturer's specification to prevent intermittent connection faults after commissioning.

Commissioning the 1756-IB16 in Studio 5000 and RSLogix 5000

  • Add the 1756-IB16 to the controller's I/O tree in Studio 5000 or RSLogix 5000 using the exact catalog number and the correct chassis slot number — a slot mismatch will generate a configuration fault even if the module is physically present.
  • Set electronic keying to match site standards; when replacing an existing module with a newer hardware revision, review the keying settings to avoid a mismatch fault on download.
  • Download the project to the controller and verify that the module appears online with a green status — no fault codes in the I/O tree indicate successful backplane communication.
  • Energize field devices one group at a time and confirm that both the module input status LEDs and the corresponding software tags in the controller change state as expected for each active input point.
  • Document the I/O mapping with tag names, terminal numbers, and field device descriptions before closing the panel — this information significantly reduces troubleshooting time during any future maintenance event.

Wrong-Part Prevention Checklist for the 1756-IB16

Before finalizing any order for the 1756-IB16, work through each of the following checks against your project documentation and panel drawings:

  1. Confirm PLC platform: this is for ControlLogix (Bulletin 1756) chassis, not CompactLogix or Flex I/O.
  2. Verify input type: DC 10–31 V sinking inputs requiring sourcing (PNP) field devices; do not use where sinking (NPN) devices are mandated.
  3. Check point count: ensure 16 inputs per module (two groups of 8) matches project I/O list and spare capacity plan.
  4. Ensure the correct RTB or interface module is specified (20-pin removable terminal block or 1492 IFM) and matches wiring standard.
  5. Confirm operating voltage level (typically 24 VDC) and that it falls within the 10–31.2 V DC range for all devices.
  6. Verify environmental conditions (0–60 °C, panel enclosure rating, vibration) align with site requirements.
  7. Check firmware/software compatibility with installed ControlLogix controller and Studio 5000 / RSLogix 5000 version.
  8. Validate delivery timeframe and that at least one spare module is budgeted if the input card is mission-critical.

If any item on this list cannot be confirmed from existing project documentation, contact the LeadTime.ca team before placing the order — resolving a specification question before shipping is always faster and less costly than processing a return or emergency replacement.

Frequently Asked Questions

Is the 1756-IB16 a sinking or sourcing input module — and which field devices can I use with it?

The 1756-IB16 is a sinking input module. It expects sourcing PNP field devices — sensors or switches that output a positive voltage to the input terminal when active. NPN sinking devices that pull the input terminal toward common will not drive the inputs to the ON state, and installing them will result in inputs that never change state regardless of how the field device behaves. Always confirm device output type before wiring.

Which removable terminal block or interface module do I need for the 1756-IB16?

The 1756-IB16 uses a 20-pin connection and requires either a compatible 20-pin removable terminal block or a 1492 interface module (IFM) ordered separately. Terminal block options include screw-terminal and spring-terminal variants — confirm which style matches your panel wiring standard. The module does not ship with a terminal block included, so omitting it from the BOM is a common cause of installation delays.

Can I replace a failed 1756-IB16 in a live ControlLogix chassis without causing a controller fault?

ControlLogix supports online module removal and insertion (OMRI), which allows a module to be removed and replaced while the chassis is powered, provided the controller project is configured correctly and site safety procedures permit working on energized equipment. In practice, the controller will generate an I/O communication fault for the affected slot when the module is removed, and will recover automatically once the replacement module is inserted and identified. Always follow site lockout/tagout procedures and consult the ControlLogix installation documentation before performing hot-swap operations on live systems.

How should I decide which signals go in Group 1 versus Group 2 on the 1756-IB16?

The two groups of eight inputs on the 1756-IB16 are isolated from each other at 250 V continuous, each with its own common terminal. Use this boundary deliberately: place signals that share the same field power common in the same group, and use the two groups to separate signal sources from different machine zones, different power distribution branches, or circuits with different noise characteristics. Mixing commons between groups incorrectly can introduce ground loops or noise coupling, and exceeding the isolation voltage rating between groups can damage the module.

Can the 1756-IB16 accept field devices operating at different DC voltage levels on the same module?

All input voltages across both groups must fall within the 10–31.2 V DC range. The two-group structure allows two different field power commons to be used, but both voltage sources must still be within that range. If you need to interface signals at voltages outside the 10–31.2 V DC specification, a different input module rated for that voltage is required — using out-of-range voltages risks module damage and unreliable input states.

What does it mean if the module status LED on a 1756-IB16 shows a fault condition?

The module status LED indicates the health of the module's communication with the ControlLogix backplane and its internal self-diagnostics. A solid red or alternating red condition typically points to a hardware fault, a configuration mismatch between the physical module and the controller project, or an electronic keying conflict. Check the I/O tree in Studio 5000 for fault codes, verify that the catalog number and slot assignment in the project match the physical installation, and confirm that the module revision is compatible with the configured electronic keying settings.

Why Order the 1756-IB16 Through LeadTime.ca

  • LeadTime.ca ships the 1756-IB16 and all compatible ControlLogix accessories worldwide — no geographic restriction on orders.
  • Specialist automation distributors can verify that your module selection, RTB type, and chassis configuration are aligned before the order ships, catching BOM errors before they become installation delays.
  • Stock is checked across multiple warehouse locations, giving visibility into availability that a single-warehouse catalog channel cannot match during periods of supply tightness.
  • Volume pricing and project-level quotes are available for OEMs, system integrators, and plant buyers with repeat procurement needs — contact the team for current rates.
  • Hard-to-find ControlLogix catalog numbers, discontinued variants, and emergency replacement requirements are part of the everyday sourcing workflow.

At-a-Glance Summary

  • The Allen-Bradley 1756-IB16 is a 16-point DC digital input module for ControlLogix (Bulletin 1756) chassis.
  • Input voltage range is 10–31.2 V DC; nominal 24 VDC operation is the standard use case.
  • Input type is sinking — compatible only with sourcing PNP field devices, not NPN sinking devices.
  • Inputs are organized in two fixed groups of eight, with 250 V continuous isolation between groups.
  • Module is backplane-powered via the 1756 ControlLogix chassis; no separate module power supply is required.
  • A 20-pin RTB or 1492 interface module must be ordered separately — it is not included with the module.
  • Operating temperature range is 0–60 °C (32–140 °F); open-style module requires a suitable panel enclosure.
  • LED indicators provide local input status, module status, and communication status without a laptop connection.
  • The 1756-IB16D adds per-point diagnostics; the 1756-IB16I provides individually isolated channels — choose accordingly.
  • At least one spare module per critical machine or production line is standard practice for ControlLogix installations.
