Allen-Bradley 1734-OB8S — Safety Output Module Buying Guide

By Abdullah Zahid
15 min read

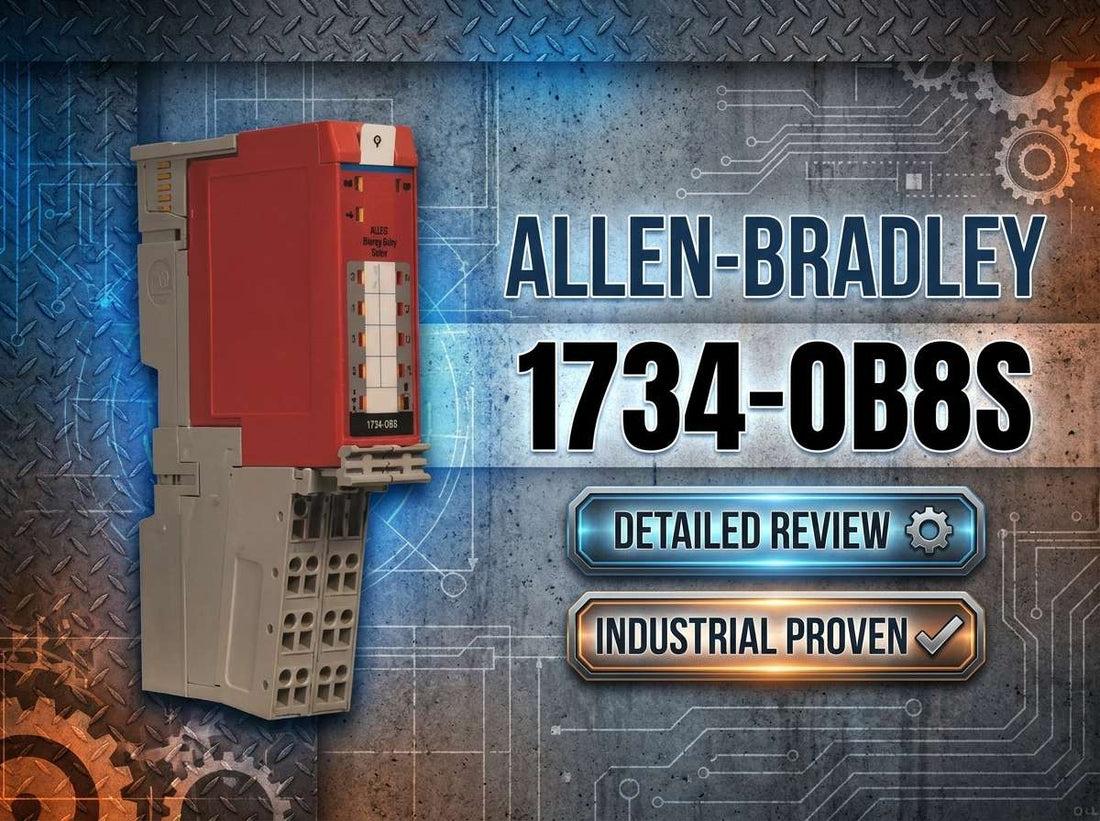

Allen-Bradley 1734-OB8S POINT Guard I/O 8-channel 24V DC safety sourcing output module for GuardLogix systems

Allen-Bradley 1734-OB8S POINT Guard I/O 8-Channel Safety Sourcing Output Module, 24V DC – Specs, Pricing & Selection Guide

Controls engineers specifying distributed safety I/O for a GuardLogix-based machine often reach this point: the architecture calls for 24V DC safety outputs at a remote POINT I/O rack, and the 1734-OB8S is the catalog number on the BOM. The question is whether it is the exact right part — correct series, correct base, correct safety certification — before the purchase order goes out. The Allen-Bradley 1734-OB8S is an 8-channel 24V DC sourcing safety output module in the POINT Guard I/O family, designed to deliver SIL- and PL-capable outputs inside the same compact 1734 form factor used throughout the rest of the POINT I/O architecture.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 1734-OB8S — and Who Shouldn't

The 1734-OB8S is the right choice when all of the following apply to your project:

  • Your safety controller is a GuardLogix or Compact GuardLogix, and your POINT I/O adapter and firmware support POINT Guard I/O safety modules with available safety connections.
  • You need safety-rated 24V DC sourcing digital outputs — not standard, not sinking, not relay, not AC.
  • You require 8 output channels per module and can accommodate the 1734 POINT base and backplane power budget those 8 safety outputs demand.
  • The installation environment is IP20-compatible — meaning the module will sit inside a rated industrial control panel on DIN rail.
  • Operating conditions fall within the approximately -20 to +55 °C range documented by Rockwell Automation for this module.
  • Your project requires safety certifications (UL, CE, and associated industrial safety standards) consistent with the 1734-OB8S approvals list.

If your application only needs standard (non-safety) outputs, the 1734-OB8 is the appropriate choice and carries a meaningfully lower cost. If your loads require higher current per channel, relay-type outputs, or a different safety topology, a different module is correct — this guide covers those alternatives below.

On this page:

What the 1734-OB8S Does in a Safety System

The 1734-OB8S provides eight individually addressable 24V DC sourcing safety outputs inside a distributed POINT I/O rack. Its role is to carry the safety function all the way to the field device — a contactor, safety valve, light curtain enable input, or other 24V DC load — while maintaining the diagnostic and certification integrity required by the safety controller upstream. Unlike a standard POINT I/O output module, the 1734-OB8S communicates safety status, participates in the safety signature managed by the GuardLogix controller, and supports the fault detection behavior required for SIL and PL applications.

Rockwell Automation documents the 1734-OB8S as part of the POINT Guard I/O family alongside safety input and analog safety modules including the 1734-IB8S and 1734-IE4S, forming a cohesive set of safety I/O options within the 1734 series. The module mounts on a 1734 POINT base on DIN rail and connects to the rest of the I/O rack through the backplane bus, drawing both logic power from the bus and requiring an external 24V DC field supply for the output channels. Status LEDs — OK, SF (safety fault), and I/O — provide immediate visual diagnostic feedback at the module level, while detailed fault information surfaces in Studio 5000 and the GuardLogix controller tags.

The IP20 protection rating means the module is not rated for exposure to contamination or moisture and must be installed inside a properly rated industrial control panel. Within that constraint, it operates across an approximately -20 to +55 °C temperature range, which covers the majority of panel-mounted industrial applications. The module carries industrial safety certifications including UL and CE listings as documented by the manufacturer.

Where the 1734-OB8S Sits in a Typical Safety Architecture

The 1734-OB8S is a field-side output device — it sits at the end of the safety data path, between the adapter and the physical load. Understanding its position helps clarify what other hardware must be present and correctly configured for the module to operate.

  • GuardLogix or Compact GuardLogix safety controller — executes the safety task and manages the safety signature for all POINT Guard I/O modules in the system.
  • 1734 POINT I/O adapter (EtherNet/IP or other supported network) — provides the communication path between the controller and the I/O rack; must support POINT Guard I/O safety modules and have available safety connections.
  • 1734 POINT base — the mechanical and electrical interface the 1734-OB8S snaps onto; correct base selection is mandatory and impacts wiring and power distribution.
  • 1734-OB8S module — receives safety output commands from the controller, drives 24V DC sourcing outputs to field loads, monitors for faults, and reports status back through the adapter.
  • Field loads (contactors, safety valves, enabling devices, indicators) — connect to output terminals 0 through 7, powered by the external 24V DC field supply.

Typical Applications and Deployment Scenarios

The most common use of the 1734-OB8S is controlling safety contactors or drives in emergency stop and guard door functions on machines built around GuardLogix. When an E-stop event or guard door opening is detected by safety inputs, the GuardLogix controller commands the 1734-OB8S to de-energize the appropriate output channels, removing power from the contactors or drive enable circuits in a diagnostically monitored way.

Distributed conveyor and material handling lines benefit from the module's POINT I/O form factor because safety outputs can be located in remote junction boxes or sub-panels alongside standard POINT I/O, rather than running long cable runs back to a central safety relay panel. This topology reduces wiring cost and makes zone-based safety architectures practical on long lines.

OEM packaging and machine tool builders standardizing on POINT I/O and GuardLogix often specify the 1734-OB8S to replace hardwired safety relay circuits. The transition consolidates safety logic into Studio 5000, eliminates discrete relay hardware, and provides richer diagnostics that reduce troubleshooting time during commissioning and in the field.

Maintenance teams replacing a failed 1734-OB8S in an existing validated safety system represent a significant share of module orders. In this scenario, matching the exact catalog number and series letter is critical to avoid triggering additional re-validation work.

Application Typical Deployment
Automotive assembly cell Safety outputs controlling robot cell contactors and guard door interlocks via GuardLogix and distributed POINT Guard I/O racks
Packaging machine OEM Replacement of hardwired safety relays with integrated 1734-OB8S outputs managed in Studio 5000 safety task
Modular conveyor line Remote POINT I/O sub-panels with 1734-OB8S providing zone-local safety output control over EtherNet/IP
Machine tool with multiple guard zones Multiple 1734-OB8S modules providing individually addressable 24V DC safety outputs per zone within a single GuardLogix system
Pharmaceutical or food production line Safety valve and enabling signal control via 1734-OB8S in enclosure-mounted POINT racks on a validated GuardLogix platform
MRO replacement on existing validated system Direct module swap in existing POINT Guard I/O rack with safety signature update in Studio 5000

Key Specifications and Variant Comparison

Parameter 1734-OB8S Value Notes
Catalog Number 1734-OB8S POINT Guard I/O safety output module; confirm series suffix (/A, /B) for validated designs
Output Type 24V DC sourcing digital safety outputs Sourcing only; external 24V DC field supply required
Number of Output Channels 8 Individually addressable in GuardLogix safety task
Product Family POINT Guard I/O (1734 series) Uses 1734 POINT bases and adapters
Compatible Controllers GuardLogix / Compact GuardLogix Adapter and firmware must support POINT Guard I/O
Operating Temperature Approx. -20 to +55 °C Verify exact range in current Rockwell datasheet
Protection Rating IP20 Must be installed in a suitable rated industrial enclosure
Mounting DIN rail via 1734 POINT base Correct base selection is mandatory
Diagnostics Status LEDs (OK, SF, I/O) and controller-level diagnostics in Studio 5000 Detailed fault behavior documented in POINT Guard I/O user manual
Certifications UL, CE, and associated industrial safety standards Confirm SIL/PL ratings and full approval list in official Rockwell documentation

Full technical specifications are available on the product page at LeadTime.ca.

The table below clarifies the most critical selection decision in this product family: safety versus standard output, and the key alternatives within the 1734 series.

Model Output Type Channels Safety Rated Compatible Controller Best For
1734-OB8S 24V DC sourcing digital 8 Yes — POINT Guard I/O GuardLogix / Compact GuardLogix Safety outputs in GuardLogix POINT I/O systems
1734-OB8 24V DC sourcing digital 8 No — standard I/O Standard Logix controllers Standard (non-safety) output applications
1734-IB8S 24V DC sinking digital input 8 Yes — POINT Guard I/O GuardLogix / Compact GuardLogix Safety inputs paired with 1734-OB8S in same rack
1734-IE4S Analog input 4 Yes — POINT Guard I/O GuardLogix / Compact GuardLogix Safety analog input applications in POINT Guard I/O

If your application requires standard outputs only and carries no safety function requirement, the 1734-OB8 is the correct selection and avoids the cost premium of the safety-rated module — check current availability and confirm the right variant at LeadTime.ca.

Expert Verdict: Is the 1734-OB8S Right for Your Project?

The 1734-OB8S earns its place in any GuardLogix-based system that already uses POINT I/O and needs to distribute safety outputs to field devices across a machine or line. It delivers 8-channel 24V DC sourcing safety outputs in the exact same compact POINT form factor as the standard I/O modules surrounding it in the rack, which means no panel layout compromise, no secondary mounting hardware, and a consistent wiring and configuration approach across safety and standard I/O. The tight integration with Studio 5000 — including safety signature handling, per-channel diagnostics through the OK, SF, and I/O LEDs, and tag-based safety task mapping — is a genuine operational advantage for engineers who live in the Rockwell ecosystem. The module's documented operating range of approximately -20 to +55 °C and IP20 rating suit typical panel-mounted industrial applications. This part is right for controls and safety engineers on GuardLogix-based machines in automotive, packaging, material handling, food and beverage, or any other industry where distributed safety outputs and compact I/O density matter.

Where the 1734-OB8S has real limits: it is not the answer for plants running a non-Rockwell safety platform. If the safety controller is from a different manufacturer, POINT Guard I/O simply does not apply. It is also not the right choice when the application requires relay-type outputs, higher per-channel current than the module is rated for, AC output capability, or a different safety topology — in those cases, other Allen-Bradley safety I/O families such as Guard I/O block modules or Compact 5000 safety I/O deserve evaluation. Cost-sensitive projects that carry no safety function requirement should use the 1734-OB8 instead and save the budget difference. Always confirm the exact catalog number including the series suffix — a mismatch between the replacement module's series and the validated safety design can trigger additional verification and commissioning work that delays restart.

From a procurement standpoint, the 1734-OB8S is a current product within the POINT Guard I/O lineup, and availability at major industrial distributors is typically stock or short factory lead time, though this varies. Safety I/O modules are not the place to gamble on unverified surplus stock of unknown series or firmware — the cost of a configuration fault or safety signature mismatch in a production environment far exceeds any price saving. Ordering through a specialist industrial automation distributor that can confirm lifecycle status, verify the series against your validated design, and support urgent replacement needs is a straightforward risk reduction measure. Check current pricing and availability for the 1734-OB8S at LeadTime.ca — we ship worldwide and can help verify compatibility before the order is placed.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the 1734-OB8S

Community feedback on the 1734-OB8S across PLC forums and Rockwell-focused discussion groups follows a consistent pattern: engineers who are already committed to GuardLogix and POINT I/O are generally satisfied with the module's reliability and its integration with Studio 5000. The compact form factor, consistent diagnostics experience, and the ability to place safety outputs directly alongside standard POINT I/O in the same rack are regularly cited as practical advantages that simplify panel design. The module is described as reliable in continuous-duty industrial environments when installed correctly inside a properly rated enclosure.

The recurring complaints are equally consistent and worth flagging before you order. The most discussed issue is cost — the 1734-OB8S carries a meaningful price premium over the standard 1734-OB8, and this surprises budget holders who are not familiar with the cost difference between safety-rated and standard I/O. The second persistent issue is the confusion between the 1734-OB8 and 1734-OB8S. The single letter "S" in the catalog number is the only visible difference, and orders for the wrong module — especially in MRO and urgent replacement scenarios — create downtime and project delays. A third theme in community discussions is the safety signature mismatch fault that appears after a module replacement when the Studio 5000 configuration steps are not followed in the correct sequence. This is not a module defect; it is a configuration workflow issue, but it reliably catches engineers who skip or rush the post-replacement commissioning steps.

Given that community data for this specific module is less abundant than for higher-volume general-purpose POINT I/O modules, the practical guidance available from a specialist distributor becomes more valuable. When forum threads are sparse, the right call is to confirm compatibility details — adapter firmware support for POINT Guard I/O, correct base type, series letter matching the validated design, and available safety connections on the controller — directly with a technical source before the PO is issued. The checklist below captures the most common ordering and installation mistakes in a format you can use as a pre-order verification step.

Wiring and Installation Overview

The following points summarize the key requirements for installing and wiring the 1734-OB8S. Full wiring diagrams and detailed procedures are available in the Rockwell Automation POINT Guard I/O user manual and should be consulted before installation.

  • The 1734-OB8S snaps onto a 1734 POINT base mounted on DIN rail — the correct base type must be selected and the bus connector properly seated before the module is installed.
  • An external 24V DC field supply is required for the output channels; connect V+ and V– to the correct terminals on the base and provide appropriate external protection devices as specified in the user manual.
  • Output channels 0 through 7 connect to their respective 24V DC load devices — observe polarity and confirm load current requirements against the module's rated output characteristics before wiring.
  • Before any wiring work, de-energize the panel, apply lockout/tagout, and verify absence of voltage on the POINT I/O rack; after wiring, verify each channel with a meter before restoring power.
  • After power-up, confirm the OK and I/O LEDs indicate healthy status and check for any safety faults (SF LED or controller fault diagnostics) before proceeding to software commissioning in Studio 5000.

Compatible Safety I/O Modules in the 1734 Family

The 1734-OB8S is designed to work alongside other POINT Guard I/O modules within the same 1734 rack and GuardLogix system. The following modules are documented by Rockwell Automation as part of the POINT Guard I/O safety I/O family:

  • 1734-IB8S — 8-channel 24V DC sinking safety digital input module; commonly paired with the 1734-OB8S for complete safety input/output coverage in a single POINT rack.
  • 1734-IE4S — 4-channel safety analog input module for safety-rated analog signal acquisition within the POINT Guard I/O architecture.
  • 1734 POINT bases — Required mechanical and electrical interface for all 1734 modules; base type must match the module and the planned wiring approach.
  • 1734 POINT I/O adapters (EtherNet/IP and other networks) — Provide the communication path to the GuardLogix controller; adapter must support POINT Guard I/O safety modules and have sufficient available safety connections for the modules in the rack.

Wrong-Part Prevention Checklist

Before placing an order for the 1734-OB8S, verify each item on this checklist. Skipping any one of these steps is the source of the most common and costly ordering mistakes reported by engineers working with this module.

  1. Confirm the application requires a safety-rated output module; do not substitute a standard 1734-OB8 for 1734-OB8S in safety circuits.
  2. Verify 24V DC sourcing output is correct for the field loads (no need for sinking outputs or AC outputs).
  3. Confirm the POINT I/O adapter and controller firmware support POINT Guard I/O safety modules and have available safety connections.
  4. Check module catalog number including suffix and series (e.g., 1734-OB8S /A or /B) to match existing validated safety design and safety signature.
  5. Ensure you have the correct 1734 POINT base and terminal style for this module and enough backplane power for 8 safety outputs.
  6. Validate environmental limits (temperature range, IP20, panel enclosure rating) align with the machine environment.
  7. Confirm channel count (8 outputs) is sufficient; otherwise plan for multiple modules and safety addressing.
  8. Check that the module's safety performance level and standards certifications meet project requirements and end-user specifications.

If any item on this checklist raises a question you cannot answer with confidence, contact the LeadTime.ca team before ordering — confirming compatibility upfront avoids the downtime and cost of receiving the wrong part.

Frequently Asked Questions

What is the actual difference between the 1734-OB8 and the 1734-OB8S — can I use them interchangeably?

No. The 1734-OB8 is a standard (non-safety) POINT I/O output module for use with standard Logix controllers. The 1734-OB8S is a safety-rated POINT Guard I/O module for use with GuardLogix and Compact GuardLogix, with integrated safety diagnostics, safety signature participation, and the certifications required for SIL- and PL-compliant safety functions. Substituting a 1734-OB8 for a 1734-OB8S in a safety circuit invalidates the safety function — this is the single most consequential ordering mistake in this product family.

How do I clear a safety signature mismatch fault after replacing a 1734-OB8S?

After installing a replacement 1734-OB8S in the same slot, connect online with Studio 5000 and use the appropriate module properties function — typically "Replace Module" or "Update Safety Signature" — to reconcile the controller's stored safety signature with the new module. The exact procedure is documented in the Rockwell Automation GuardLogix and POINT Guard I/O user manuals. Skipping or incorrectly sequencing these steps is the most common cause of persistent safety fault conditions after a module swap.

Can I use the 1734-OB8S with a standard ControlLogix or CompactLogix controller instead of a GuardLogix?

The 1734-OB8S is a POINT Guard I/O safety module and is designed for use with GuardLogix and Compact GuardLogix safety controllers. Using it with a standard (non-safety) Logix controller would not provide the safety function, safety signature management, or certified safety performance the module is rated for. The standard 1734-OB8 is the appropriate module for non-safety Logix controller applications.

What types of field loads can the 1734-OB8S drive, and are there load restrictions?

The 1734-OB8S provides 24V DC sourcing outputs suitable for loads such as contactors, safety valves, light curtain enable inputs, and enabling signals common in safety circuits. Load current limits per channel and per module are specified in the Rockwell Automation datasheet and user manual — always verify these figures against your specific load requirements before finalizing the design, as exceeding output ratings can cause faults or damage.

What 1734 POINT base do I need to order with the 1734-OB8S, and does it ship with one?

The 1734-OB8S module does not include a POINT base — the base is a separate line item and must be ordered to match the module's terminal style and your wiring approach. Correct base selection is a documented prerequisite and is one of the most common installation-delay mistakes. Confirm the base catalog number against the module's wiring diagram before placing the order, or contact LeadTime.ca for confirmation.

Why Order the 1734-OB8S From LeadTime.ca

  • LeadTime.ca ships worldwide — no geographic restriction on sourcing safety I/O modules regardless of your facility location.
  • Specialist industrial automation focus means catalog number, series, and compatibility questions get a knowledgeable answer before the order ships, not after.
  • Access to current pricing and real-time availability avoids the lead time surprises that delay safety system commissioning and replacement.
  • Volume pricing available for OEM builds and projects requiring multiple modules — contact directly for project-quantity quotes.
  • Hard-to-find and current-lifecycle safety I/O modules sourced from verified supply channels, reducing the risk of unverified surplus in safety-critical applications.

At-a-Glance Summary

  • Module: Allen-Bradley 1734-OB8S — POINT Guard I/O 8-Channel Safety Sourcing Output Module, 24V DC
  • 8 individually addressable 24V DC sourcing safety output channels per module
  • Safety-rated for use with GuardLogix and Compact GuardLogix safety controllers only — not interchangeable with standard 1734-OB8
  • Requires a compatible 1734 POINT base (sold separately), a POINT I/O adapter with POINT Guard I/O support, and an external 24V DC field supply
  • Operating temperature approximately -20 to +55 °C; IP20 — requires installation inside a rated industrial control panel
  • Certifications include UL and CE as documented by Rockwell Automation; confirm SIL/PL ratings in official datasheet for your specific safety function
  • Documented part of the POINT Guard I/O safety family alongside 1734-IB8S (safety digital input) and 1734-IE4S (safety analog input)
  • Status LEDs (OK, SF, I/O) provide immediate visual diagnostics; detailed fault data accessible in Studio 5000
  • Series suffix (/A, /B) must match the validated safety design — confirm before ordering replacement modules
  • Current product in the POINT Guard I/O lineup; verify lifecycle status and lead time with your distributor before committing to a build schedule
