Allen-Bradley 1734-OB8 — POINT I/O Output Module Buyer Guide

By Abdullah Zahid
16 min read

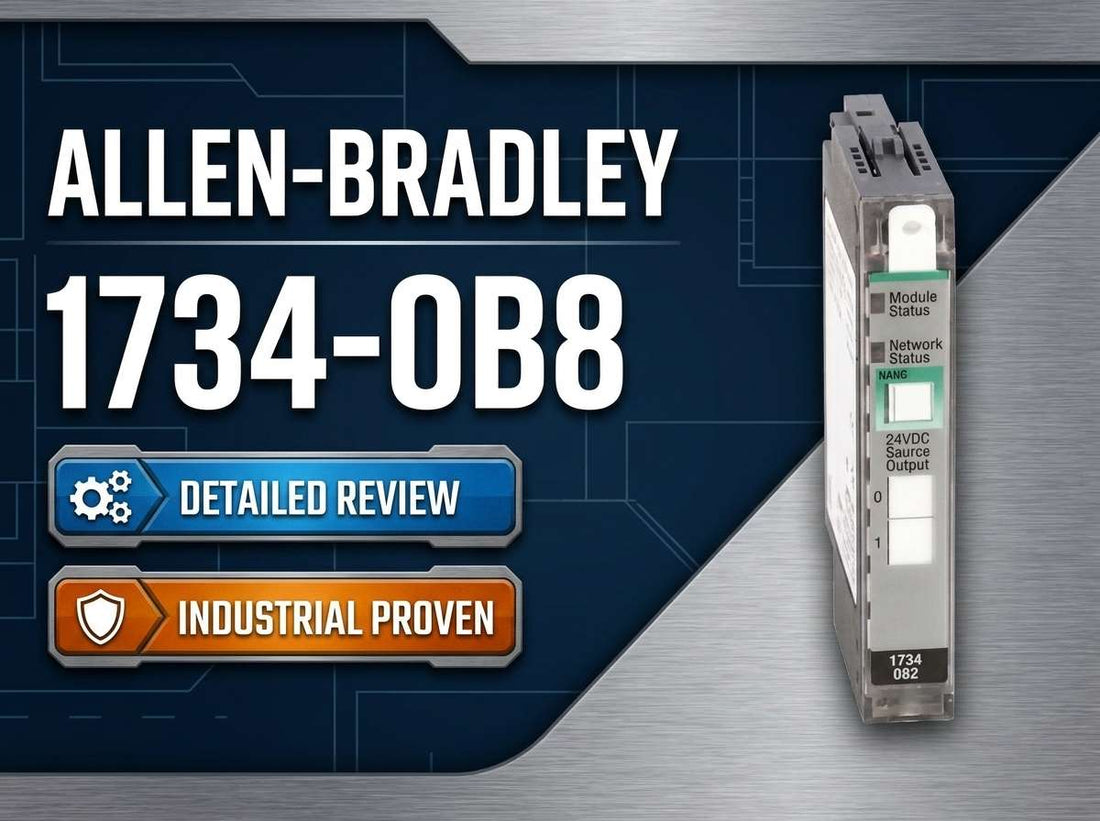

Allen-Bradley 1734-OB8 POINT I/O 24V DC 8-point sourcing digital output module for distributed control panels

Allen-Bradley 1734-OB8 POINT I/O 24V DC 8-Point Digital Output Module, Sourcing — Specs, Wiring, and Selection Guide

Controls engineers specifying distributed I/O for a Logix-based machine typically reach for the Allen-Bradley 1734-OB8 when they need eight individually controlled 24V DC sourcing outputs in a compact POINT I/O node — whether they are driving solenoid valves on a packaging line, contactor coils in a small panel, or stack lights close to a conveyor. This module is part of the proven 1734 POINT I/O family, organized as a single group of eight non-isolated DC sourcing channels, and it mounts directly on a DIN rail using a 1734-TB or 1734-TBS terminal base alongside the POINT I/O communication adapter of your choice. Before finalizing your BOM, the single most important check is confirming your application calls for sourcing outputs — the field device load returns to the module — not sinking or relay contacts; everything else falls into place once that is confirmed.

If you have already confirmed this is the right part, check current pricing and availability for the 1734-OB8 at LeadTime.ca — ships worldwide.

Who Should Buy the 1734-OB8 — and Who Should Look Elsewhere

The 1734-OB8 is the right choice for controls engineers and OEM machine builders operating within a Rockwell Logix ecosystem who need a proven, standard-density 24V DC sourcing output module for distributed panel drops. This module fits your project if all of the following apply:

  • Your application requires sourcing 24V DC discrete outputs (field device load returns to the module common), not sinking outputs or dry relay contacts.
  • Eight output points per module is the right density for your node — your field device count and backplane layout support this grouping.
  • Your field loads (solenoids, relays, contactors, indicator lights) fall within the module's rated voltage range and per-channel and total module current limits.
  • You are building on an existing POINT I/O node with a compatible 1734 adapter (EtherNet/IP, ControlNet, DeviceNet, or similar) and a 1734-TB or 1734-TBS terminal base is included on the BOM.
  • Your operating environment falls within the module's rated temperature range of approximately -25 °C to 55 °C and your panel humidity, shock, and vibration conditions are within standard industrial ratings.
  • You do not require channel-level electronic diagnostics, electronic fusing, safety-rated outputs, or outputs rated for relay or AC loads.

If your project demands channel-level fault diagnostics and electronic output protection, the 1734-OB8E or 1734-OB8EP is the correct selection. For safety-rated outputs in a SIL or PLe application, you need the 1734-OB8S. For relay-contact or AC-capable outputs, the 1734-OW8 is the appropriate variant. This article covers the standard 1734-OB8 only.

On this page:

What the 1734-OB8 Actually Does in a Distributed Control System

The 1734-OB8 is a digital output module — its job is to take a commanded state from the controller and switch a 24V DC load on or off at the field device level. In a POINT I/O architecture, the module sits between the POINT I/O communication adapter (which handles protocol traffic back to the controller) and the physical field wiring terminals on the 1734 terminal base. Each of the eight output channels appears as a discrete output tag in the Logix controller's I/O tree, making it directly addressable in ladder logic, function block, or structured text programs in Studio 5000 or RSLogix.

The sourcing output configuration means the module provides the positive side of the 24V DC circuit to the field device. When an output is commanded ON, current flows from the module's output terminal through the load and returns to the common terminal. This is the standard for most European and North American sourcing wiring conventions and matches the default assumption in many Rockwell machine standards and sample code libraries. All eight channels share one group, meaning they share a common field power return within the module.

What distinguishes the 1734-OB8 from integrating standard chassis I/O is placement flexibility. Because the module is part of the distributed POINT I/O family, it can be located close to field devices — at the machine cell, on a skid, or in a local junction box — communicating back to the main controller over EtherNet/IP, ControlNet, DeviceNet, or other supported network adapters. This reduces field wiring runs and keeps signal integrity high for discrete outputs. The 1734-OB8 is identified by Rockwell as a non-isolated output module, which is typical and acceptable for most discrete machine I/O applications where all loads share a common DC bus.

Typical POINT I/O Node Architecture With the 1734-OB8

Understanding where the 1734-OB8 sits in the signal chain helps visualize how a node is assembled before ordering parts. A complete POINT I/O node includes the adapter, one or more terminal bases, and the I/O modules themselves — the 1734-OB8 occupies one slot in that chain.

  • Logix controller (CompactLogix or ControlLogix) communicates over EtherNet/IP or another supported network to the POINT I/O adapter mounted on the DIN rail.
  • The POINT I/O communication adapter provides the POINTBus backplane to which all I/O modules in the node connect — the adapter's power budget and current capacity must cover all modules installed.
  • A 1734-TB or 1734-TBS terminal base is installed for each module slot; the 1734-OB8 plugs into one of these bases and locks in with a mechanical latch.
  • Field power (24V DC) is supplied to the output module's terminal base to drive the eight output channels; this is separate from POINTBus logic power.
  • Field devices — solenoid valves, contactor coils, indicator lights, small relays — connect to the output terminals and common returns on the terminal base, completing the sourcing output circuit when each channel is commanded ON.

Where the 1734-OB8 Gets Deployed: Industries and Machine Types

The 1734-OB8 appears most frequently in discrete manufacturing environments where a Logix controller is already the platform of record. Packaging machine builders use it to control pneumatic solenoid manifolds and reject actuators distributed along the line. In automotive and general assembly, it drives contactor coils and motor starter auxiliaries at local panel drops where running long discrete wiring back to a central chassis would be impractical.

Food and beverage applications are a strong fit because the module's industrial temperature and humidity ratings cover most controlled-environment production areas, and the POINT I/O format allows compact panel builds. Conveyor systems and material handling use the 1734-OB8 to control stack lights, zone-enable relays, and small pneumatic diverters at each conveyor section, with the distributed architecture keeping node wiring short.

Beyond primary manufacturing, the module appears in water and wastewater remote panel drops, mining local control stations, and building automation where Rockwell Logix platforms are already installed. Retrofit and expansion projects at existing POINT I/O installations are a particularly common use case — specifying the 1734-OB8 keeps the spare parts inventory simple and avoids introducing a new platform mid-project.

Application Typical Deployment
Packaging line distributed I/O EtherNet/IP POINT I/O node controlling pneumatic solenoids and reject gates at each machine section
Solenoid valve manifold control CompactLogix or ControlLogix driving 24V DC solenoids via 1734-OB8 mounted close to the manifold
Contactor coil and motor starter control Local POINT I/O panel drop driving contactor coils in a small MCC or motor control panel
Stack light and indicator control Distributed node at conveyor section or machine cell driving pilot lights and stack lights
POINT I/O expansion or retrofit Adding output capacity to an existing 1734 node without changing platform or adapter

Key Specifications Engineers Need Before Ordering

The table below covers the purchase-decision-relevant specifications for the 1734-OB8 drawn from Rockwell Automation product and installation documentation. Electrical ratings not confirmed against the current Rockwell datasheet are noted — always verify against the latest Rockwell publication before finalizing your design.

Parameter Value Notes
Catalog Number 1734-OB8 POINT I/O family, digital output module
Output Type 24V DC digital sourcing 8 points, 1 group — non-isolated
Number of Outputs 8 Single group of 8 channels
Nominal Voltage 24V DC Verify usable voltage range against current Rockwell datasheet
Operating Temperature Approx. -25 °C to 55 °C Confirm exact range against Rockwell installation instructions before design sign-off
Mounting DIN rail with 1734 terminal base Requires 1734-TB or 1734-TBS; horizontal and vertical orientations as permitted
Communication Interface POINTBus backplane via POINT I/O adapter Compatible with EtherNet/IP, ControlNet, DeviceNet, and other 1734 adapters
Controller Compatibility Rockwell Logix platforms (CompactLogix, ControlLogix, and others) Configured in Studio 5000 or RSLogix 5000
Safety Rating Standard — not safety-rated Safety applications require 1734-OB8S
Agency Approvals UL, CE, and others — verify current approvals against Rockwell documentation Confirm specific markings before submitting for project certification

Full technical specifications are available on the product page at LeadTime.ca.

1734-OB8 vs 1734-OB8E vs 1734-OW8: Which Variant Do You Actually Need?

The 1734 POINT I/O family includes several digital output variants that are easy to confuse at the catalog number level. The table below maps the key differences to help you confirm the correct selection before ordering.

Model Output Type Points Special Features Typical Use Case Relative Cost Level
1734-OB8 24V DC sourcing 8 Standard — no electronic diagnostics or fusing Standard discrete machine outputs in Rockwell Logix systems Baseline
1734-OB8E 24V DC sourcing 8 Electronic fusing, channel-level diagnostics, output protection Applications requiring per-channel fault detection and protection without external fusing Higher
1734-OB8EP 24V DC sourcing 8 Enhanced diagnostics with additional protection features Higher-demand diagnostic and protection requirements Higher
1734-OB8S 24V DC sourcing 8 Safety-rated outputs for SIL/PLe applications Safety functions requiring certified discrete outputs Significantly higher
1734-OW8 Relay contact 8 Dry relay contacts — AC or DC loads, isolated per point Applications needing galvanic isolation, AC loads, or mixed-voltage switching Higher
1734-OB4 24V DC sourcing 4 Lower channel count for smaller nodes Nodes requiring fewer output points per module slot Lower

If your application requires channel-level output diagnostics and electronic protection, the 1734-OB8E is the correct selection rather than the standard 1734-OB8 — check current availability for the 1734-OB8 and related variants at LeadTime.ca.

Expert Verdict: Is the 1734-OB8 the Right Output Module for Your Project?

The 1734-OB8 earns its place as the standard workhorse 24V DC sourcing output module in the POINT I/O family because it delivers exactly what the majority of discrete machine applications require: eight individually controlled output channels, clean integration with Logix controllers in Studio 5000, and a straightforward installation process that benefits from Rockwell's broad documentation base. It is the right choice for controls engineers and OEM machine builders who are already committed to the Rockwell ecosystem, need a proven standard-density output module for new builds or expansions, and whose applications do not demand channel-level electronic protection or safety certification. The module's large installed base across North American manufacturing means spares are well understood and the configuration process is familiar to any engineer who has worked with POINT I/O before.

Where the 1734-OB8 has real limits is equally worth stating plainly. If your project includes outputs driving loads where a wiring fault or overcurrent event needs to be detected and reported at the controller level without a field service call, the 1734-OB8E's electronic fusing and channel diagnostics justify the additional cost. If any output is part of a safety function — even a simple one like a safety stop — the 1734-OB8S is the only acceptable choice; the standard module carries no safety certification. For relay-contact outputs or mixed AC/DC switching, the 1734-OW8 is the correct selection. Choosing the enhanced or safety variant when it is not needed adds unnecessary cost and complexity; choosing the standard module when diagnostics or safety are required creates a design gap that will surface during commissioning or, worse, during a safety audit.

On the procurement side, the 1734-OB8 is one of the more commonly stocked POINT I/O modules across North American distribution, which means typical lead times are shorter than for less common variants — but as community feedback and supply chain experience both confirm, availability can tighten during high-demand periods. Verifying current stock and lead time with a specialist automation distributor before committing to a project schedule is the straightforward way to avoid a delay. For volume orders or multi-node projects where the 1734-OB8 appears multiple times on the BOM, a distributor conversation can also surface pricing considerations not visible on a standard list. Check current pricing and availability for the 1734-OB8 at LeadTime.ca — we ship worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the 1734-OB8

Community discussions across forums including PLCTalk, PLCS.net, MrPLC, Reddit r/PLC, and r/industrialautomation are consistent in one key point: the most common source of trouble with the 1734-OB8 is not the module itself but the selection and application process before it arrives on the panel. Engineers who have worked with POINT I/O digital outputs describe the 1734-OB8 as reliable and essentially set-and-forget once wired and configured correctly — the module integrates cleanly into Studio 5000 and RSLogix with straightforward configuration and familiar diagnostics. The terminal base design draws particular appreciation: swapping a module without disturbing field wiring is a genuine maintenance advantage, and experienced users call it out explicitly as a reason to stay with the POINT I/O platform for distributed panel drops.

The recurring complaints are not about module reliability but about selection mistakes and load management. Confusion between sourcing (1734-OB8) and sinking output variants is the single most frequently mentioned ordering error — engineers report receiving a module that is electrically incompatible with existing panel standards or field device wiring, requiring a return and reorder that delays installation. A second pattern involves outputs being damaged by inductive loads driven without appropriate external protection: solenoid valves and contactor coils with higher inrush current draw can stress output channels if the load current and inrush are not checked against the module's per-channel and total module ratings before commissioning. During periods of constrained supply, posts across multiple forums note difficulty sourcing specific 1734 variants quickly, including standard output modules — this reinforces the importance of verifying current stock and lead time with a distributor before the project schedule is locked.

A third category of ordering mistake that appears consistently is forgetting to include the 1734-TB or 1734-TBS terminal base on the BOM. The 1734-OB8 module and the terminal base are separate line items — the module cannot be installed without the base, and selecting the wrong base variant causes mechanical and electrical compatibility issues. When community feedback is this consistent on a specific mistake, it belongs in the procurement checklist, not just the installation instructions. If you are specifying this module for the first time or adding it to an existing node configuration, working through the selection with a specialist automation distributor reduces the risk of these common errors reaching the field.

Wiring and Installation Overview for the 1734-OB8

The following points cover the key requirements and configurations for installing and wiring the 1734-OB8. For full wiring diagrams, torque values, and step-by-step procedures, refer to the Rockwell Automation installation instructions for the 1734-OB8.

  • The 1734-OB8 requires a 1734-TB or 1734-TBS terminal base installed on the DIN rail before the module is fitted — the module slides down onto the base and locks with a mechanical latch; verify the latch is fully engaged before applying power.
  • Field power (24V DC) for the output channels is supplied through the terminal base independently from POINTBus logic power; confirm that the field power supply voltage and current capacity cover all eight channels at full load, including inrush for inductive devices.
  • Wiring convention for sourcing outputs: connect the positive side of each 24V DC load to the output terminal and the return side to the designated common terminal on the terminal base; review the terminal base wiring diagram in Rockwell documentation for exact terminal assignments.
  • Use wire sizes and tightening torques specified in the Rockwell installation instructions — do not exceed the rated wire size for the terminal base and verify all terminations are tight before applying field power.
  • Before powering the node, confirm that the POINTBus current budget for the adapter can support all modules installed in the node, including the 1734-OB8's POINTBus current draw — verify this value against the current Rockwell datasheet.

Compatible Terminal Bases and POINT I/O System Expansion

The 1734-OB8 is part of the broader 1734 POINT I/O ecosystem, and the components listed below are directly relevant to a complete node build. Each is a separate catalog item and must be included on the BOM.

  • 1734-TB — Standard POINT I/O terminal base; required for 1734-OB8 installation; screw-clamp terminals for field wiring.
  • 1734-TBS — Spring-clamp terminal base variant; functionally equivalent to 1734-TB for module compatibility; selected based on panel wiring preference.
  • 1734-AENT / 1734-AENTR — EtherNet/IP POINT I/O adapters; provide the network interface and POINTBus backplane for the node; adapter current budget must be verified against all installed modules.
  • 1734-ADN — DeviceNet POINT I/O adapter for nodes on DeviceNet networks.
  • 1734-ACNR — ControlNet POINT I/O adapter for ControlNet-based architectures.
  • 1734-OB8E / 1734-OB8EP — Enhanced diagnostic digital output modules; direct functional alternatives with channel-level protection; use the same terminal base and node architecture as the 1734-OB8.

Wrong-Part Prevention: Final Checks Before You Order

Before submitting your order for the 1734-OB8, work through this checklist verbatim. Each point addresses a confirmed source of ordering errors or installation problems with this module.

  1. Confirm you truly need sourcing 24V DC outputs (field device returns to module) and not sinking or relay contacts.
  2. Verify eight output points are sufficient; if you need more or fewer per node, check other 1734 digital output variants.
  3. Check that your POINT I/O adapter and backplane power budget can supply the module's POINTBus current and output load.
  4. Ensure you have the correct terminal base (1734-TB or 1734-TBS) and enough terminal bases for all modules in the node.
  5. Match the module's voltage and current ratings to the field devices (coil current, inrush, and total current per module).
  6. Confirm environmental ratings (temperature, shock, vibration, and enclosure) meet your panel and field conditions.

If any of these checks raise a question, contact the LeadTime.ca team before ordering — confirming these points with a specialist distributor takes less time than processing a return.

Frequently Asked Questions

Can I drive solenoid valves and contactor coils directly from the 1734-OB8 outputs, or do I need interposing relays?

The 1734-OB8 can drive solenoid valves and contactor coils directly, provided the coil current and inrush fall within the module's rated per-channel and total module current limits as specified in the current Rockwell datasheet. For higher-inrush inductive loads, verify that the inrush current does not exceed per-channel ratings even momentarily; if it does, an interposing relay is the correct solution to protect the output channel. Always confirm the exact current ratings against the Rockwell datasheet before finalizing the design.

What is the practical difference between the 1734-OB8 and the 1734-OB8E, and when does the enhanced version justify the added cost?

The 1734-OB8 is a standard digital output module with no channel-level electronic fusing or diagnostic reporting. The 1734-OB8E adds electronic fusing and per-channel fault diagnostics, meaning a wiring fault or overcurrent condition is detected and reported to the controller as a tag-level alarm rather than requiring a field inspection to locate. The 1734-OB8E is worth the additional cost when fast fault isolation matters — high-uptime machines, difficult-to-access panels, or applications where maintenance teams need the controller to identify a failed channel remotely. For standard applications where cost per point is the priority and diagnostics are not required, the 1734-OB8 remains the appropriate choice.

Is the 1734-OB8 hot-swappable in a live POINT I/O node, and what precautions apply when replacing it?

The POINT I/O platform is designed to support module replacement using the terminal base, which retains field wiring when the module is removed. Before replacing a 1734-OB8, confirm with current Rockwell documentation whether the specific adapter and network configuration support online module replacement in your application. At minimum, ensure that removing and re-inserting the module will not cause unintended output state changes on connected field devices — place the controller in a safe state or inhibit the module in the I/O configuration before physically removing it. Follow Rockwell's current installation instructions for the specific replacement procedure.

How do I confirm from the part number whether a POINT I/O module is sourcing or sinking?

In the 1734 POINT I/O catalog naming convention, the letter designation following "OB" indicates DC sourcing digital outputs — the 1734-OB8 and its enhanced variants (1734-OB8E, 1734-OB8EP, 1734-OB8S) are all sourcing configurations. Sinking DC output modules use a different letter designation in the catalog number. When reviewing existing panel documentation or spare parts lists, always cross-reference the catalog number against the Rockwell product selector or the module's installation instructions to confirm output polarity before ordering a replacement.

What are the most common causes of a 1734-OB8 output channel failing, and how can I prevent them?

The most commonly reported causes of output channel failure are exceeding per-channel current ratings — particularly from inductive load inrush — and incorrect wiring that creates fault conditions on the output circuit. Prevention starts at the design stage: verify all load currents including inrush against the Rockwell datasheet before commissioning, add external protection (fusing or surge suppression) for inductive loads where appropriate, and confirm wiring polarity matches the sourcing output convention. At commissioning, use the module's status LEDs and controller diagnostic tags to verify each channel before placing the machine in production.

Why Order the 1734-OB8 From LeadTime.ca

  • LeadTime.ca specializes in industrial automation components including the full Allen-Bradley POINT I/O 1734 family — you get accurate, current stock and lead time information rather than generic channel estimates.
  • Specialist distributor support helps validate module selection, confirm compatible terminal bases and adapters, and flag BOM gaps before the order ships — reducing the risk of wrong-part delays.
  • LeadTime.ca ships worldwide, making it a practical source for project teams across North America and internationally who need fast, reliable fulfillment for Rockwell automation components.
  • Volume pricing and multi-line BOM support are available for OEM machine builders and project procurement teams — contact for current pricing on larger orders.

At-a-Glance Summary

  • Catalog number: 1734-OB8 — POINT I/O 24V DC 8-Point Digital Output Module, Sourcing (Allen-Bradley, Rockwell Automation).
  • Eight non-isolated 24V DC sourcing output channels organized as one group — each channel individually controlled and addressable in the Logix I/O tree.
  • Requires a 1734-TB or 1734-TBS terminal base (separate catalog item) — module cannot be installed without it.
  • Compatible with all major POINT I/O communication adapters including EtherNet/IP, ControlNet, and DeviceNet variants.
  • Operating temperature range approximately -25 °C to 55 °C — confirm exact range against current Rockwell documentation before design sign-off.
  • Standard module only — no channel-level diagnostics, electronic fusing, or safety rating; use 1734-OB8E for diagnostics, 1734-OB8S for safety-rated outputs.
  • Primary ordering risk: confusing sourcing and sinking output types — verify polarity against field device wiring before ordering.
  • Configured in Studio 5000 or RSLogix 5000; straightforward I/O tree addition with verified compatibility across Logix platforms.
  • Available worldwide through LeadTime.ca — check current pricing and stock on the product page or contact for volume orders.
