Complete Guide to Schneider TeSys GV2 Motor Protection Breakers

By Abdullah Zahid
17 min read

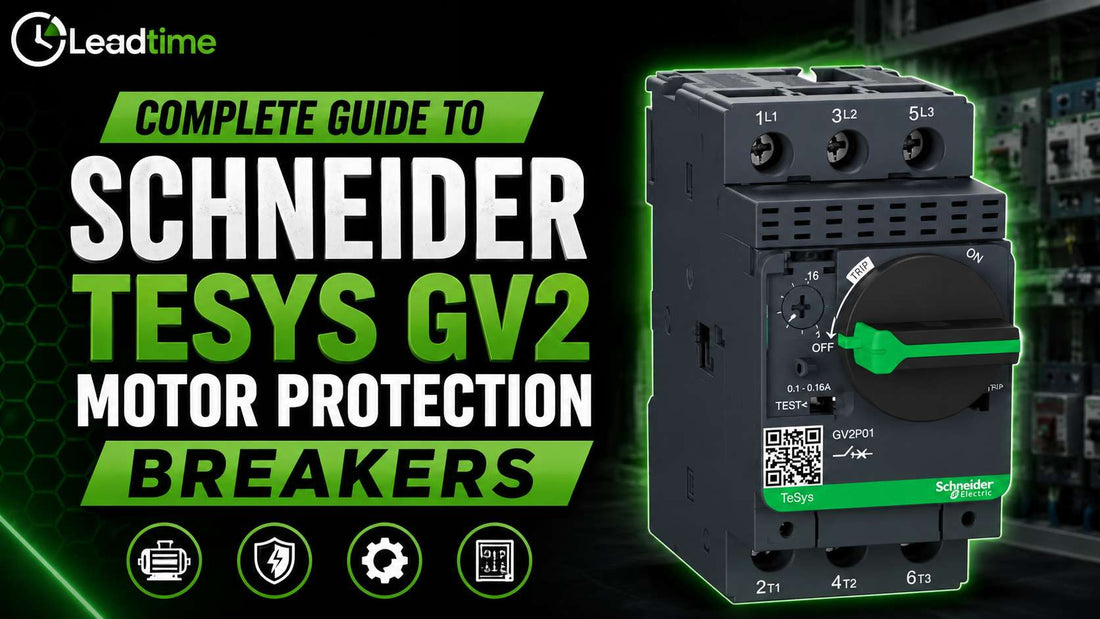

Schneider Electric TeSys GV2 motor circuit breaker manual starter and protector for three-phase motor feeders

Complete Guide to Schneider TeSys GV2 Motor Circuit Breakers / Manual Starters and Protectors

Controls engineers and panel builders specifying small to medium motor feeders consistently land on the same question: which compact device combines isolation, overload protection, and short-circuit protection without requiring a separate overload relay? The Schneider Electric TeSys GV2 Motor Circuit Breakers / Manual Starters and Protectors answer that question directly — a 3-pole thermal-magnetic device covering motors up to approximately 15 kW at 400/415 V, with current settings spanning roughly 0.4 to 32 A, and an extensive catalog of accessories that lets the same platform serve DOL starters, group installations, and VFD input protection. Getting the most out of this platform means choosing the right variant, sizing from nameplate FLA rather than kW tables alone, and confirming coordination with your TeSys D or K contactor and upstream protective devices before committing to a BOM.

If you have already confirmed the TeSys GV2 is the right series for your application, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Specify the TeSys GV2 — and Who Needs a Different Frame

The TeSys GV2 is the right choice when all of the following match your project requirements:

  • Motor full-load current falls within the GV2 frame range of approximately 0.4 to 32 A at the installation voltage
  • Motor power does not exceed approximately 15 kW at 400/415 V AC
  • You need integrated thermal-magnetic overload and short-circuit protection in a single 45 mm wide, 3-pole device (for GV2ME and GV2P variants)
  • The application requires manual On/Off control and visible trip indication at the device
  • Available short-circuit current at the installation point is within the rated breaking capacity of the chosen variant — verify against current Schneider coordination tables
  • The installation is governed by IEC or UL/CSA rules where GV2 can be applied as a manual motor controller, with awareness of whether an upstream breaker or fuse is also required under local code

If your motor exceeds the GV2 current range or you need advanced electronic protection, the TeSys GV3, GV4, or GV7 frames are more appropriate — confirm frame selection against the Schneider TeSys GV product family catalog.

On this page:

What the TeSys GV2 Actually Does in a Motor Circuit

The TeSys GV2 is a 3-pole thermal-magnetic motor circuit breaker and manual motor starter designed to replace the traditional combination of a separate MCCB and thermal overload relay with a single, compact device. Within one 45 mm wide housing, the GV2 provides four functions simultaneously: manual On/Off switching, local isolation, inverse-time thermal overload protection with phase loss detection (on thermal-magnetic variants), and instantaneous magnetic short-circuit protection. This integration is why the TeSys GV2 has become a standard reference on IEC motor starter BOMs across manufacturing, HVAC, process, and OEM machine applications worldwide.

The thermal element is adjustable via a calibrated dial, allowing the engineer to set protection to the motor's actual nameplate FLA rather than relying on fixed steps. The magnetic element provides instantaneous short-circuit interruption. Together, these conform to IEC/EN 60947-2 and IEC/EN 60947-4-1, qualifying the device for use as both a motor circuit breaker and a manual motor controller. UL and CSA listings are available for certain variants as manual motor controllers — the exact listing and group installation conditions must be verified per catalog reference and local electrical code before finalizing the design.

One capability that draws engineers to GV2 specifically is its role as a local isolating device. When fitted with an appropriate rotary handle or door-coupling kit, the GV2 provides a visible isolation point at the panel face or enclosure door — a practical requirement for maintenance technicians performing lockout/tagout procedures on small motor-driven equipment.

Where GV2 Sits in a Typical Motor Starter Architecture

The TeSys GV2 sits at the branch circuit level of the motor feeder — between the upstream supply distribution and the downstream motor or contactor. It is the first point of overcurrent protection and manual control that the motor circuit sees.

  • Upstream supply: main distribution board, MCC busbar, or feeder panel supplying 400/415 V three-phase power to the motor branch
  • Optional upstream device: fuse or MCCB when required by local code or to achieve specific coordination levels for the available fault current
  • TeSys GV2: thermal-magnetic isolation, overload, and short-circuit protection — the primary protection and switching device in the feeder
  • TeSys D or K contactor (when present): downstream of GV2 load terminals, providing automatic switching under control voltage — paired per Schneider coordination tables for Type 1 or Type 2 short-circuit coordination
  • Motor terminals: three-phase motor connection at the contactor load side, or directly at the GV2 load side in a manual-only starter configuration

In group motor installations, a common feeder busbar system supplies multiple GV2 devices in parallel — each GV2 providing individual motor protection and isolation for its own branch.

Typical Applications and Deployment Scenarios

The TeSys GV2 is most frequently deployed in direct-on-line motor starters for motors between 0.06 and 15 kW at 400/415 V AC, where compact panel design and integrated protection are priorities. In manufacturing and packaging applications, panels controlling multiple small conveyor and pump motors are a natural fit — one GV2 per motor, fed from a busbar, with each GV2 paired to a TeSys D contactor and wired to a PLC input via auxiliary contacts for trip status monitoring.

In HVAC applications, the TeSys GV2P with a rotary handle and door-coupling kit provides a clean front-panel isolation and indication point for supply fan and pump starters. Building management systems control the associated TeSys contactor while the GV2 handles protection and local override capability. Adding an undervoltage release ties the motor to the facility emergency stop circuit without additional hardware.

For VFD-driven loads such as process mixers or variable-speed pumps, the GV2L magnetic-only variant is the preferred choice at the drive input. Since the VFD provides motor overload protection, placing a thermal-magnetic GV2 at the drive input risks nuisance tripping on drive inrush — the magnetic-only GV2L provides short-circuit protection without an interfering thermal element.

Outdoor pump stations and remote motor enclosures use enclosed GV2ME or GV2P starters mounted in weather-rated housings, with a single auxiliary contact wired back to the central control panel for pump-available feedback. This keeps the protection logic local and reduces control wiring runs.

Application Typical Deployment
Small pump DOL starter GV2ME sized to motor FLA + TeSys D contactor + auxiliary contact for remote run indication
Conveyor group panel Feeder busbar + multiple GV2ME devices, each feeding a TeSys D contactor; auxiliary contacts to PLC per motor
HVAC supply fan starter with BMS GV2P with rotary handle + TeSys D contactor controlled via BMS; undervoltage release on emergency stop circuit
Process mixer with VFD GV2L magnetic-only upstream of VFD; VFD handles motor overload; auxiliary contact for line supply status
Outdoor pump station Enclosed GV2ME or GV2P in weather-rated enclosure; auxiliary contact wired back to central panel
OEM machine motor feeder GV2ME or GV2P standardized across all motor feeders for repeatable BOM and maintenance familiarity

GV2ME vs GV2P vs GV2L — Which Variant Do You Actually Need?

The three primary sub-families within the TeSys GV2 frame serve different protection and operational requirements. Selecting the wrong sub-family is one of the most common specification mistakes engineers make when building initial BOMs.

The GV2ME is the pushbutton-operated thermal-magnetic version. It offers separate ON and OFF buttons with visible trip indication and an adjustable thermal dial. It is the most widely used GV2 variant in standard IEC motor panels, OEM machines, and MCC buckets where pushbutton operation is acceptable and the available short-circuit current is within the GV2ME's rated breaking capacity. GV2ME is the default choice for most standard DOL motor feeders.

The GV2P uses rotary handle operation. Engineers specify GV2P when the application demands higher short-circuit withstand capability, clearer mechanical trip indication via the rotary handle position, lockable isolation for LOTO compliance, or where a rotary operator at the panel door face is required for ergonomic or operational reasons. GV2P variants often carry higher rated breaking capacity than equivalent GV2ME references — always verify against current Schneider catalog data for the specific current range.

The GV2L is a magnetic-only circuit breaker — it provides short-circuit protection but no thermal overload protection. It is specifically intended for applications where overload protection is provided by a separate device downstream, such as a VFD, soft starter, or standalone overload relay. Using a GV2L where thermal-magnetic protection is required leaves the motor without overload protection — a wiring or design error that the catalog designation alone does not make obvious to buyers unfamiliar with the distinction.

Variant Operation Thermal Overload Protection Short-Circuit Protection Typical Use Case
GV2ME Pushbutton ON/OFF Yes — adjustable thermal dial Yes — magnetic Standard DOL starters, OEM panels, MCC feeders
GV2P Rotary handle Yes — adjustable thermal dial Yes — magnetic, typically higher Icu Higher fault current sites, lockable isolation, rotary panel face operation
GV2L Rotary or toggle No — magnetic only Yes — magnetic Upstream of VFDs/soft starters, circuits with separate overload protection

If you are unsure which GV2 variant and current range are correct for your motor and available fault current, check the current catalog and coordination tables on the product page at LeadTime.ca or contact the team directly for confirmation before ordering.

Key Specifications for Purchase Decisions

Specification TeSys GV2 Frame
Motor power range (400/415 V AC) Up to approximately 15 kW
Adjustable current range Approximately 0.4 to 32 A (across all catalog references in the GV2 frame)
Number of poles 3
Device width 45 mm
Protection type (GV2ME/GV2P) Thermal-magnetic: overload, phase loss, short-circuit
Protection type (GV2L) Magnetic only: short-circuit protection
Standards compliance IEC/EN 60947-1, IEC/EN 60947-2, IEC/EN 60947-4-1
Listings UL/CSA available on certain variants — verify per catalog reference
Mounting DIN rail and direct panel mounting
Terminal type Screw clamp — conductor sizes per manufacturer datasheet

Full technical specifications are available on the product page at LeadTime.ca.

Expert Verdict: Is TeSys GV2 the Right Motor Protection Platform for Your Project?

For controls engineers and panel builders working on standard DOL motor feeders within the GV2's current and power range, this platform delivers exactly what most motor branch circuits need: a single compact device that handles isolation, overload protection, phase loss detection, and short-circuit interruption in a 45 mm wide package with decades of application history behind it. The TeSys GV2 is particularly well suited to OEM machine designers who want a repeatable, standardized motor protection reference across all feeders in a machine, and to plant engineers standardizing starter hardware across a facility for simplified maintenance and sparing. The combination of adjustable thermal protection and the extensive catalog of compatible accessories — auxiliary contacts, shunt trips, undervoltage releases, rotary handles, and busbars — makes it straightforward to build from a simple manual starter up to a fully featured automatic starter with trip signaling and remote isolation, all within the same device family.

The TeSys GV2 is not the right tool for every motor application. Motors that exceed the GV2 frame's approximately 32 A upper current limit or approximately 15 kW power range at 400/415 V need a larger frame — the TeSys GV3, GV4, or GV7 depending on the specific requirement. Applications where extremely high available short-circuit current is present without upstream current limitation may exceed GV2 breaking capacity on some variants; always check the specific Icu rating for the catalog reference against your calculated prospective short-circuit current. Environments that mandate solid-state electronic motor management or networked protection with current waveform diagnostics are also outside GV2's scope. When in doubt between GV2ME and GV2P for a borderline fault level, the GV2P's generally higher breaking capacity makes it the safer choice — verify against Schneider's current coordination tables for the motor rating and upstream device combination.

From a procurement standpoint, TeSys GV2 is an active product line with broad distributor availability globally, which means lead times for standard catalog references are typically predictable. The key procurement risk is not availability — it is ordering the wrong current range, the wrong sub-family (particularly ordering GV2L when thermal-magnetic protection is required), or specifying a GV2 reference without confirming the required contactor combination for the target coordination level. A specialist distributor who understands motor protection coordination can catch these errors before they become field problems. Check current stock, pricing, and lead times for the TeSys GV2 reference you need at LeadTime.ca — ships worldwide from a single source.

For volume pricing, project BOM review, or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide and can assist with both GV2 selection and compatible TeSys contactor combinations.

What Engineers Are Getting Wrong When Specifying TeSys GV2

Among the recurring themes in controls engineering forums and distributor pre-sale conversations, the TeSys GV2 generates consistently positive sentiment — experienced engineers consider it a mature, reliable platform for small to medium motor feeders. But a clear pattern of application and selection mistakes shows up repeatedly, and most of them trace back to treating GV2 selection as a simple kW lookup rather than a protection and coordination problem.

The most common field complaint is nuisance tripping, and in the majority of reported cases the root cause is using motor rated power in kW to select the GV2 current range instead of reading the actual motor nameplate FLA. A motor's nameplate FLA at a given voltage is the correct starting point for selecting the thermal dial range. Sizing from a generic kW-to-ampere conversion table without accounting for the specific motor's efficiency, power factor, and service factor routinely results in a GV2 set slightly above or below the actual motor operating current — producing either nuisance trips under normal load or insufficient protection on a slow overload.

The second persistent confusion point is the difference between the GV2L magnetic-only variant and the thermal-magnetic GV2ME and GV2P. Engineers who are not closely reading the catalog family suffix sometimes order a GV2L for a standard motor feeder, discovering only during commissioning — or after a motor failure — that the device provides no thermal overload protection. The GV2L is designed specifically for circuits where overload protection is provided downstream by a VFD or separately by an overload relay; it is not a cost-reduced version of the GV2ME.

A third area of ongoing confusion is the branch-circuit protection question in North American code environments. Engineers familiar with IEC-only design sometimes assume any GV2 variant can replace an upstream breaker or fuse in a UL or CSA panel. The answer depends on the specific catalog reference, its UL/CSA listing conditions, and the applicable electrical code. Some GV2 references are listed as manual motor controllers suitable for group installation; others require an upstream branch-circuit protective device. This must be confirmed per project — not assumed.

Wiring and Installation Overview for TeSys GV2

The following overview covers key installation considerations. Full wiring diagrams, terminal torque values, and commissioning procedures are contained in the Schneider Electric installation documentation for each GV2 catalog reference. Always follow manufacturer documentation and local electrical code. Installation must be performed by qualified personnel only.

  • Verify that supply voltage is isolated and absence of voltage is confirmed before any wiring or terminal work — lockout/tagout procedures must be followed before opening any enclosure containing energized equipment
  • Connect three-phase supply to the clearly marked line-side terminals (top) and motor or contactor line terminals to the load-side terminals (bottom) — incorrect line/load orientation is a documented installation error that causes protection failure
  • When pairing with a TeSys D or K contactor for a two-device starter, connect GV2 load terminals to the contactor line terminals; connect contactor load terminals to the motor; wire the GV2 auxiliary contacts into the control circuit for trip indication to a PLC input or alarm relay
  • For VFD installations using GV2L, size the magnetic-only breaker to the VFD input rated current per the drive manufacturer's guidance, not the motor FLA — the drive's input current profile is different from the motor's
  • After completing wiring, verify conductor torque values against the GV2 datasheet before energizing — under-torqued terminals are a leading cause of thermal damage and intermittent trips in motor protection devices

Compatible Accessories and System Expansion Components

The TeSys GV2 family supports an extensive range of accessories — on the order of dozens of catalog entries — that extend the base device for specific installation, control, and monitoring requirements. The following are the most commonly specified additions for typical motor starter designs.

  • Side-mount and front-mount auxiliary contacts: NO and NC combinations for remote trip indication, run status monitoring, and PLC digital input wiring
  • Shunt trip releases: enable remote electrical tripping of the GV2 from an emergency stop circuit, safety relay, or remote control system without mechanical access to the device
  • Undervoltage releases: cause the GV2 to trip on loss of supply voltage, providing automatic shutdown on power failure — commonly used in HVAC fan starters tied to building emergency stop systems
  • Rotary handle and door-coupling kits: mount to the panel door face, providing a visible On/Off/Trip indicator and padlockable isolation point for lockout/tagout — available for both GV2ME and GV2P variants
  • Feeder busbar systems: supply multiple GV2 devices from a common busbar in group motor installations, reducing wiring complexity and providing a clean multi-feeder panel layout in MCCs and machine panels
  • Direct connection kits to TeSys D contactors: compact mechanical and electrical connection kits that eliminate intermediate wiring between GV2 load terminals and TeSys D contactor line terminals, reducing panel depth and wiring labor

Wrong-Part Prevention Checklist Before You Order

Before finalizing a TeSys GV2 catalog reference for a project BOM, verify each of the following points against your motor nameplate, installation data, and applicable code. These are the exact error patterns that generate field problems and replacement orders.

  1. Selecting the wrong GV2 current range — Cause: using motor kW only, ignoring nameplate FLA and service factor. Risk: under-protection (too high setting) or nuisance trips (too low setting). Prevention: always size using motor nameplate FLA and Schneider selection tables; fine-tune thermal dial per manual.
  2. Using GV2 as the only branch-circuit protection where not permitted — Cause: assuming all GV2 variants can replace upstream breakers or fuses in every jurisdiction. Risk: non-compliance with UL/CSA or local electrical code, reduced fault protection. Prevention: verify catalog notes on UL/CSA listing, group installation and branch-circuit suitability; add upstream breaker/fuse when required.
  3. Misusing GV2L magnetic-only versions for motor overload protection — Cause: assuming all GV2 models offer overload protection. Risk: motor damage due to lack of thermal protection. Prevention: confirm whether the specific GV2 catalog number is thermal-magnetic (GV2ME/GV2P) vs magnetic-only (GV2L); ensure overload protection is present somewhere in the circuit.
  4. Poor coordination with contactors and upstream devices — Cause: not consulting Schneider coordination tables. Risk: inadequate short-circuit withstand, failure to achieve Type 1/Type 2 coordination, nuisance tripping under start conditions. Prevention: use manufacturer-recommended GV2 + contactor + upstream device combinations for the motor rating and category.
  5. Incorrect wiring or insufficient tightening torque — Cause: misidentifying line/load terminals, or under-/over-tightening screws. Risk: overheating, arcing, intermittent trips. Prevention: follow wiring diagrams, verify phase sequence, use torque values from datasheet, and perform post-installation checks.

If you need help confirming the correct GV2 catalog reference and matching TeSys contactor for your motor and fault current level, contact the LeadTime.ca team before ordering — we can assist with selection and coordination review for projects of any size, shipping worldwide.

Frequently Asked Questions

Can I use a TeSys GV2 as a local motor disconnect switch for lockout/tagout?

Yes — when fitted with the appropriate rotary handle and door-coupling kit, the TeSys GV2 provides a visible, lockable isolation point suitable for lockout/tagout procedures. The rotary handle position clearly indicates On, Off, or Trip states. Confirm that the specific GV2 variant and accessory combination meets the isolation requirements of your applicable electrical code and safety standard for the installation.

What is the practical difference between the GV2ME and GV2P when both cover the same motor FLA?

Both GV2ME and GV2P provide thermal-magnetic protection with adjustable current dials, but the GV2P uses rotary handle operation instead of pushbuttons and typically offers higher rated breaking capacity (Icu) on equivalent current ranges. Choose GV2P when available fault current is higher, when a lockable rotary operator at the panel door is required, or when mechanical trip indication via handle position is preferred. GV2ME is the standard choice for most pushbutton-operated motor panels where fault current is within its rated capacity.

How do I size a TeSys GV2 from a motor nameplate?

Start with the motor nameplate full-load current (FLA) at the installation voltage — not the rated power in kW. Select the GV2ME or GV2P catalog reference whose adjustable current range brackets the motor FLA, ensuring the thermal dial can be set to the nameplate FLA with normal operating margins. Cross-reference with Schneider's motor starter selection tables for the voltage, starting category (typically AC-3), and available short-circuit level at the installation point. Sizing from kW conversion tables without checking nameplate FLA is the leading cause of nuisance trips and under-protection in the field.

Can a TeSys GV2L magnetic-only breaker protect a motor that is supplied by a VFD?

Yes — the GV2L is specifically recommended for use upstream of VFDs and soft starters where the drive or soft starter itself provides motor overload protection. The GV2L provides short-circuit protection at the drive input without the risk of nuisance thermal tripping caused by drive inrush or harmonic currents interacting with a thermal element. Size the GV2L to the VFD input rated current per the drive manufacturer's guidance. Confirm that overload protection of the motor is properly provided by the drive's electronic protection functions.

Does TeSys GV2 require a separate upstream breaker or fuse in a North American panel?

This depends on the specific GV2 catalog reference, its UL or CSA listing conditions, and the applicable electrical code for the installation. Certain GV2 variants are listed as manual motor controllers suitable for group installation, which may allow them to serve as the sole branch-circuit protective device under defined conditions. Others require an upstream branch-circuit fuse or breaker. This is not uniform across all GV2 references — verify per the specific catalog number's listing documentation and your applicable code before designing the panel. Do not assume IEC application rules apply in UL/CSA environments.

Which TeSys D contactor references are correct to pair with a TeSys GV2?

Schneider Electric publishes coordination tables that specify recommended GV2 and TeSys D or K contactor combinations for each motor power and current rating, starting category (AC-3), and desired coordination type (Type 1 or Type 2). These tables also confirm whether additional upstream devices are needed to achieve the stated coordination level at a given available short-circuit current. Always use these tables rather than selecting contactor and breaker independently by current rating alone — mismatched combinations can fail to achieve the intended short-circuit withstand performance.

Why Order TeSys GV2 Through LeadTime.ca

  • Global shipping: LeadTime.ca sources and ships TeSys GV2 motor circuit breakers and compatible TeSys accessories worldwide — not limited to any single region
  • Specialist distributor knowledge: the team can assist with GV2 variant selection, current range confirmation, and contactor coordination before the order is placed
  • Hard-to-find references: accessory catalog numbers — auxiliary contacts, trips, handles, busbars, connection kits — are sourced alongside the base GV2 device
  • Volume and project pricing: contact for current pricing on project quantities or multi-feeder BOM packages
  • Responsive lead time information: confirm availability and expected delivery before committing to a build or installation schedule

At-a-Glance Summary: TeSys GV2 Motor Circuit Breakers

  • 3-pole thermal-magnetic motor circuit breaker / manual motor starter covering approximately 0.4 to 32 A and up to approximately 15 kW at 400/415 V AC
  • GV2ME: pushbutton operation, adjustable thermal dial, standard choice for most DOL motor panels
  • GV2P: rotary handle operation, typically higher breaking capacity, preferred for higher fault levels or lockable panel door isolation
  • GV2L: magnetic-only short-circuit protection — no thermal overload — for use upstream of VFDs, soft starters, or circuits with separate overload relays
  • Conforms to IEC/EN 60947-1, IEC/EN 60947-2, IEC/EN 60947-4-1; UL/CSA listings available on certain variants — verify per catalog reference
  • 45 mm device width, DIN rail or direct panel mounting, screw clamp terminals
  • Pairs with TeSys D or K contactors per Schneider coordination tables for Type 1 or Type 2 short-circuit coordination
  • Extensive compatible accessory catalog: auxiliary contacts, shunt trips, undervoltage releases, rotary handles, busbars, and direct contactor connection kits
  • Most common selection errors: sizing from kW tables instead of nameplate FLA; ordering GV2L where thermal protection is required; not verifying branch-circuit protection rules under UL/CSA code
  • Active lifecycle product with broad global distributor availability — available through LeadTime.ca with worldwide shipping
