Standard S7-1500 Panel Layouts for OEMs

By Abdullah Zahid
22 min read

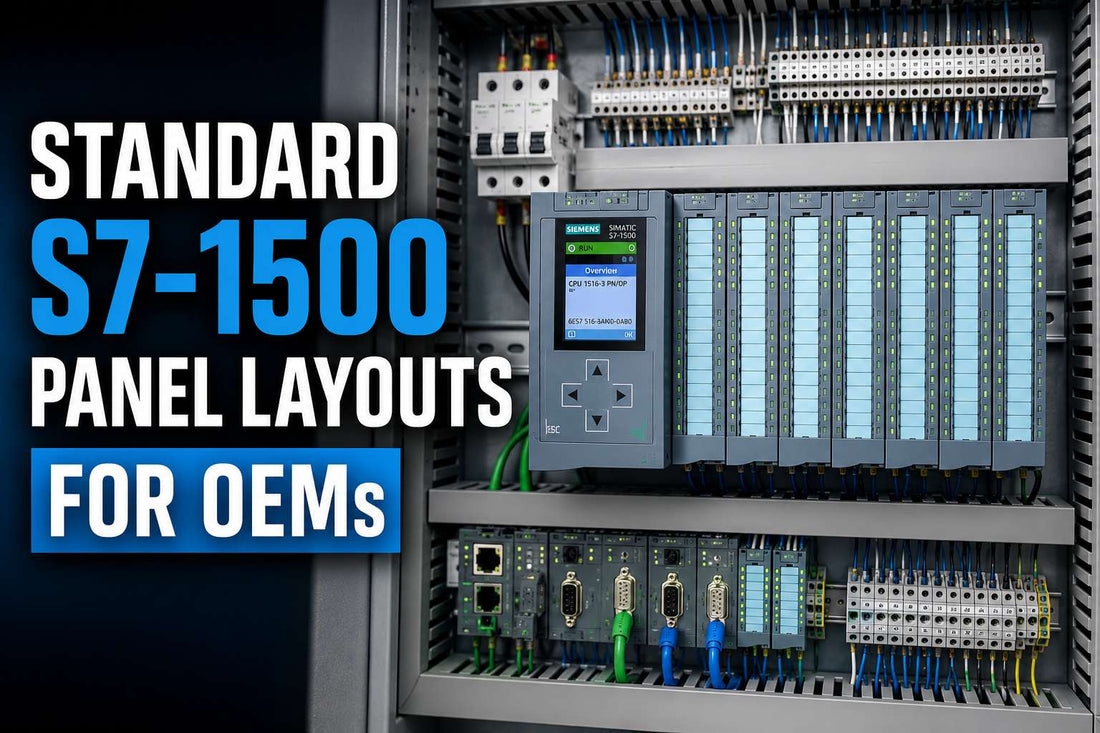

Siemens SIMATIC S7-1500 PLC modules mounted on DIN rail in OEM control cabinet panel layout

Standard S7-1500 Panel Layout Selection Guide for OEM Machine Builders

OEM controls engineers searching for repeatable, scalable Siemens SIMATIC S7-1500 panel layouts are usually past the platform decision — they have committed to S7-1500 and now need to know exactly how to configure hardware tiers, sequence modules, and wire cabinets so that every machine in the product line looks, behaves, and services the same way. The SIMATIC S7-1500 Controllers family, with its standard, failsafe, and technology CPU variants plus dedicated signal and communication modules, gives machine builders the modular depth to define three or four standard panel tiers that cover the full range of OEM machine sizes without redesigning from scratch for every order.

If you are ready to browse specific S7-1500 CPUs, signal modules, and communication modules for your standard BOM, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Use This Guide — and What It Will Help You Decide

This guide is written for OEM controls engineers and electrical designers who need a concrete framework for standardizing SIMATIC S7-1500 panel layouts across multiple machine models. It is equally useful for system integrators building OEM equipment and for industrial buyers who are aligning hardware standards with a preferred platform.

  • Your machines require a high-performance modular PLC with integrated diagnostics and PROFINET — S7-1500 is the right platform family.
  • You need to map machine types to defined CPU classes — CPU 1511-1 PN, CPU 1513-1 PN, CPU 1515-2 PN, failsafe F variants, or technology T variants — based on I/O count, safety, and motion requirements.
  • Your OEM product line includes machines of different sizes, and you want to cover them with three to four reusable panel tiers rather than unique layouts per model.
  • You are migrating from S7-300, S7-400, or S7-1200 and need to translate existing panel habits into S7-1500 conventions including module ordering, bus connectors, and TIA Portal slot addressing.
  • You have machines with partial or full safety requirements and need to decide when to specify a failsafe CPU such as CPU 1511F-1 PN or CPU 1513F-1 PN versus a standard CPU.

If your application is a compact standalone machine with very low I/O that does not require the diagnostics or modularity of the S7-1500 family, a smaller platform such as an S7-1200 may be a more practical fit — contact the LeadTime.ca team to discuss the right platform for your machine size before committing a panel standard.

On this page:

What the SIMATIC S7-1500 Family Offers OEM Panel Designers

The SIMATIC S7-1500 Controllers family is Siemens' high-performance modular PLC platform, positioned for demanding machine and line control tasks that require advanced diagnostics, fast processing, and flexible I/O expansion. Unlike compact PLC families, the S7-1500 is designed from the ground up for modular cabinet installations where CPU class, I/O density, and communication architecture can be matched precisely to the machine's requirements and then replicated across a product line.

The family breaks into four hardware groups that OEM engineers need to understand before designing a panel standard:

Standard CPUs — including representative models CPU 1511-1 PN, CPU 1513-1 PN, and CPU 1515-2 PN — are the workhorses for general-purpose machine and line control. Processing performance and memory increase as you move up the CPU number, and all standard CPUs include an integrated PROFINET interface and a front-mounted display that provides onsite diagnostics without a laptop. The display is a key layout consideration: it must remain visible and accessible after modules, ducts, and cabling are installed.

Failsafe CPUs, represented by CPU 1511F-1 PN and CPU 1513F-1 PN among others, integrate the standard CPU functions with a safety instruction set that allows safety programs to run alongside standard machine logic. These are specified when the machine requires functional safety compliance to the relevant SIL or PL levels, using compatible safety-rated I/O modules. Safety performance and certified function availability depend on the exact CPU and I/O module combination selected — Siemens safety manuals and official documentation must be consulted for certified performance values.

Technology CPUs — T-CPU variants within the S7-1500 portfolio — add dedicated motion and closed-loop control function blocks tuned for multi-axis and high-precision applications. Axis count, motion profile complexity, and achievable cycle performance depend on the specific T-CPU variant chosen.

Signal Modules cover discrete and process I/O: digital input modules, digital output modules, analog input and analog output modules in various channel counts and signal ranges. Communication Modules extend the network connectivity of the CPU beyond the integrated PROFINET interface, supporting additional fieldbus segments such as PROFIBUS, additional PROFINET interfaces, Industrial Ethernet, and OPC UA depending on the specific module. All of these hardware groups are configured and managed through TIA Portal, and the physical module order in the panel directly maps to the slot assignments in the TIA Portal hardware configuration — which is one of the strongest reasons to standardize module sequencing across OEM machines.

Where the S7-1500 Sits in a Typical OEM Machine Architecture

In a standard OEM machine control system, the SIMATIC S7-1500 CPU sits at the center of the automation chain, connecting upstream engineering and supervisory systems to downstream field devices, drives, and safety components through PROFINET and other communication interfaces.

  • TIA Portal engineering workstation — programs, configures, and documents the full hardware project, with physical slot order matching the configuration tree.
  • SIMATIC S7-1500 CPU — executes machine logic, manages I/O, runs PROFINET as master/controller, and provides local diagnostics through the front-mounted display.
  • Signal Modules (DI, DO, AI, AO) — mounted adjacent to the CPU on the same rail, connected via the backplane bus, interfacing to discrete field devices, sensors, and actuators.
  • Communication Modules — provide additional fieldbus or Ethernet segments for drives, remote I/O panels, or plant network integration beyond the integrated CPU interface.
  • Remote distributed I/O panels (e.g., ET 200 stations) — used in multi-station or large line applications to offload I/O from the main panel and reduce cable runs to field devices.

Mapping OEM Machine Types to Four Standard S7-1500 Panel Tiers

The most practical standardization strategy for OEMs is to define a small number of panel tiers — typically three to four — and enforce them across the machine product line. Each tier maps to a CPU class, an I/O module set, a communication configuration, and a physical panel layout pattern. Machines are then assigned to the smallest tier that meets their performance, safety, and expansion requirements, rather than designing a unique panel for each model.

A workable four-tier framework based on the SIMATIC S7-1500 family looks like this:

Small Machine Tier targets compact standalone machines with moderate discrete I/O, minimal analog signals, and a simple PROFINET network without integrated safety. A lower-range standard CPU such as CPU 1511-1 PN, one or two digital input and output modules, and the integrated CPU PROFINET interface are typically sufficient. The panel footprint is smaller, and the layout can be defined tightly with reserved space for one or two optional modules.

Medium Machine Tier addresses machines with higher I/O counts, multiple drives, PROFINET-based drive communication, and where safety functions may be required. A mid-range standard or failsafe CPU — CPU 1513-1 PN for standard applications or CPU 1513F-1 PN where safety is needed — with a mixed set of standard and safety I/O modules covers this tier. A communication module may be added if additional network segments are needed beyond the integrated interface.

Large Line Tier handles high I/O count applications, multi-panel systems, and extensive networking requirements. A higher-performance CPU such as CPU 1515-2 PN, combined with local signal modules and remote distributed I/O panels, and multiple communication modules for different network segments, defines this tier. Panel designs are standardized per panel type — main panel and remote panel templates — rather than a single layout.

Safety and Motion Tier is specified when machines require failsafe control to certified SIL or PL levels, or when multi-axis motion and advanced technology functions are central to machine performance. Failsafe CPUs (CPU 1511F-1 PN, CPU 1513F-1 PN) or technology T-CPU variants are specified here with appropriate safety-rated or motion-oriented I/O modules. Panel layout includes clearly identified safety sections and careful cable segregation for safety and motion wiring.

CPU Variant Comparison and Signal Module Selection

The table below maps S7-1500 CPU categories to the four panel tiers defined above. Exact numeric limits for program memory, processing speed, and I/O capacity depend on the specific CPU variant — consult the official Siemens datasheet for each model before finalizing a BOM.

CPU Type Panel Tier Typical Application Scale Key Features Panel Layout Notes
CPU 1511-1 PN (Standard) Small Compact machines, limited I/O, simple PROFINET Integrated PROFINET, front display, standard logic Compact rail, 1–2 I/O modules, reserve space for optional expansion
CPU 1513-1 PN (Standard) Medium Mid-size machines, more I/O, drive integration Higher performance vs 1511, integrated PROFINET, front display More rail space needed; plan duct routing away from display
CPU 1515-2 PN (Standard) Large Lines, multi-panel, high I/O, heavy networking Higher performance and memory, dual PROFINET interfaces Main panel layout; pair with remote distributed I/O panels
CPU 1511F-1 PN (Failsafe) Small–Medium Safety Machines with integrated safety, limited I/O Standard + safety instruction set, SIL/PL rated with safety I/O Dedicated safety wiring zone; safety modules clearly identified
CPU 1513F-1 PN (Failsafe) Medium–Large Safety Larger machines with safety and standard I/O mix Mid-range performance with integrated safety program capability Mixed standard and safety I/O sections; clear circuit separation
T-CPU Variants (Technology) Motion/Safety Tier Multi-axis motion, closed-loop, precision applications Dedicated motion/technology function blocks CPU close to drive control wiring; shielded cable routing critical

Signal module selection follows from the tier assignment. Digital input modules interface to discrete sensors, pushbuttons, and position switches. Digital output modules drive actuators, solenoids, and indicator signals. Analog input modules handle process sensors including temperature, pressure, and flow. Analog output modules provide setpoint signals for drives, valves, and positioning systems. Channel count, signal range, isolation level, and diagnostic depth vary by the specific SM model — choose the module that matches the field device signal type and the diagnostic visibility required for your OEM service model.

Signal Module Type Typical Use Panel Location Wiring Considerations Suitable Tiers
Digital Input (DI) Discrete sensors, switches, position feedback Adjacent to CPU, grouped by machine zone Separate from analog and communication wiring Small, Medium, Large, Safety/Motion
Digital Output (DO) Actuators, solenoids, indicators Adjacent to DI modules or grouped by output zone Load current and fusing per channel spec Small, Medium, Large, Safety/Motion
Analog Input (AI) Process sensors, temperature, pressure Grouped together, away from high-voltage wiring Shielded cables; shield clamps at panel entry Medium, Large, Motion
Analog Output (AO) Drive setpoints, valve positioning Close to drive wiring zone; shielded routing Shielded cables; avoid routing alongside DI/DO Medium, Large, Motion
Safety DI / Safety DO Safety sensors, E-stop loops, safety relays Designated safety section of panel Clearly separated from standard I/O wiring Safety/Motion tier only (with failsafe CPU)

Full technical specifications for each CPU and signal module variant are available on the product pages at LeadTime.ca.

For volume BOM pricing or to confirm which specific module part numbers fit your panel tier, contact the LeadTime.ca team directly — we source S7-1500 hardware worldwide.

How to Sequence Modules and Zones Inside the Control Cabinet

A consistent module sequence is the foundation of a reusable OEM panel standard. When every panel of the same tier follows the same left-to-right or top-to-bottom physical order, technicians and engineers can locate any component without consulting the drawing, TIA Portal addresses remain predictable, and documentation templates can be reused with minimal changes between machine orders.

The recommended general sequence for an S7-1500 panel, reading from the left or top of the main rail, is: main incoming power and circuit protection, SIMATIC S7-1500 power supply module, CPU (with clear space around the front-mounted display), communication modules directly adjacent to the CPU, digital and analog signal modules grouped by machine zone or function, and terminal blocks at the rail end or on a dedicated terminal rail below. Cable ducts run vertically on the sides and horizontally above and below the modules — never directly in front of the CPU display or LED indicators.

Within the signal module group, organize modules to match the physical zones of the machine where possible. This keeps field cable runs shorter, makes I/O address blocks correspond to machine zones, and simplifies fault-finding when a technician is working at the machine end rather than in the panel. Spare module positions — with bus connectors already installed — should be reserved at the end of each group so that adding a module in the future does not require repositioning existing hardware or re-addressing in TIA Portal.

Door-mounted components — HMI panels, selector switches, indicator lights, and emergency stop buttons — require careful planning of cable lengths and routing to the internal components. Wherever HMI or operator interface devices are door-mounted, plan the hinge side and swing clearance before finalizing the internal layout, and use flexible cable looms with adequate service loops at the hinge.

Thermal management is a constraint that is frequently underestimated in dense S7-1500 panels. The enclosure rating, ventilation method, and minimum clearances between modules and enclosure walls must be validated for the total power dissipation of the chosen module set. Forced-air or heat-exchanger cooling may be required for higher-density configurations — this must be determined before finalizing the enclosure dimensions for each panel tier.

Scenario-Based Layout Recommendations for OEM Machine Builders

The following six scenarios represent the most common OEM machine types that benefit from a defined S7-1500 panel tier. Each scenario maps to a CPU category, module set, and physical layout approach.

Compact standalone packaging machine with moderate digital I/O, minimal analog signals, simple PROFINET, and no integrated safety: specify a lower-range standard CPU such as CPU 1511-1 PN with one or two digital input and output modules and minimal analog modules. The integrated PROFINET interface is sufficient for network connectivity. Panel layout places the power supply and protection on the left, CPU centrally mounted with clear display access, I/O modules grouped to the right, and cable ducts routed to the machine I/O zones without obscuring the CPU front face.

Medium-size machine with drives and safety requirements: specify a mid-range failsafe CPU such as CPU 1513F-1 PN, a mixed set of standard and safety I/O modules, and a communication module if additional network segments are needed beyond the integrated interface. The panel layout includes a dedicated safety wiring section with safety modules clearly identified, CPU and safety modules centrally positioned, drive-related I/O grouped near the drive control wiring, and spare slots reserved for future drive additions.

Large multi-station assembly line controller with high I/O count, multiple panels, and extensive networking: specify a higher-performance standard CPU such as CPU 1515-2 PN for the main panel, combined with local signal modules and remote distributed I/O panels for each station. Multiple communication modules handle different network segments. The main panel hosts the CPU, network modules, and critical I/O; remote panels follow a standardized layout template for repeatability and service consistency.

High-precision motion system requiring multi-axis control and stringent cycle times: specify an S7-1500 technology CPU variant, appropriate analog and digital I/O modules for motion feedback and control signals, and dedicated communication modules for drive networks if needed. The CPU and motion-related modules are positioned close to the drive control wiring section, shielded cables for analog and encoder signals are routed in separate ducts, and clear segregation from power wiring is enforced throughout the panel.

Safety-focused machine retrofit from a legacy PLC platform: specify an S7-1500 failsafe CPU with safety I/O modules to interface with existing field safety devices, and a communication module for integration with plant networks. The panel is reorganized to ensure safety modules and safety wiring are clearly identifiable and separated from standard control circuits, the CPU display is positioned for easy visibility without obstruction, and legacy components are repositioned or replaced to align with the new S7-1500 standard layout.

OEM standard panel designed to scale across multiple machine sizes: select a CPU and module layout that covers mid-range requirements and can be scaled down by omitting optional modules or scaled up by adding modules in pre-reserved slots. The standard rail and cable duct pattern remains constant across variants. The CPU and power supply positions are fixed. A documentation template that matches the physical layout allows engineering to update a single drawing family rather than create new panel drawings for each machine size.

Application Typical Deployment
Compact packaging machine CPU 1511-1 PN, 1–2 DI/DO modules, integrated PROFINET, compact panel
Medium machine with drives and safety CPU 1513F-1 PN, mixed standard and safety I/O, optional communication module
Large multi-station assembly line CPU 1515-2 PN, local + remote distributed I/O, multiple communication modules
High-precision motion system S7-1500 T-CPU, analog and digital motion I/O, dedicated drive network modules
Legacy PLC safety retrofit Failsafe CPU, safety I/O modules, communication module for plant integration
Scalable OEM standard panel Mid-range CPU at fixed position, pre-reserved module slots, consistent rail pattern

Expert Verdict: The Right S7-1500 Standardization Strategy for OEMs

The SIMATIC S7-1500 Controllers family is genuinely well-suited to OEM panel standardization — not because of any single specification, but because of how its modular architecture, integrated diagnostics, and TIA Portal alignment make repeatable panel templates both practical and maintainable. The front-mounted CPU display gives field technicians immediate diagnostic access without opening a laptop. The modular signal and communication module structure means that a panel designed for a mid-range CPU can be scaled up or down by adding or removing modules without changing the cabinet or rerouting the main bus. For OEM machine builders whose service teams support installations worldwide, this consistency in layout, addressing, and diagnostics is a measurable operational advantage.

The honest limits of the S7-1500 platform in the OEM context are physical size and planning discipline. The S7-1500 family has a larger panel footprint than compact PLC platforms, which means enclosure selection and thermal validation are genuine constraints — not afterthoughts. More importantly, the benefits of standardization only materialize if the layout discipline is enforced: mixed module ordering, inconsistent safety circuit separation, or ad-hoc changes to standard tiers between machine orders undermine the entire value of the standardization effort. The failsafe CPU variants (CPU 1511F-1 PN, CPU 1513F-1 PN) are the correct choice whenever a machine requires certified safety functions — implementing safety logic on a standard CPU is a specification error, not a cost-saving option. Similarly, the technology CPU variants are the correct choice for multi-axis motion applications — specifying a standard CPU for motion-intensive machines and attempting to compensate with external motion controllers adds complexity without the integration advantages the T-CPU is designed to provide.

From a procurement perspective, the S7-1500 family is a well-established platform with global distributor support, but CPU class, module density, and delivery timelines vary — particularly for higher-performance CPUs and specialty communication modules. Building a defined standard BOM per panel tier before committing to production quantities is the most reliable way to avoid substitutions and assembly delays. If you are ready to translate your panel tier definitions into a concrete hardware list, check current pricing and availability for SIMATIC S7-1500 CPUs and modules at LeadTime.ca — we ship worldwide and can support multi-unit OEM orders from a single source.

For volume pricing, lead time confirmation, or BOM review before committing to a build, contact the LeadTime.ca team directly — we work with OEMs and system integrators sourcing S7-1500 hardware globally.

What Engineers Ask Before Standardizing on S7-1500 Panels

Across automation forums including r/PLC, r/automation, PLCTalk, and Siemens support communities, engineers consistently praise the SIMATIC S7-1500 for two things that are directly relevant to OEM standardization: the integrated front-mounted display that enables onsite diagnostics without a laptop or additional tooling, and the modular structure that makes it straightforward to expand or reconfigure a panel without redesigning the backplane or bus architecture. TIA Portal integration is frequently cited as a strength — the ability to configure, document, and diagnose the hardware from a single software environment is a meaningful advantage when a panel standard needs to be maintained across dozens of machines built over several years.

The recurring concerns from the community are equally instructive. Engineers note that the S7-1500 family requires more cabinet space than compact PLCs, and that this footprint needs to be planned honestly at the enclosure selection stage — not discovered during assembly. There is also consistent discussion about the discipline required in module ordering and backplane bus planning for more complex configurations, particularly when communication modules are added alongside a full I/O complement. A common theme is that teams who treat the module sequence as a flexible choice end up with panels where TIA Portal slot addresses do not map intuitively to the physical cabinet, which complicates both commissioning and service calls.

Selection confusion in the community clusters around three decisions that map directly to the tier framework described in this guide: choosing between standard and failsafe CPUs for machines with partial safety requirements, sizing the CPU correctly for machines that may grow in complexity after initial delivery, and deciding how to split I/O between the main panel and remote distributed I/O stations for multi-zone machines. On the wiring side, recurring questions focus on how to route PROFINET and other network cables inside the panel without electromagnetic interference, and how to ground and shield analog signals correctly relative to power wiring. All of these questions have answers that can be locked into an OEM panel standard — but only if the standard is defined at the tier level before the first panel is built.

Wiring and Installation Considerations for S7-1500 Panels

  • Separate high-voltage power circuits, low-voltage control circuits, and communication/network wiring into distinct cable ducts and routing paths — define these zones explicitly in the OEM panel standard and enforce them across all tiers.
  • Ground the panel and all shielded cables at a single, well-defined grounding point; use shield clamps at the point where shielded analog and communication cables enter the panel to terminate shields without interrupting the cable run.
  • Group terminal blocks by machine zone or I/O function to align with the signal module grouping on the rail — this makes field wiring faster, documentation clearer, and fault-finding more logical for service technicians.
  • Define labeling conventions that match TIA Portal module addresses and slot assignments before wiring begins — consistent labeling across all panel tiers is one of the highest-value elements of an OEM standard and reduces commissioning time measurably.
  • Verify that PROFINET cable routing inside the panel avoids parallel runs with power cables over extended distances, and that cable bending radii and connector orientations are compatible with the enclosure layout before finalizing duct positions.

Bases, Backplane Bus, and Panel Accessories for S7-1500 Installations

The physical infrastructure of an S7-1500 panel requires specific components beyond the CPU and signal modules. Selecting and standardizing these accessories per panel tier is as important as the module selection itself.

  • DIN rail — S7-1500 modules mount on standard DIN rail; rail length and material must be specified per panel tier based on the module count and enclosure width, with additional rail reserved for terminal blocks and power components.
  • Backplane bus connectors — S7-1500 signal and communication modules connect to the CPU via the U-connector backplane bus system; the correct bus connector type must be verified for each module combination, and spare connectors should be stocked per panel tier to support future module additions without a special order.
  • Shield clamps — required at panel entry points for all shielded analog and communication cables; standardize the clamp type and mounting rail per tier to simplify assembly and inspection.
  • Cable ducts — horizontal and vertical ducts define the wiring zones inside the panel; duct width and depth must be sized for the cable volume of each tier, with wider ducts specified for the main I/O wiring zones and narrower ducts acceptable for communication-only runs.
  • Power supply modules — the S7-1500 requires a dedicated load power supply for the CPU and module backplane; total current demand including all installed modules and potential future additions must be calculated per tier, with the power supply rated to handle inrush and full-load current without derating under the expected enclosure temperature.
  • Wire markers and label holders — standardize wire marking and label formats per tier to match the TIA Portal address scheme; this is a low-cost accessory with a disproportionate impact on commissioning speed and service efficiency.

Wrong-Part and Wrong-Layout Prevention Checklist

Before finalizing any S7-1500 panel layout or hardware BOM, verify each of the following. These checks prevent the most common and costly specification errors in OEM S7-1500 panel designs:

  1. Do not select a CPU without confirming program size, cycle time, and future expansion needs.
  2. Do not mix module widths and layouts without verifying rail space, ventilation, and clearance inside the enclosure.
  3. Do not place the S7-1500 display in inaccessible locations (e.g., hidden behind cable ducts or deep in panel corners).
  4. Do not under-size power supplies or ignore inrush/total current for the chosen module set.
  5. Do not ignore segregation between power circuits, control circuits, and communication wiring.
  6. Do not deploy safety-related functions on non-safety CPUs or I/O modules.
  7. Do not finalize layouts without validating cable routing and service access for OEM and end-user technicians.

If any item on this checklist is unresolved before the panel design is released for build, contact the LeadTime.ca team — we can help cross-check hardware selections and flag sourcing issues before they reach the assembly floor.

Frequently Asked Questions

What is a practical starting S7-1500 layout for a small standalone OEM machine?

For a compact standalone machine with moderate discrete I/O, no integrated safety, and a simple PROFINET network, a lower-range standard CPU such as CPU 1511-1 PN paired with one or two digital input and output modules covers most requirements. The integrated PROFINET interface on the CPU is sufficient for basic network connectivity. The panel layout should position the power supply on the left, the CPU centrally with clear display access, and I/O modules to the right with reserved space for one or two optional additions — this is the smallest viable S7-1500 panel tier and the correct starting point for a small machine standard.

How many spare module slots should an OEM panel standard include per tier?

The right number depends on how aggressively your machine configurations vary between orders, but a practical rule is to reserve a minimum of two spare module positions — with bus connectors already installed — at the end of each signal module group per panel tier. This allows future I/O additions without repositioning existing modules or re-addressing in TIA Portal. For medium and large tiers where machine scope often grows after initial delivery, reserving more spare positions is a low-cost insurance against panel rework on the factory floor.

When should an OEM specify a failsafe CPU instead of a standard CPU, and how does that change the panel layout?

Specify a failsafe CPU — such as CPU 1511F-1 PN or CPU 1513F-1 PN — whenever the machine requires safety functions to be implemented and maintained at certified SIL or PL levels within the main control system. The safety program runs alongside the standard machine logic on the same CPU. In the panel layout, the failsafe CPU requires that safety-rated I/O modules are used for all safety-related signals, that safety wiring is routed and labeled as distinctly separate from standard control wiring, and that a dedicated safety section of the panel is identifiable for inspection and service. Do not implement safety functions on a standard CPU regardless of the application pressure to reduce initial cost.

How does the physical module order in the S7-1500 panel relate to TIA Portal configuration and addressing?

In TIA Portal, the hardware configuration assigns each module to a slot number that corresponds to its physical position on the rail, starting from the CPU and counting outward. The I/O addresses assigned to each module are derived from its slot position. If the physical module order in the panel does not match the TIA Portal configuration, addresses will be wrong and diagnostics will point to the incorrect physical location. Defining a fixed module sequence per panel tier and locking both the physical layout and the TIA Portal hardware template to that sequence is one of the most operationally valuable aspects of OEM panel standardization.

Can one standard S7-1500 panel layout cover multiple machine models in an OEM product line?

Yes — this is the core value of the tier approach. A single mid-range panel tier with a fixed CPU position, fixed power supply, and a defined module zone with reserved spare slots can cover multiple machine variants by populating only the modules each variant requires. Modules are omitted from optional positions, not removed from the BOM standard, so the documentation template, TIA Portal project library, and wiring conventions remain consistent. The key discipline is to resist making ad-hoc changes to the standard layout for individual machine orders — each exception erodes the standardization benefits for training, documentation, and service.

How should PROFINET and other network cables be routed inside an S7-1500 panel to avoid interference?

PROFINET and other communication cables should be routed in dedicated ducts or cable runs that are physically separated from power wiring and, where possible, from discrete I/O wiring. Avoid parallel runs with high-current power cables over extended distances inside the enclosure. Communication connectors should be accessible without disturbing other wiring, and cable lengths should be planned to avoid excess bundling or tight bends at the connector entry. Define the communication cable routing path explicitly in the OEM panel standard drawing to ensure consistency across builds.

Why Order From LeadTime.ca

  • LeadTime.ca sources SIMATIC S7-1500 CPUs, signal modules, communication modules, and accessories for OEM and system integrator customers worldwide — not limited to any single region.
  • We can assist with BOM validation and hardware cross-checks before purchase, reducing the risk of incompatible module combinations or missing accessories in a standard panel build.
  • Volume pricing and multi-unit OEM orders are handled directly — contact us for current pricing and lead time confirmation before committing to a production schedule.
  • Hard-to-source specialty modules, communication processors, and accessories for the S7-1500 family are part of our regular sourcing scope.

At-a-Glance Summary

  • SIMATIC S7-1500 Controllers are a modular, high-performance PLC family with standard, failsafe (S7-1500F), and technology (T-CPU) variants covering general machine control, certified safety, and advanced motion applications.
  • Representative standard CPUs include CPU 1511-1 PN, CPU 1513-1 PN, and CPU 1515-2 PN; representative failsafe CPUs include CPU 1511F-1 PN and CPU 1513F-1 PN.
  • A four-tier panel framework — small, medium, large, and safety/motion — maps machine types to the smallest CPU class and module set that meets performance, safety, and expansion requirements.
  • All S7-1500 CPUs include an integrated PROFINET interface and a front-mounted display; the display must remain accessible and unobstructed in every panel layout tier.
  • Physical module order in the panel must match the TIA Portal hardware configuration slot sequence — inconsistencies cause addressing errors and diagnostic confusion.
  • Safety functions must be implemented on failsafe CPUs with safety-rated I/O modules — standard CPUs are not appropriate for certified safety applications regardless of cost pressure.
  • Spare module slots with bus connectors pre-installed should be reserved in every panel tier to allow future I/O additions without panel rework.
  • Power, control, and communication wiring must be segregated into separate routing zones as a defined element of the OEM panel standard — not handled ad-hoc per build.
  • Exact performance limits, memory sizes, safety ratings, and module specifications depend on the specific variant — consult official Siemens documentation and verify current pricing and availability with LeadTime.ca before finalizing any BOM.
