Common S7-1500 Commissioning Mistakes

By Abdullah Zahid
23 min read

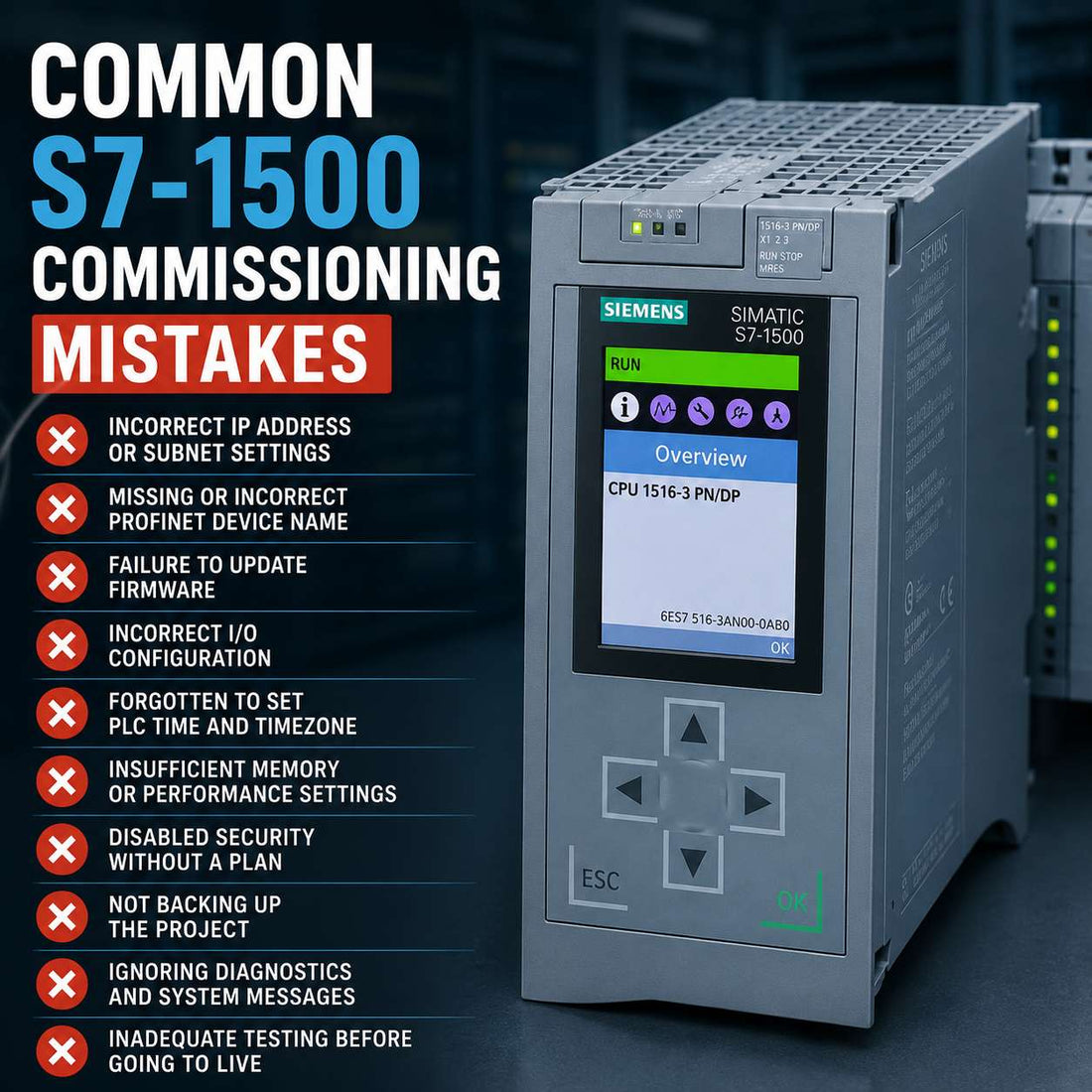

Siemens SIMATIC S7-1500 PLC and ET 200MP I/O during TIA Portal commissioning and PROFINET troubleshooting

Common S7-1500 Commissioning Mistakes: SIMATIC S7-1500 Automation System Troubleshooting Guide

Commissioning problems on a SIMATIC S7-1500 Automation System often appear at the worst possible point in a project: the cabinet is powered, the program has been downloaded, mechanical completion is done, and the machine still will not enter RUN. The fault may be as simple as a missing 24 V field supply or PROFINET device-name mismatch, or it may involve hardware configuration, TIA Portal data types, safety configuration, motion objects, or a genuine hardware problem.

The most effective way to troubleshoot S7-1500 commissioning errors is to avoid changing hardware or parameters until the CPU diagnostic buffer and module status have been checked. If diagnostics already identify a failed CPU or ET 200MP I/O module, check current availability through LeadTime.ca before ordering a replacement. LeadTime.ca ships worldwide.

Is This an S7-1500 Commissioning Problem You Can Resolve On Site?

Most S7-1500 startup faults can be separated into power, wiring, hardware configuration, PROFINET communication, TIA Portal configuration, or commissioning-sequence problems. The first task is to identify which fault category you are actually dealing with.

This troubleshooting guide fits your situation if:

  • The S7-1500 CPU stays in STOP or returns to STOP after a project download
  • TIA Portal cannot communicate correctly with the CPU or remote I/O
  • An S7-1500 or ET 200MP module is not detected or shows a red error LED
  • A 24 V supply, sensor supply, wiring polarity, common, or reference potential may be missing
  • A PROFINET device name, IP address, subnet, or engineering-PC setting may not match the project
  • A PositioningAxis, safety program, HMI connection, SCADA tag, or trace configuration fails during commissioning

Stop commissioning rather than continuing trial-and-error changes if the system shows unexpected actuator movement, unclear safety-function behavior, repeated CPU STOP conditions related to safety or motion, persistent red LEDs after basic corrective actions, suspected overheating, or a burning smell. Those conditions require escalation to Siemens support, the OEM, or the responsible system integrator.

On this page:

S7-1500 Commissioning Faults at a Glance

Before working through individual fault categories, this table separates the most common S7-1500 commissioning symptoms by the checks that usually matter first.

Commissioning Symptom First Area to Check Common Cause From the Brief
CPU stays in STOP after download TIA Portal diagnostic buffer Runtime logic fault, inconsistent configuration, missing module, or safety-related issue
TIA Portal cannot communicate with CPU Network configuration IP misalignment, wrong subnet, routing, firewall, or engineering-PC configuration
Remote I/O cannot be reached PROFINET identity Device name missing, incorrect, duplicated, or different from the project
I/O module shows red error LED Power and field wiring Short circuit, overload, incorrect wiring, missing field supply, or module fault
Module is not detected Hardware configuration Configured hardware or firmware does not match the installed module
Download blocked by TIME/DINT error Program interface Formal and actual parameter data types do not match
HMI or SCADA cannot read tags DB and tag settings Optimized block access, HMI access settings, or tag-address mismatch
PositioningAxis will not commission Technology object and hardware mapping Incomplete parameters, incorrect assignment, IP configuration, wiring, or feedback signals
Safety program will not compile or download Safety configuration Missing safety signatures or configuration inconsistencies
Trace stops during commissioning Trace and controller conditions Power cycle, communication interruption, or missing memory card

The important point is that the same visible symptom can come from different causes. A red LED does not automatically mean a defective module, and a CPU in STOP does not automatically mean the hardware is damaged. The S7-1500 diagnostic buffer and module-status information should establish the direction of the investigation first.

What the S7-1500 Is Doing During Commissioning

The SIMATIC S7-1500 Automation System is a modular industrial PLC platform used with S7-1500 and ET 200MP I/O. During commissioning, the CPU is executing the downloaded hardware and software configuration while also coordinating local modules, PROFINET devices, HMI or SCADA connections, technology objects, safety functions, drives, sensors, and actuators defined in the project.

The system includes integrated diagnostic buffers and detailed fault messages that support commissioning and troubleshooting. S7-1500 CPUs also provide an integrated web server capable of presenting diagnostic information, status, and basic commissioning data when that feature is enabled and configured.

ET 200MP I/O modules typically provide status and error LEDs that indicate module health, channel state, and some wiring-related conditions. These hardware indicators are useful, but they should be read together with TIA Portal diagnostics rather than used as the only basis for deciding whether a module is defective.

Typical S7-1500 Commissioning Architecture

A typical commissioning fault can occur anywhere between the TIA Portal engineering station and the field device, so it helps to view the system as a chain rather than treating the CPU as an isolated component.

  • TIA Portal engineering PC connects to the S7-1500 CPU for download, Accessible Devices, Online & Diagnostics, monitoring, and configuration checks
  • The S7-1500 CPU executes the project and reports RUN, STOP, ERROR, and diagnostic conditions
  • Local S7-1500 modules and distributed ET 200 stations must match the hardware configuration and firmware represented in TIA Portal
  • PROFINET devices depend on correct device names, IP configuration, network settings, and physical communication
  • Sensors, actuators, drives, HMI or SCADA systems, safety signals, and motion feedback depend on correct wiring, 24 V field power, assignments, and software configuration

A fault anywhere in that chain can appear at CPU level. A missing field supply can make an input appear dead, an incorrect PROFINET name can make remote I/O disappear, and an inconsistent hardware configuration can stop a project download even though every installed module is physically functional.

Where S7-1500 Commissioning Errors Usually Appear

S7-1500 commissioning issues commonly appear during a new machine or production-line startup, where the first project download exposes differences between the TIA Portal configuration and the hardware, field wiring, network design, or completed mechanical system.

Hardware changes are another common trigger. Adding I/O modules, communication processors, drives, or distributed ET 200 stations requires the actual installation and the TIA Portal hardware configuration to remain consistent after the design change.

Network changes can create a separate fault group. New VLANs, revised IP schemes, HMIs, SCADA systems, or remote I/O stations can introduce IP-address misalignment, PROFINET device-name problems, firewall restrictions, or incorrect engineering-station network settings.

Safety and motion commissioning often takes place after mechanical completion, which means a PositioningAxis configuration, drive or encoder wiring, safety input, safety signature, or feedback signal can prevent the final startup even when the standard PLC logic and conventional I/O are already functioning.

Application Typical S7-1500 Commissioning Work
Discrete manufacturing Initial project download, local I/O checks, machine interlocks, HMI communication, and field-device validation
Packaging I/O startup, technology objects, drive communication, feedback signals, and motion-axis commissioning
Automotive PROFINET remote I/O, safety configuration, HMI integration, hardware changes, and line startup
Food and beverage Field I/O validation, safety functions, HMI or SCADA access, and network checks
Material handling Controller, remote I/O, drive, encoder, actuator, and motion commissioning
Process skids Digital and analog I/O checks, controller configuration, network communication, and HMI or SCADA tag validation

Start With TIA Portal Diagnostics Before Changing Anything

The strongest commissioning rule in the supplied S7-1500 troubleshooting material is simple: read the CPU diagnostic buffer before changing wiring, hardware, or configuration. The diagnostic buffer can identify the recorded STOP cause and provide fault information that prevents an engineer from troubleshooting the wrong part of the system.

Online & Diagnostics also provides module status and communication information that can help separate a CPU problem from an I/O, PROFINET, or hardware-configuration problem. If a module is reporting an error, the module-status information should be reviewed before the device is removed from the rack.

The S7-1500 integrated web server can provide additional status and diagnostic information when enabled and configured. This gives the commissioning team another source of evidence when working through controller or communication problems.

One of the most common troubleshooting mistakes reported in the brief is ignoring the diagnostic buffer and relying only on LEDs. LEDs can tell you that a fault exists, but the diagnostic buffer gives the software context needed to decide whether the next check should be logic, configuration, communication, power, or hardware.

24 V Power and Grounding Errors That Stop Commissioning

Power faults should be ruled out early because a S7-1500 CPU can appear functional while the associated field devices or I/O remain inactive. The supplied troubleshooting data specifically identifies missing 24 V power to sensors, actuators, or modules as a common startup problem.

Symptom Likely Cause What to Check Corrective Action Escalation Point
CPU does not power up or resets Insufficient power-supply capacity or voltage drop Supply voltage at CPU and power-supply rating Correct the power-distribution problem or use an appropriate supply arrangement Repeated brownouts or thermal problems
I/O module P LED is off No power to module electronics or field supply Power terminals and upstream fuses Restore the correct 24 V supply and replace failed protective devices where appropriate Supply repeatedly fails or trips
CPU is in RUN but field devices do not respond Missing 24 V to sensors or actuators Sensor or actuator supply voltage at terminals by qualified personnel Restore the 24 V supply and verify fuses and power distribution Loads draw excessive current or the supply repeatedly trips
Some modules do not start with CPU Backplane supply or connector problem Rack connections and backplane condition Reseat modules and verify rail and connector condition Rack or backplane appears damaged

Grounding and shielding also belong in the physical inspection, particularly where the system includes noise-sensitive signals. The brief specifically calls for checking grounding and shielding alongside supply voltage, protective devices, module condition, and field wiring.

Any live voltage measurement should be performed only by qualified personnel. Plant lockout/tagout procedures apply before wiring or mechanical work, and visual inspection should be completed before energized diagnostic work begins.

S7-1500 Wiring Errors That Look Like Hardware Faults

Incorrect polarity, missing commons, missing reference potentials, absent sensor supplies, output short circuits, and incorrectly wired safety circuits can all create S7-1500 commissioning symptoms that initially look like failed I/O.

Symptom Likely Cause What to Check Corrective Action Escalation Point
Digital input channels never change state Incorrect polarity or missing common Module documentation and project schematics, including the 6ES7521-1BL00-0AB0 example identified in the brief Correct the polarity and shared reference Error LED remains after wiring correction
I/O module shows red error LED after wiring Short circuit or output overload Field wiring and load condition Remove the short, reduce the load, or use the appropriate output arrangement Module overheats or repeatedly faults
Safety input does not validate Safety contact connected to wrong terminal or with incorrect polarity Safety wiring diagrams and safety relay connections Correct the wiring according to the safety documentation and repeat validation Safety function cannot be validated
Remote I/O has field-side problems Distributed wiring or field-power problem PROFINET station wiring, supply, connectors, and field references Correct wiring or field-power condition before changing software Fault remains after verified wiring and configuration

The mechanical side of installation should also be checked. Loose module latches, unseated connectors, poor rack connections, and faulty memory-card insertion are all listed as commissioning problems that can be mistaken for software or hardware failure.

A wiring inspection should remain an overview rather than uncontrolled rewiring during startup:

  • Apply lockout/tagout before wiring or mechanical work
  • Compare field wiring with project schematics and the applicable Siemens module documentation
  • Check polarity, commons, reference potentials, 24 V sensor or actuator supply, and connector seating
  • Verify safety wiring against the approved safety design documentation
  • Stop if unexpected motion, overheating, burning smell, or unclear safety behavior appears

Hardware Configuration and Module Detection Problems

A configured S7-1500 system in TIA Portal must represent the CPU and installed modules that are actually present in the machine. A design change that swaps a module, adds I/O, changes a communication processor, or introduces different firmware can create a project-versus-hardware mismatch during download.

A typical symptom is a module that appears as missing or not detected even though it is physically installed. Before replacing it, compare the configured device and firmware with the actual hardware, then inspect the module seating, connectors, rail condition, and backplane connections.

The brief identifies firmware compatibility between CPU and I/O as another area to verify. Whether the correct action is a firmware change or a change to the TIA Portal hardware configuration depends on the hardware and project condition, so the applicable Siemens documentation should be used before modifying firmware.

Hardware Symptom What to Verify Corrective Direction
Module not detected Actual module versus configured module Align the installed hardware and TIA Portal configuration
Project download fails after a hardware change Actual rack versus configured rack Correct the project or installation so both match
Module behaves differently after replacement Module type and firmware alignment Verify configuration and firmware against the actual replacement
Several modules fail to start Backplane, rail, connectors, and shared power conditions Correct the installation condition before replacing individual modules

If your project change requires a replacement S7-1500 CPU or ET 200MP module, confirm the exact catalog number from the project and installed hardware before sourcing. Current availability can be checked through LeadTime.ca.

PROFINET Device Name and IP Address Problems

PROFINET identity problems account for a large share of S7-1500 commissioning failures in the supplied brief. The most commonly missed issue is misalignment between device names and IP addresses configured in TIA Portal and those actually assigned to the CPU, remote I/O, or engineering station.

A remote I/O device can be physically connected and powered yet remain unavailable if its PROFINET device name does not match the project. The correct device name must be assigned and remain unique on the network.

Communication Symptom Likely Cause What to Check Corrective Action Escalation Point
No communication with CPU from TIA Portal IP misalignment or wrong subnet Engineering-PC IP, CPU IP, subnet, and Accessible Devices Align IP settings, subnet, or routing Corporate network policies block the required communication
Remote I/O not reachable PROFINET device name missing or mismatched Configured device name versus actual device name Assign the correct name and confirm uniqueness Several devices show conflicting names
Communication or trace is intermittent Firewall or managed-switch restriction Firewall rules and switch configuration Permit the required Siemens communication according to applicable documentation IT or network policy prevents the required change
HMI connects but tags return read errors Tag addressing or inconsistent projects HMI tag configuration versus PLC DBs and addresses Correct tag assignments and synchronize the projects HMI platform has addressing limitations that cannot be resolved in the current configuration

Accessible Devices is specifically identified in the brief as a commissioning tool for checking visibility of the CPU and remote I/O. A ping from the engineering PC can also be part of the network diagnostic process where appropriate.

VLAN changes and mixed IT/OT responsibilities add another source of confusion. If the CPU and PROFINET device identities are correct but communication remains restricted by firewalls, switch policies, routing, or corporate network rules, the fault should be escalated to the responsible network team rather than treated as a PLC hardware failure.

TIA Portal Configuration Errors That Block Startup

Once power, wiring, hardware identity, and network configuration are correct, the next fault group sits inside the TIA Portal project. The brief identifies data types, optimized block access, HMI access, technology objects, safety configuration, and trace setup as recurring commissioning problems.

Configuration Symptom Likely Cause What to Check Corrective Action
Download blocked by data-type error Formal and actual parameter types do not match, such as TIME versus DINT Block interface, function call, and parameter types Correct the types or insert the required conversion, such as DINT to TIME
HMI or SCADA cannot read PLC tags Optimized block access or HMI access settings DB properties and tag accessibility Adjust optimized access where required or enable the required HMI access settings
PositioningAxis fails commissioning Incomplete parameters or incorrect hardware assignment Axis mapping, IP configuration, and feedback signals Correct the assignment and parameters using the Siemens commissioning procedure
Safety project fails compile or download Missing signatures or inconsistent safety configuration Safety project settings and device configuration Resolve configuration problems, generate signatures, and re-download
Trace stops unexpectedly Power cycle, communication interruption, or missing memory card Controller buffer, power history, memory-card presence, and trace configuration Correct the underlying condition, configure the trace again, and reactivate it

TIME versus DINT is a useful example because the hardware can be completely healthy while the project remains blocked. If a formal parameter expects TIME and the actual parameter is DINT, the interface must be corrected or the required conversion added before the affected logic can be commissioned correctly.

HMI or SCADA access is another configuration-dependent problem. If the controller is running but external tags cannot be read, check the PLC data-block properties, optimized block access, HMI accessibility settings, and the addressing used in the HMI or SCADA project.

Motion, Technology Object and Safety Commissioning Faults

Motion and safety problems require stricter escalation rules than standard I/O faults because an incorrect response can create unexpected machine behavior. The brief specifically states that commissioning should stop if actuator movement is unexpected or a safety function does not behave as intended.

A PositioningAxis technology object can fail commissioning because of incomplete parameters, incorrect hardware mapping, IP configuration, drive or encoder wiring, or missing feedback signals. These items should be verified before repeated attempts are made to enable the axis.

Safety-program faults can result from missing safety signatures or inconsistent safety configuration. The supported corrective direction is to resolve the project inconsistency, generate the required signatures, and re-download according to the safety procedure rather than bypassing the fault to force the system into operation.

Repeated CPU STOP conditions involving safety or motion, safety functions that cannot be validated, or unexpected motion should be escalated to Siemens support, the OEM, or the system integrator. The brief treats these as stop-work conditions rather than normal trial-and-error commissioning issues.

What Engineers Report Most Often During S7-1500 Startup

The community sources summarized in the brief repeatedly report the same S7-1500 commissioning symptoms: TIA Portal cannot communicate with the CPU, modules appear missing after hardware changes, the CPU enters STOP during first startup, data-type errors block new logic, I/O modules show red LEDs, and remote I/O remains offline because IP addresses or PROFINET device names do not match.

A consistent pattern in those reports is premature hardware diagnosis. Engineers sometimes assume a CPU or I/O module has failed when the actual cause is missing 24 V field power, incorrect polarity, an unmatched hardware configuration, optimized block access, an incomplete safety setup, or a network identity problem. Trace or communication faults can also be blamed on the controller when a firewall or managed switch is interrupting communication.

Community sentiment in the supplied research is positive about the S7-1500 diagnostic capabilities once engineers use them systematically. The diagnostic buffer, module-status views, LEDs, Accessible Devices, and network checks frequently lead to a correction without hardware replacement, particularly when the installed hardware, firmware, PROFINET identity, and TIA Portal project are brought back into alignment.

How to Correct S7-1500 Faults Without Creating New Ones

One of the most common commissioning mistakes in the brief is changing several parameters at once. That approach makes it difficult to know which change fixed the original fault and which change introduced the next one.

The safer diagnostic pattern is to use the information already available from the CPU and modules, categorize the fault, and change one item at a time. The supplied diagnostic workflow can be reduced to the following commissioning overview:

  • Read the CPU diagnostic buffer, module status, LEDs, and TIA Portal messages before changing anything
  • Verify 24 V supplies, grounding, connectors, polarity, commons, and reference potentials before blaming configuration
  • Confirm the configured CPU, modules, firmware, IP addresses, and PROFINET device names match the installed system
  • Correct one software or configuration issue at a time, then download and observe the result
  • Stop and escalate if the remaining condition involves unclear safety behavior, unexpected motion, hardware damage, or unexplained repeated STOP events

This sequence matters because it preserves diagnostic evidence. If power, wiring, network settings, hardware configuration, and program parameters are all changed together, the commissioning team loses the ability to identify the original root cause.

What to Verify After Correcting the Fault

A correction is not complete simply because the CPU reaches RUN. The affected module, network connection, technology object, safety function, HMI tag, or field device should also behave as expected after the change.

The supplied commissioning workflow calls for re-powering and checking safe behavior in a controlled manner, repeating the applicable commissioning procedure for technology or safety objects, and reviewing the diagnostic buffer so that remaining messages are either cleared or understood.

Short functional tests should be completed before full production operation. For a communication fault, that means confirming the CPU and remote I/O remain reachable. For a field-I/O fault, it means confirming the corrected input or output changes state as expected. For an HMI fault, the relevant PLC tags should read correctly after the project is synchronized.

Trace or watch tables can then be used to observe critical signals during startup where they are appropriate to the commissioning task. If trace recording stops again because of a power cycle, communication interruption, or memory-card condition, that cause should be resolved rather than treated as a separate unexplained controller fault.

How to Prevent the Same Commissioning Errors on the Next Startup

The recurring S7-1500 commissioning problems in the brief point to a small set of preventive controls: hardware and network documentation, version management, disciplined data types, consistent tag access, and a standard diagnostic routine.

A pre-commissioning hardware check should confirm that the installed CPU and I/O match the TIA Portal configuration before the first download. The same check should cover firmware where relevant, module seating, 24 V supplies, protective devices, and field connectors.

Network documentation should record the intended IP addresses, subnets, gateways, and PROFINET device names for the CPU, remote I/O, engineering station, HMIs, and other connected devices. This is particularly useful after VLAN changes or when different IT and OT teams share responsibility for the network.

Data-type discipline is equally important in the software. TIME and DINT mismatches, inconsistent block interfaces, incorrect HMI access settings, and unsynchronized tag mappings can create commissioning delays that are avoidable before hardware reaches the machine.

Using the diagnostic buffer as the first software check on every startup fault also prevents a recurring operational problem: replacing hardware before the configuration, wiring, network, or program has been proven correct.

Adding I/O, Drives and Network Devices Without Breaking the Project

Hardware changes are a common commissioning trigger because the S7-1500 project must remain synchronized with the actual machine after an additional module, communication processor, drive, distributed station, HMI, or SCADA connection is added.

  • ET 200MP I/O modules: confirm module type, firmware, field power, wiring, connectors, and TIA Portal hardware configuration
  • Additional S7-1500 I/O: update the hardware configuration so the actual rack and project remain consistent
  • Communication processors: verify both the installed hardware and associated network settings after the change
  • Drives and motion hardware: verify hardware mapping, IP configuration, encoder or feedback signals, and PositioningAxis parameters
  • New HMI or SCADA systems: check tag addressing, optimized block access, HMI accessibility, and project synchronization

The brief specifically references 6ES7521-1BL00-0AB0 as an example digital-input module when checking wiring against the module documentation and project schematics. No broader catalog-number compatibility list or individual module electrical ratings are supplied in the source material, so those details should be verified using the applicable Siemens documentation before replacement or expansion.

When S7-1500 Hardware Replacement Is Actually Justified

Hardware replacement should come after the evidence, not before it. The brief states that replacement becomes justified after power, wiring, configuration, and network checks have been completed and diagnostics continue to indicate a hardware problem.

Examples include persistent error LEDs after the relevant wiring and configuration have been corrected, or a module that remains undetectable even though its installation, power, hardware configuration, and known-good wiring have been verified.

Suspected physical damage changes the decision. Overheating, burning smells, repeatedly failing power, or visible rack or backplane damage are escalation conditions and should not be treated as routine configuration faults.

Before ordering a replacement, confirm the exact catalog number from the installed hardware and project rather than sourcing a similar-looking S7-1500 or ET 200MP module. You can check current S7-1500 CPU and I/O availability through LeadTime.ca or contact the LeadTime.ca team for a lead-time check before a shutdown or machine build.

Common Troubleshooting Mistakes Before Replacing Hardware

These recurring mistakes are identified directly in the supplied S7-1500 troubleshooting brief. Each one can extend commissioning time or cause working hardware to be replaced unnecessarily.

  1. Ignoring the diagnostic buffer and relying only on LEDs
  2. Changing multiple parameters at once without a structured plan
  3. Assuming hardware is faulty before verifying wiring and configuration
  4. Overlooking IP and device name alignment between CPU, remote I/O and engineering station

The first item is particularly important because the S7-1500 diagnostic buffer should establish the CPU STOP cause or fault context before the engineer starts changing the machine. The second protects the commissioning process from uncontrolled trial and error. The final two prevent network and configuration problems from being misclassified as failed PLC hardware.

If the system still points to a failed CPU or I/O module after these checks, contact LeadTime.ca for current availability and sourcing support. Worldwide shipping is available.

Expert Verdict: The Fastest Way to Work Through S7-1500 Commissioning Faults

The SIMATIC S7-1500 Automation System gives engineers enough diagnostic information to resolve many startup faults without replacing hardware. The CPU diagnostic buffer, module status, communication diagnostics, integrated web-server information when configured, ET 200MP LEDs, and Accessible Devices provide a strong evidence trail for separating a programming fault from a 24 V problem, wiring error, hardware mismatch, or PROFINET identity issue. For controls engineers already working in TIA Portal, the correct first move is usually to read those diagnostics before opening the cabinet or changing the project.

The limits are equally important. Repeated CPU STOP conditions involving safety or motion, unexpected actuator movement, a safety function that cannot be validated, persistent red LEDs after verified corrective actions, overheating, burning smells, or diagnostics that remain unclear should trigger escalation rather than continued experimentation. The supplied brief does not identify another S7-1500 variant as the automatic answer to these symptoms; Siemens support, the OEM, or the responsible integrator should be involved before hardware is changed without evidence.

From a procurement standpoint, the biggest avoidable mistake is buying a replacement S7-1500 CPU or ET 200MP module for a fault caused by a missing 24 V supply, wiring polarity, mismatched hardware configuration, PROFINET device name, IP setting, or TIA Portal parameter. Once those causes have been ruled out and diagnostics consistently point to failed hardware, check the exact catalog number and current availability through LeadTime.ca. For volume requirements, hard-to-find S7-1500 parts, or lead-time confirmation before a planned startup, contact the LeadTime.ca team; worldwide shipping is supported.

Frequently Asked Questions

Why won't my S7-1500 go into RUN after downloading the project?

Start by reading the CPU diagnostic buffer and status messages in TIA Portal. The supplied troubleshooting material identifies runtime logic faults such as division by zero or array-bounds errors, inconsistent hardware configuration, missing modules, and safety-related problems as possible causes of a CPU remaining in STOP.

What causes an S7-1500 module to show as not detected?

A configured module can appear missing when the actual installed hardware or firmware does not match the TIA Portal hardware configuration. Check the module type, firmware, seating, connectors, rail condition, backplane integrity, and required power before treating the module as defective.

Why can TIA Portal see my CPU but still fail to communicate correctly?

Visibility alone does not prove that all network settings are correct. Compare the engineering-PC IP, CPU IP, subnet, routing, Accessible Devices result, PROFINET configuration, firewall rules, and managed-switch settings identified in the brief.

How do I troubleshoot a PROFINET device-name mismatch?

Compare the device name configured in TIA Portal with the name assigned to the physical PROFINET device. Use the available online diagnostic tools to assign the correct name and confirm that it is unique on the network before troubleshooting the remote I/O as a hardware failure.

How do I fix a TIME versus DINT mismatch in TIA Portal?

Check the block interface and function call to see whether the formal and actual parameters use different data types. The brief identifies correcting the types or inserting the required conversion, such as DINT to TIME, as the appropriate direction rather than forcing the affected block through commissioning.

Why is the red LED on my S7-1500 I/O module active during startup?

The red error LED can be associated with wiring faults, output short circuits, overloads, missing field supply, hardware configuration problems, or an actual module fault. Check TIA Portal module status, the applicable wiring, 24 V supply, P LED state where relevant, and the installed hardware before deciding that the module requires replacement.

Why won't my PositioningAxis enable during commissioning?

The supplied brief identifies incomplete technology-object parameters, incorrect hardware assignment, IP configuration, feedback signals, drive wiring, and encoder wiring as possible causes. Unexpected motion is a stop-work condition, so repeated faults or unclear behavior should be escalated rather than bypassed.

Why can't my HMI or SCADA system read S7-1500 tags?

Check the HMI tag mapping against the PLC data blocks and addresses, then review optimized block access and the applicable HMI access properties. The brief identifies inconsistent tag addressing and block-access settings as recurring causes of tag-read problems during commissioning.

Do I need a memory card for S7-1500 trace diagnostics?

The supplied material states that trace recording can stop after a power cycle, communication interruption, or missing memory card and recommends checking memory-card presence as part of the investigation. It does not establish a universal memory-card requirement for every S7-1500 trace configuration, so that requirement cannot be confirmed from the supplied brief alone.

When should I stop troubleshooting and replace the S7-1500 hardware?

Replacement should be considered after power, wiring, hardware configuration, firmware, and network settings have been verified and diagnostics still point consistently to the hardware. Persistent error LEDs, inability to detect correctly installed hardware, overheating, or physical damage can justify escalation, but safety or motion problems should first be handled through Siemens support, the OEM, or the system integrator.

Why Source S7-1500 Hardware Through LeadTime.ca

  • LeadTime.ca supports sourcing of SIMATIC S7-1500 CPUs and replacement I/O modules
  • Worldwide shipping is available for industrial automation orders
  • Current availability can be checked before a machine startup, shutdown, or replacement order is committed
  • Hard-to-find part and volume requirements can be discussed directly with the LeadTime.ca team
  • Replacement sourcing can be based on the confirmed catalog number after the commissioning fault has been isolated

S7-1500 Commissioning Checks at a Glance

  • The SIMATIC S7-1500 Automation System is a modular industrial PLC platform used with S7-1500 and ET 200MP I/O
  • Use the TIA Portal diagnostic buffer and module-status information before changing wiring, hardware, or configuration
  • Verify the required 24 V DC supply to the CPU, modules, sensors, and actuators before diagnosing failed I/O
  • Incorrect polarity, missing commons, missing reference potentials, short circuits, and safety-wiring errors are recurring startup faults
  • Match the configured CPU, modules, and firmware with the hardware physically installed in the system
  • PROFINET commissioning requires the correct device name, IP address, subnet, and engineering-PC network configuration
  • TIME versus DINT mismatches can block downloads when formal and actual parameter types do not match
  • HMI and SCADA tag problems can be caused by optimized block access, HMI accessibility settings, or incorrect tag mapping
  • PositioningAxis faults can involve hardware mapping, IP configuration, feedback signals, drive wiring, encoder wiring, or incomplete parameters
  • Trace recording can be interrupted by a power cycle, communication problem, or missing memory card
  • 6ES7521-1BL00-0AB0 is identified in the supplied brief as an example digital-input module for wiring and diagnostic checks
  • Unexpected motion, unclear safety behavior, overheating, burning smells, and unexplained repeated STOP events are escalation conditions

You may also be interested in:
