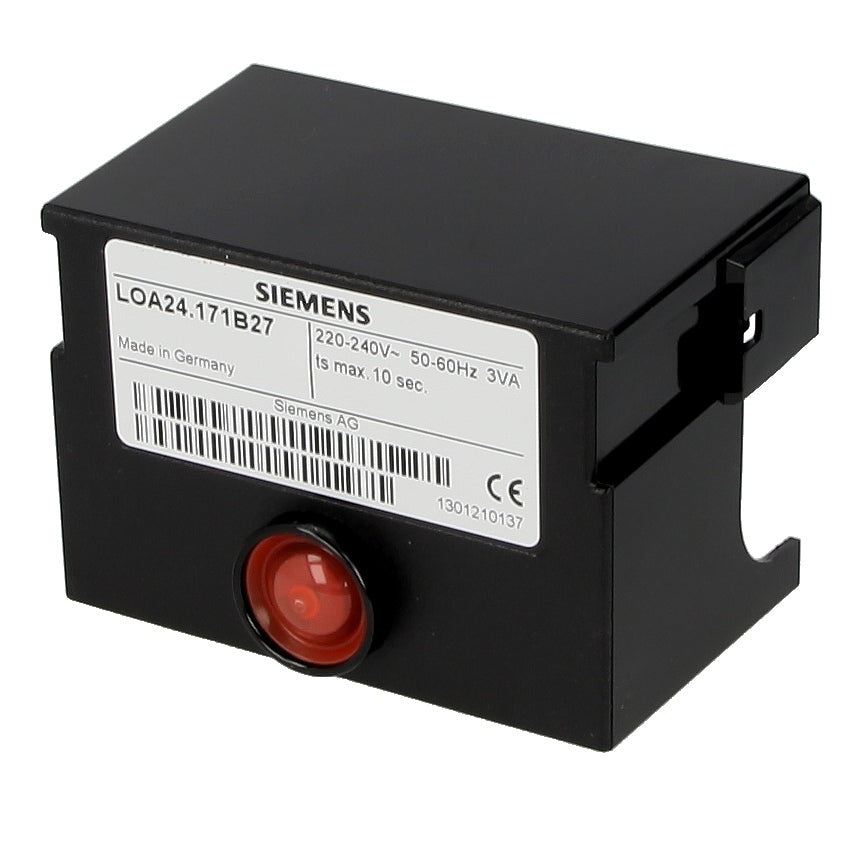

Overview of Siemens LOA24-171B27 Oil Burner Control

The Siemens LOA24-171B27 is a 2-stage oil burner control designed for supervision, startup, and control of forced draft oil burners. It supports oil throughputs of up to 30 kg/h and complies with EN 267 standards. Operating at AC 220-240 V with a power consumption of approximately 3 VA, this controller ensures safe and reliable burner operation with timing sequences optimized for efficient combustion.

Key Features

  • 2-stage control for precise management of forced draft oil burners.
  • Timing parameters: t1 = 13 seconds, TSA = 10 seconds, t3n = 15-20 seconds for optimized burner operation.
  • Photoresistive flame detectors suitable for yellow and blue-burning flames (models QRB and QRC).
  • Undervoltage detection enhances safety by disabling burner operation under low voltage.
  • Bridging contact for oil preheater for enhanced startup performance.
  • IP40 degree of protection for durability in operational environments.
  • Compact design with approximate weight of 180 g for easy installation and mounting.
  • Suitable for use in single or dual-stage oil burners with intermittent operation.
  • Comprehensive compliance with European safety and performance standards.

Technical Specs

Specification Details
Model LOA24-171B27
Application 2-stage oil burner control
Oil Throughput Up to 30 kg/h
Operating Voltage AC 220-240 V ±15% / +10%
Power Consumption Approx. 3 VA
Protection Degree IP40
Weight Approx. 180 g
Timing Specifications t1=13s, TSA=10s, t3n=15-20s
Flame Detection Photoresistive detectors (QRB, QRC)
Safety Features Undervoltage detection, bridging contact for oil preheater
Standards EN 267, IEC requirements

Applications / Use Case

Designed for reliable control and supervision of single or two-stage forced draft oil burners used in residential, commercial, and light industrial heating systems. Ensures safe startup and efficient burner operation with advanced flame monitoring.
