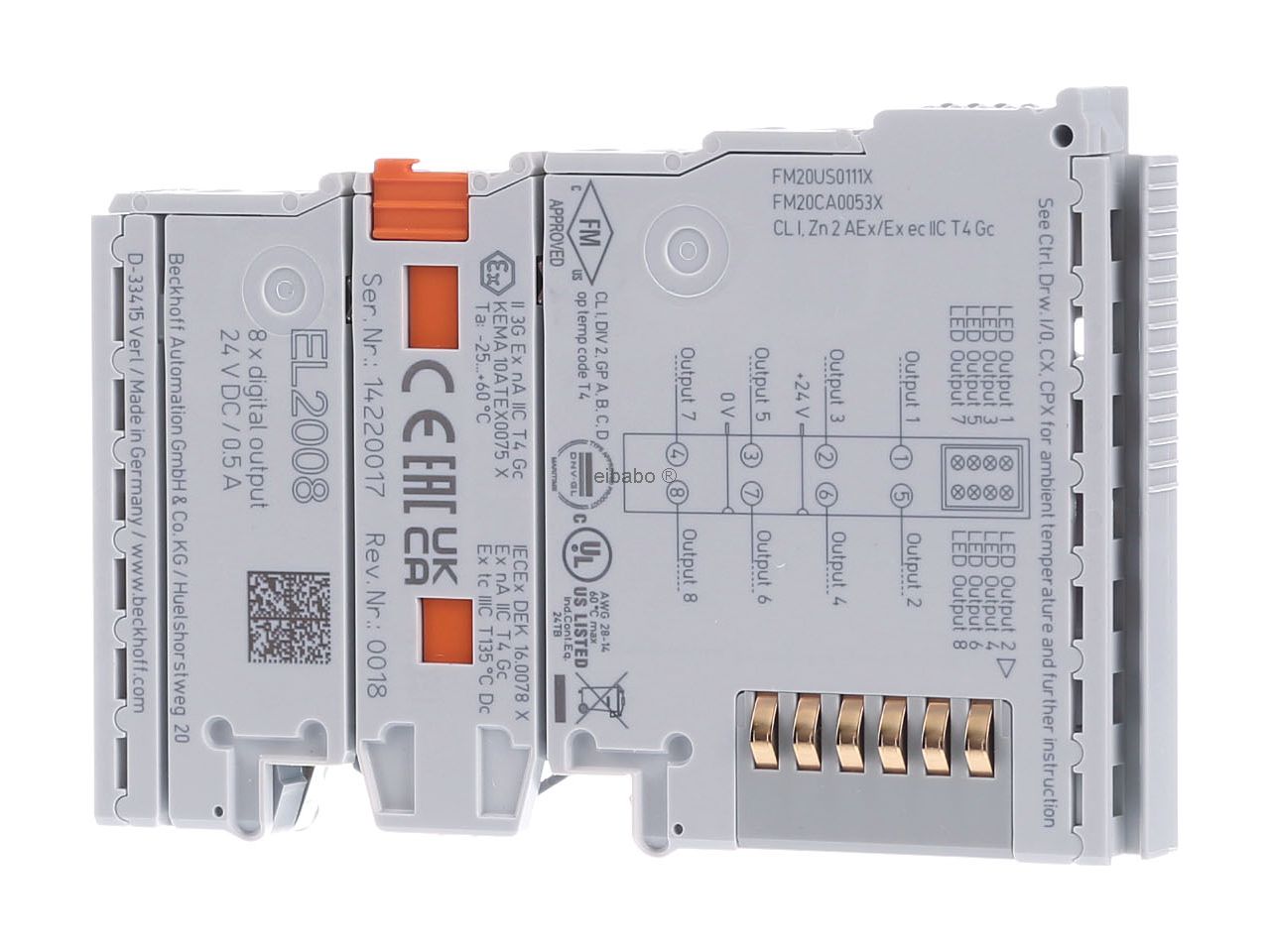

Overview of Siemens EL2008 EtherCAT Terminal
The Siemens EL2008 is an 8-channel digital output EtherCAT terminal designed to transmit binary 24 V DC control signals to actuators on the process level. Each output channel is capable of handling up to 0.5 A and is short-circuit proof with reverse polarity protection. This compact terminal is ideal for controlling various load types, including ohmic, inductive, and lamp loads, making it suitable for a broad range of industrial automation applications.
Key Features
- Eight independent digital output channels with 24 V DC nominal voltage.
- Max output current of 0.5 A per channel with short-circuit and reverse polarity protection.
- Compatible with different load types: resistive, inductive, and lamp loads.
- Fast switching times: typical ON time 60 µs, OFF time 300 µs.
- Electrical isolation of 500 V between E-bus and field potential for safety.
- Low power consumption: typical 110 mA from E-bus and 15 mA plus load from power contacts.
- Compact design: 12 mm width suitable for tight panel installations.
- LED indicators on each channel for simple status and diagnostics.
- Conformity with international standards: CE, UL, ATEX, IECEx among others.
- Operating temperature from -25 °C to +60 °C with high resistance to vibration and shock.
Technical Specs
| Specification | Details |
|---|---|
| Model | EL2008 |
| Number of Outputs | 8 Channels |
| Nominal Voltage | 24 V DC (-15%/+20%) |
| Load Types | Ohmic, inductive, lamp load |
| Max Output Current | 0.5 A per channel |
| Short-circuit Current | Typical < 2 A |
| Protection | Short-circuit and reverse polarity |
| Switching Times | Ton: 60 µs, Toff: 300 µs |
| Current Consumption (E-bus) | Typical 110 mA |
| Isolation Voltage | 500 V (E-bus to field) |
| Operating Temperature | -25 °C to +60 °C |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Weight | Approx. 55 g |
| Protection Rating | IP20 |
| Certifications | CE, UL, ATEX, IECEx, DNV GL, cFMus |
Applications / Use Case
The EL2008 is suitable for controlling actuators, lamps, and motors in industrial automation systems. It is widely used in manufacturing automation, machine controls, and process control systems where reliable and fast digital outputs are essential.
Siemens ensures reliable and compact EtherCAT solutions for efficient and safe digital output control in complex automation environments.
-
