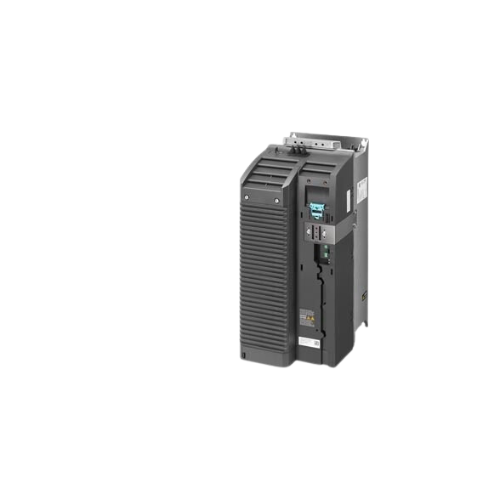

Overview of Siemens 6SL3210-1PE26-0AL0
Shop genuine Siemens 6SL3210-1PE26-0AL0 directly from LeadTime.ca for your automation system. This industrial-grade power module is designed as a high-performance solution for variable speed motor control in demanding environments. The Siemens SINAMICS G120 PM240-2 380-480V 30kW (40hp) drive module features an advanced design with built-in Class A EMC filter and integrated braking chopper, ensuring reliable operation and compliance with strict industrial standards. With robust overload capacity, wide operating temperature range, and flexible mounting options, the Siemens 6SL3210-1PE26-0AL0 is engineered for longevity and seamless integration into modern automation panels. Buy Siemens 6SL3210-1PE26-0AL0 online and experience factory-grade quality for industrial motor control, process automation, and machine building applications.
Key Features of Siemens 6SL3210-1PE26-0AL0
- Robust 30 kW (40hp) output power for industrial motor control tasks
- Built-in Class A EMC filter for reduced electrical noise and compliance with industrial EMC standards
- Integrated braking chopper for effective energy dissipation and regenerative braking
- Designed for three-phase 380–480 VAC input, ±10% voltage tolerance
- High overload capacity: 22 kW for high overload (HO) and 30 kW for low overload (LO) duty cycles
- Wide ambient operating temperature range: -20°C to +50°C (HO), -20°C to +40°C (LO)
- Output pulse frequency up to 4 kHz for smooth motor operation
- Compact FSD design, IP20 protection, suitable for panel mounting
- Approved for use with CU units running firmware V4.7 HF8
- Supports both vector and V/f control modes for versatile motor applications
Technical Specs of Siemens 6SL3210-1PE26-0AL0
Refer to Siemens 6SL3210-1PE26-0AL0 technical data for detailed parameters before installation.
| Specification | Value |
|---|---|
| Manufacturer | Siemens |
| Model | SINAMICS G120 PM240-2 |
| Input Voltage | 3 AC 380–480 V ±10% |
| Line Frequency | 47–63 Hz |
| Output Power (LO) | 30 kW / 40 HP |
| Output Power (HO) | 22 kW / 30 HP |
| Rated Current (LO) | 60 A |
| Rated Current (HO) | 45 A |
| Max Output Frequency | 550 Hz |
| Dimensions (H x W x D) | 472 x 200 x 237 mm |
| Protection | IP20 |
| Ambient Temperature | -20°C to +50°C (HO), -20°C to +40°C (LO) |
| Efficiency | >90% |
Applications / Use Case
This Siemens 6SL3210-1PE26-0AL0 is commonly used in industrial automation and process control. Its robust motor control capability makes it ideal for machine automation, production line systems, packaging, conveyors, and factory control panels. The built-in filter and chopper ensure compatibility with networked automation environments, while the wide voltage and power range supports diverse motors and loads. Whether you require precise speed regulation for pumps, fans, or complex mechanical operations, the Siemens 6SL3210-1PE26-0AL0 delivers reliable, efficient performance for motion control setups and industrial processes worldwide.
Price & Availability
View Siemens 6SL3210-1PE26-0AL0 availability for fast worldwide dispatch with real-time updates on LeadTime.ca.
Why Order from LeadTime.ca
All products on LeadTime.ca are original OEM, sourced from verified suppliers, and available for worldwide shipping. Order now for worldwide delivery.
