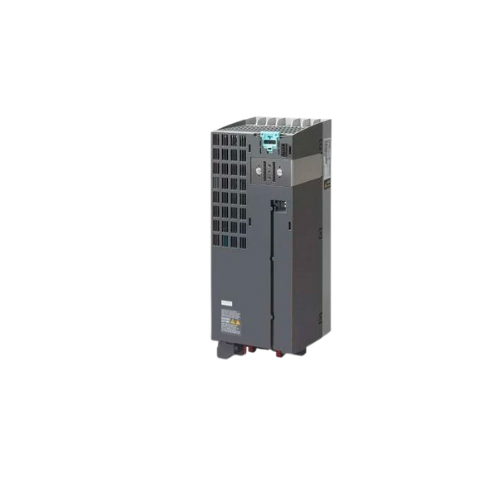

Overview of Siemens 6SL3210-1PE23-3UL0
Buy genuine Siemens 6SL3210-1PE23-3UL0 online for your automation system. The Siemens 6SL3210-1PE23-3UL0 is a robust SINAMICS PM240-2 Power Module designed for demanding industrial environments. This three-phase drive module delivers high-performance motor control with output ratings up to 15 kW (low overload) and 11 kW (high overload), making it a reliable choice for driving asynchronous motors in various industrial applications. Built without an integrated filter but equipped with a built-in braking chopper, this unit operates on 380–480 V AC supply, accommodating voltage fluctuations and supporting a wide frequency range of 47–63 Hz. Compact yet powerful, the Siemens 6SL3210-1PE23-3UL0 is approved for CU firmware version V4.6 and offers IP20 protection, ensuring safety and flexibility in panel integration. Whether you need a dependable solution for new installations or upgrades, this Siemens inverter module is engineered for durability, efficiency, and ease of integration.
Key Features of Siemens 6SL3210-1PE23-3UL0
- Three-phase Siemens PM240-2 Power Module without filter, with built-in braking chopper
- Input voltage range: 380–480 V AC ±10%, 47–63 Hz
- Output power: 15 kW low overload (150% for 3 sec, 110% for 57 sec), 11 kW high overload (200% for 3 sec, 150% for 57 sec)
- Rated output currents: 32 A (low overload), 26 A (high overload), max 52 A peak
- Compact dimensions (355 x 140 x 165 mm), IP20 protection
- Suitable for ambient temperatures: -10°C to +50°C (high overload), -5°C to +40°C (low overload)
- Approved for CU firmware version V4.6
- Ready for international voltage standards (400V IEC, 480V NEC)
- Pulse frequency: 4 kHz, output frequency up to 200 Hz
- Designed for panel mounting, supports both V/f and vector control
Technical Specs of 6SL3210-1PE23-3UL0
Access 6SL3210-1PE23-3UL0 specifications for detailed parameters before installation.
| Input Voltage | 380–480 V AC ±10% |
|---|---|
| Input Frequency | 47–63 Hz |
| Output Power (Low Overload) | 15 kW / 20 hp |
| Output Power (High Overload) | 11 kW / 15 hp |
| Rated Current (Low Overload) | 32 A |
| Rated Current (High Overload) | 26 A |
| Peak Current | 52 A |
| Pulse Frequency | 4 kHz |
| Output Frequency | 0–200 Hz |
| Dimensions (HxWxD) | 355 x 140 x 165 mm |
| Protection | IP20 |
Applications / Use Case
This Siemens 6SL3210-1PE23-3UL0 is commonly used in industrial automation worldwide. It is ideal for machine automation, production line systems, packaging, and conveyor operations where precise motor speed control and robust performance are essential. Its high overload capability and compact design make it suitable for demanding environments such as factory control panels and motion control setups, ensuring reliable operation in process control and manufacturing applications.
