Overview

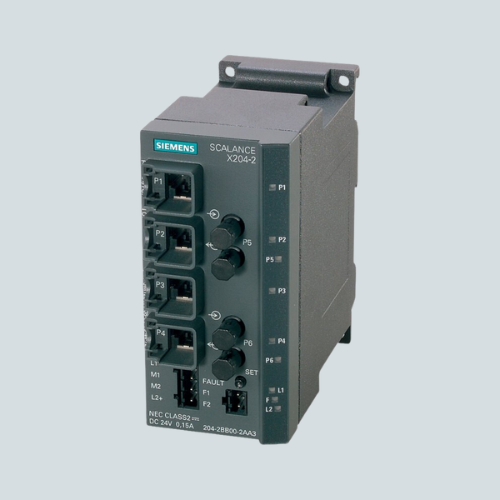

The Siemens 6GK5204-2BB10-2AA3 is a SCALANCE X204-2 managed Industrial Ethernet switch. It includes four 10/100 Mbps RJ45 ports and two 100 Mbps multimode BFOC ports. Designed for reliable industrial networking, this PROFINET IO device supports integrated redundancy management, LED diagnostics, and network management functions. The unit features a redundant power supply and supports optional C-PLUG configuration backup.
Key Features
- 4x 10/100 Mbps RJ45 ports for Ethernet connectivity
- 2x 100 Mbps multimode BFOC fiber optic ports
- PROFINET IO device support for seamless integration
- Redundancy Manager integrated for network reliability
- LED diagnostics and error signaling contact with pushbutton
- Optional C-PLUG for configuration and device replacement
- Redundant 24V power supply support
- Includes electronic manual (CD-ROM)
Technical Specifications
| Model | SCALANCE X204-2 |
| Siemens Article Number | 6GK5204-2BB10-2AA3 |
| Ports | 4x RJ45, 2x BFOC multimode |
| Network Standards | 10/100 Mbps Ethernet |
| Power Supply | Redundant, 24V DC |
| Diagnostics | LED indicators, error signaling |
| Dimensions (mm) | 80 x 109 x 117 |
| Weight | 0.998 kg |
| Country of Origin | Germany |
| EAN | 4019169141536 |
Common Applications
Used in industrial automation systems for machine-level Ethernet networking, especially where fiber optic connectivity and redundant power are critical.
Compliance & Warranty
RoHS and REACH compliant. WEEE return supported. Warranty and stock availability may vary by distributor.
-
