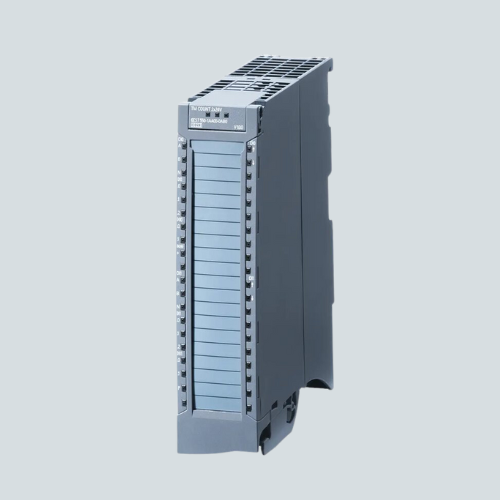

6ES7550-1AA01-0AB0

In Stock
Regular price $698.40
Sale price $698.40 Regular price


  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Have a target price? No worries, submit your target price below


Overview of Siemens 6ES7550-1AA01-0AB0

Buy genuine Siemens 6ES7550-1AA01-0AB0 online for your automation system. This module, known as the TM Count 2x24V, is a precision technology module designed for the SIMATIC S7-1500 and ET 200MP automation platforms. It supports advanced counting and measuring functions with impressive accuracy up to 100 ppm, which makes it ideal for applications requiring high-precision frequency, period, and velocity measurement. Featuring configurable comparison values and fast reaction output switching, this counter module enhances system control and efficiency in your industrial automation projects. Its compact design fits seamlessly into modern control panels while offering robust functionality for diverse industrial tasks.

Key Features of Siemens 6ES7550-1AA01-0AB0

  • Two 24 V incremental or pulse encoder input channels
  • Supports frequency measurement from 0.04 Hz up to 800 kHz
  • Cycle duration measurement from 1.25 µs to 25 s
  • High accuracy measurement with up to 100 ppm precision
  • Two configurable comparison thresholds with outputs
  • Input filters for reducing interference on encoder and digital inputs
  • Supports hardware and software gate controls for precise signal acquisition
  • Diagnostic interrupt capability to enhance system reliability
  • Isochronous mode support for cycle-accurate counter data acquisition
  • Compact dimensions: 35 mm width, 147 mm height, 129 mm depth

Technical Specs of 6ES7550-1AA01-0AB0

Review Siemens 6ES7550-1AA01-0AB0 specifications for detailed parameters before installation.

Parameter Specification
Input Voltage 24 V DC
Channels 2 encoder inputs, 3 digital inputs, 2 digital outputs per channel
Frequency Range 0.04 Hz – 800 kHz
Cycle Duration Range 1.25 µs – 25 s
Measurement Accuracy 100 ppm
Isolation Test Voltage 707 V DC
Operating Temperature -30 °C to 60 °C (horizontal installation)
Weight Approx. 250 g

Applications / Use Case

This Siemens 6ES7550-1AA01-0AB0 module is commonly used in industrial automation worldwide. It excels in machine automation, production line systems, and factory control panels where precise counting and timing measurement are critical. By integrating seamlessly with SIMATIC S7 controllers, it enables high-speed and accurate pulse counting, frequency measurement, and velocity detection. Its flexibility and configurable gates make it suitable for advanced process control, packaging lines, conveyor systems, and motion control setups demanding reliable encoder signal processing and rapid digital output switching.

Price & Availability

Get updated on Siemens 6ES7550-1AA01-0AB0 pricing with real-time updates through LeadTime.ca.

Why Order from LeadTime.ca

All products on LeadTime.ca are genuine OEM, supplied by trusted distributors, and ready for international delivery. Order now for worldwide delivery.
