6ES7531-7QD00-0AB0
Regular price
$358.96
Sale price
$358.96
Regular price
Unit price
per
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
- Rated and reviewed
Have a target price? No worries, submit your target price below

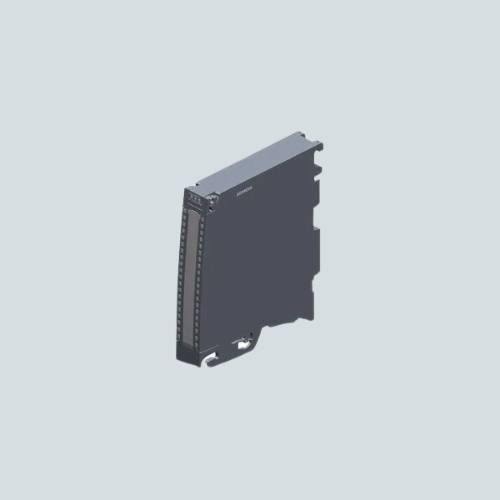

Overview of Siemens 6ES7531-7QD00-0AB0
Buy genuine Siemens 6ES7531-7QD00-0AB0 directly from LeadTime.ca for industrial automation solutions that demand performance and reliability. This Siemens Simatic S7-1500 Analog Input Module AI 4xU/I/RTD/TC ST is engineered for high-precision signal acquisition, supporting a wide range of voltage and current inputs, plus RTD and thermocouple sensors. With 16-bit resolution and 0.02% accuracy, it ensures precise measurement and robust data quality for advanced automation systems. The module is compatible with Siemens S7-1500 and ET 200MP systems—making it ideal for upgrading or expanding existing control environments. Built for industrial durability and easy DIN rail mounting, the Siemens 6ES7531-7QD00-0AB0 is a trusted choice for demanding applications.
Key Features of Siemens 6ES7531-7QD00-0AB0
- 4 universal analog inputs for voltage, current, RTD, and thermocouple signals
- 16-bit resolution for highly accurate measurements
- Exceptional accuracy: 0.02% (typical), for reliable process monitoring
- Wide signal range: supports 0 to 10 V, ±10 V, ±1 V, ±2.5 V, ±25 mV, ±50 mV, ±80 mV, ±250 mV, ±500 mV, 1 to 5 V, and more
- Dedicated channels for RTD and thermocouple sensor types, with internal reference junction
- Flexible configuration in STEP 7 (TIA Portal) software—adjustable parameters, smoothing, and hardware interrupts
- Push-in front connector terminal for quick, secure wiring
- Industrial-grade design: 24 VDC powered, DIN rail mount, compact dimensions (147 x 25 x 129 mm)
- Operational temperature: 0 to 60°C (horizontal), 0 to 40°C (vertical)
- Integrated in Siemens hardware catalog (STEP 7, TIA Portal V13+), simplifying system integration
Technical Specs of Siemens 6ES7531-7QD00-0AB0
Explore Siemens 6ES7531-7QD00-0AB0 specifications for detailed parameters covering voltage, I/O, and communication needs.
| Specification | Details |
|---|---|
| Channels | 4 universal analog inputs |
| Resolution | 16-bit |
| Accuracy | 0.02% |
| Input Ranges | Voltage: 0-10 V, ±10 V, ±1 V, ±2.5 V, 1-5 V, ±5 V, ±25 mV, ±50 mV, ±80 mV, ±250 mV, ±500 mV RTD/TC: Supported |
| Power Supply | 24 VDC |
| Dimensions | 147 x 25 x 129 mm (HxWxD) |
| Operating Temp. Range | 0 to 60°C (horizontal), 0 to 40°C (vertical) |
| Connector | Push-in front connector terminal |
Applications / Use Case
This Siemens 6ES7531-7QD00-0AB0 is commonly used in process control and industrial automation worldwide, including packaging machines, conveyor systems, and factory control panels. It enables precise monitoring of temperature, pressure, flow, and other critical process variables—making it a foundational component in motion control setups, production lines, and SCADA environments. With its robust signal conditioning and flexible configuration, this module is ideal for engineers seeking a reliable way to expand the analog input capabilities of their Siemens S7-1500 or ET 200MP systems.
Price & Availability
View Siemens 6ES7531-7QD00-0AB0 price and availability for fast worldwide dispatch by contacting LeadTime.ca. Bulk order pricing, OEM warranty, and real-time stock updates ensure you get the right automation part when you need it.
Why Order from LeadTime.ca
All product on LeadTime.ca is genuine, sourced from verified suppliers, and available for worldwide shipping. Order now for worldwide delivery and experience seamless support for your industrial automation projects.
