6ES7531-7KF00-0AB0
Regular price
$651.78
Sale price
$651.78
Regular price
Unit price
per
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
- Rated and reviewed
Have a target price? No worries, submit your target price below

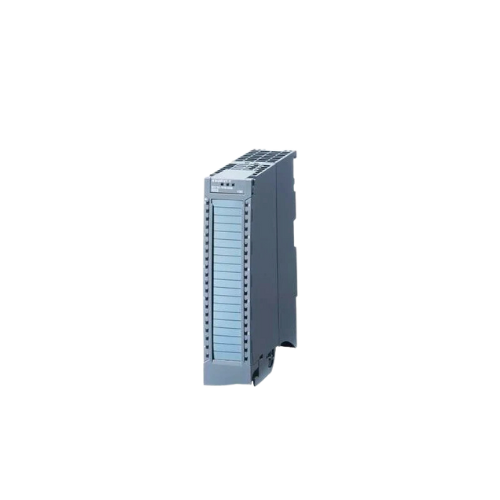

Buy original Siemens 6ES7531-7KF00-0AB0 online
The Siemens 6ES7531-7KF00-0AB0 is a high-performance SIMATIC S7-1500 analog input module designed for precise measurement tasks. Featuring 8 analog input channels capable of handling voltage, current, resistance, RTD, and thermocouple signals, it provides a 16-bit resolution along with an accuracy of 0.3%. This module supports parameterizable temperature compensation, hardware interrupt functionality, and configurable diagnostics per channel. Compact and robust, it is ideal for demanding industrial environments requiring reliable signal acquisition and processing.
Key Features of Siemens 6ES7531-7KF00-0AB0
- Eight analog input channels supporting voltage, current, resistance, RTD, and thermocouple signals
- 16-bit resolution with high accuracy of 0.3%
- Configurable measuring ranges including ±10 V, -1 to +1 V, and 1 to 5 V voltage inputs
- Input resistance up to 10 MΩ for sensitive signal measurement
- Supports internal and external temperature compensation for thermocouples
- Hardware interrupt on limit violation configurable per channel
- Short-circuit protection and reverse polarity protection
- Diagnostic functions and process alarms embedded for enhanced safety
- Operating voltage range: 20.4 to 28.8 V DC
- Compact dimensions: 35 x 147 x 129 mm with a light weight of 310 g
Technical Specs of Siemens 6ES7531-7KF00-0AB0
Explore Siemens 6ES7531-7KF00-0AB0 datasheet covering voltage, I/O, and communication before installation.
| Specification | Details |
|---|---|
| Power Supply Voltage | 24 V DC (20.4 - 28.8 V) |
| Analog Inputs | 8 (Voltage, Current, RTD, Thermocouple) |
| Resolution | 16 bit |
| Accuracy | 0.3% |
| Input Resistance | 10 MΩ for voltage inputs |
| Dimensions (W x H x D) | 35 x 147 x 129 mm |
| Weight | 310 g |
Applications / Use Case
This Siemens 6ES7531-7KF00-0AB0 is commonly used in industrial automation where accurate analog signal measurement is critical. Typical applications include process control, machine automation, and production line systems. The module's flexible input channels make it suitable for factory control panels and motion control setups demanding precise temperature and voltage data acquisition. Its robust design ensures reliable operation under harsh industrial conditions worldwide.
Price & Availability
Get updated on Siemens 6ES7531-7KF00-0AB0 pricing with real-time updates.
Why Order from LeadTime.ca
All products on LeadTime.ca are genuine OEM, supplied by trusted distributors, and ready for international delivery. Order now for worldwide delivery.
