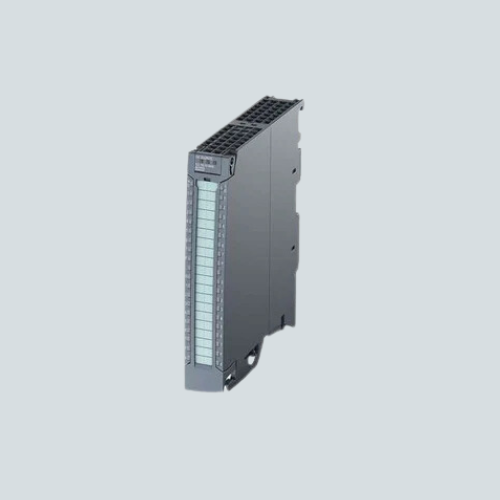

Overview of Siemens 6ES7523-1BL00-0AA0
Buy genuine Siemens 6ES7523-1BL00-0AA0 online for your automation system. This high-performance SIMATIC S7-1500 digital input/output module offers reliable operation with 16 digital inputs and 16 digital outputs, designed for advanced industrial automation tasks. It features a 24 VDC rated voltage and supports grouped electrical isolation for robust and safe signal processing. The input delay time averages around 3.2 ms, meeting IEC 61131 type 3 standards, making it suitable for use with various proximity switches and DC loads. Its compact design integrates easily into control panels, providing effective and flexible digital signal interfacing for sophisticated production and process control systems.
Key Features of Siemens 6ES7523-1BL00-0AA0
- 16 electrically isolated digital inputs rated at 24 VDC for reliable signal detection
- 16 digital outputs grouped in sets of 8, each channel supporting up to 0.5 A output current
- Input delay typically 3.2 ms, compatible with IEC 61131 input type 3
- Suitable for switches and 2-/3-/4-wire proximity sensors
- Supports safety-oriented shutdown of output groups up to SIL2 and PL c standards
- Electrical isolation by groups improves noise immunity and system safety
- Compact module size and push-in front connector for easy installation and wiring
- Designed for use with solenoid valves, DC contactors, and signaling devices
Technical Specs of 6ES7523-1BL00-0AA0
Explore Siemens 6ES7523-1BL00-0AA0 technical data covering voltage, I/O, and communication to ensure system compatibility.
| Specification |
Details |
| Number of Inputs |
16 sinking inputs |
| Input Voltage |
24 V DC (rated) |
| Input Delay |
3.2 ms typical |
| Number of Outputs |
16 digital outputs |
| Output Current |
0.5 A per channel |
| Output Voltage |
24 V DC |
| Output Groups |
2 groups of 8 outputs, 4 A per group max |
| Safety Standards |
SIL2 EN IEC 62061:2021, PL c EN ISO 13849-1:2015 |
Applications / Use Case
This Siemens 6ES7523-1BL00-0AA0 module is commonly used in industrial automation worldwide. It is ideal for machine automation, production line systems, and factory control panels where precise and reliable digital input and output signaling is critical. The module's safety certifications allow it to be deployed in applications requiring a high level of functional safety, such as automated machinery with safety shutdown features. It handles inputs from a variety of sensors and controls outputs for valves, relays, and indicator lights, enabling seamless integration into complex automation environments.
Price & Availability
Check Siemens 6ES7523-1BL00-0AA0 pricing online through LeadTime.ca for fast worldwide dispatch.
Why Order from LeadTime.ca
All product on LeadTime.ca is genuine, sourced from verified suppliers, and available for worldwide shipping. Order now for worldwide delivery to ensure you receive authentic Siemens automation parts with fast and reliable service.
