6ES7522-5FH00-0AB0
Regular price
$511.79
Sale price
$511.79
Regular price
Unit price
per
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
- Rated and reviewed
Have a target price? No worries, submit your target price below
Buy genuine Siemens 6ES7522-5FH00-0AB0 online

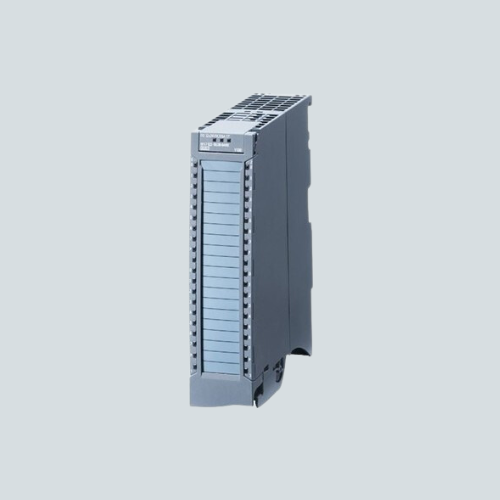

The Siemens 6ES7522-5FH00-0AB0 is a high-quality digital output module designed for the SIMATIC S7-1500 automation system. This factory-grade TRIAC module features 16 digital outputs operating at 230 V AC with a current rating of 1 A per channel, arranged in groups of two with a maximum of 2 A per group. Engineered for reliable industrial automation, it supports switching of small loads such as lamps and motor starters up to NEMA size 4. The compact module ensures seamless integration into production line systems, offering robust performance with low power loss and high operational safety. It is a preferred choice for control panels requiring precise and dependable digital output handling.
Key Features of Siemens 6ES7522-5FH00-0AB0
- 16 digital TRIAC outputs supporting 230 V AC switching
- Each channel supports current up to 1 A; grouped channels support up to 2 A per group
- Organized in groups of 2 outputs for flexible load control
- Output switching suitable for resistive and lamp loads, as well as motor starters up to NEMA size 4
- Built-in 6.3 A slow-blow fuse for output protection
- Low power loss with typical consumption of 11.1 W
- Compatible with SIMATIC S7-1500 control system for industrial automation
- Supports redundant load control applications
- Outputs capable of handling short AC cycles and residual currents minimized to 2 mA
Technical Specs of 6ES7522-5FH00-0AB0
Explore Siemens 6ES7522-5FH00-0AB0 specifications covering voltage, I/O, and communication before installation.
| Specification | Details |
|---|---|
| Type | Digital output module (TRIAC) |
| Outputs | 16 channels, grouped in pairs |
| Output Voltage | 230 V AC (120/230 V AC, 50/60 Hz) |
| Current per Channel | 1 A (max) |
| Current per Group | 2 A (max) |
| Power Loss | 11.1 W (typical) |
| Protection | 6.3 A slow-blow fuse |
| Dimensions (Approx.) | 15.1 x 15.4 x 4.3 cm |
| Weight | 0.364 kg |
Applications / Use Case
This Siemens 6ES7522-5FH00-0AB0 is commonly used in industrial automation environments worldwide. It is ideal for managing outputs in process control, machine automation, and production line systems, particularly where control of loads like lamps, heaters, or small motors is required. Its high reliability and grouping capability make it suitable for complex factory control panels and packaging conveyor operations, ensuring precise digital switching and long-term system stability in automated manufacturing settings.
Price & Availability
Get updated on Siemens 6ES7522-5FH00-0AB0 price with real-time updates through LeadTime.ca for fast worldwide dispatch.
Why Order from LeadTime.ca
All product on LeadTime.ca is authentic OEM, supplied by trusted distributors, and available for worldwide shipping. Order now for worldwide delivery to get genuine Siemens automation components backed by comprehensive customer support.
