Buy genuine Siemens 6ES7522-1BL10-0AA0 online

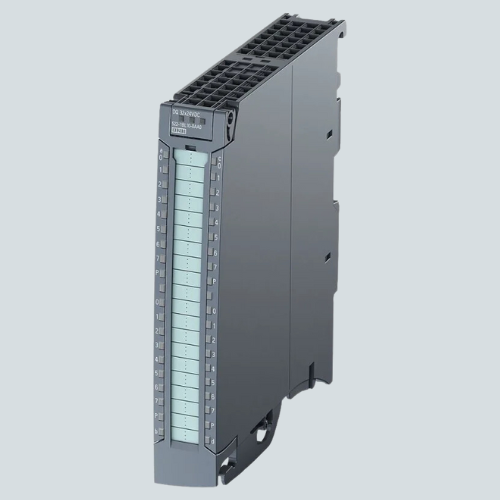

The Siemens 6ES7522-1BL10-0AA0 is a high-quality digital output module designed for the SIMATIC S7-1500 automation system. This industrial-grade module features 32 digital outputs, each operating at 24V DC with a 0.5A capacity, grouped in blocks of eight to deliver up to 4A per group. Compact yet robust, the module ensures reliable output performance with advanced diagnostics through visual LED status indicators for RUN, ERROR, and power status. Its premium engineering supports prioritized startup and optimized channel isolation to ensure stable operation in demanding automation environments. Perfect for integrating efficient and scalable output control in your PLC systems, the 6ES7522-1BL10-0AA0 is a trusted choice among automation professionals worldwide.
Key Features of Siemens 6ES7522-1BL10-0AA0
- 32 digital outputs at 24 V DC and 0.5 A per channel
- Outputs grouped in 8-channel blocks with 4A group capacity
- Visual LED indicators for RUN (green), ERROR (red), and power monitoring
- Electrical isolation between the channels and backplane bus for reliable signal integrity
- Compact dimensions: 25 mm width, 147 mm height, 129 mm depth
- Supports prioritized startup for faster and safer system boot
- Push-in 40-pin front connector for easy wiring and maintenance
- Insulation tested at 707 V DC for industrial safety standards compliance
- Lightweight design at approximately 280 grams
Explore Siemens 6ES7522-1BL10-0AA0 specifications for detailed parameters
| Specification |
Details |
| Type |
Digital Output Module (DQ) |
| Number of Outputs |
32 |
| Output Voltage |
24 V DC |
| Output Current per Channel |
0.5 A |
| Output Group Current |
4 A (groups of 8 channels) |
| Dimensions (W x H x D) |
25 mm x 147 mm x 129 mm |
| Weight |
Approx. 280 g |
| Isolation Voltage |
707 V DC |
| Electrical Isolation |
Between channels and backplane bus |
| Connector Type |
40-pin push-in |
Applications / Use Case
This Siemens 6ES7522-1BL10-0AA0 is commonly used in industrial automation systems worldwide. Its reliable digital outputs make it ideal for controlling actuators, indicators, and other output devices in process control, machine automation, and production line environments. Whether integrated into factory control panels or motion control setups, this module provides precise and safe switching functions crucial for maintaining efficient and continuous industrial operations.
Get updated on Siemens 6ES7522-1BL10-0AA0 pricing for fast worldwide dispatch
Check the latest pricing and availability for the Siemens 6ES7522-1BL10-0AA0 directly through LeadTime.ca, where you can secure fast worldwide shipping tailored to your order volume.
Why Order from LeadTime.ca
All products on LeadTime.ca are genuine OEM, supplied by trusted distributors, and supported with manufacturer warranty, available for worldwide shipping. Order now for worldwide delivery and benefit from our expert support and reliable service tailored to industrial automation needs.
