6ES7522-1BH10-0AA0
Regular price
$249.88
Sale price
$249.88
Regular price
Unit price
per
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
- Rated and reviewed
Have a target price? No worries, submit your target price below

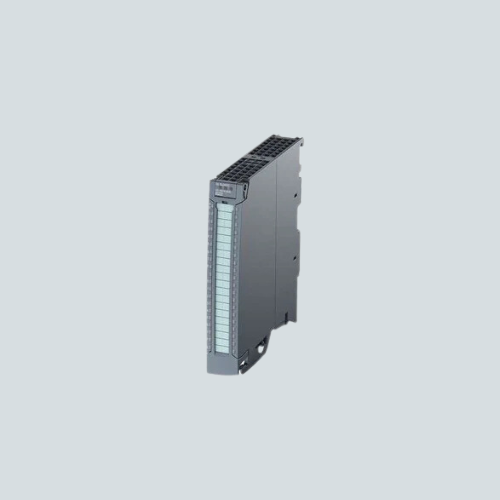

Buy genuine Siemens 6ES7522-1BH10-0AA0 digital output module for your automation system
The Siemens 6ES7522-1BH10-0AA0 is a factory-grade digital output module designed for the SIMATIC S7-1500 automation system. This model offers 16 channels with 24 VDC outputs rated at 0.5 A per channel, grouped in sets of eight, making it a robust choice for industrial automation projects requiring precise and reliable digital control outputs. Its compact dimensions and reliable electrical isolation between the backplane bus and channels ensure seamless integration into modular PLC setups. The module features status LEDs for each channel, including RUN, ERROR, and PWR indicators, facilitating quick diagnostics in demanding environments. The included 40-pin push-in front connector allows for efficient and secure wiring. This Siemens module stands out for its high-quality design, compliance with RoHS and REACH standards, and is sourced directly from reputable suppliers to guarantee authenticity and operational integrity.
Key Features of Siemens 6ES7522-1BH10-0AA0
- 16 digital output channels, each rated at 24 VDC/0.5 A
- Channels are grouped with a total current limit of 4 A per group of 8 outputs
- Compact size: 147 mm height, 25 mm width, 129 mm depth
- LED indicators for RUN (green), ERROR (red), and supply voltage (green)
- Electrical isolation between channels and backplane bus tested at 707 VDC
- Push-in 40-pin front connector for easy wiring and maintenance
- Prioritized startup and stable operation in distributed mode
- Compliance with RoHS and REACH environmental standards
- Step response times: 100 µs Off to On, 500 µs On to Off
Explore Siemens 6ES7522-1BH10-0AA0 specifications covering voltage, I/O, and communication
| Parameter | Specification |
|---|---|
| Number of Outputs | 16 digital outputs |
| Output Voltage | 24 VDC |
| Output Current per Channel | 0.5 A |
| Groups of Outputs | 2 groups of 8 outputs, max 4 A per group |
| Dimensions (H x W x D) | 147 mm x 25 mm x 129 mm |
| Electrical Isolation | Between channels and backplane bus (707 VDC tested) |
| Connectors | 40-pin push-in front connector |
| Status LEDs | RUN (green), ERROR (red), PWR (green), Channel status (green) |
Applications / Use Case
This Siemens 6ES7522-1BH10-0AA0 digital output module is commonly used in industrial automation, process control, and machine automation worldwide. It is particularly suitable for production line systems and factory control panels where multiple digital outputs require fast switching and reliable signal isolation. Its robust design makes it ideal for expanding the output capacity of SIMATIC S7-1500 PLCs, supporting applications in packaging and conveyor operations, motion control setups, and complex manufacturing environments demanding precise digital output control and diagnostic feedback.
Check Siemens 6ES7522-1BH10-0AA0 price online for fast worldwide dispatch
At LeadTime.ca, get real-time updates on Siemens 6ES7522-1BH10-0AA0 pricing and availability, ensuring quick and reliable delivery for your industrial automation projects anywhere in the world.
Why Order from LeadTime.ca
All products on LeadTime.ca are authentic OEM, supplied by trusted distributors, and available for worldwide shipping. Order now for worldwide delivery to ensure you receive genuine Siemens automation components backed by professional service and support.
