6ES7332-5HB01-0AB0

In Stock
$474.69
$474.69
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Have a target price? No worries, submit your target price below

Overview

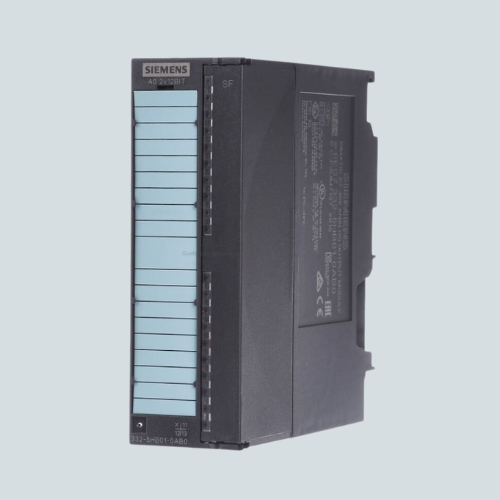

The Siemens 6ES7332-5HB01-0AB0 is a SIMATIC S7-300 analog output module built for industrial automation systems. It offers two isolated analog outputs (voltage or current) with 11/12-bit resolution. Designed for DIN rail installation, the module supports hot-swapping with an active backplane bus and provides reliable signal conversion for precise analog control.

Key Features

  • 2 analog outputs (AO) – voltage and current configurable
  • Galvanic isolation between outputs and PLC backplane
  • Output ranges: 0–10 V, ±10 V, 1–5 V, 0–20 mA, ±20 mA, 4–20 mA
  • 12-bit resolution with short-circuit protection
  • Diagnostic LED (SF) and parameterizable alarms
  • Supports 24 V DC supply with reverse polarity protection

Technical Specifications

Output Channels 2 AO
Resolution 12-bit
Voltage Ranges 0–10 V, ±10 V, 1–5 V
Current Ranges 0–20 mA, ±20 mA, 4–20 mA
Power Supply 24 V DC
Load Resistance ≥1 kΩ (voltage), ≤500 Ω (current)
Dimensions 40 x 125 x 117 mm
Weight ~220 g
Mounting DIN rail, 20-pin front connector

Applications

Ideal for use in PLC systems requiring reliable analog output for process control, signal transmission, or actuator control in manufacturing, utility, and building automation environments.

Compliance & Origin

RoHS compliant. Made in Germany.
