Buy genuine Siemens 6ES7135-6HD00-0BA1 online

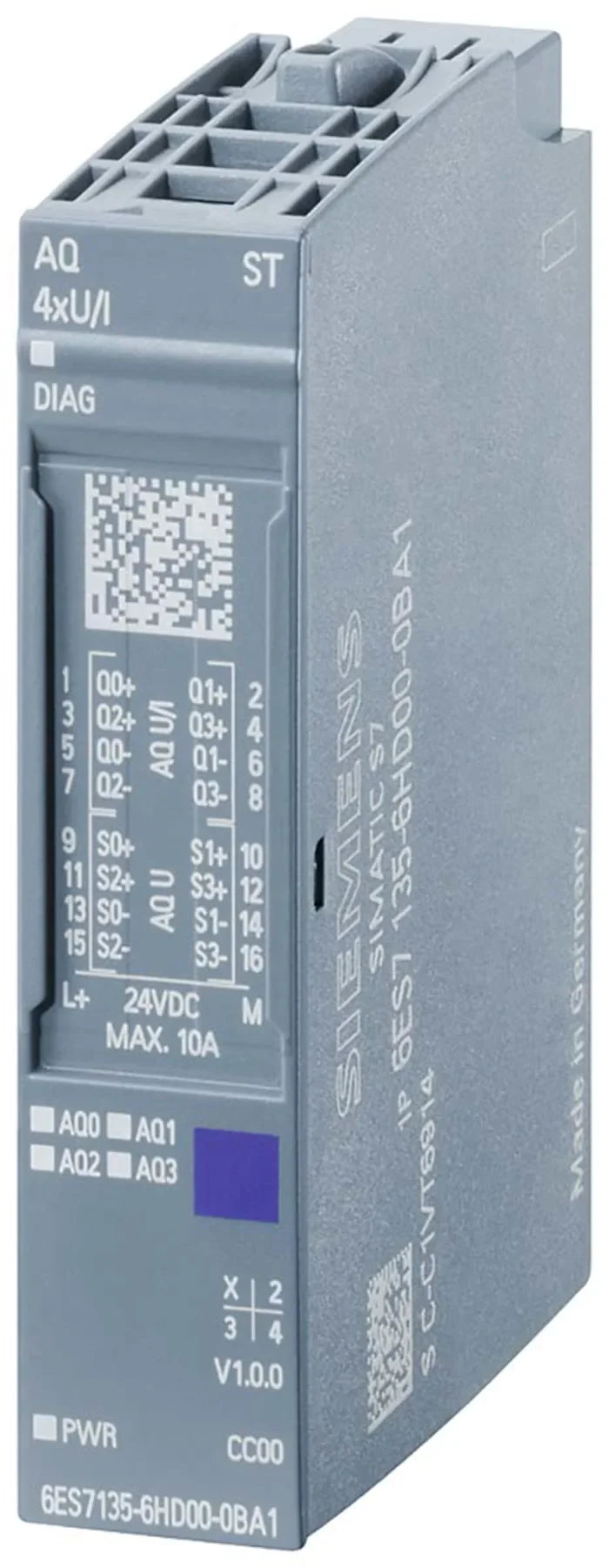

The Siemens 6ES7135-6HD00-0BA1 is a high-performance analog output module designed for the SIMATIC ET 200SP distributed I/O system. Known as the AQ 4xU/I ST, this module offers four voltage outputs with 16-bit resolution, ensuring precise signal control for advanced industrial automation tasks. Its slim design, with only 15 mm width, makes it ideal for space-saving control panel installations. The module supports standard voltage ranges including 0 to 10 V, ±10 V, and others, providing flexible compatibility with various actuators and voltage-controlled devices. Built for reliability, it features diagnostics for wire break, short circuit, and supply voltage monitoring. Siemens engineering ensures durability and seamless integration in complex automation systems.

Key Features of Siemens 6ES7135-6HD00-0BA1

  • Four analog voltage outputs with 16-bit resolution for high precision
  • Supports multiple voltage ranges: 0–10 V, ±10 V, ±5 V, 1–5 V
  • Compact 15 mm width ideal for dense installations in control cabinets
  • Diagnostics include wire break, short circuit, and supply voltage monitoring
  • Fast update time, typically ≤1 ms per channel for responsive control
  • Standardized interface compatible with SIMATIC ET 200SP BU type A0 and A1
  • Operating temperature range from 0°C to 60°C for industrial environments
  • Complies with CE, UL, CSA, and RoHS standards
  • Reliable status LED diagnostics for quick fault detection

Explore Siemens 6ES7135-6HD00-0BA1 technical specs for detailed parameters

Parameter Specification
Outputs 4 voltage/current outputs
Resolution 16 bit
Voltage Output Ranges 0–10 V, ±10 V, ±5 V, 1–5 V
Load Resistance Minimum 2 kΩ (voltage outputs)
Update Time Typically ≤1 ms per channel
Width 15 mm
Operating Temperature 0°C to 60°C
Isolation Between channels and backplane bus
Weight Approx. 31 g

Applications / Use Case

This Siemens 6ES7135-6HD00-0BA1 is commonly used in machine automation, process control, and production line systems worldwide. Its ability to accurately deliver analog voltage signals makes it suitable for controlling valves, drives, and other analog actuators in factories and automated plants. Integration in distributed I/O configurations allows for scalable and flexible automation solutions, especially where precise signal output and reliable diagnostics are essential for continuous operation. The compact size also makes it ideal for installation in HVAC systems and building automation where space is a premium.

Price & Availability

See Siemens 6ES7135-6HD00-0BA1 price online through LeadTime.ca for fast worldwide dispatch.

Why Order from LeadTime.ca

All products on LeadTime.ca are genuine, factory-tested, and supported with manufacturer warranty, ready for international delivery. Order now for worldwide delivery.
