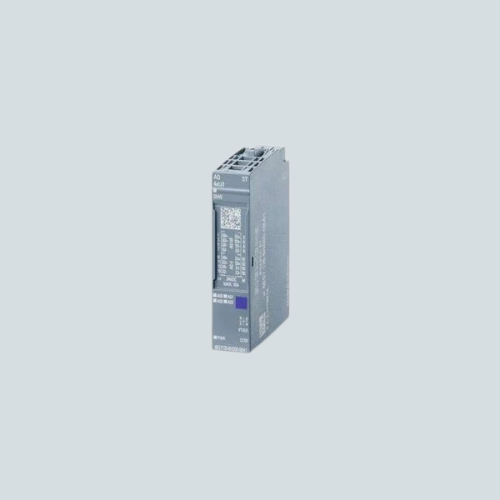

6ES7135-6HB00-0DA1

In Stock
$1,853.02
$1,853.02
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Have a target price? No worries, submit your target price below

Buy genuine Siemens 6ES7135-6HB00-0DA1 online

The Siemens 6ES7135-6HB00-0DA1 is a high-speed analog output module from the SIMATIC ET 200SP series, designed for industrial automation applications that demand precise and reliable signal output. Known as the AQ 2xU/I HS module, it supports two output channels delivering both voltage and current signals with 16-bit resolution and an accuracy of ±0.2%. This module fits BaseUnits of types A0 and A1 and features advanced channel diagnostics to enhance system monitoring and maintenance. Compatible with STEP 7 TIA Portal from V13 SP1 onward, it allows integration with PROFIBUS and PROFINET networks, ensuring flexible communication and control within modern automation systems. The 6ES7135-6HB00-0DA1 is rated for 24 V DC supply voltage and provides oversampling capabilities for better output quality, making it a key component for precise analog signal control.

Key Features of Siemens 6ES7135-6HB00-0DA1

  • Two high-speed analog outputs supporting voltage and current signals
  • 16-bit resolution with ±0.2% accuracy for reliable analog performance
  • Compatible with BaseUnits BU type A0 and A1, color code CC00
  • Supports channel diagnostics for improved system health monitoring
  • Configuration and integration via STEP 7 TIA Portal from version V13 SP1
  • Supports PROFINET and PROFIBUS communication protocols
  • Oversampling function with two channels per module for enhanced output
  • Allows reconfiguration and calibration during RUN mode without system downtime
  • Rated for 24 V DC supply with voltage tolerance between 19.2 V and 28.8 V
  • Low power loss around 0.9 W at typical operation conditions

Technical Specs of 6ES7135-6HB00-0DA1

Explore Siemens 6ES7135-6HB00-0DA1 technical data covering voltage, I/O, and communication before installation.

Parameter Specification
Product type designation SIMATIC ET 200SP, AQ 2xU/I High Speed
Number of analog outputs 2 (voltage/current)
Resolution 16-bit
Accuracy ±0.2%
Supply voltage 24 V DC (19.2–28.8 V range)
Power consumption 45 mA current, approx. 0.9 W loss
Communication PROFINET, PROFIBUS compatible
Engineering software STEP 7 TIA Portal V13 SP1 and later

Applications / Use Case

This Siemens 6ES7135-6HB00-0DA1 is commonly used in industrial automation worldwide. It is ideal for process control systems requiring high-precision analog output signals, including machine automation, packaging, conveyor systems, and factory control panels. The module’s ability to support real-time diagnostics and calibration during operation ensures minimal downtime and improved efficiency in critical applications where continuous and accurate analog outputs are essential.

Price & Availability

Get updated on Siemens 6ES7135-6HB00-0DA1 pricing for fast worldwide dispatch.

Why Order from LeadTime.ca

Every product on LeadTime.ca is original OEM, supplied by trusted distributors, and available for worldwide shipping. Order now for worldwide delivery.
