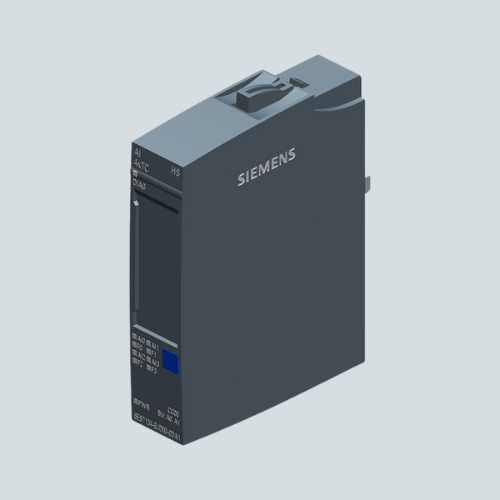

6ES7134-6JD00-0DA1
Regular price
$275.34
Sale price
$275.34
Regular price
Unit price
per
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
- Rated and reviewed
Have a target price? No worries, submit your target price below
Buy genuine Siemens 6ES7134-6JD00-0DA1 online
The Siemens 6ES7134-6JD00-0DA1 is a high-speed analog input module from the SIMATIC ET 200SP series, designed for precise sensor data acquisition in advanced industrial automation systems. This AI 4xTC High Speed module supports four thermocouple inputs with high resolution up to 16 bits, allowing accurate temperature measurements essential for process control and monitoring. With its compact 15 mm width and robust design, the module integrates easily into distributed I/O systems, ensuring efficient data capture under demanding environmental conditions. The device also features configurable diagnostics per channel and hardware interrupts for limit violations, improving operational reliability in factory automation, machine automation, and motion control applications.
Key Features of Siemens 6ES7134-6JD00-0DA1
- 4 analog inputs optimized for thermocouples (TC) with high-speed sampling
- 16-bit resolution with sign, scalable to three decimal places for precise measurements
- Configurable diagnostics and wire-break detection for each input channel
- Hardware interrupt capability on limit violation (two high and two low limits per channel)
- Supports 2-wire, 3-wire, and 4-wire connection types with adjustable compensation
- Supply voltage range from 19.2 to 28.8 V DC with reverse polarity protection
- Compact dimensions: 15 mm width, 73 mm height, and 58 mm depth for space-efficient installation
- Automatic hardware encoding and mechanical coding element to prevent installation errors
Technical Specs of 6ES7134-6JD00-0DA1
Explore Siemens 6ES7134-6JD00-0DA1 specifications covering voltage, I/O, and communication to ensure system compatibility.
| Specification | Details |
|---|---|
| Number of Analog Inputs | 4 (Thermocouple) |
| Resolution | 16-bit including sign |
| Supply Voltage | 19.2 - 28.8 V DC |
| Current Consumption | 37 mA typical, max 50 mA |
| Cycle Time (all channels) | Minimum 5 ms |
| Dimensions (W x H x D) | 15 mm x 73 mm x 58 mm |
| Weight | Approx. 33 grams |
Applications / Use Case
This Siemens 6ES7134-6JD00-0DA1 is commonly used in industrial automation environments worldwide. It excels in temperature measurement applications within machine automation, process control, and factory control panels. Its high speed and precise input handling make it ideal for production line systems and motion control setups where accurate thermal data is critical for monitoring and safety. The module’s robust diagnostics and compact design ensure reliable operation in harsh industrial conditions and simplify integration into SIMATIC ET 200SP distributed I/O configurations.
Price & Availability
Check Siemens 6ES7134-6JD00-0DA1 price online through LeadTime.ca for fast worldwide dispatch.
Why Order from LeadTime.ca
All product on LeadTime.ca is authentic original OEM, supplied by trusted distributors, and ready for international delivery. Order now for worldwide delivery.
