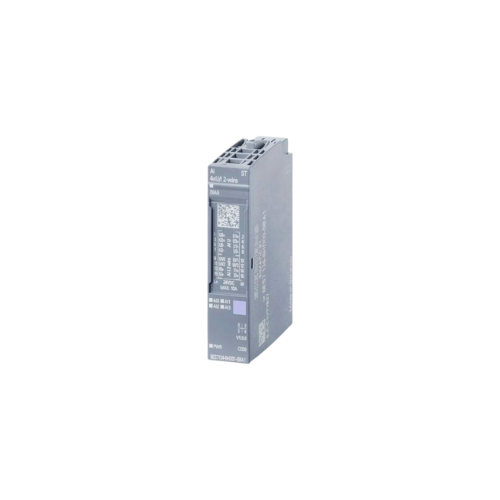

Overview of Siemens 6ES7134-6HD01-0BA1
Buy genuine Siemens 6ES7134-6HD01-0BA1 online, a factory-grade analog input module designed for seamless integration in industrial automation systems. This module, part of the SIMATIC ET 200SP series, offers a reliable and compact solution for accurate analog signal processing, supporting both voltage and current inputs in a 2-wire setup. Its robust engineering ensures consistent performance with a minimal footprint, making it ideal for modern distributed I/O applications. With built-in features like reverse polarity protection and short-circuit protection, it guarantees durability and safety in demanding production environments.
Key Features of Siemens 6ES7134-6HD01-0BA1
- Supports 4 analog inputs, configurable for voltage and current signals (2-wire technology)
- Wide input voltage ranges including ±10 V and 0-10 V with 15 to 16-bit resolution for precise measurements
- Input resistance stabilized at 120 kΩ for voltage inputs, ensuring signal integrity
- Compact module size at only 15 mm width, suitable for space-constrained panels
- Operating voltage range from 19.2 V to 28.8 V DC with reverse polarity protection
- Integrated 24 V supply for sensors with short-circuit protection and maximum 50 mA per channel output
- Automatic and mechanical coding for error-free installation and connection
- Low power loss around 0.85 W, optimizing energy consumption in automation systems
Technical Specs of 6ES7134-6HD01-0BA1
Explore Siemens 6ES7134-6HD01-0BA1 technical data covering voltage, I/O, and communication before installation to ensure system compatibility.
| Specification | Details |
|---|---|
| Module Type | Analog Input Module AI 4xU/I 2-wire ST |
| Input Channels | 4 differential analog inputs |
| Input Voltage Range | -10 V to +10 V, 0 to +10 V, 1 V to 5 V |
| Input Resolution | 15 to 16 bits with sign for bipolar inputs |
| Supply Voltage | 19.2 to 28.8 V DC |
| Current Consumption | Max 37 mA (without sensor supply) |
| Sensor Supply Output | 24 V, Max 50 mA per channel (short-circuit protected) |
| Dimensions (WxHxD) | 15 mm x 73 mm x 58 mm |
| Weight | Approx. 31 g |
Applications / Use Case
This Siemens 6ES7134-6HD01-0BA1 is commonly used in industrial automation worldwide. It excels in precise analog signal acquisition for process control, production line systems, and packaging or conveyor operations. Its compact form and reliable design make it a preferred choice for factory control panels and distributed I/O setups where accurate real-time data is critical for machine automation and monitoring tasks.
