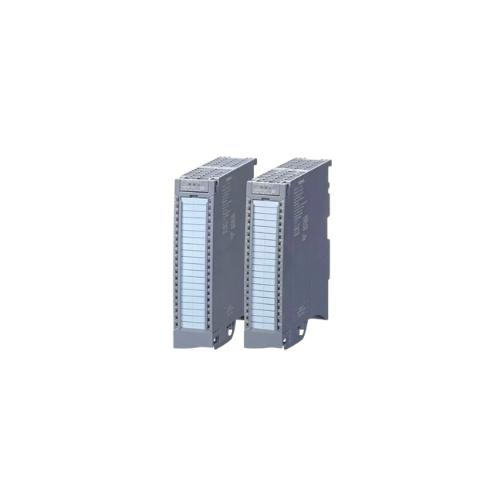

6ES7-522-1BL01-0AB0
Regular price
$426.97
Sale price
$426.97
Regular price
Unit price
per
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
- Rated and reviewed
Have a target price? No worries, submit your target price below
Buy genuine Siemens 6ES7 522-1BL01-0AB0 online
The Siemens 6ES7 522-1BL01-0AB0 is a high-performance digital output module designed for the SIMATIC S7-1500 and ET 200MP automation systems. This factory-grade module features 32 transistor outputs rated at 24 V DC with a switch capacity of 0.5 A per channel, arranged in groups of 8 channels supporting a maximum of 4 A per group. Its engineered reliability includes short-circuit protection with electronic clocking and single-channel diagnostics, enabling advanced fault detection and substitute value functions. Known for its robust performance and ease of integration via the TIA Portal, this module delivers precise digital control for industrial automation tasks requiring high channel density and stable output switching.
Key Features of Siemens 6ES7 522-1BL01-0AB0
- 32 transistor digital outputs, 24 V DC, 0.5 A per channel
- Outputs arranged in 4 groups of 8 channels each, supporting up to 4 A per group
- Electronic short-circuit protection enhances safety and module durability
- Single-channel diagnosis for detecting faults and enabling substitute values
- Supports engineering and configuration with STEP 7 TIA Portal (from V13 SP1)
- Power consumption from backplane bus: 1.1 W; typical power loss: 3.5 W
- Response threshold approx. 1 A for output switching
- Reverse polarity protection for increased robustness
- Compact dimensions compatible with standard S7-1500 rack systems
Technical Specs of 6ES7 522-1BL01-0AB0
Explore Siemens 6ES7 522-1BL01-0AB0 technical data covering voltage, I/O, and communication to ensure system compatibility.
| Specification | Details |
|---|---|
| Number of Outputs | 32 transistor outputs |
| Output Voltage | 24 V DC |
| Current per Output | 0.5 A max (resistive load) |
| Output Groups | 4 groups of 8 channels, 4 A max per group |
| Short-Circuit Protection | Yes, electronic clocking |
| Power Consumption | 1.1 W from backplane bus |
| Power Loss | 3.5 W typical |
| Dimensions (W x D x H) | 35 mm x 129 mm x 147 mm |
| Engineering Software | STEP 7 TIA Portal V13 SP1 or higher |
Applications / Use Case
This Siemens 6ES7 522-1BL01-0AB0 module is commonly used in industrial automation environments to digitally control actuators, valves, and signaling devices where reliable switching of numerous outputs is required. It fits well within process control, machine automation, and packaging or conveyor systems, providing precise and safe output management with diagnostics to minimize downtime. Its integration into factory control panels and motion control setups enhances operational efficiency and safety compliance.
