6EP1337-3BA00

Purchase original Siemens 6EP1337-3BA00 today for your automation system

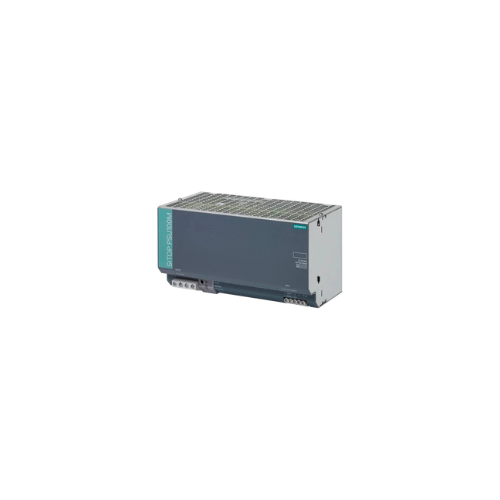

The Siemens 6EP1337-3BA00, also known as the SITOP PSU100M 40 A stabilized power supply, offers a reliable and efficient solution for industrial power needs. It provides a regulated 24 V DC output at 40 A with an input voltage capacity of 120/230 V AC, ideal for a variety of automation applications. Known for its robust design, this power supply ensures stable operation with total static tolerance of ±3%, and minimal voltage fluctuations under load. Its compact dimensions allow for easy DIN rail mounting, simplifying integration into existing systems. Although this model is phased out, it remains a trusted choice, with its successor being the 6EP3337-8SB00-0AY0. If you need a durable power supply that delivers high performance and supports industrial automation, the Siemens 6EP1337-3BA00 is a proven option to consider for your control panels and machinery.

Key Features of Siemens 6EP1337-3BA00

• Stable 24 V DC output with 40 A continuous current capacity
• Operates on dual input voltages: 120 V AC and 230 V AC
• High surge current handling with a switch-on current limit max of 125 A
• Compact size with DIN rail mounting for easy installation (240 mm width, 125 mm height, 125 mm depth)
• Static tolerance of ±3% ensuring regulated and reliable power supply
• Designed for 50/60 Hz frequency ranges with wide input voltage ranges (85 - 132 V AC and 176 - 264 V AC)
• Durability with climate class 3K3 rating for challenging environments
• Mains buffering capability providing minimum 20 ms buffering at rated output
• Screw terminal connections suitable for single-core and stranded wires

Technical Specs of 6EP1337-3BA00

Explore Siemens 6EP1337-3BA00 specifications for detailed parameters before installation.
