6EP1336-3BA10

In Stock
$276.32
$276.32
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Have a target price? No worries, submit your target price below

Overview

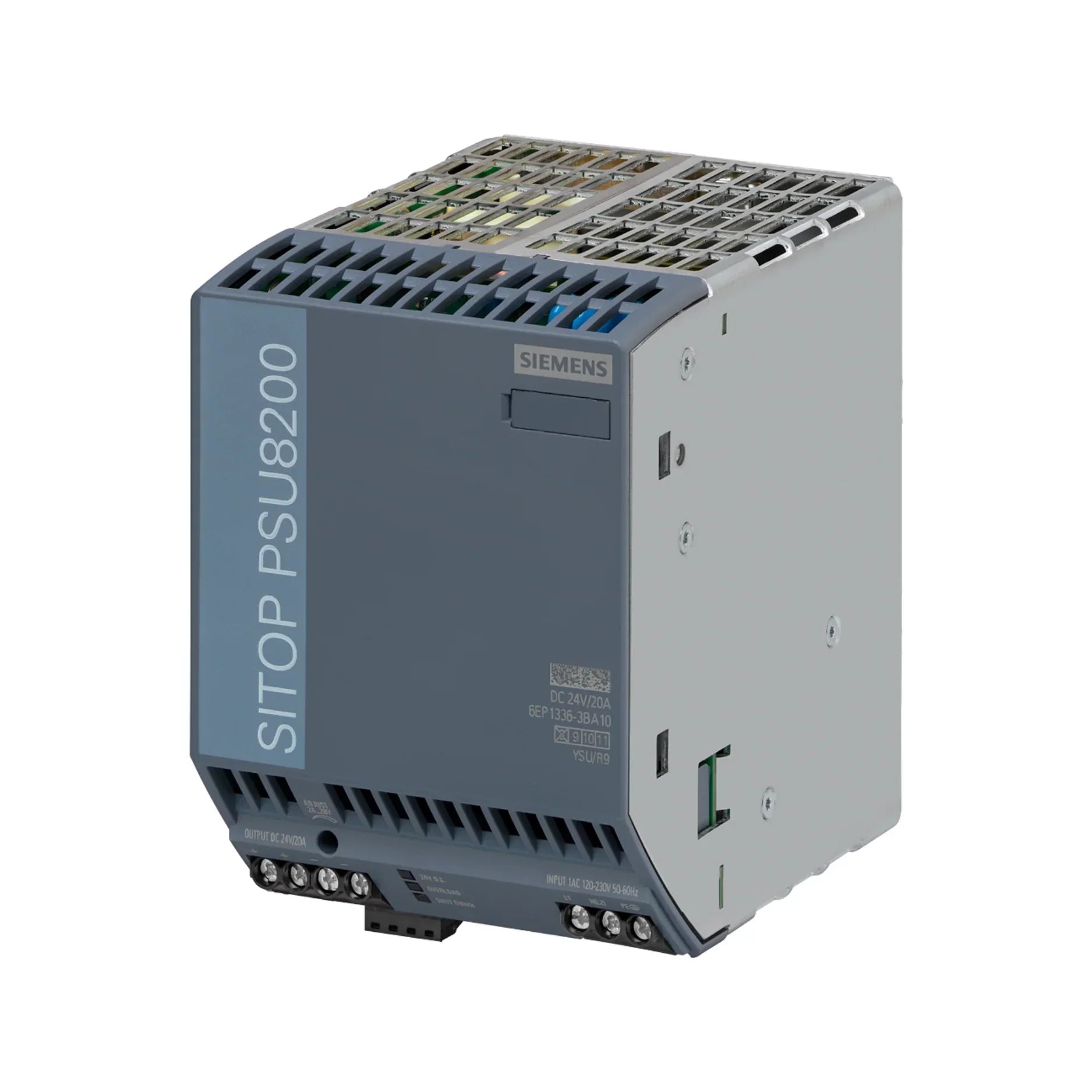

The Siemens 6EP1336-3BA10 SITOP PSU8200 is a stabilized DIN rail power supply designed for industrial automation. It delivers a 24V DC output at 20A, suitable for high-demand applications like machine control, process systems, and panel building.

Key Features

  • Wide-range input: 120–230V AC or 110–220V DC
  • Output: 24V DC at 20A (adjustable up to 28.8V)
  • High efficiency: up to 93%
  • Built-in diagnostics with LED indicators
  • Short-circuit and overload protection with latching shutdown
  • Parallel connection support for load sharing
  • Mounts on standard DIN rail (EN 60715)
  • Operating temperature: -25°C to +70°C
  • Certified: CE, UL/cUL, ATEX, IECEx, DNV GL, ABS

Technical Specifications

Output Voltage 24V DC (adjustable to 28.8V)
Output Current 20A
Power Output 480W
Input Voltage Range 120–230V AC / 110–220V DC
Efficiency Up to 93%
Mounting DIN Rail
Protection Rating IP20
Dimensions 90 x 125 x 125 mm
Weight 1.2 kg

Applications

Ideal for use in control cabinets, automation panels, and industrial machinery requiring consistent 24V DC power with high reliability.

Certifications & Compliance

  • CE, UL/cUL, CSA
  • ATEX, IECEx (Class I, Div 2)
  • RoHS and REACH Compliant
