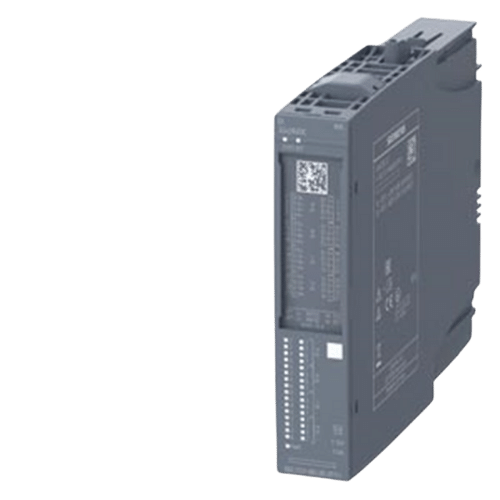

6DL1132-6BH00-0PH1

In Stock
$1,032.06
$1,032.06
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Have a target price? No worries, submit your target price below

Order genuine Siemens 6DL1132-6BH00-0PH1 today for your automation system

The Siemens 6DL1132-6BH00-0PH1 is a high-performance digital output module from the SIMATIC ET 200SP HA series, designed specifically for industrial control and automation applications. Featuring 16 channels with a 24 VDC/0.5 A output capacity per channel, it delivers reliable and precise switching suitable for complex machine automation tasks. This compact module, measuring just 22.5 mm wide, integrates seamlessly into distributed I/O systems, offering excellent diagnostics and channel monitoring for enhanced system safety and efficiency. Ideal for use in harsh industrial environments, the module supports redundancy and channel-specific fault detection, ensuring robust and continuous operation.

Key Features of Siemens 6DL1132-6BH00-0PH1

  • Sixteen digital outputs with 24 V DC nominal voltage and 0.5 A max current per output
  • High switching frequency up to 100 Hz for resistive loads
  • Integrated diagnostics including wire-break, short-circuit, and supply voltage monitoring
  • Supports channel diagnostics with visible maintenance LED indicators
  • Redundancy capability with terminal block type M1 for enhanced reliability
  • Compact design with 22.5 mm width for efficient panel space usage
  • Reverse polarity protection to safeguard module integrity
  • Operating temperature range supports up to 70 °C with derating
  • Firmware update capability to maintain optimal functionality

Explore Siemens 6DL1132-6BH00-0PH1 technical specifications for detailed parameters

Specification Details
Outputs 16 digital outputs
Output Voltage 24 V DC
Output Current 0.5 A per channel
Max Switching Frequency 100 Hz (resistive load)
Power Loss Approx. 1.2 W (typical)
Operating Temperature -30 to 70 °C (with derating)
Width 22.5 mm
Length 115 mm
Diagnostics Wire-break, short-circuit, voltage monitoring

Applications / Use Case

This Siemens 6DL1132-6BH00-0PH1 is commonly used in industrial automation worldwide. It excels in distributed I/O systems for process control and motion control setups, providing reliable digital signal outputs to actuators, valves, and other machinery components. Its diagnostic capabilities make it suitable for production line systems requiring continuous monitoring to prevent downtime. The compact footprint and redundancy features also make it a preferred solution in factory control panels and packaging and conveyor operations where space and reliability are critical factors.
