Buy genuine Siemens 6AV3688-3AY36-0AX0 online

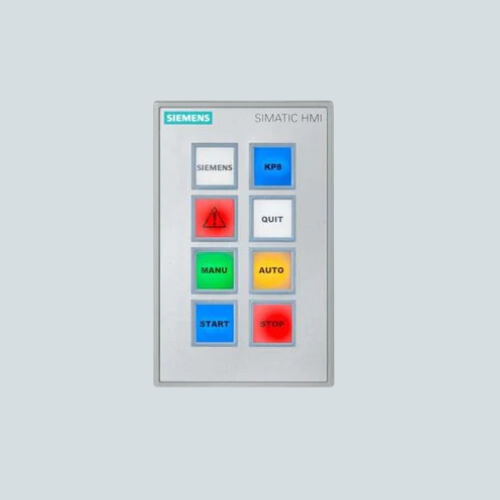

The Siemens 6AV3688-3AY36-0AX0, known as the SIMATIC HMI KP8 PN Key Panel, is a high-quality human-machine interface designed for industrial automation systems. Featuring 8 short-stroke, parameterizable keys with multi-colored LEDs, it delivers precise control and status indication. Its PROFINET interfaces include two ports with integrated switches, allowing seamless network integration and flexible topology. This compact operator panel supports configurable digital inputs and outputs, operating at 24 V DC that can be looped through the device. Manufactured in Germany by Siemens, it exemplifies reliable engineering suitable for demanding factory environments.
Key Features of Siemens 6AV3688-3AY36-0AX0
- 8 short-stroke switches with customizable multi-color LEDs for clear operator feedback
- Dual PROFINET ports with integrated switches for easy networking and media redundancy
- 8 configurable digital input/output pins supporting various automation signals
- 24 V DC supply with loop-through capability for efficient wiring
- Compact dimensions: 18.2 × 10.9 × 6.1 cm, lightweight at 0.33 kg
- Resistive load switching capacity up to 100 mA per output channel
- Supports media redundancy protocol MRP ensuring network reliability
- Robust membrane keypad design for industrial environments
Review Siemens 6AV3688-3AY36-0AX0 specifications for detailed parameters
| Parameter | Specification |
|---|---|
| Model | 6AV3688-3AY36-0AX0 (KP8 PN) |
| Keys | 8 short-stroke, parameterizable |
| LEDs | Multi-color LEDs per key |
| Interfaces | 2x PROFINET with integrated switch |
| Configurable I/O | 8 digital input/output pins |
| Power Supply | 24 V DC, loop-through support |
| Switching capacity | 100 mA per output channel |
| Dimensions (L×W×H) | 18.2 × 10.9 × 6.1 cm |
| Weight | 0.33 kg |
Applications / Use Case
This Siemens 6AV3688-3AY36-0AX0 is commonly used in industrial automation environments, providing efficient operator control and monitoring in process control, factory control panels, and machine automation systems. Its flexible PROFINET connectivity and configurable inputs and outputs make it ideal for integration into production line systems and motion control setups. The robust design ensures durability in demanding factory floor conditions, enabling real-time interaction between operators and automation devices for improved operational efficiency.
