5SY4306-6

In Stock
$97.30
$97.30
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Have a target price? No worries, submit your target price below

Buy genuine Siemens 5SY4306-6 online

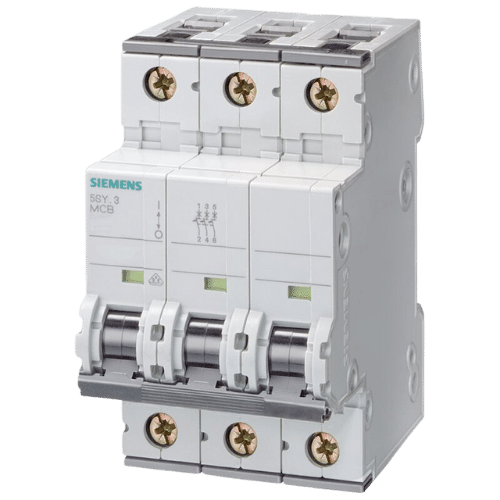

The Siemens 5SY4306-6 is a factory-grade miniature circuit breaker (MCB) designed to protect electrical circuits in industrial and commercial environments. This 3-pole device features a 6 A rated current with a type B tripping characteristic, ensuring reliable and precise overcurrent protection. With a compact modular width of 3 units and a 70 mm installation depth, it fits well into standard DIN rail systems. Rated for 400 V AC and able to handle switching capacities up to 35 kA, the 5SY4306-6 delivers robust performance for demanding automation and control systems. Its IP20 protection class with connected conductors enhances safety, making it a trusted choice for circuit protection in a variety of applications where dependability and compliance with IEC and EN standards are critical.

Key Features of Siemens 5SY4306-6

  • Three-pole design for multi-phase protection
  • 6 A rated operational current with type B trip curve for sensitive overload protection
  • Breaking capacity of up to 35 kA according to IEC 60947-2 and 10 kA per EN 60898
  • Insulation voltage rated at 440 V AC for both single and multi-phase operations
  • Compact dimensions: 3 modular width units, 70 mm installation depth
  • Mechanical service life of approximately 10,000 switching cycles
  • IP20 protection class with connected conductors for safe operation
  • Wide operating temperature range from -40°C to +70°C

Explore Siemens 5SY4306-6 specifications for detailed parameters

Parameter Value
Number of Poles 3
Tripping Characteristic Type B
Rated Current (In) 6 A
Rated Voltage (AC) 400 V
Breaking Capacity (IEC 60947-2) 35 kA
Breaking Capacity (EN 60898) 10 kA
Mechanical Service Life 10,000 cycles
Protection Class IP20
Operating Temperature -40°C to +70°C
Installation Depth 70 mm

Applications / Use Case

This Siemens 5SY4306-6 miniature circuit breaker is commonly used in industrial automation and machine automation worldwide. It ensures electrical safety by protecting control panels, production lines, and factory automation equipment from overloads and short circuits. Its reliable trip characteristics make it ideal for sensitive motor protection, lighting circuits, and general industrial power distribution systems, guaranteeing minimal downtime and enhanced operational safety.

View Siemens 5SY4306-6 price and availability through LeadTime.ca

Stay informed with real-time updates on the Siemens 5SY4306-6 price and stock status at LeadTime.ca. Benefit from fast worldwide dispatch and assured authenticity when ordering online.

Why Order from LeadTime.ca

Every product on LeadTime.ca is genuine OEM, supported with manufacturer warranty, and available for worldwide shipping. Order now for worldwide delivery and experience reliable service and fast global shipping for your Siemens automation components.
