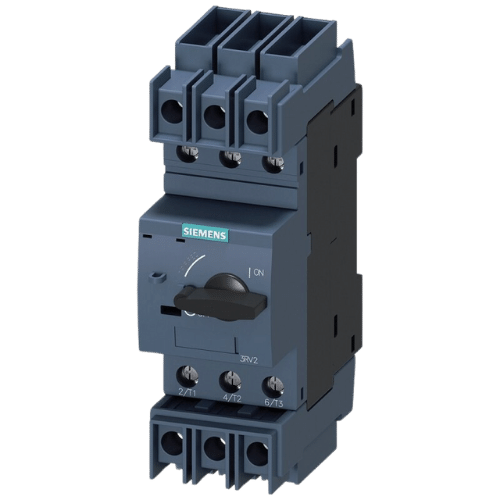

Overview of Siemens 3RV27111FD10
Buy genuine Siemens 3RV27111FD10 online for your automation system. This Siemens SIRIUS motor protection circuit breaker is designed for reliable and efficient motor control and system protection. With a frame size S00, it supports a rated operational current of 5 A and is approved according to UL 489 and CSA C22.2 No. 5-02 standards. Featuring a thermomagnetic trip unit with both thermal overload and short-circuit protection, it safeguards motors up to 4 kW at 690 VAC. This compact device is suited for system protection in industrial environments, offering durability with mechanical and electrical lifecycles of up to 100,000 operations. It operates efficiently across a broad temperature range from -20 to +60°C and can be mounted easily on DIN rails or with threaded screws. The 3-pole breaker has a breaking capacity of 6 kA, ensuring safety and compliance for demanding automation needs.
Key Features of Siemens 3RV27111FD10
- Rated operational current of 5 A suitable for motors up to 4 kW at 690 VAC
- Thermomagnetic trip unit with overload (5 A) and short-circuit release (65 A)
- High breaking capacity of 6 kA for robust circuit protection
- Compact S00 frame size designed for flexible industrial panel integration
- Screw terminal connections supporting 14 to 10 AWG wire
- Approved under UL 489 and CSA C22.2 No. 5-02 for safety compliance
- Durable mechanical and electrical service life, approximately 100,000 cycles
- Operating temperature range from -20°C to +60°C for versatile use
- Mounting options include DIN rail, snap-on, or threaded mounting for ease of installation
Technical Specs of Siemens 3RV27111FD10
Explore Siemens 3RV27111FD10 technical data for detailed parameters to ensure system compatibility.
| Specification | Value |
|---|---|
| Rated Operational Current | 5 A |
| Rated Voltage | 690 V AC |
| Rated Power | 4 kW |
| Number of Poles | 3 |
| Breaking Capacity | 6 kA |
| Trip Unit Type | Thermomagnetic |
| Frame Size | S00 |
| Mounting | DIN rail, snap-on, threaded |
| Operating Temperature | -20 to +60 °C |
| Connection Type | Screw terminals (14-10 AWG) |
| Standards | UL 489, CSA C22.2 No.5-02 |
Applications / Use Case
This Siemens 3RV27111FD10 is commonly used in industrial automation worldwide. It provides reliable motor protection in production line systems, factory control panels, and conveyor operations, preventing motor damage from overloads and short circuits. Its robust design and compliance make it ideal for process control and machine automation where dependable circuit protection and system uptime are critical.
