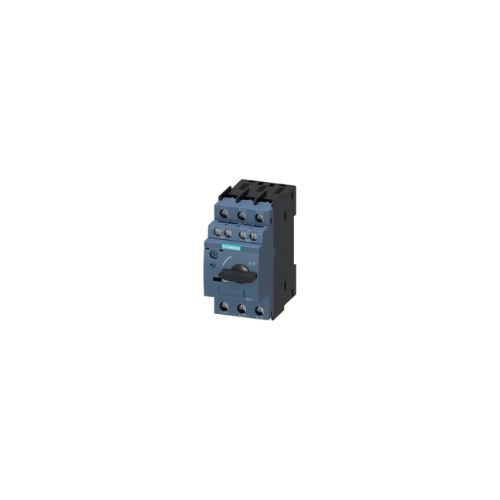

Overview of Siemens 3RV20214AA15
Buy genuine Siemens 3RV20214AA15 online today for your automation system. The Siemens 3RV20214AA15 is a high-performance motor protection circuit breaker designed for reliable operation in industrial environments. Part of the SIRIUS 3RV20 series, this device offers robust protection for three-phase motors up to 11 kW, ensuring safe and efficient operation. With a trip range of 10 to 16 A and a maximum interrupt rating of 4 kA at 690 V AC, it is engineered for demanding applications. The thermal magnetic trip mechanism provides both overload and short-circuit protection, while the compact S0 frame allows for easy DIN rail mounting. Whether you're upgrading control panels or installing new machinery, the Siemens 3RV20214AA15 is a trusted choice for industrial automation professionals seeking factory-grade reliability and worldwide delivery.
Key Features of Siemens 3RV20214AA15
- Thermal magnetic trip for overload and short-circuit protection
- Rated for 690 V AC, 16 A, and 11 kW motor power
- Interrupt rating: 4 kA at 690 V AC
- Compact S0 frame for DIN rail mounting
- 1NO-1NC auxiliary contact for monitoring and control
- IP20 enclosure for safe operation in control cabinets
- Phase failure detection for enhanced motor protection
- Optimized bimetal trip units for reduced energy losses
- Wide operating temperature range: -20°C to +60°C
- Compatible with screw and snap-on connections
Technical Specs of 3RV20214AA15
Explore 3RV20214AA15 technical data for detailed parameters before installation.
| Parameter | Value |
|---|---|
| Brand | Siemens |
| Model | 3RV20214AA15 |
| Amperage Rating | 10 to 16 A |
| Number of Poles | 3 |
| Voltage Rating | 690 V AC |
| Interrupt Rating | 4 kA |
| Power Rating | 11 kW |
| Frame Size | S0 |
| Mounting Type | DIN Rail/Snap-On |
| Connection Type | Screw |
| Enclosure Type | IP20 |
| Operating Temperature | -20°C to +60°C |
| Wire Size | 16 to 12 AWG |
| Auxiliary Contacts | 1NO-1NC |
Applications / Use Case
This Siemens 3RV20214AA15 is commonly used in industrial automation worldwide. It is ideal for protecting motors in factory control panels, production line systems, and machine automation setups. The device ensures reliable operation in environments where motor protection is critical, such as packaging and conveyor operations, process control, and motion control applications. Its compact design and robust features make it suitable for both new installations and upgrades in industrial settings.
Price & Availability
Check 3RV20214AA15 price and availability online for fast worldwide dispatch.
Why Order from LeadTime.ca
All products on LeadTime.ca are genuine, supplied by trusted distributors, and available for worldwide shipping. Order now for worldwide delivery.
