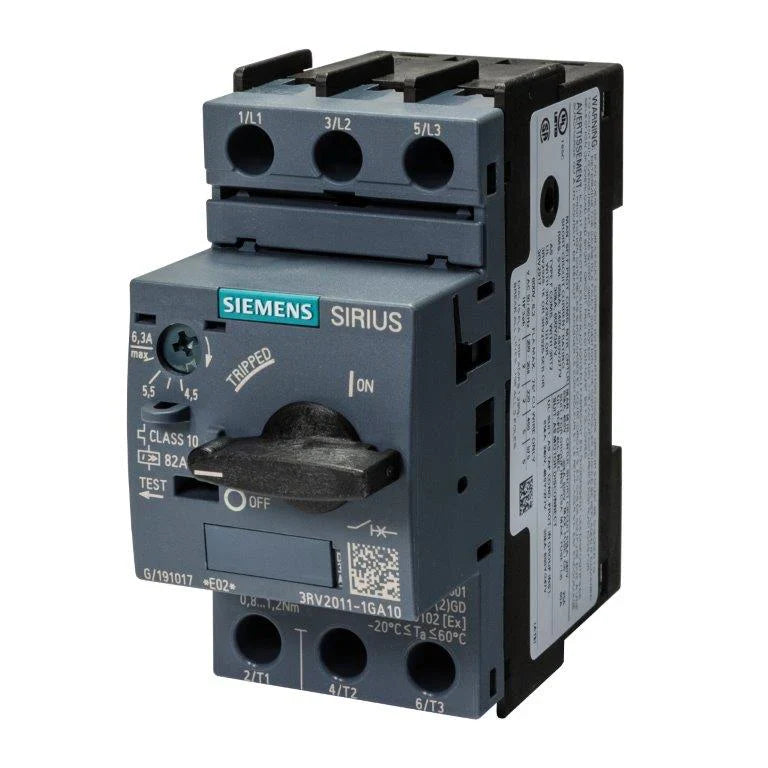

Overview of Siemens 3RV2011-1GA10
Buy genuine Siemens 3RV2011-1GA10 today for your automation system: a Class 10, 3-pole manual motor starter protector designed to safeguard small motors in demanding industrial environments. This compact DIN rail-mount device combines manual disconnect, overload protection (adjustable 4.5A–6.3A), and magnetic short-circuit protection in one robust unit. With built-in phase loss sensitivity, the Siemens 3RV2011-1GA10 is an ideal all-in-one solution for motor control panels, machine automation, and process control applications. Its compliance with UL standards and Type E (self-protected combination motor controller) approval make it a reliable choice for engineers seeking safe, code-compliant motor operation and simplified panel integration.
Key Features of Siemens 3RV2011-1GA10
- Adjustable overload protection range: 4.5A to 6.3A
- Class 10 trip characteristic (fast trip for motor protection)
- 3-pole design with screw terminals for secure connections
- Built-in phase loss sensitivity for enhanced safety
- Magnetic trip elements for short circuit protection
- Manual ON/OFF rotary handle for easy operation
- Finger-safe front protection (IP20 per IEC 60529)
- Supports optional 2-pole auxiliary contacts for remote signaling
- Mounts on standard 35mm DIN rail for quick installation
- Manufacturer warranty included for peace of mind
Technical Specs of Siemens 3RV2011-1GA10
Review Siemens 3RV2011-1GA10 technical data for detailed parameters before installation.
| Attribute | Value |
|---|---|
| Current Setting Range | 4.5A – 6.3A |
| Tripping Class | Class 10 |
| Number of Poles | 3 |
| Phase Loss Sensitivity | Yes |
| Voltage Rating | 600V |
| Short Circuit Release (N-release) | 82A |
| Terminals | Screw |
| Degree of Protection | IP20 |
| Mounting | 35mm DIN Rail |
Applications / Use Case
This Siemens 3RV2011-1GA10 is commonly used in industrial automation and production line systems worldwide. Its robust design and integrated protection features make it perfect for safeguarding conveyor belts, packaging machines, control panels, and machine tools. The combination of overload, short-circuit, and phase loss protection in a single compact unit simplifies panel design and reduces the need for multiple discrete components, saving space and installation time.
