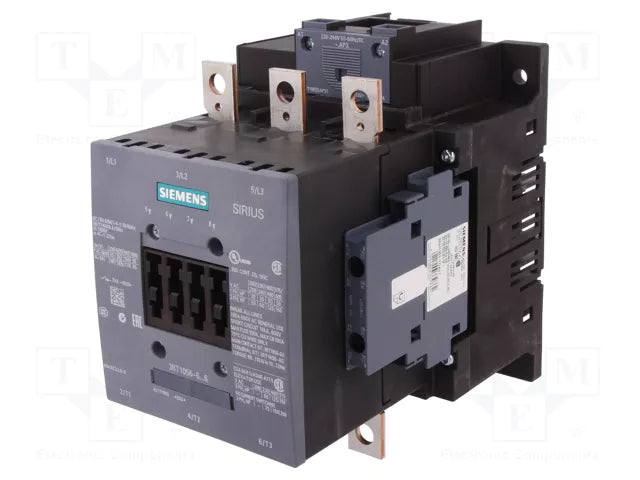

Buy genuine Siemens Sirius 3RT1056-6AP36 online
The Siemens Sirius 3RT1056-6AP36 is a high-performance 3-pole power contactor designed for industrial automation and motor control applications. Renowned for its robust construction and reliable operation, this contactor is ideal for switching and controlling three-phase electric motors up to 90 kW at 400V. It features a 220-240V AC/DC coil, combined with auxiliary contacts (2NO + 2NC) for enhanced control flexibility. The Siemens Sirius 3RT1056-6AP36 meets IEC 60947-4-1 standards, ensuring compatibility and safety in diverse electrical environments. With a mechanical service life of up to 10 million switching cycles, it guarantees durability and consistent performance in demanding industrial settings.
Key Features of Siemens Sirius 3RT1056-6AP36
- Rated for 90 kW power at 400V AC, suitable for heavy-duty motor control
- Three-pole design with 2 Normally Open (NO) and 2 Normally Closed (NC) auxiliary contacts
- Coil voltage: 220-240V AC/DC, compatible with AC and DC operations
- Size S6 contactor with conventional screw terminal bar connections
- High insulation voltage of 1000V and surge voltage resistance of 8 kV
- Protection class IP00 on front and terminals
- Mechanical durability up to 10 million operating cycles
- Operating temperature range from -25°C to +60°C for versatile use
- Complies with IEC 60947-4-1 standards for industrial applications
Review Siemens Sirius 3RT1056-6AP36 specifications
| Parameter | Value |
|---|---|
| Rated Operational Power | 90 kW at 400V AC |
| Coil Voltage | 220-240V AC/DC |
| Number of Poles | 3 |
| Auxiliary Contacts | 2 NO + 2 NC |
| Insulation Voltage | 1000 V |
| Surge Voltage Resistance | 8 kV |
| Mechanical Operating Cycles | 10,000,000 |
| Operating Temperature | -25°C to +60°C |
| Protection Class | IP00 (front and terminals) |
Applications / Use Case
This Siemens Sirius 3RT1056-6AP36 contactor is commonly used in industrial automation and machine automation worldwide. It is essential for controlling electric motors in production line systems, packaging and conveyor operations, and factory control panels. Thanks to its high power rating and durable design, it is suitable for heavy-duty motor starters, industrial machinery, and process control equipment, delivering reliable and efficient switching with long service life.
