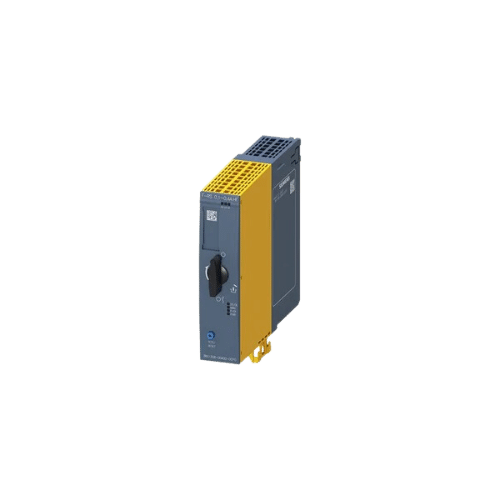

Overview: Siemens 3RK1308-0DC00-0CP0 Motor Starter

The Siemens 3RK1308-0DC00-0CP0 is a fail-safe direct-on-line motor starter from the ET 200SP series designed for motor power up to 1.1 kW at 400 V. It features a rated current adjustment range from 0.9 A to 3 A and offers high functionality with electronic switching and electronic overload protection. The starter is compact with dimensions 30 x 142 x 150 mm and has an IP20 protection class, suitable for industrial motor control applications demanding reliability and energy efficiency.

Key Features

  • Rated Motor Power: Up to 1.1 kW at 400 V suitable for small to medium motors.
  • Current Range: Adjustable from 0.9 A to 3 A for flexible motor protection.
  • Electronic Switching: Provides smooth and precise switching operations.
  • Electronic Overload Protection: Protects motor from thermal overloads with adjustable tripping.
  • Fail-Safe Design: Enhances safety and reliability in critical motor applications.
  • Compact Size: Saves panel space with a compact form factor.
  • Operating Temperature: -25 to +60 °C for use in various environments.
  • Protection Class: IP20 for protection against solid objects and limited ingress.

Technical Specs

Specification Details
Type Fail-safe Direct-On-Line Motor Starter
Motor Power Rating Up to 1.1 kW at 400 V
Current Adjustment Range 0.9 - 3 A
Dimensions (WxHxD) 30 mm x 142 mm x 150 mm
Operating Temperature -25 to +60 °C
Protection Class IP20
Power Supply Frequency 50 - 60 Hz
Short-Circuit Breaking Capacity 55 kA at 400V / 500V
Trip Class Class 5 and 10 adjustable

Applications / Use Case

This fail-safe motor starter is suited for industrial control systems requiring reliable motor start and protection, energy-efficient operation with electronic overload, and compact design for panel integration.
