3LD2504-1TL53
3LD2504-1TL53
Manufacturer: SIEMENS
Condition: New and Unused, Surplus.

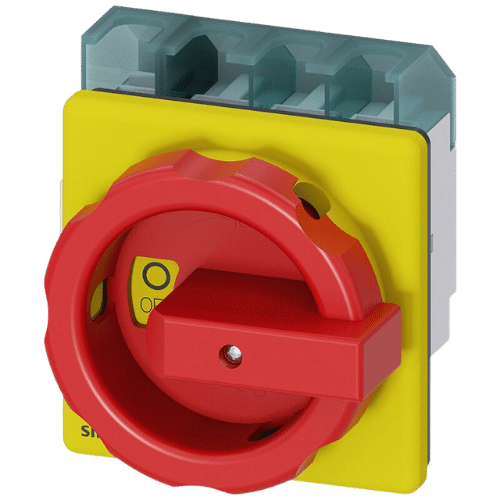

Overview: Siemens 3LD2504-1TL53 SENTRON Switch Disconnector
The Siemens 3LD2504-1TL53 is a SENTRON switch disconnector designed for emergency switch-off and circuit isolation in industrial environments. It features a 4-pole design with a continuous current rating of 63 A. The switch disconnector handles operating power up to 22 kW at 400 V AC and provides safe, reliable disconnecting capabilities with a front-mounted rotary operating mechanism and a red/yellow emergency-stop handle for clear visibility.
Key Features
- Current Rating: 63 A continuous current for medium power electrical circuits.
- Operating Power: Supports up to 22 kW at 400 V AC, suitable for motor load applications.
- Poles: 4-pole switch for comprehensive circuit disconnection.
- Emergency Stop: Front-mounted rotary mechanism with red/yellow color for emergency functions.
- Protection Class: IP65 rated front panel protection, suitable for harsh industrial conditions.
- Molded-Plastic Enclosure: Durable housing with metric threaded joint.
- Compact Size: Compact dimensions enable easy installation into control panels.
- Standards: Designed to comply with international electrical safety standards.
Technical Specs
| Specification | Details |
|---|---|
| Type | Switch Disconnector, 4-pole |
| Rated Current (Iu) | 63 A |
| Operating Power (AC-23 A) | 22 kW at 400 V |
| Rated Voltage | 690 V AC |
| Protection Class | IP65 (front) |
| Operating Frequency | 50/60 Hz |
| Dimensions (H x W x D) | 106 mm x 90 mm x 110.5 mm |
| Weight | Approximately 1.07 kg |
Applications / Use Case
This Siemens SENTRON disconnector is ideal for emergency switch-off, safe electrical isolation, and fault protection in industrial power systems, motor control centers, and electrical panels.
