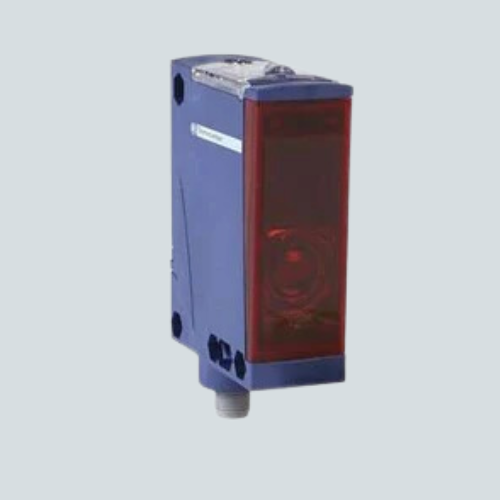

Overview of Schneider XUX0AKSAM12 Photoelectric Sensor

The Schneider XUX0AKSAM12 is a versatile multimode photoelectric sensor designed for industrial automation applications. It supports multiple detection methods including diffuse, polarized reflex, and thru-beam sensing, with a nominal sensing distance of up to 40 meters. The sensor operates on a 12 to 24 VDC power supply and features an M12 4-pin connector for easy integration.

Key Features of Schneider XUX0AKSAM12

  • Multimode Operation: Supports diffuse, polarized reflex, and thru-beam detection modes for various applications.
  • Long Sensing Range: Up to 40 meters in thru-beam mode and 15 meters in polarized reflex mode.
  • Durable Construction: PBT plastic housing with a PMMA lens suitable for industrial environments.
  • Discrete Output: Programmable normally open (NO) or normally closed (NC) solid state output.
  • Compact Design: Dimensions of 92 mm x 71 mm x 31 mm for flexible installation.
  • Protection Rating: IP65 and IP67 rating for dust and water resistance.
  • Self-Teaching Setup: Simplifies configuration for background suppression mode.
  • Status LEDs: Green for power, red for instability, and yellow for output state diagnostics.

Technical Specs of Schneider XUX0AKSAM12

Parameter Specification
Detection Methods Diffuse, polarized reflex, thru-beam, diffuse with background suppression
Nominal Sensing Distance 15 m polarized reflex, 3 m diffuse, 60 m thru-beam, 1.3 m diffuse with background suppression
Supply Voltage 12 to 24 VDC (with reverse polarity protection)
Output Solid state, 1 NO or 1 NC programmable, overload and short circuit protected (≤ 100 mA)
Connection 4-pin male M12 connector
Operating Temperature -25°C to 55°C
Dimensions (WxHxD) 31 mm x 92 mm x 71 mm
Protection Rating IP65 and IP67
Switching Frequency Up to 250 Hz

Applications / Use Case

The Schneider XUX0AKSAM12 is ideal for diverse manufacturing and material handling applications including packaging, conveyor monitoring, and machine presence detection. Its multimode sensing and rugged design make it suitable for demanding industrial environments.

Schneider Electric provides industry-standard certifications and warranties to assure quality and reliability.
