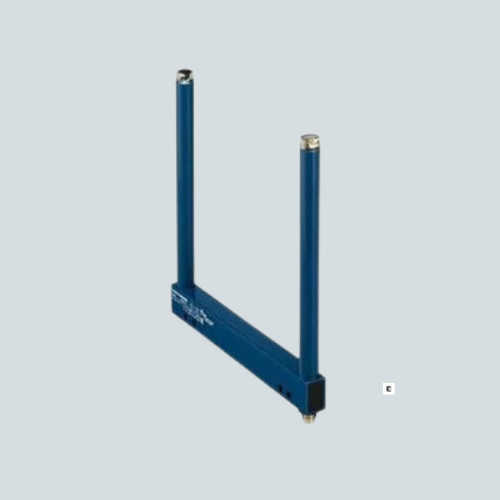

Overview of Schneider XUVR1212PANM8 Photoelectric Sensor

The Schneider XUVR1212PANM8 is a through-beam photoelectric sensor designed for precision object detection in industrial environments. With a nominal sensing distance of 120 mm, it offers high accuracy for small conveyor and automation tasks. It operates on a 12 to 24 VDC power supply with reverse polarity protection and features a compact M8 connector for easy integration.

Key Features of Schneider XUVR1212PANM8

  • Thru-beam Detection: Reliable sensing method for clear object detection.
  • Compact Design: Small footprint with 120x120 mm sensing area.
  • Durable Construction: Metal and plastic housing with IP65/IP67 protection rating.
  • PNP Output: Solid state normally open output for efficient control integration.
  • High Switching Frequency: Up to 4000 Hz for fast response applications.
  • LED Indicators: Yellow LED signals output status for easy diagnostics.
  • Vibration and Shock Resistant: Meets IEC standards for durability in industrial settings.

Technical Specs of Schneider XUVR1212PANM8

Parameter Specification
Sensing Distance 120 mm (4.72 in)
Supply Voltage 12 to 24 VDC (10 to 30 VDC limits)
Output Type PNP, 1 NO (Normally Open)
Housing Material Painted aluminum and polyamide/glass
Connection 3-wire, M8 connector, 3 pins
Switching Frequency 4000 Hz
Operating Temperature -10°C to 60°C (14°F to 140°F)
Protection Rating IP65/IP67
Current Consumption < 20 mA (no load)
Weight 0.19 kg (0.42 lb)

Applications / Use Case

The Schneider XUVR1212PANM8 is ideal for small and medium machine automation, packaging, conveyor systems, and presence detection in industrial environments. It offers precise detection with high reliability under demanding conditions.

Schneider Electric provides certification and warranty for dependable performance in safety and automation systems.
