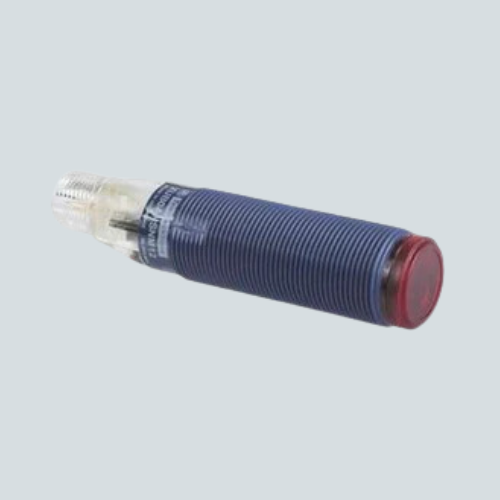

Overview of Schneider XUB1ANANM12 Photoelectric Sensor

The Schneider XUB1ANANM12 is a retro-reflective photoelectric sensor designed for industrial automation applications. It features an M18 cylindrical housing and operates on a 12 to 24 VDC supply voltage with reverse polarity protection. The sensor provides a nominal sensing distance of 4 meters with the required reflector and ensures reliable object detection with fast response times.

Key Features of Schneider XUB1ANANM12

  • Retro-reflective Sensing: Uses a reflector (like XUZC50) for non-contact object detection.
  • M18 Plastic Housing: Durable PBT material suitable for industrial use.
  • Discrete NPN Output: Single normally open (NO) output for control systems integration.
  • Fast Switching Frequency: Up to 500 Hz for rapid detection cycles.
  • IP65/IP67 Enclosure Ratings: Protection against dust and water for harsh environments.
  • Yellow LED for Output Status: Simplifies troubleshooting and sensor monitoring.
  • Wide Operating Temperature Range: -25°C to 55°C for varied industrial settings.

Technical Specs of Schneider XUB1ANANM12

Parameter Specification
Sensing Distance 4 m with reflector XUZC50
Supply Voltage 12 to 24 VDC (10 to 36 VDC limits)
Output Type NPN, 1 NO (Normally Open)
Housing Material PBT Plastic
Connection 4-pin M12 male connector
Switching Frequency 500 Hz
Protection Rating IP65/IP67
Operating Temperature -25°C to 55°C
Dimensions Ø18 mm diameter, 62 mm length

Applications / Use Case

The XUB1ANANM12 sensor is widely used in automated production lines, packaging systems, and conveyor monitoring where precise object detection with reflector-based sensing is required. It offers durable and reliable performance in industrial environments.

Schneider Electric provides warranty and global certifications ensuring product quality and reliability.
