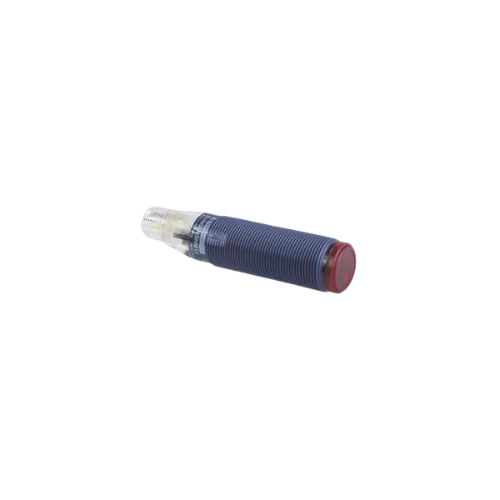

Overview of Schneider XUB0APSNM12 Photoelectric Sensor

The Schneider XUB0APSNM12 is a general-purpose multimode photoelectric sensor designed for industrial automation. It offers multiple detection modes including red polarized reflex, infrared thru-beam, diffuse with background suppression, and diffuse modes. The sensor features a compact M18 cylindrical housing and operates on a 12 to 24 VDC power supply.

Key Features of Schneider XUB0APSNM12

  • Multimode Detection: Supports thru-beam, polarized reflex, diffuse, and diffuse with background suppression.
  • Long Sensing Range: Up to 20 meters with thru-beam setup and 0.12 meters with diffuse background suppression.
  • Robust Design: Cylindrical M18 PBT plastic housing with PMMA lens for durability.
  • Solid State Output: PNP discrete output, programmable as normally open or normally closed.
  • IP67, IP69K Rated: Resists dust, water, and high-pressure cleaning.
  • Status LEDs: Green (power), yellow (output state), and red (instability) for easy diagnostics.
  • Vibration and Shock Resistant: Meets IEC standards for industrial reliability.

Technical Specs of Schneider XUB0APSNM12

Parameter Specification
Sensing Range 0.12 m diffuse with background suppression, 0.4 m diffuse, 4.5 m polarized reflex, 20 m thru-beam
Supply Voltage 12-24 VDC (10-36 VDC limits)
Output Type PNP, 1 NO or 1 NC programmable
Housing Material PBT plastic
Lens Material PMMA
Connection M12 4-pin male connector
Protection Rating IP65, IP67, IP69K
Operating Temp -25°C to 55°C
Dimensions Ø18 mm diameter, 78 mm length
Switching Frequency 250 Hz
Current Consumption 35 mA (no load)

Applications / Use Case

The Schneider XUB0APSNM12 sensor is ideal for object detection in manufacturing, packaging, automotive, and conveyor systems. It is designed to work reliably in harsh industrial environments requiring versatile sensing modes and high protection ratings.

Schneider Electric backs this sensor with 18 months warranty and compliance with standards such as UL, CE, and CSA.
