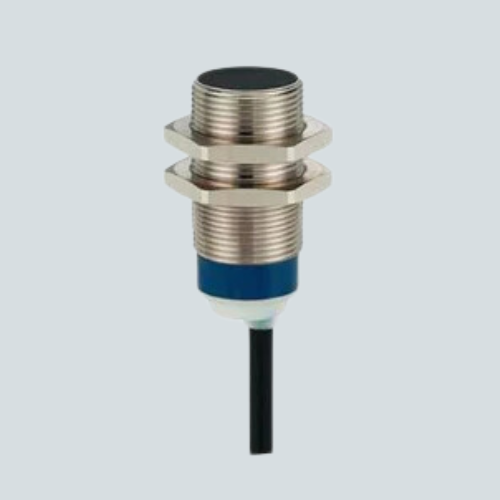

Overview of Schneider XS518B1PBL2 Inductive Proximity Sensor
The Schneider XS518B1PBL2 is an M18 cylindrical inductive proximity sensor from the OsiSense XS5 series. It features a nickel-plated brass body with a nominal sensing distance of 5 mm. This flush mount sensor operates on 12 to 24 V DC and offers a discrete PNP output, delivering reliable metal detection in industrial automation environments.
Key Features of Schneider XS518B1PBL2
- Flush mountable M18 cylindrical design with 5 mm sensing distance.
- Robust nickel-plated brass housing suitable for harsh industrial conditions.
- 3-wire PNP discrete output designed for easy wiring and integration.
- 12 to 24 V DC supply voltage with reverse polarity protection.
- Rated IP68 and IP69K for superior dust and water resistance.
- Yellow LED indicator for output status monitoring.
- Operating temperature range from -25 to 70 °C for versatile industrial applications.
- Certified to meet UL, CSA, and CE standards for safety and quality.
Technical Specs of Schneider XS518B1PBL2
| Parameter | Value |
|---|---|
| Type | Inductive proximity sensor |
| Series | OsiSense XS5 |
| Body Material | Nickel-plated brass |
| Sensing Distance | 5 mm |
| Output Type | PNP, 3-wire discrete |
| Supply Voltage | 12 to 24 V DC |
| Connection | 2 m cable |
| Ingress Protection | IP68, IP69K |
| Operating Temperature | -25 to 70 °C |
| Length | 39 mm |
| Diameter | M18 x 1 |
Applications / Use Case
The Schneider XS518B1PBL2 is ideal for metal detection, position sensing, and control in industrial automation, machine building, and process control applications.
Schneider Electric products meet stringent industrial standards, ensuring reliability and durability in demanding environments.
-
