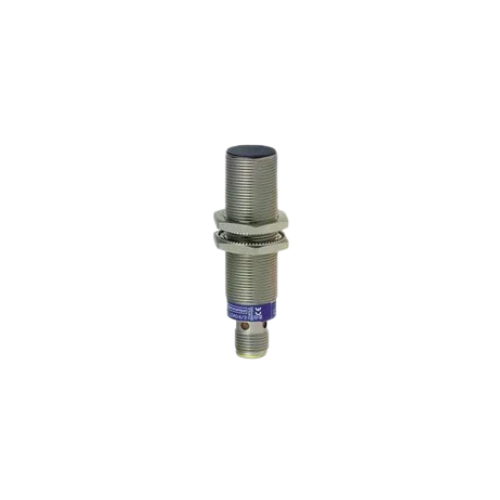

Overview of Schneider XS1M18PC410D Inductive Proximity Sensor
The Schneider XS1M18PC410D is a cylindrical M18 inductive proximity sensor from the OsiSense XS1 series. It features a nickel-plated brass body and a nominal sensing distance of 5 mm. Operating on 12 to 24 V DC, this sensor uses a 4-wire PNP output and is designed for reliable metal detection in industrial automation applications.
Key Features of Schneider XS1M18PC410D
- Compact cylindrical design with durable nickel-plated brass housing.
- Flush mountable sensing face with a 5 mm nominal sensing distance.
- 4-wire PNP discrete output for versatile connection options.
- LED output indicator for easy status monitoring.
- Wide supply voltage range of 9 to 36 V DC with reverse polarity protection.
- High IP65, IP67, and IP69K ingress protection ratings for harsh environments.
- Operating temperature from -25 to 70 °C for diverse industrial applications.
- Certified for SILCL 2 and PL d safety ratings, ensuring safe operation.
Technical Specs of Schneider XS1M18PC410D
| Parameter | Value |
|---|---|
| Sensor Type | Inductive proximity sensor |
| Series | OsiSense XS1 |
| Body Material | Nickel-plated brass |
| Sensing Distance | 5 mm |
| Output Type | PNP, 4-wire |
| Supply Voltage | 9 to 36 V DC |
| Connection | 4-pin M12 male connector |
| Ingress Protection | IP65, IP67, IP69K |
| Operating Temperature | -25 to 70 °C |
| Safety Level | SILCL 2, PL d |
| Dimensions | 72 mm length, 18 mm diameter |
Applications / Use Case
The Schneider XS1M18PC410D is ideal for metal object detection, positioning, and automation control in manufacturing, packaging, and processing industries.
Schneider Electric certifies this sensor for high safety standards and industrial durability.
-
