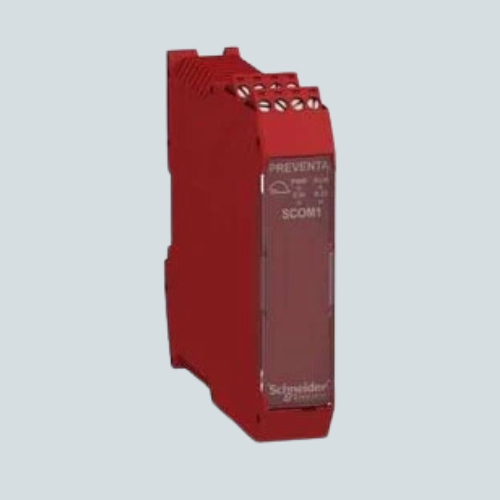

Overview of Schneider XPSMCMCO0000S1 Expansion Module
The Schneider XPSMCMCO0000S1 is a safe communications expansion module designed for Modicon MCM safety controllers. It operates at 24 V DC with a power rating of 3 W. This module supports RS485 communication and provides a single channel for transmitting and receiving safety data, enabling decentralized I/O islands for industrial safety applications.
Key Features of Schneider XPSMCMCO0000S1
- Supports RS485 safe communication for reliable data exchange in safety systems.
- Single channel transmitter/receiver for efficient expansion of safety networks.
- Designed for DIN rail mounting, fitting standard industrial control panels.
- Compact dimensions of 0.89 in W x 4.51 in D x 3.90 in H to save panel space.
- Screw terminal connections ensure secure and easy wiring.
- Operating temperature range from 14 to 131 °F (−10 to 55 °C).
- Supports modular expansion up to six decentralized I/O islands.
Technical Specs of Schneider XPSMCMCO0000S1
| Parameter | Value |
|---|---|
| Type | Safe communications expansion module |
| Voltage Supply | 24 V DC |
| Power Rating | 3 W |
| Communication Protocol | RS485 Safe Communication |
| Mounting | DIN rail |
| Terminal Type | Screw terminals |
| Dimensions (W x D x H) | 0.89 x 4.51 x 3.90 inches (22.5 x 114.5 x 99 mm) |
| Operating Temperature | 14 to 131 °F (-10 to 55 °C) |
| Protection Rating | IP20 |
Applications / Use Case
The Schneider XPSMCMCO0000S1 module is used in safety controllers to expand communication capabilities for decentralized I/O in industrial automation, enhancing safety system scalability and flexibility.
Schneider Electric provides this module with proven reliability, meeting industrial safety and communication standards.
-
