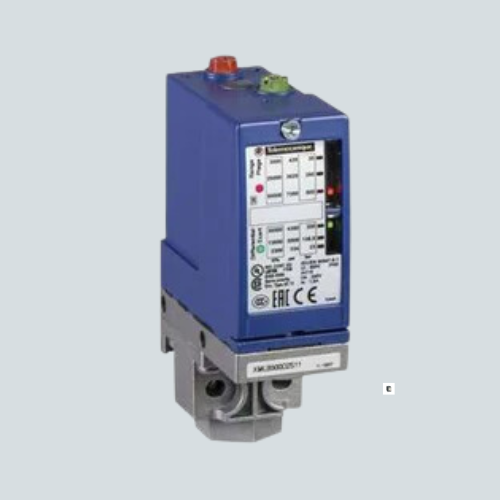

Overview of Schneider XMLB300D2S12 Pressure Switch

The Schneider XMLB300D2S12 is an electromechanical pressure sensor from the OsiSense XM range. Designed for hydraulic oil applications, the switch operates up to 300 bar (4351 psi) and features an adjustable switching pressure range. With a single changeover contact (1 C/O), it provides precise pressure regulation between two thresholds.

Key Features of Schneider XMLB300D2S12

  • Adjustable differential pressure switch with regulation between two thresholds.
  • Rated for hydraulic oil with temperature range of 0 to 160 °C (32 to 320 °F).
  • Electromechanical contact with snap-action and silver contact materials for long life.
  • Robust zinc alloy enclosure with brass and steel materials in contact with fluid.
  • IP66 rated enclosure resistant to dust and water ingress.
  • Wide range of electrical ratings: up to 3 A AC-15 at 120 V and 1.5 A AC-15 at 240 V.
  • Adjustable switching points for rising and falling pressures to suit various control needs.
  • High mechanical durability rated for 3 million cycles.

Technical Specs of Schneider XMLB300D2S12

Parameter Value
Type Electromechanical pressure switch
Range 22 to 300 bar (319 to 4351 psi) adjustable
Contact Configuration 1 C/O (changeover)
Fluid Compatibility Hydraulic oil (32 to 320 °F)
Enclosure Material Zinc alloy
Contact Material Silver alloy
Protection Rating IP66
Electrical Ratings 3 A AC-15 (120 V), 1.5 A AC-15 (240 V)
Mechanical Durability 3,000,000 cycles
Connections Screw-clamp terminals & M20 cable gland
Dimensions 113 x 35 x 75 mm (HxWxD)
Operating Temperature -25 to 70 °C (-13 to 158 °F)

Applications / Use Case

The Schneider XMLB300D2S12 pressure switch is used for hydraulic system pressure monitoring and control, ensuring safe and reliable operation in industrial machinery and fluid power systems.

Schneider Electric guarantees product quality and compliance with IEC, UL, and CSA standards for industrial safety and performance.
